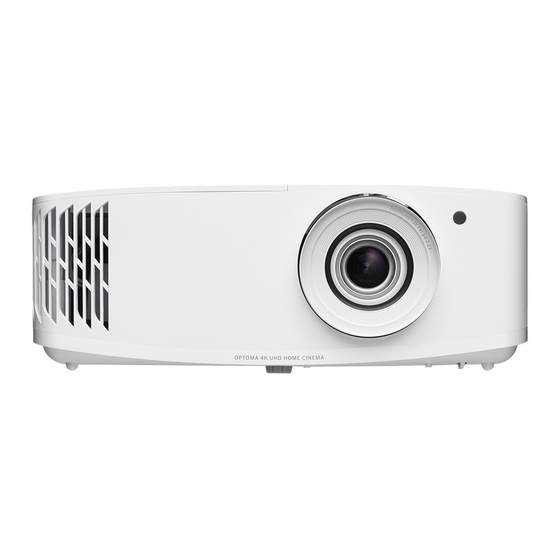

Summary of Contents for Optoma UHD35

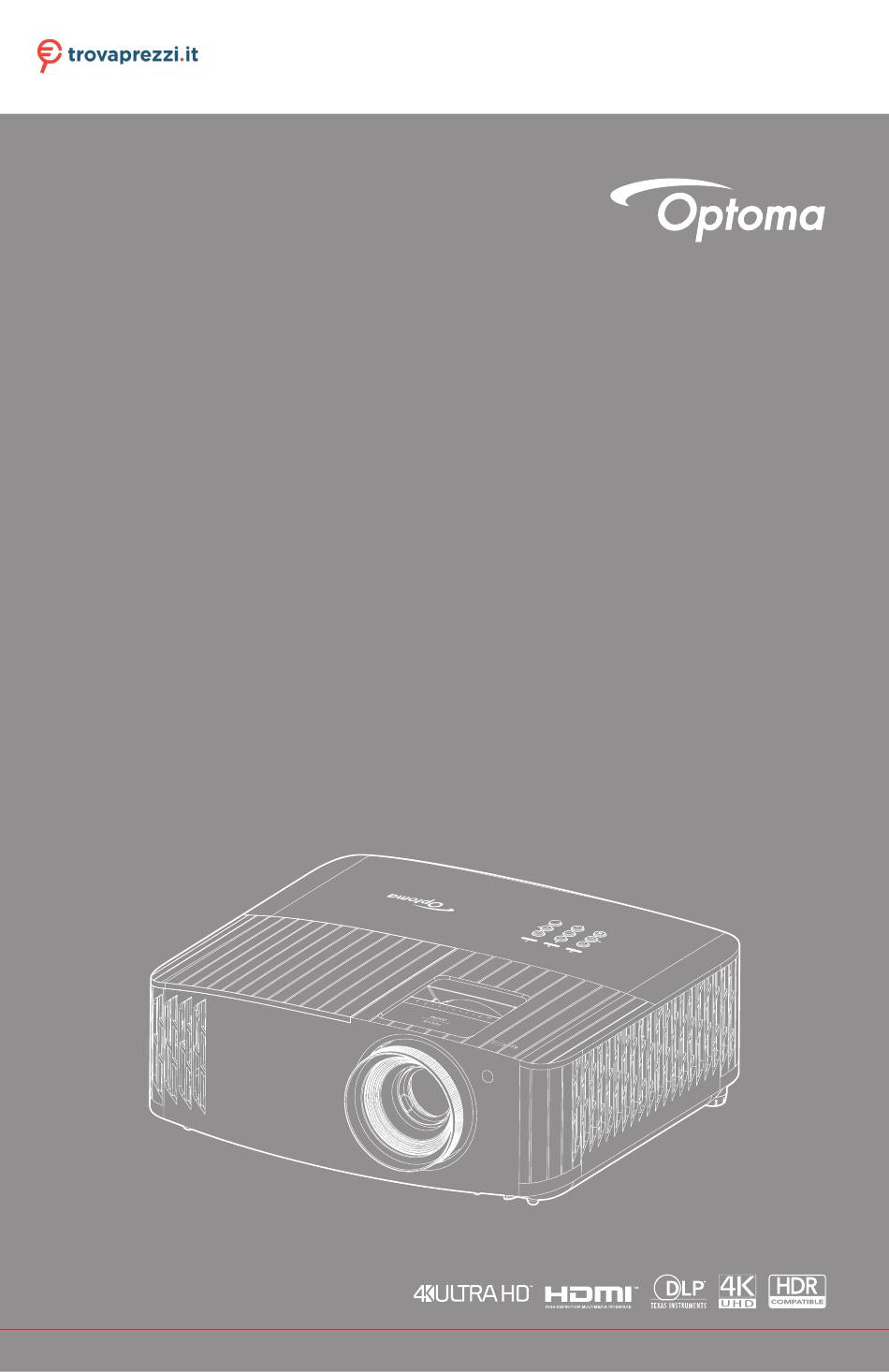

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Optoma UHD35 cerca il tuo prodotto tra le migliori offerte di Videoproiezione Projector ® User manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY ....................4 Important Safety Instruction....................... 4 Cleaning the Lens........................5 3D Safety Information ........................ 6 Copyright ........................... 6 Disclaimer ..........................7 Trademark Recognition ......................7 FCC ............................7 Declaration of Conformity for EU countries ................8 WEEE ............................ - Page 3 Compatible resolutions ......................42 Image size and projection distance ..................47 Projector dimensions and ceiling mount installation ..............48 IR remote codes ........................49 Troubleshooting ........................51 Warning indicators ........................52 Specifications ........................... 55 Optoma global offices ....................... 56 English...
-
Page 4: Safety
SAFETY The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Cleaning The Lens
‡ Do not attempt to service the unit yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma before you send the unit for repair. ‡ See projector enclosure for safety related markings. -
Page 6: 3D Safety Information
Warning: Do not use a spray containing flammable gases to remove dust or dirt from the lens. This may cause a fire due to excessive heat inside the projector. Warning: Do not clean the lens if the projector is warming up as this may cause the lens’ surface film to peel off. -
Page 7: Disclaimer
Disclaimer The information in this document is subject to change without notice. The manufacturer makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. The manufacturer reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of the manufacturer to notify any person of such revision or changes. -
Page 8: Declaration Of Conformity For Eu Countries
Noticee: Canadian users This Class B digital apparatus complies with Canadian ICES-003. Remarque à l'intention des utilisateurs canadiens Cet appareil numerique de la classe B est conforme a la norme NMB-003 du Canada. Declaration of Conformity for EU countries ‡ EMC Directive 2014/30/EC (including amendments) ‡... -
Page 9: Introduction
‡ The actual remote control may vary depending on the region. ‡ The remote control is shipped with the batteries. ‡ * For warranty Information, please visit https://www.optoma.com/support/download. Optional accessories Lens cap HDMI cable Notee: Optional accessories vary depending on model, specification and region. -
Page 10: Product Overview
INTRODUCTION Product Overview Minimum 100mm Minimum Minimum 100mm 100mm Minimum Minimum 300mm 300mm Minimum 100mm Notee: ‡ Do not block projector intake and exhaust vents. ‡ When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents. -
Page 11: Connections
INTRODUCTION Connections Item Item USB Power OUT (5V 1.5A) 12V Out Connector Connector VGA In Connector Audio In Connector RS-232 Connector Audio Out Connector HDMI 1 Connector (4K 60Hz) 10. Security Bar HDMI 2 Connector (4K 60Hz) 11. Kensington Lock Port S/PDIF Connector 12. -
Page 12: Keypad
INTRODUCTION Keypad Item Item On/Standby LED IR Receiver Lamp LED Four Directional Select Keys Temp LED Menu Information 10. Source Enter 11. Power Re-Sync 12. Keystone Correction English... -
Page 13: Remote Control
INTRODUCTION Remote control User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Item Item Power On 15. User 3 User 2 16. Contrast User 1 17. Display Mode Brightness 18. -
Page 14: Setup And Installation
Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector lamp or the projector itself. For none standard installation advise please contact Optoma. English... -
Page 15: Connecting Sources To The Projector
SETUP AND INSTALLATION Connecting sources to the projector Item Item Item VGA In Cable Audio In Cable HDMI Dongle RCA Component Cable Audio Out Cable 10. USB Power Cable RS-232 Cable S/PDIF Out Cable 11. Power Cord 12V DC Jack HDMI Cable Notee: To ensure the best image quality and avoid connection errors, we recommend the use of High Speed or... -
Page 16: Adjusting The Projector Image
SETUP AND INSTALLATION Adjusting the projector image Image height The projector is equipped with elevator feet for adjusting the image height. Locate the adjustable foot you wish to adjust on the underside of the projector. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector. Tilt-Adjustment Feet Tilt-Adjustment Ring Zoom and focus... -
Page 17: Remote Setup
SETUP AND INSTALLATION Remote setup Installing / replacing the batteries Two AAA size batteries are supplied for the remote control. Remove the battery cover on the back of the remote control. Insert AAA batteries in the battery compartment as illustrated. Replace back cover on remote control. -
Page 18: Effective Range
SETUP AND INSTALLATION Effective range Infra-Red (IR) remote control sensor is located on top of the projector. Ensure to hold the remote control at an angle within 30° perpendicular to the projector’s IR remote control sensors to function correctly. The distance between the remote control and the sensor should not be longer than 7 meters (~22 feet). -
Page 19: Using The Projector
USING THE PROJECTOR Powering on / off the projector User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Menu Mute Sleep Timer Volume Volume Source Re-sync HDMI1 HDMI2... -
Page 20: Powering Off
USING THE PROJECTOR Powering off Turn off the projector by pressing the “ ” button on the projector keypad or the “ ” button on the remote control. The following message will be displayed: Power Off Power Off? Press power key again. Press the “... -
Page 21: Selecting An Input Source
USING THE PROJECTOR Selecting an input source User2 User1 User3 Contrast Brightness Mode Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, Aspect ratio etc. The projector will automatically detect the source. If multiple sources are connected, press the “ ”... -
Page 22: Menu Navigation And Features
USING THE PROJECTOR Menu navigation and features The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source. To open the OSD menu, press on the remote control or the projector keypad. -
Page 23: Osd Menu Tree
USING THE PROJECTOR OSD Menu tree Notee: ‡ The design function depends on model and region. ‡ The functions are subject to the actual product, the changes will not be notified. Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu... - Page 24 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Film Video Graphics Standard(2.2) Gamma BrilliantColor 1 ~ 10 Color Temperature Native R [Default] Color Color Matching Display Image Settings -50 ~ 50 [Default: 0] Saturation -50 ~ 50 [Default: 0] Gain...
- Page 25 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Automatic On [Default] -10 ~ 10 (depends on signal) Frequency [Default: 0] 0 ~ 31 (depends on signal) Phase Signal [Default: 0] -5 ~ 5 (depends on signal) H.
- Page 26 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Front [Default] Rear Projection Ceiling-top Rear-top Lamp Reminder On [Default] Lamp Settings Cancel [Default] Lamp Reset Filter Usage (read only) Hours Optional Filter Installed 300hr Filter Settings...
- Page 27 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu On [Default] IR Function Test Pattern Brightness Contrast Sleep Timer [Default] User1 Color Matching Color Temp Gamma Projection Lamp Settings Test Pattern Brightness Remote Contrast Settings...
- Page 28 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Top Left Top Right Menu Location Center [Default] Bottom Left Menu Settings Bottom Right Menu Timer 5sec 10sec [Default] Off [Default] Auto Source HDMI 1 Input Source HDMI 2...
- Page 29 USING THE PROJECTOR Main Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values Menu Projector ID 00 ~ 99 Filter Usage Hours Brightness Info Mode System FW Version English...
-
Page 30: Display Menu
USING THE PROJECTOR Display menu Image settings menu Display Mode There are many factory presets optimized for various types of images. ‡ Cinema: Provides the best colors for watching movies. HDR: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest ‡... - Page 31 USING THE PROJECTOR ‡ Filme: Choose this mode for improved detail and image sharpness. Detaile: The signal comes from OETF conversion to achieve the best color matching. ‡ HLG Picture Mode ‡ Brighte: Choose this mode for brighter more saturated colors. ‡...
- Page 32 USING THE PROJECTOR ± Hue: Adjust the color balance of red and green. ± Saturation: Adjust a video image from black and white to fully saturated color. ± Gain: Adjust the image brightness. ± Reset: Return the factory default settings for color matching. ±...
-
Page 33: Aspect Ratio Menu
USING THE PROJECTOR Enhanced Gaming menu Enable this feature to reduce response times (input latency) during gaming to 4.5ms*. Notee: ‡ *Only for 1080p 240Hz signals. ‡ The input lag by signals is described in the following table: ‡ The values in the table can vary slightly. 4K 60Hz 1080P 60Hz 1080p 120Hz... - Page 34 USING THE PROJECTOR 4K UHD scaling table: 16 e: 9 screen 480i/p 576i/p 720p 1080i/p 2160p Scale to 2880 x 2160. 16x9 Scale to 3840 x 2160. Get the central 3840 x 1620 image, and then scale to 3840 x 2160 for display. Native mode 1:1 mapping centered.
-
Page 35: Geometric Correction Menu
USING THE PROJECTOR Geometric Correction menu ‡ Four Cornerse: Allow the image to be squeezed to fit an area defined by moving each of the four corners’ x and y position. Notee: While adjusting the Four Corners, the Zoom, Aspect Ratio, and Image Shift menus are disabled. -
Page 36: Setup Menu
USING THE PROJECTOR Setup menu Projection Select the preferred projection between front, rear, ceiling-top, and rear-top. Lamp Settings menu Lamp Reminder Choose this function to show or to hide the warning message when the changing lamp message is displayed. The message will appear 30 hours before suggested replacement of lamp. - Page 37 USING THE PROJECTOR Security menu Security Enable this function to prompt for a password before using the projector. Off: Choose “Off” to be able to switch on the projector without password verification. ‡ ‡ One: Choose “On” to use security verification when the turning on the projector. Security Timer Can be select the time (Month/Day/Hour) function to set the number of hours the projector can be used.
-
Page 38: Options Menu
USING THE PROJECTOR Options menu Language Select the multilingual OSD menu between English, German, French, Italian, Spanish, Portuguese, Simplified Chinese, Traditional Chinese, Japanese, Korean, and Russian. Menu Settings Set the menu location on the screen and configure menu timer settings. Menu Location: Select the menu location on the display screen. -
Page 39: Info Menu
USING THE PROJECTOR Info menu View the projector information as listed below: ‡ Regulatory ‡ Serial Number ‡ Source ‡ Resolution ‡ Refresh Rate ‡ Display Mode ‡ Lamp Hours ‡ Projector ID ‡ Filter Usage Hours ‡ Brightness Mode ‡... -
Page 40: Maintenance
MAINTENANCE Replacing the lamp (Maintenance personnel only) The projector automatically detects the lifespan of the light bulb and when the light bulb is at its end, a warning message will appear on the screen. Warning Lamp Warning Lamp life exceeded. When this message appears, please contact your local dealer or service center to replace the light bulb as soon as possible. - Page 41 MAINTENANCE Replacing the lamp (continued) Procedure: Switch off the power to the projector by pressing the “ ” button on the projector keypad or the “ ” button on the remote control. Allow the projector to cool down for at least 30 minutes. Disconnect the power cord.
-
Page 42: Additional Information
ADDITIONAL INFORMATION Compatible resolutions Video compatibility Signal Resolution SDTV 480i/p, 576i/p HDTV 720p (50/60Hz), 1080i (50/60Hz), 1080p (24/50/60Hz) 2160p (24/50/60Hz) Video timing in details: Signal Resolution Refresh Rate (Hz) Notes SDTV (480i) 640 x 480 SDTV (480p) 640 x 480 SDTV (576i) 720 x 576 SDTV (576p) - Page 43 ADDITIONAL INFORMATION Timing table for PC: Frequency H Refresh Rate Signal Resolution (KHz) (Hz) Video Digital Analog Note SVGA 800 x 600 35.2 56.3 √ √ 56Hz SVGA 800 x 600 37.9 60.3 √ √ 60Hz SVGA 800 x 600 46.9 √...
- Page 44 ADDITIONAL INFORMATION Timing table for MAC: Macbook Macbook Pro (Intel) Power Mac G5 Power Mac G4 Compatibility Compatibility Compatibility Compatibility Resolution Digital Analog Digital Analog Digital Analog Digital Analog 800 x 600 √ √ √ √ √ 800 x 600 √...
- Page 45 ADDITIONAL INFORMATION Notee: ‡ “ “ means the resolution is supportred, “N/A” means the resolution is not supported. √ ‡ (*1) 1920 x 1200 @ 60Hz only support RB (reduced blanking). ‡ (*2) Windows 10 standard timing. Extended Display Identification Data (EDID) tables Digital signal (HDMI 2.0): B0/Established B0/Standard...
- Page 46 ADDITIONAL INFORMATION Analog signal: B0/Standard B0/Established Timing B0/Detail Timing B1/Video Mode B1/Detail Timing Timing Analog Native resolution: 1920 x 1080 @ 60Hz 1280 x 720 @ 60Hz 1920 x 1080 @ 60Hz (default) 1366 x 768 @ 60Hz 1280 x 800 @ 60Hz 1280 x 1024 @ 60Hz 1920 x 1200 @ 60Hz 800 x 600 @ 56Hz...
-
Page 47: Image Size And Projection Distance
ADDITIONAL INFORMATION Image size and projection distance Screen Size W x H Projection Distance (D) Offset (HD) Diagonal length (inch) size (inch) (feet) of 16e:9 Screen Width Height Width Height Wide Tele Wide Tele (inch) 0.66 0.37 26.15 14.71 1.00 1.10 3.59 0.02... -
Page 48: Projector Dimensions And Ceiling Mount Installation
ADDITIONAL INFORMATION Projector dimensions and ceiling mount installation To prevent damage to your projector, please use the Optoma ceiling mount. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: ‡... -
Page 49: Ir Remote Codes
ADDITIONAL INFORMATION IR remote codes User2 User1 User3 Contrast Brightness Mode Aspect ratio Keystone Mute Sleep Timer Volume Source Re-sync Menu Volume HDMI1 HDMI2 VGA1 VGA2 Video YPbPr Customer code Key code Description format Byte 1 Byte 2 Byte 3 Byte 4 Power on Format 1... - Page 50 ADDITIONAL INFORMATION Customer code Key code Description format Byte 1 Byte 2 Byte 3 Byte 4 Mute Format 1 Momentarily turns off / on the audio. Automatically adjusts the picture (Dynamic Format 1 brightness to give optimum contrast Black) performance. Sleep timer Format 1 Sets the countdown timer interval.
-
Page 51: Troubleshooting
ADDITIONAL INFORMATION Troubleshooting If you experience a problem with your projector, please refer to the following information. If a problem persists, please contact your local reseller or service center. Image problems No image appears on-screen ‡ Ensure all the cables and power connections are correctly and securely connected as described in the "Installation"... -
Page 52: Other Problems
ADDITIONAL INFORMATION Other problems The projector stops responding to all controls ‡ If possible, turn off the projector, then unplug the power cord and wait at least 20 seconds before reconnecting power. Lamp burns out or makes a popping sound ‡... -
Page 53: Led Lightning Messages
ADDITIONAL INFORMATION LED lightning messages On/Standby LED Temp LED Lamp LED Message (Red) (Blue) (Red) (Red) Standby state Steady light (Input power cord) Flashing Power on (Warming) (0.5 sec off / 0.5 sec on) Power on and Lamp lighting Steady light Flashing (0.5 sec off / 0.5 Power off (Cooling) - Page 54 ADDITIONAL INFORMATION ‡ Lamp warning: Warning Lamp Warning Lamp life exceeded. ‡ Fan failed: Warning FAN LOCKED The projector will switch off automatically Please contact a service center for repair. ‡ Out of display range: HDMI Out Of Range ‡ Power down warning: Power Down Power Down Timer Active...
-
Page 55: Specifications
ADDITIONAL INFORMATION Specifications Optical Description - Graphic up to 2160p @ 60Hz Maximum resolution - Maximum Resolution: HDMI 2.0: 2160p @ 60Hz Lens Manual zoom and manual focus Image size (diagonal) 33” ~ 300” Projection distance 1.2 ~ 9.9m (2160P) Lens offset tolerance value 3.24mm 105% ±5% Electrical... -
Page 56: Optoma Global Offices
ADDITIONAL INFORMATION Optoma global offices For service or support, please contact your local office. Japan 47697 Westinghouse Drive, 888-289-6786 東京都足立区綾瀬3-25-18 Fremont, CA 94539, USA 510-897-8601 info@os-worldwide.com 株式会社オーエス www.optomausa.com services@optoma.com 0120-380-495 www.os-worldwide.com コンタクトセンター: Canada Taiwan 47697 Westinghouse Drive, 888-289-6786 12F., No.213, Sec. 3, Beixin Rd.,... - Page 57 www.optoma.com...
