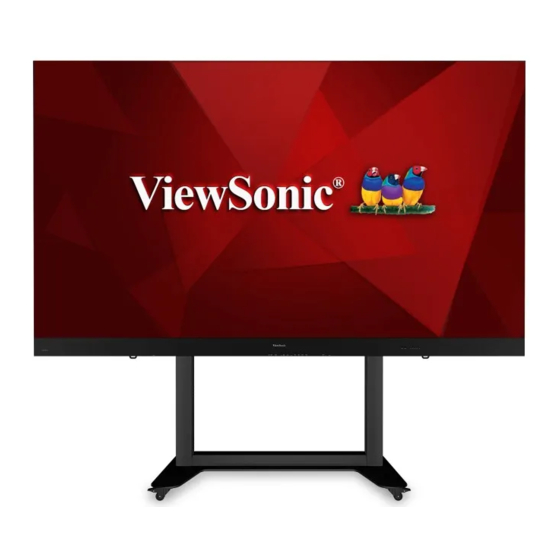

- Page 1 LDS135-153 All-in-One Direct View LED Display Solution kit Quick Start Guide 快速入門指南 Guide de démarrage rapide Schnellstartanleitung Guía rápida de inicio...
-
Page 2: Fcc Compliance Statement
EU of the European Parliament and the Council on restriction of the use of certain hazardous substances in electrical and electronic equipment (RoHS2 Directive) and is deemed to comply with the maximum concentration values issued by the European Technical Adaptation Committee (TAC). ViewSonic Europe Limited Haaksbergweg 75 1101 BR Amsterdam Netherlands +31 (0) 650608655 EPREL@viewsoniceurope.com... -
Page 3: Package Contents
Package Contents Item Quantity Note LED Display with Motorized Trolley Cart LDS135 Series All-in-One Direct View LED Display Quick Start Guide 快速安装说明 快速入門指南 Guide de démarrage rapide Schnellstartanleitung Quick Start Guía rápida de inicio Hızlı Başlangıç Kılavuzu Aan de slag краткое... - Page 4 Item Quantity Note T-Type Wrench NOTE: • This product is packed in an air transport box. • Due to the size and weight, it is recommended that two or more people handle it.
- Page 5 Physical Dimensions for LDS135 Series NOTE: Dimensions are in millimeters (mm). 2056 2056...
-
Page 6: Product Overview
Product Overview Front Panel Power Switch Power Button I/O Control Panel and indicator Rear Panel Control Panel for Motorized Trolley Cart... - Page 7 Control Panel for Motorized Trolley Cart Status/information display window Preset height function key 1/2/3 keys Preset lifting height level; Manual lifting height key 1. Instructions on Preset Lifting Height • Initial preset lifting height: Three groups of preset data. The 1/2/3 keys ( correspond to 0 cm / 25 cm / 65 cm height respectively.
- Page 8 2. How to Use Preset Height At any height (unavailable under the reset and error status), keys 1/2/3 may be used to quickly reach the preset height. If the current height has reached such preset height, no actions will be performed. 3.
- Page 9 Schematic Diagram of Components Back Cover of the Flight Case Movable Plate LED Display with Motorized Trolley Cart Front Cover Bottom Plate of the Flight Case of the Flight Case I. Handling and Moving Flight Cases Note: During moving, handling, placing and transporting of flight cases, always keep the specified position up, no reversing, in order to prevent bumping and damage to the structure of the equipment and the display components.
- Page 10 II. Unpacking Operation...
- Page 11 III. Packing and Handling Operation...
-
Page 12: Specifications
Specifications Item Category Specifications Type Direct View LED Display Size 135” 3,000 mm (H) x 1,687.5 mm(V) Display Area 118.11" x 66.44" LED Screen Pixel Pitch 1.56 mm (GOB) Resolution FHD, 1920 x 1080 Refresh Rate up to 3840Hz Contrast Ratio 6000:1 (Typical) Brightness 100-600 cd/m2... - Page 13 Item Category Specifications 257 kg Weight Physical 566.59 lbs NOTE: Product specifications are subject to change without notice. LDS135-153_QSG_1a_20240412...
