Summary of Contents for dibea G26

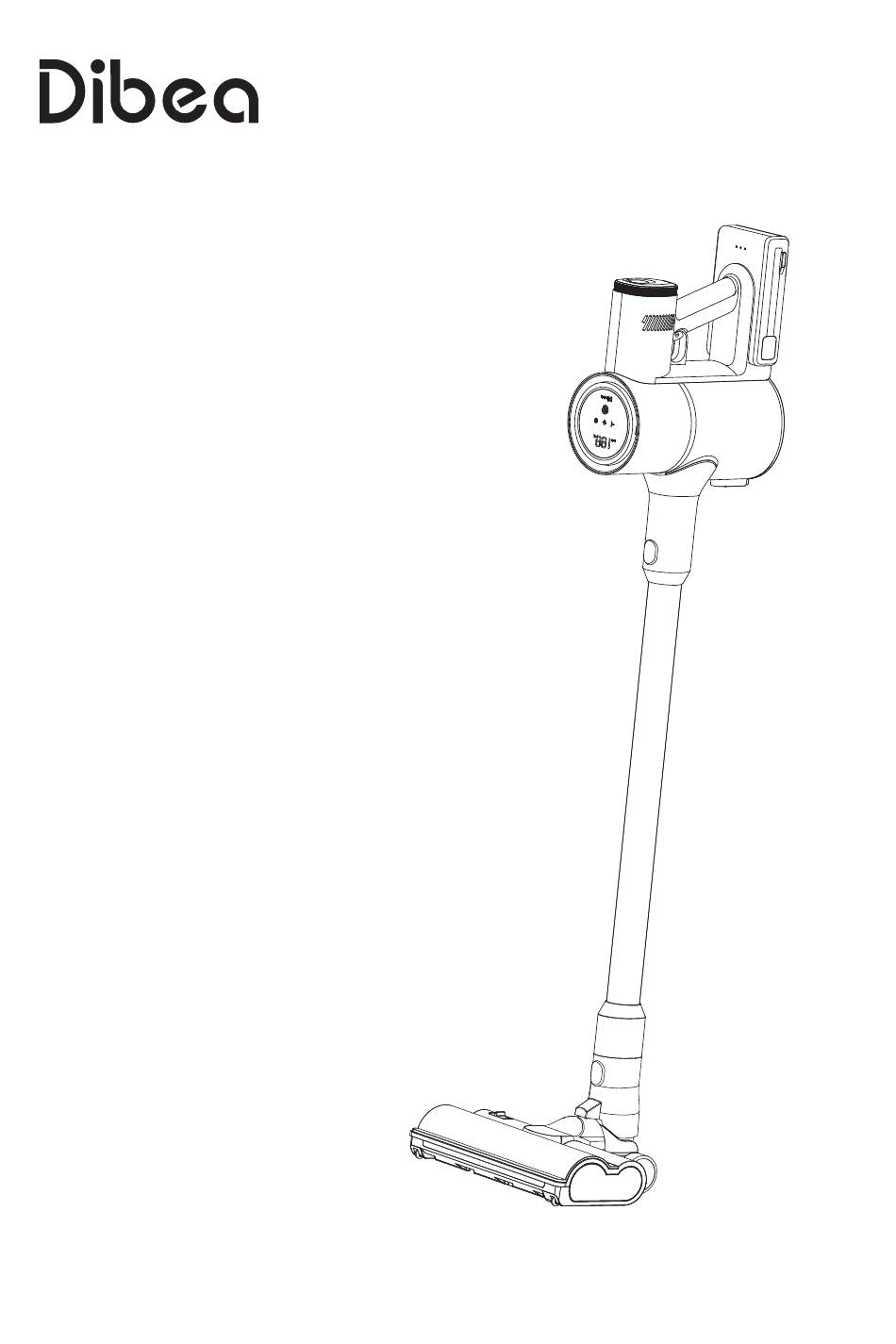

- Page 1 Instruction Manual SMART CORDLESS SELF-STANDING VACUUM CLEANER Please carefully read and fully understand this Manual before using this product, and keep this Manual properly for further reference. Official website: www.dibea.com Customer support: us-support@dibea.com...
- Page 2 Disclaimer Thank you for choosing our G26 cordless vacuum cleaner. The information in this user manual affects your safety and your legal rights and responsibilities. Read this entire manual carefully to ensure proper configuration before use. Failure to read and follow instructions and warning in this document may result in serious injuries or death to yourself or others, damage to the product, or damage to other objects in the vicinity.
-
Page 3: Table Of Contents
Content IMPORTANT SAFEGUARDS ………………………………………………………… Product View …………………………………………………………………………………………………… 4 Use guide …………………………………………………………………………………………………………… 5-7 Assembly ① …………………………………………………………………………………………………… 5 Operation ② …………………………………………………………………………………………………… 5 Charging ③ ……………………………………………………………………………………………………… 6 Replace the battery ④ ………………………………………………………………………………… 7 Cleaning and Maintenance ………………………………………………………………………… 8-12 Take out the HEPA filter ①... -
Page 4: Important Safeguards
8. Do not touch nozzle when the vacuum cleaner is on. 9. Use only as described in this manual. Use only DIBEA or DIBEA-authorized attachments. 10. Do not pick up hard or sharp objects such as glass, nails, screws, coins,etc. - Page 5 IMPORTANT SAFEGUARDS 5. Do not operate the vacuum cleaner if it is not working as it should, has been dropped, damaged, left outdoors, or dropped into water. 6. Do not operate the vacuum cleaner while charging. 7. Do not use the vacuum cleaner in a non-household environment. 8.
- Page 6 SAVE THESE INSTRUCTIONS FOR FURTHER USE. Warning: 1. KEEP AWAY FROM WATER. 2. KEEP AWAY FROM HEAT SOURCES. 3. This DIBEA appliance is intended for household use only. 4. If there’s anything wrong with this vacuum cleaner, stop operating and contact DIBEA customer service for...
-
Page 7: Product View
Product View ON/OFF trigger Battery pack LED display Dust cup Dust cup release Wand release Wand Motorized floor nozzle release Motorized floor nozzle Cleaning Mattress 2-in-1 Charger Crevice tool tool tool upholstery tool... -
Page 8: Use Guide
Use guide Assembly 1. Slide wand onto hand vacuum until it clicks. 1. Slide wand onto hand vacuum until it clicks. 2. Push wand into the nozzle until it clicks. 2. Push wand into the nozzle until it clicks. 3. To remove the wand/nozzle, click the red release button and pull it off. 3. -
Page 9: Charging
Use guide 2. Click the fingerprint icon in the center of the LED display to adjust desired suction 2. Click the fingerprint icon in the center of the LED display to adjust desired suction modes. modes. Tangle Power Full Dust Cup warning Indicator Warning... -
Page 10: Replace The Battery
Use guide Tips: 1. Please fully charge the battery when the package arrives, and charge it at least once a month even the machine is not in use. 2. According to different requirements, there are two charging methods: a. The charger is connected to the charging port on the battery to charge. b. -
Page 11: Cleaning And Maintenance
Cleaning and Maintenance Take out the HEPA filter Step 1. Press the HEPA release button down, and pull it out. Step 2. Gently twist counterclockwise the HEPA filter and take it down. unlock lock unlock lock Take off the cyclone filter Step 1. -
Page 12: Disassemble The Motorized Floor Nozzle
Cleaning and Maintenance Step 3. Pick up the handle at the top of the cyclone filter, rotate counterclockwise to unlock the cyclone filter, and pull it out. Take out the Pick up the handle Rotate counterclockwise cotton filter. at the top of the to unlock the cyclone cyclone filter. -
Page 13: Cleaning
Cleaning and Maintenance 4. When installing the brush-roll, align the right side of the brush-roll with the snap of the motorized floor nozzle for installation, and then press the left end of the brush-roll down into the groove, and the brush-roll is installed successfully. Cleaning Step 1. - Page 14 Cleaning and Maintenance Cool clean tap water Step 2. Let the HEPA filter, cyclone filter, cotton filter, brush-roll and dust cup DRY COMPLETELY. Step 3. Make sure all the parts are DRY, and install the HEPA filter back as shown. unlock lock...
- Page 15 Cleaning and Maintenance Step 4. Put the cyclone filter into the dust cup, rotate it clockwise until the “0” mark on the cyclone filter is at the middle of the dust cup hole. Press the cyclone filter down and lower the handle.
-
Page 16: Storage And Disposal
Storage and Disposal Storage 1. Please store the machine in a cool dry household place, and keep it away from all heat sources, moisture or water. 2. Please fully charge the battery when the package arrives, and charge it at least once a month even it is not in use. -
Page 17: Trouble-Shooting
2.Check if the power socket is working. 3.Check if the charger is broken. Clean up the brush-roll. Remove the tanglement. Brush-roll not working Note: Please contact DIBEA customer service when all the check-ups and clean-ups are finished and the problem still exists. Customer service: us-support@dibea.com... -
Page 18: Specifications
Specifications Rated voltage 25.9 V Rated power 500 W Battery capacity 2500 mAh Charging time 3-4 h Input voltage 100-240 V Output voltage 30 V Dust cup capacity 680 ml... -
Page 19: 1-Year Limited Warranty
Some jurisdictions may not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above exclusions or limitations may not apply to you. After-Sale Service: us-support@dibea.com... - Page 20 Suzhou Dibea Electrical Technology Co., Ltd. Address: No.19 Fuli Road, Wuzhong District, Suzhou, Jiangsu, China...
