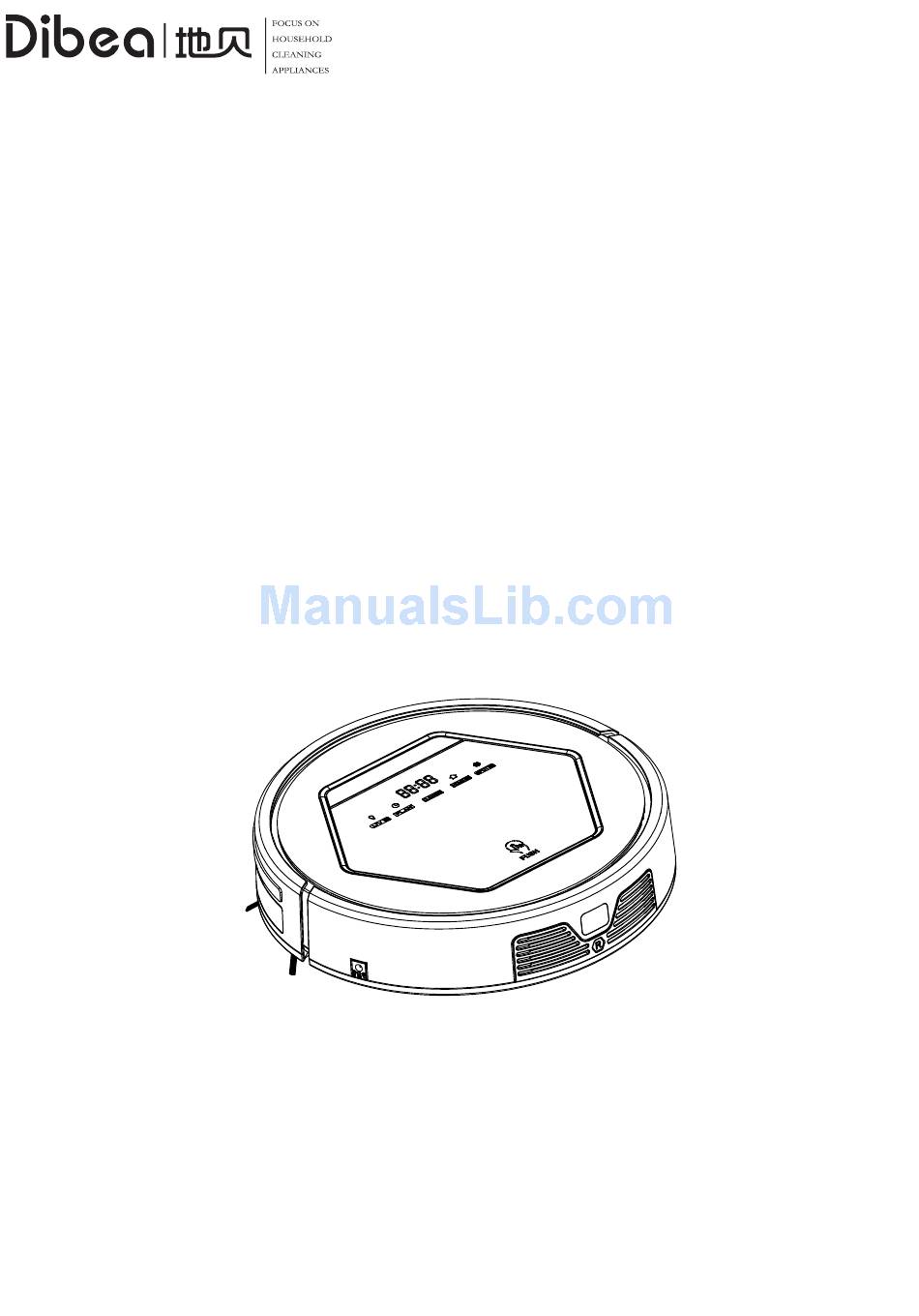

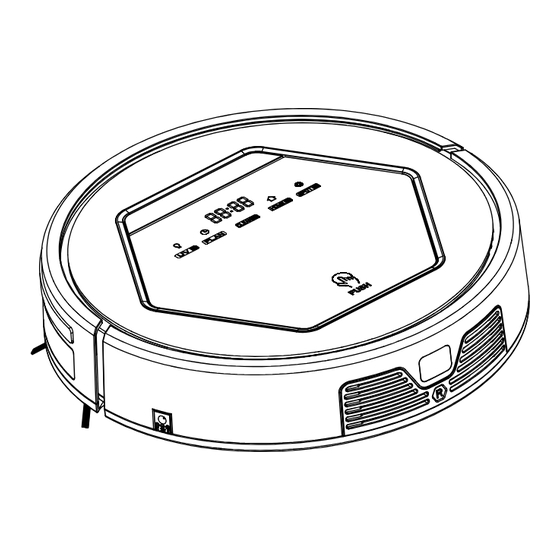

- Page 1 Robotic Vacuum Cleaner Model: ZN909 User Manual This model applies PSD detection technology.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ………………………………………… Safety Instructions Safety Instructions ………………………………………… Product Features Product Features ……………………………………… Product Components Product Components …………………………………… Main body and accessories …………………………………………… Main body diagram ……………………………… Charging station/Remote control ………………………………………………… Display Panel ………………………………………… Product Operation Product Operation ………………………………………………... -
Page 3: Safety Instructions
Safety Instructions Safety Instructions Before using this product, please read the safety instructions and follow all those regular safety precautions. 1. Only authorized technicians can disassemble the product. Users are not allowed to disassemble or repair the product. 2. Only use the original battery and power adapter of the product for charging. Using other un-matched adapter may cause electric shock, fire or product damage. -
Page 4: Product Features
Product Features Product Features Powerful Suction & Intelligent Suction Adjustment Powerful Suction Suction power of this product is strong enough to ensure that even tiny dust on the floor will be cleaned thoroughly! Intelligent Suction Adjustment This product is able to automatically adjust its suction power when different floor environments are detected. - Page 5 Product Features Product Features 2. Spot cleaning mode The robot will clean intensively in a spiral pattern when it detects a very dirty area. 3. Edge cleaning mode In this mode the robot will clean along the wall or obstacles. 4.
-
Page 6: Product Components
Product Components Product Components Main body and accessories Description Main Body Charging Station Adapter Remote Control (battery not included) Mopping Holder HEPA Filter Cleaning Brush Side Brushes User Manual PLAN HOME ON/OFF MODE SPOT... -
Page 7: Main Body Diagram
Product Components Product Components Main body diagram Bumper Decoration strip LED display Touch key Cover Power switch Right wheel Right side brush Suction passage Button battery cover Battery cover Bottom cover Universal wheel Left wheel Charging socket Auto-charge pole Left side brush Cover Dust bin Primary filter... -
Page 8: Charging Station/Remote Control
Product Components Product Components Charging station Top cover Power light Charging socket Charging poles Remote control 1.Display screen 2. Plan PLAN HOME 3. Home 4. Direction button ON/OFF 5. ON/OFF 6. Cleaning mode 7. Clock setting MODE SPOT 8. Spot cleaning Note: A. -
Page 9: Display Panel
Product Components Product Components Display Panel PLAN CLEAN HOME SPOT LED Panel 1. " " LED panel LED panel shows the time setting, charging status, and error codes by using numbers, letters or graph. Buttons 2. " " Schedule button PLAN Press this button to enter/quit scheduling mode. -
Page 10: Remote Control
Product Components Product Components Remote control Display screen 1.Display screen shows the time setting, charging status, and error codes by using numbers, letters or graph. Buttons HOME 2. " " Auto charging Press HOME button, robot will go charging automatically, press again HOME button or press ON/OFF button, it will stop there. - Page 11 Product Components Product Components Remote control 7. " " Clock setting function Press CLK button, then you can press direction buttons to set up time. After time selected, press CLK again to save the time and then it will show the right synched time.
-
Page 12: Product Operation
Product Operation Product Operation 1.Battery charging 1.Battery charging A. Charging station placement Place charging station against the wall and remove obstacles about 1 meter at two sides and about 2 meters in front of the station, as shown in the right figure. B. -
Page 13: Starting Up/Standby/Sleeping
Product Operation Product Operation 2.Starting up/ Standby/ Sleeping A. Starting up a. Switch on the power switch at the right side of the robot. CLEAN b. Press on main body or ON/OFF on remote control to start cleaning. Note: If robot is in sleeping mode, press on main body or ON/OFF on remote CLEAN control to wake up the robot from sleeping mode, then press... -
Page 14: Scheduling
Product Operation Product Operation 3.Scheduling You can schedule the robot to make it clean automatically at a certain time every day. Scheduling by the LED panel on robot. Note: The robot can only be set when it's in Standby or Charging mode. If the robot is in sleep mode, press on main body or ON/OFF button on remote control to wake up the robot. -
Page 15: Remote Control
Product Operation Product Operation h. User can press PLAN button to check whether robot has already scheduled. If yes, robot CLEAN button indicator will be in pink for two seconds. Otherwise, the indicator will have no color change but robot beeps once. -
Page 16: Usage Of Wet Mopping Tissue
Product Operation Product Operation 5. Usage of wet mopping cloth: 5. Usage of wet mopping cloth: A. Fix the mopping holder on the robot bottom, make sure its bolts are firmly pressed into the fixing slots. B. Stick wet mopping tissue on the holder. Note: Make sure wet mopping tissue will not rub or cover robot bottom wheel. -
Page 17: Product Maintanance
Product Maintanance Product Maintanance 1. Cleaning side brushes Clean the side brush when it gets dirty and replace it if it's damaged. Max life span for side brush is 12 months. Note: Before replacing side brushes, check and make 'L','R' mark on side brush match with the 'L','R' mark on bottom base of the robot . -
Page 18: Cleaning Sensors And Wheels
3. Cleaning sensors and wheels Slightly wipe all the sensors and wheels, as marked in figure below, with soft cleaning cloth . 4. Cleaning the charging poles Clean the charging poles, as marked in figure below, with soft cleaning cloth or tool. - Page 19 Error Code for Sensors Cause Solution Error Code AUBF Suction passage blocked Clean sution passage AUBN Dust bin not well located or robot without dust bin Put back dust bin and well locate it E1xx Left collision switch fault E2xx Right collision switch fault Check front bumper E3xx...
-
Page 20: Troubleshooting
Troubleshooting Error Code for Sensors Cause Solution Error Code Front bumper right infared sensors detect Exx8 Clean front bumper sensor lens obstacle Left anti-drop sensor detect cliff, front bumper right Exx9 infared sensors detect obstacle Front anti-drop sensors detect cliff, front bumper ExxA right infared sensors detect obstacle Left and front anti-drop sensors detect cliff, front bumper... -
Page 21: Battery Removal
Troubleshooting Troubleshooting Troubleshooting for motors Cause Solution Error Code Check if fan is pressed and clean dust bin L01x Fan overloaded L0x1 Left wheel overloaded L0x2 Right wheel overloaded L0x3 Left and right wheel overloaded L0x4 Left side brush overloaded Left wheel and left side brush overloaded L0x5 Right wheel and left side brush overloaded... -
Page 22: Product Specification
Product Specifications Product Specifications Classification Items Detail Diameter 335mm Mechanical 88mm Specifications Height Weight 3.3Kg 24V, 600mA Power Rating Electrical Specifications Li-ion 2200mAh, 14.8V Battery Specifications 0.5L Dust Bin Capacity Cleaning Charging Type Auto Charging/ Manual Charging Specifications One click to clean & remote control Cleaning Mode selection About 200~300 mins...
