Axis M4216-V User Manual

Hide thumbs Also See for M4216-V:
Table of Contents

Advertisement

Quick Links

Download this manual

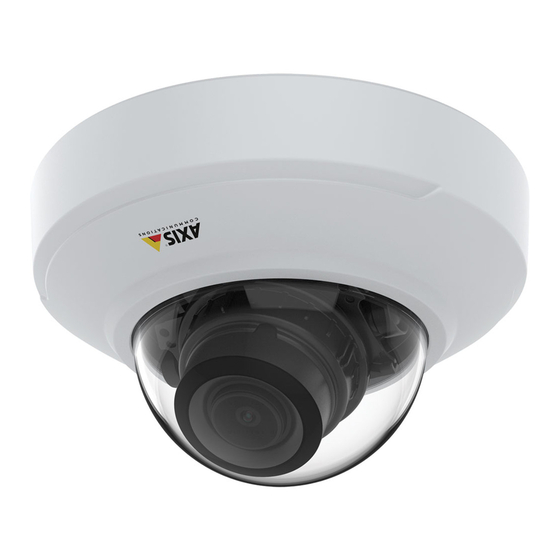

AXIS M4216-V Dome Camera
User manual

Advertisement

Table of Contents
loading

Related Manuals for Axis M4216-V

Summary of Contents for Axis M4216-V

  • Page 1 AXIS M4216-V Dome Camera User manual...

  • Page 2: Table Of Contents

    AXIS M4216-V Dome Camera Table of Contents Get started ..........

  • Page 3: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 4: Verify That No One Has Tampered With The Firmware

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 61.

  • Page 5: Installation

    To watch this video, go to the web version of this document. help.axis.com/?&piaId=71549&section=get-started How to install an AXIS M42 Series dome camera Preview mode Preview mode is ideal for installers when fine tuning the camera view during the installation. No login is required to access the camera view in preview mode.

  • Page 6: Configure Your Device

    AXIS M4216-V Dome Camera Configure your device Configure your device Basic settings Set the power line frequency 1. Go to Video > Installation > Power line frequency. 2. Click Change. 3. Select a power line frequency and click Save and restart.
  • Page 7 AXIS M4216-V Dome Camera Configure your device 1. Go to Video > Image > Day-night mode, and make sure that the IR-cut filter is set to Auto. 2. To set at what light level you want the camera to switch to night mode, move the Threshold slider toward Bright or Dark.
  • Page 8 Use corridor format to better utilize the full field of view in a long and narrow area, for example a staircase, hallway, road, or tunnel. 1. Depending on your device, turn the camera or the 3-axis lens in the camera 90° or 270°.
  • Page 9 AXIS M4216-V Dome Camera Configure your device 1. Go to Video > Image and click 2. Click for Pixel counter. 3. In the camera’s live view, adjust the size and position of the rectangle around the area of interest, for example where you expect faces to appear.

  • Page 10: View And Record Video

    AXIS M4216-V Dome Camera Configure your device Record and watch video Record video directly from the camera 1. Go to Video > Image. 2. To start a recording, click If you haven’t set up any storage, click . For instructions on how to set up network storage, see Set up network storage on page 11 3.

  • Page 11: Set Up Rules For Events

    AXIS M4216-V Dome Camera Configure your device Set up network storage To store recordings on the network, you need to set up your network storage. 1. Go to System > Storage. 2. Click Add network storage under Network storage. 3. Type the IP address of the host server.
  • Page 12 Before you start: • Make sure you have an SD card installed. Make sure that AXIS Object Analytics is running: 1. Go to Apps > AXIS Object Analytics. 2. Start the application if it is not already running. 3. Make sure you have set up the application according to your needs.

  • Page 13: Audio

    AXIS M4216-V Dome Camera Configure your device 1. Go to System > Events and add a rule. 2. Type a name for the rule. 3. In the list of conditions, under Application, select Object Analytics. 4. In the list of actions, under Overlay text, select Use overlay text.
  • Page 14 Axis portcast device Switch Once the devices are connected, an audio tab becomes visible in the settings for your Axis network video device. Go to the audio tab and turn on Allow audio. See your Axis portcast device’s user manual for more information.

  • Page 15: The Web Interface

    Shows what kind of access to the device that is active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Link to AXIS OS Hardening guide where you can learn more about cybersecurity on Axis devices and best practices.

  • Page 16: Video

    AXIS M4216-V Dome Camera The web interface Device info Shows the device information, including firmware version and serial number. Upgrade firmware: Upgrade the firmware on your device. Takes you to the Maintenance page where you can do a firmware upgrade.
  • Page 17 AXIS M4216-V Dome Camera The web interface Adds or removes a focus recall area. When you add a focus recall area, the camera saves the focus settings at that specific pan/tilt range. When you have set a focus recall area and the camera enters that area in the live view, the camera recalls the previously saved focus.
  • Page 18 AXIS M4216-V Dome Camera The web interface Installation Capture mode : A capture mode is a preset configuration that defines how the camera captures images. When you change the capture mode, it can affect many other settings, such as view areas and privacy masks.
  • Page 19 AXIS M4216-V Dome Camera The web interface Brightness: Use the slider to adjust the light intensity. This can make objects easier to see. Brightness is applied after image capture, and doesn’t affect the information in the image. To get more details from a dark area, it’s usually better to increase gain or exposure time.
  • Page 20 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you connect a supporting Axis accessory. Allow illumination: Turn on to let the camera use the built-in light in night mode.
  • Page 21 AXIS M4216-V Dome Camera The web interface Illumination angle : Use the slider to manually set the illumination angle, for example, if the angle needs to be different from the camera’s angle of view. If the camera has a wide angle of view, you can set the illumination angle to a narrower angle, which equals a greater tele position.
  • Page 22 AXIS M4216-V Dome Camera The web interface • Center: Uses a fixed area in the center of the image to calculate the exposure. The area has a fixed size and position in the live view. • Full : Uses the entire live view to calculate the exposure.
  • Page 23 Zipstream is a bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example, in scenes with moving objects.
  • Page 24 AXIS M4216-V Dome Camera The web interface Dynamic GOP (Group of Pictures): Turn on to dynamically adjust the interval between I-frames based on the level of activity in the scene. Upper limit: Enter a maximum GOP length, that is, the maximum number of P-frames between two I-frames. An I-frame is a self-contained image frame that is independent of other frames.
  • Page 25 Label: Enter the text label for the x axis. Time window: Enter how long time the data is visualized. Time unit: Enter a time unit for the x axis. Y axis Label: Enter the text label for the y axis.

  • Page 26: Analytics

    Analytics AXIS Object Analytics Start: Click to start AXIS Object Analytics. The application will run in the background, and you can create rules for events based on the application’s current settings. Open: Click to open AXIS Object Analytics. The application opens up in a new window where you can configure its settings.

  • Page 27: Apps

    Storage: Show recordings based on storage type. Apps Add app: Install a new app. Find more apps: Find more apps to install. You will be taken to an overview page of Axis apps. Allow unsigned apps : Turn on to allow installation of unsigned apps.

  • Page 28: System

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 29 AXIS M4216-V Dome Camera The web interface Regional settings Sets the system of measurement to use in all system settings. Metric (m, km/h): Select for distance measurement to be in meters and speed measurement to be in kilometers per hour.
  • Page 30 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: This is the default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 31 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 32 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 33 AXIS M4216-V Dome Camera The web interface Prevent brute-force attacks Blocking: Turn on to block brute-force attacks. A brute-force attack uses trial-and-error to guess login info or encryption keys. Blocking period: Enter the number of seconds to block a brute-force attack.
  • Page 34 To install test firmware or other custom firmware from Axis on the device, you need a custom signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 35 AXIS M4216-V Dome Camera The web interface Add SSH account: Click to add a new SSH account. • Restrict root access: Turn on to restrict functionality that requires root access. • Enable SSH: Turn on to use SSH service. Account: Enter a unique account name.
  • Page 36 AXIS M4216-V Dome Camera The web interface Add a rule: Create a rule. Name: Enter a name for the rule. Wait between actions: Enter the minimum time (hh:mm:ss) that must pass between rule activations. It is useful if the rule is activated by, for example, day-night mode conditions, to avoid that small light changes during sunrise and sunset activate the rule repeatedly.
  • Page 37 The SFTP client supports SFTP servers using SSH-2 with RSA, DSA, ECDSA, and ED25519 host key types. RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both...
  • Page 38 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 39 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management software (VMS).
  • Page 40 AXIS M4216-V Dome Camera The web interface Device topic prefix: Used in the default values for the topic in the connect message and LWT message on the MQTT client tab, and in the publication conditions on the MQTT publication tab.
  • Page 41 AXIS M4216-V Dome Camera The web interface Add subscription: Click to add a new MQTT subscription. Subscription filter: Enter the MQTT topic that you want to subscribe to. Use device topic prefix: Add the subscription filter as prefix to the MQTT topic.
  • Page 42 AXIS M4216-V Dome Camera The web interface Use NAT (Network Address Translation) traversal when the device is located on an private network (LAN) and you want to make it available from outside of that network. Note For NAT traversal to work, the router must support it. The router must also support UPnP®.
  • Page 43 AXIS M4216-V Dome Camera The web interface All current SIP accounts are listed under SIP accounts. For registered accounts, the colored circle lets you know the status. The account is successfully registered with the SIP server. There is a problem with the account. Possible reasons can be authorization failure, that the account credentials are wrong, or that the SIP server can’t find the account.
  • Page 44 AXIS M4216-V Dome Camera The web interface Add sequence: Click to create a new dual-tone multifrequency (DTMF) sequence. To create a rule that is activated by touch-tone, go to Events > Rules. Sequence: Enter the characters to activate the rule. Allowed characters: 0–9, A-D, #, and *.
  • Page 45 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share since each device gets its own folder.
  • Page 46 AXIS M4216-V Dome Camera The web interface Ignore: Turn on to stop storing recordings on the SD card. When you ignore the SD card, the device no longer recognizes that the card exists. The setting is only available for administrators.
  • Page 47 When you create an ONVIF account, you automatically enable ONVIF communication. Use the account name and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add accounts: Click to add a new ONVIF account.
  • Page 48 AXIS M4216-V Dome Camera The web interface Add media profile: Click to add a new ONVIF media profile. Profile name: Add a name for the media profile. Video source: Select the video source for your configuration. • Select configuration: Select a user-defined configuration from the list. The configurations in the drop-down list correspond to the device's video channels, including multiviews, view areas and virtual channels.
  • Page 49 AXIS M4216-V Dome Camera The web interface Producer: The app that produces the metadata. Below the app is a list of the types of metadata the app streams from the device. Channel: The channel that the app uses. Select to enable the metadata stream. Deselect for compatibility or resource management reasons.
  • Page 50 Pairing Pairing allows you to use a compatible Axis network speaker or microphone as if it’s part of the camera. Once paired, the network speaker acts as an audio out device where you can play audio clips and transmit sound through the camera. The network microphone will take up sounds from the surrounding area and make it available as an audio input device, usable in media streams and recordings.
  • Page 51 AXIS M4216-V Dome Camera The web interface Logs Reports and logs Reports • View the device server report: View information about the product status in a pop-up window. The Access Log is automatically included in the Server Report. • Download the device server report: It creates a .zip file that contains a complete server report text file in UTF–8 format, as well as a snapshot of the current live view image.

  • Page 52: Maintenance

    AXIS M4216-V Dome Camera The web interface Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device. This does not affect any of the current settings. Running applications restart automatically.

  • Page 53: Long-Distance Connections

    Capture modes What capture mode to choose depends on the requirements for the frame rate and resolution of the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet at axis.com. Remote focus and zoom The remote focus and zoom functionality allows you to make focus and zoom adjustments to your camera from a computer. It is a convenient way to ensure that the scene’s focus, viewing angle and resolution are optimized without having to visit the camera’s...

  • Page 54: Overlays

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.
  • Page 55 AXIS M4216-V Dome Camera Learn more The Stream tab contains settings for video streams. You get these settings if you request a video stream from the product and don’t specify for example resolution, or frame rate. When you change the settings in the Stream tab, it doesn’t affect ongoing streams, but it will take effect when you start a new stream.

  • Page 56: Applications

    AXIS People Counter AXIS People Counter is an analytic application that you can install on a network camera. You can use the application to count how many people pass through an entrance, in what direction they pass, and if more than one person passes during a predefined interval.

  • Page 57: Cybersecurity

    AXIS Object Analytics AXIS Object Analytics is an analytic application that comes preinstalled on the camera. It detects objects that move in the scene and classifies them as, for example, humans or vehicles. You can set up the application to send alarms for different types of objects. To find out more about how the application works, see AXIS Object Analytics user manual.

  • Page 58: Specifications

    Don’t remove the SD card while the product is running. This device supports microSD/microSDHC/microSDXC cards. For SD card recommendations, see axis.com. microSD, microSDHC, and microSDXC Logos are trademarks of SD-3C LLC. microSD, microSDHC, microSDXC are trademarks or registered trademarks of SD-3C, LLC in the United States, other countries or both.

  • Page 59: Buttons

    AXIS M4216-V Dome Camera Specifications Buttons Control button The control button is used for: • Resetting the product to factory default settings. See Reset to factory default settings on page 61. • Connecting to a one-click cloud connection (O3C) service over the internet. To connect, press and hold the button for about 3 seconds until the status LED flashes green.

  • Page 60: Cleaning Recommendations

    AXIS M4216-V Dome Camera Cleaning recommendations Cleaning recommendations NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone. 1. Use a can of compressed air to remove any dust or loose dirt from the device. 2. If necessary, clean the lens with a soft cloth dampened with lukewarm water.

  • Page 61: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 62: Upgrade The Firmware

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.
  • Page 63 IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 64: Performance Considerations

    AXIS M4216-V Dome Camera Troubleshooting • An installed and running application, such as AXIS Video Motion Detection, will always consume a video stream, whether it is used or not. A stopped application does not consume a video stream. The camera can deliver more than four simultaneous streams provided the configuration of any additional stream is identical to any of the first four streams.
  • Page 65 User manual Ver. M15.2 AXIS M4216-V Dome Camera Date: November 2023 © Axis Communications AB, 2022 - 2023 Part no. T10174960...
