Summary of Contents for artisJet 6090
- Page 1 6090 / 6040 Installation Manual 2023...

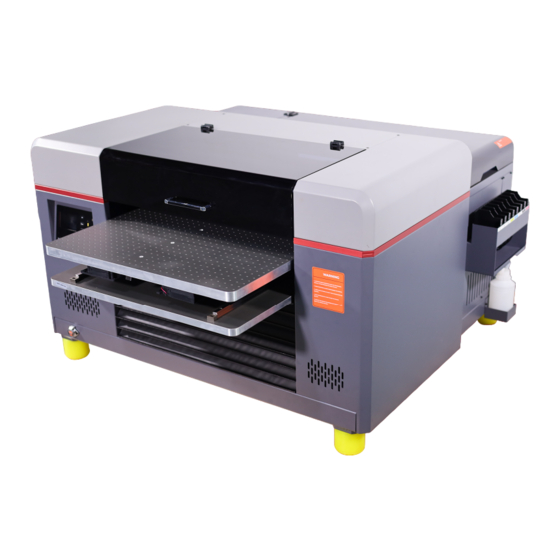

- Page 3 The UV0609 is suitable for a variety of working environments, making it a versatile printer for printing on demand workflows. The printer’s front and right side view, displays, the control panel, with different functions; the working table (flatbed table with height adjustment); the ink cartridges, power button, and UV cooling system.
- Page 4 Ink Cartridge Holder Waste Ink Bottle Fig.2 - Printer Front and left side view Fig.3 - Printer Front and right side view (dept x Width x Height; table size)
- Page 5 Control Panel and Display...
- Page 8 After the package is opened and the top of the box is removed, handle the printer with care to avoid damage. Grab the printer from all sides, lift it and hold it in straight position, then place the printer on a flat and even table surface. Fig.6 - Remove the printer from the wooden box Fig.7 - Place it on a flat and...
- Page 9 Fig.8 - Check the condition of the printer as it’s unpacked...
- Page 10 Fig.11 - Turn on the printer Step 1: Unlock the Emergency Switch Step 2: Press the Power Button...
- Page 11 Fig.14 - Insert the USB dongle Insert the USB dongle...
- Page 15 6090U...
- Page 19 Height Sensors...
- Page 21 The first step is to print “XY starting point” onto the table. From the printing software, click the icon to open the “XY starting point” file and print it.
