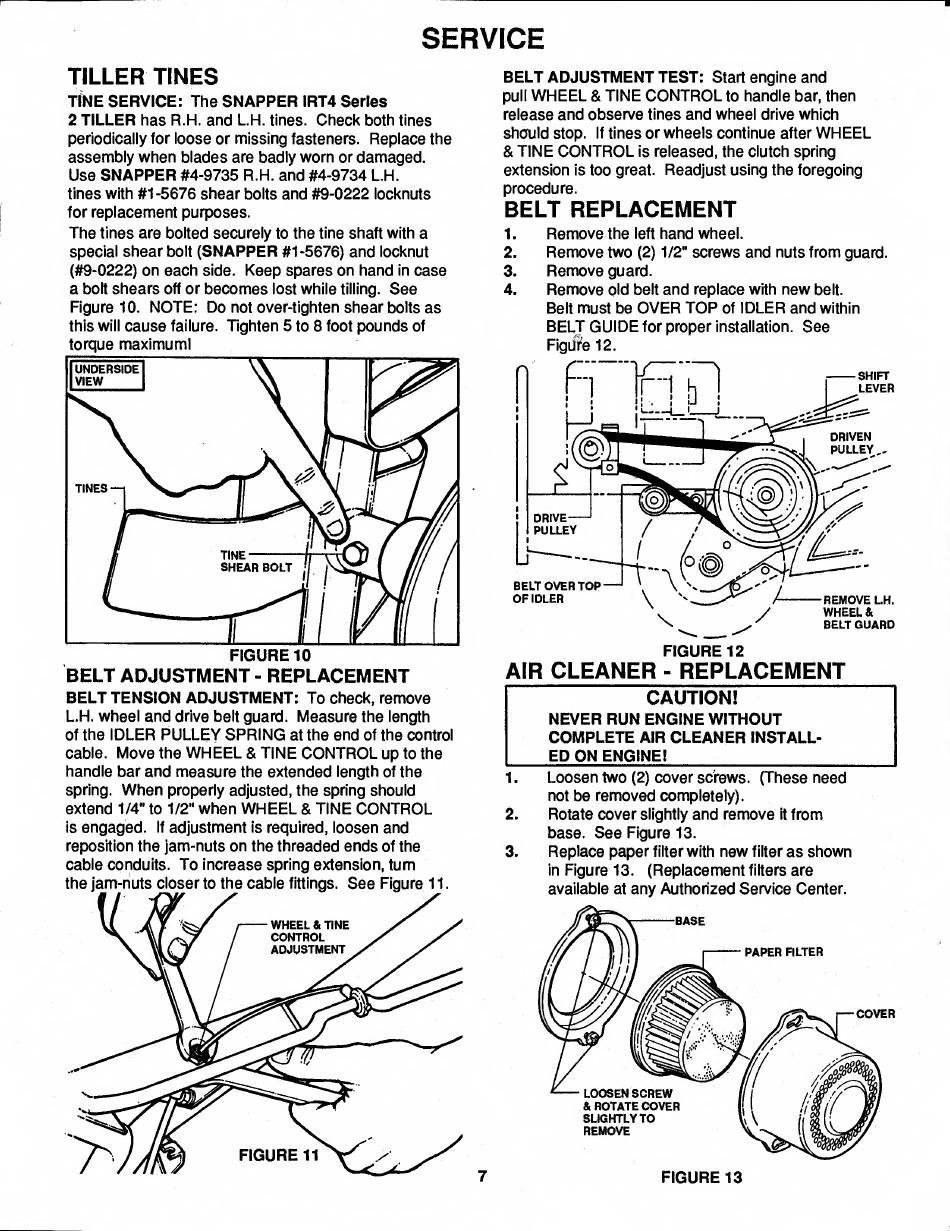

SERVICE
TILLER TINES
TfNE SERVICE: The SNAPPER IRT4 Series
2 TILLER has R.H. and L.H. tines. Check both tines
periodically for loose or missing fasteners. Replace the
assembly when blades are badly worn or damaged.
Use SNAPPER #4-9735 R.H. and #4-9734 L.H.
tines with #1 -5676 shear bolts and #9-0222 locknuts
for replacement purposes.
The tines are bolted securely to the tine shaft with a
special shear bolt (SNAPPER #1-5676) and locknut
(#9-0222) on each side. Keep spares on hand in case
a bolt shears off or becomes lost while tilling. See
Figure 10. NOTE: Do not over-tighten shear bolts as
this will cause failure. Tighten 5 to 8 foot pounds of
torque maximum!
BELT ADJUSTMENT - REPLACEMENT
BELT TENSION ADJUSTMENT: To check, remove
L.H. wheel and drive belt guard. Measure the length
of the IDLER PULLEY SPRING at the end of the control
cable. Move the WHEEL & TINE CONTROL up to the
handle bar and measure the extended length of the
spring. When properly adjusted, the spring should
extend 1/4" to 1/2" when WHEEL & TINE CONTROL
is engaged. If adjustment is required, loosen and
reposition the jam-nuts on the threaded ends of the
cable conduits. To increase spring extension, turn
the jam-nuts closer to the cable fittings. See Figure 11.
BELT ADJUSTMENT TEST: Start engine and
pull WHEEL & TINE CONTROL to handle bar, then
release and observe tines and wheel drive which
should stop. If tines or wheels continue after WHEEL
& TINE CONTROL is released, the clutch spring
extension is too great. Readjust using the foregoing
procedure.
BELT REPLACEMENT
1.
Remove the left hand wheel.
2.
Remove two (2) 1/2" screws and nuts from guard.
3.
Remove guard.
4.
Remove old belt and replace with new belt.
Belt must be OVER TOP of IDLER and within
BELT GUIDE for proper installation. See
Figdre 12.
AIR CLEANER - REPLACEMENT
CAUTION!
NEVER RUN ENGINE WITHOUT
COMPLETE AIR CLEANER INSTALL-
ED ON ENGINE!_
1.
Loosen two (2) cover screws. (These need
not be removed completely).
2.
Rotate cover slightly and remove it from
base. See Figure 13.
3.
Replace paper filter with new filter as shown
in Figure 13. (Replacement filters are
available at any Authorized Service Center.
7
FIGURE 13
