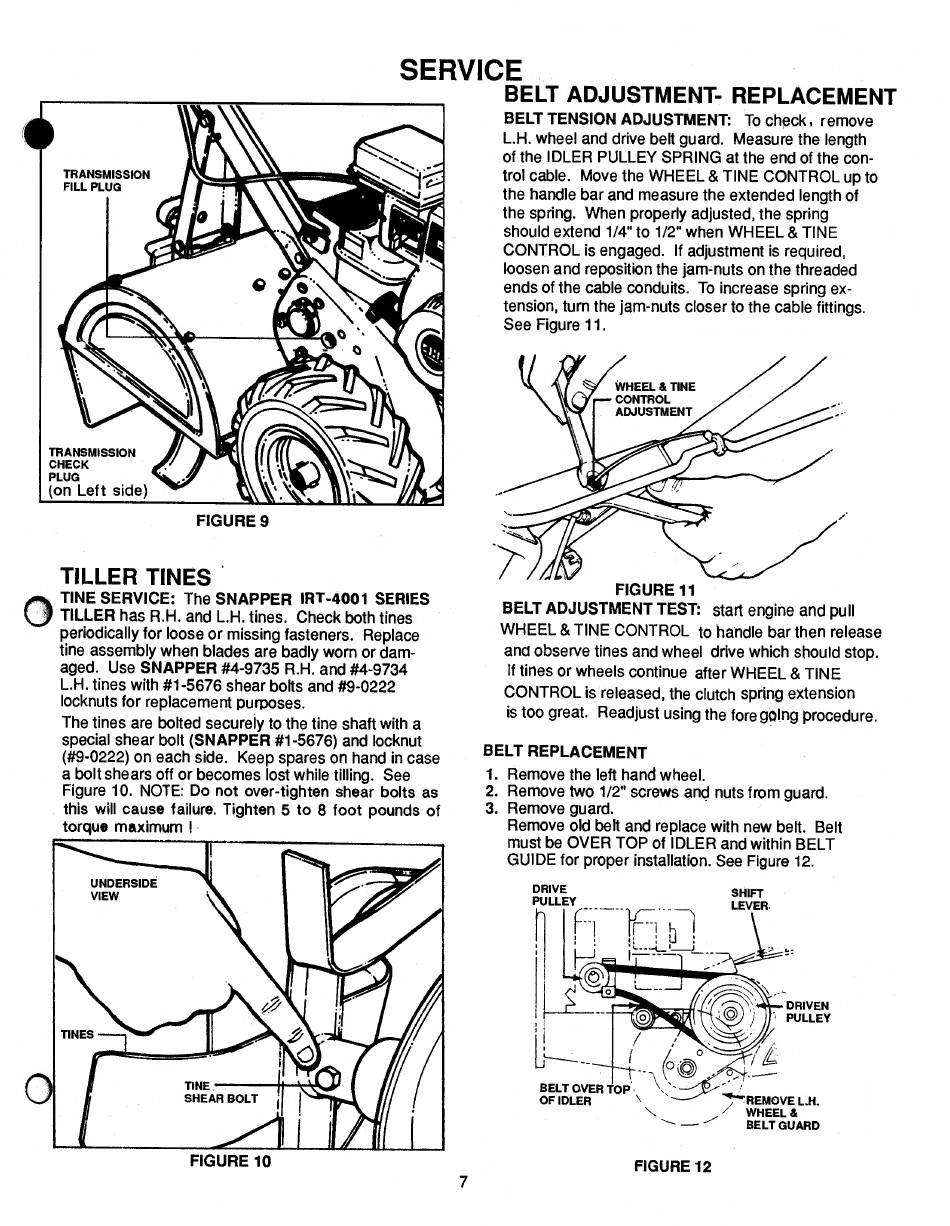

SERVICE
FIGURE 9
TILLER TINES
O
TINE SERVICE: The SNAPPER IRT.
4
OOI SERIES
TILLER has R.H. and L.H. tines. Check both tines
periodically for loose or missing fasteners. Replace
tine assembly when blades are badly worn or dam¬
aged. Use SNAPPER #4-9735 R.H. and #4-9734
L.H. tines with #1-5676 shear bolts and #9-0222
locknuts for replacement purposes.
The tines are bolted securely to the tine shaft with a
special shear bolt (SNAPPER #1-5676) and locknut
(#9-0222) on each side. Keep spares on hand in case
a bolt shears off or becomes lost while tilling. See
Figure 10. NOTE: Do not over-tighten shear bolts as
this will cause failure. Tighten 5 to 8 foot pounds of
torque maximum !
BELT ADJUSTMENT- REPLACEMENT
BELT TENSION ADJUSTMENT: To chpck, remove
LH. wheel and drive belt guard. Measure the length
of the IDLER PULLEY SPRING at the end of the con¬
trol cable. Move the WHEEL & TINE CONTROL up to
the handle bar and measure the extended length of
the spring. When properly adjusted, the spring
should extend 1/4" to 1/2" when WHEEL & TINE
CONTROL is engaged. If adjustment is required,
loosen and reposition the jam-nuts on the threaded
ends of the cable conduits. To increase spring ex¬
tension, turn the jam-nuts closer to the cable fittings.
See Figure 11.
BELT ADJUSTMENT TEST: start engine and pull
WHEEL & TINE CONTROL to handle bar then release
ana observe tines and wheel drive which should stop.
If tines or wheels continue after WHEEL & TINE
CONTROL is released, the clutch spring extension
is too great. Readjust using the foregoing procedure.
BELT REPLACEMENT
1. Remove the left hand wheel.
2. Remove two 1/2" screws and nuts from guard.
3. Remove guard.
Remove old belt and replace with new belt. Belt
must be OVER TOP of IDLER and within BELT
GUIDE for proper installation. See Figure 12.
FIGURE 12
7
