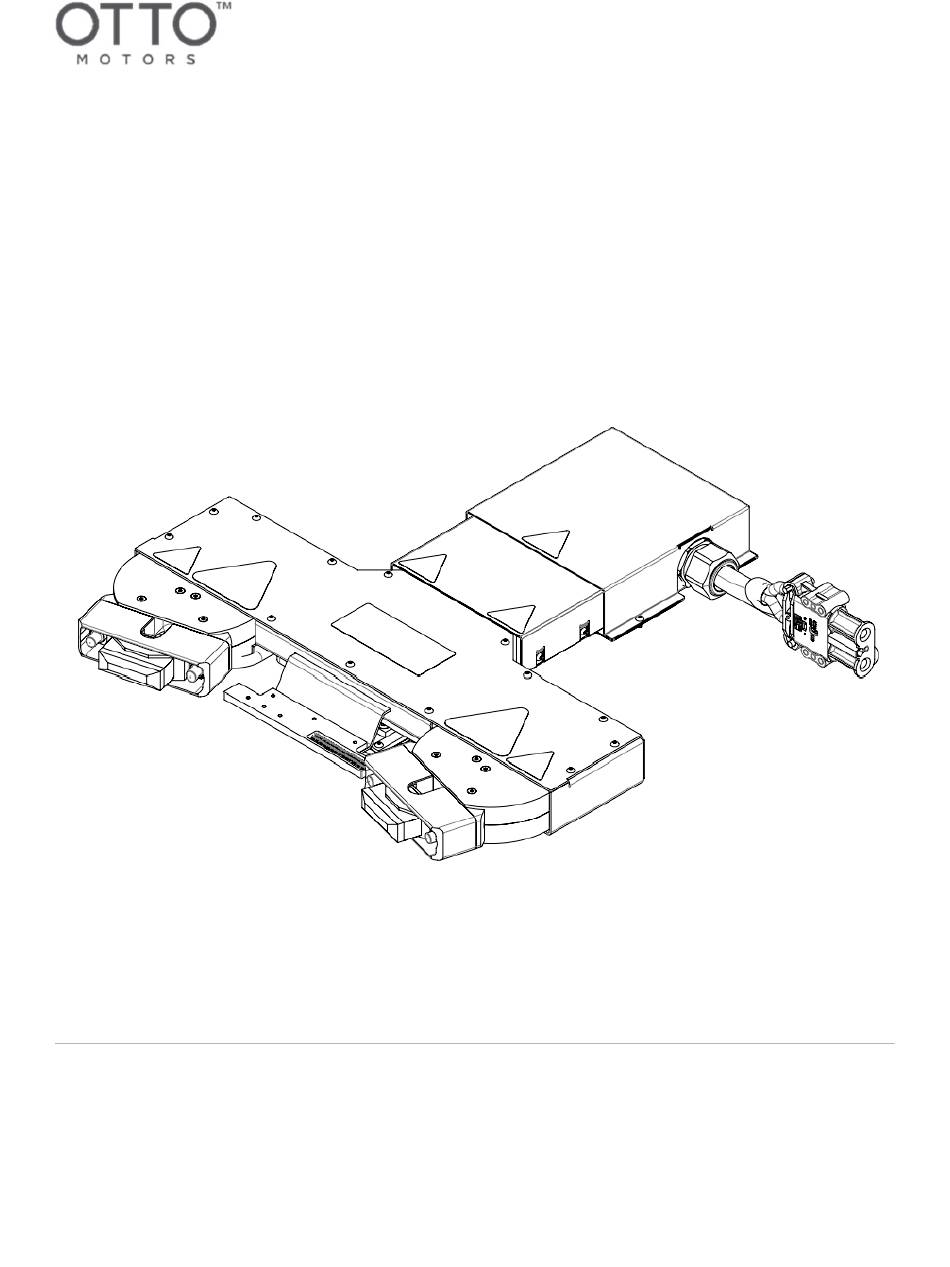

- Page 1 English OTTO 750/1500 Fast Charger V2 - OMM-000091-D Operation and maintenance manual OMM-000091 Publication date Apr-24...
- Page 2 Copyright © 2024 CLEARPATH and OTTO Motors are trademarks of Clearpath Robotics Inc. All other product and company names listed are trademarks or trade names of their respective companies. The information provided herein is for general guidance only and is subject to change. For support, please...
-
Page 3: Table Of Contents
3. Intended use ......................... 17 4. Introduction ........................... 18 4.1. Included items ......................18 5. Applicable documents ......................18 6. OTTO 750/1500 Fast Charger V2 specifications ............... 19 6.1. Size ..........................19 6.2. Performance ....................... 19 6.3. Operating environment ....................19 7. - Page 4 OTTO 750/1500 Fast Charger V2 - OMM-000091-D 10.1. Charger electronic unit ....................29 10.2. Starting up ........................ 30 10.3. Shutting down ......................30 11. Preventative maintenance ..................... 30 11.1. Maintenance schedule ....................31 11.2. Bi-monthly preventative maintenance ................. 31 Checking for damage ....................31 Checking charge contact height .................
-
Page 5: Important Safety Information
OTTO 750/1500 Fast Charger V2 - OMM-000091-D 1. IMPORTANT SAFETY INFORMATION The top priority of OTTO is the safety of its users. OTTO produces high power and fast-moving pieces of machinery that could cause serious injury, including death, if improperly used or maintained. Additional hazards may be identified and need to be addressed during the site-specific risk assessment. -
Page 6: General Hazards
OTTO 750/1500 Fast Charger V2 - OMM-000091-D General hazards WARNING • BURN or SHOCK HAZARD! Never use this product if the enclosure or any of the connectors are broken, cracked, open, or show any other indication of damage. • SHOCK HAZARD! Always perform the lock-out/tag-out procedure at the facility or on the product before inspecting, servicing, cleaning, removing components, or opening any enclosure. -
Page 7: Robot Hazards
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Robot hazards WARNING • Always use level rigging when lifting or lowering the product. • IMPACT HAZARD! Never bypass the drive wheels of the AMR while on a sloped surface. • Never use OTTO products to transport people or live animals. -
Page 8: Charger Hazards
OTTO 750/1500 Fast Charger V2 - OMM-000091-D CAUTION • IMPACT HAZARD! Always maintain a safe distance from an AMR in operation. An AMR being operated in manual mode should only be operated by personnel who have been trained and authorized according to the standards of the facility in which the AMR is in use. -
Page 9: Hazard Labels
OTTO 750/1500 Fast Charger V2 - OMM-000091-D WARNING • FIRE OR SHOCK HAZARD! Never use a power cord or cable that appears damaged. • SHOCK HAZARD! Automatic chargers are powered by hazardous voltage levels. Do not touch the charge contacts when the product is in operation. - Page 10 OTTO 750/1500 Fast Charger V2 - OMM-000091-D Label Title Description Label Title Description Grounding Improper grounding Pinching risk Keep hands and other electrical of OTTO chargers can objects clear of pinch hazard result in a potential points at all times.
-
Page 11: Safety Awareness
OTTO 750/1500 Fast Charger V2 - OMM-000091-D 1.3. Safety awareness WARNING • IMPACT HAZARD! Always maintain a safe distance from an AMR in operation. An AMR being operated in manual mode should only be operated by personnel who have been trained and authorized according to the standards of the facility in which the AMR is in use. -
Page 12: Facility Conditions
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Facility conditions WARNING • IMPACT HAZARD! Never bypass the drive wheels of the AMR while on a sloped surface. • CRUSH or IMPACT HAZARD! Keep low profile objects that the LiDAR cannot detect, such as forklift tines and pallets, outside of the robot's path. -
Page 13: Payload Maximums And Stability
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Avoid the use of such materials in clothing or obstacles to assist their detection by OTTO LiDAR safety systems. Payload maximums and stability WARNING • IMPACT HAZARD! Never bypass the drive wheels of the AMR while on a sloped surface. -
Page 14: Safety System Functionality
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Like most applications using batteries, special precautions should be taken to handle this type of material. Battery packs should only be handled by trained personnel to ensure proper handling. Be aware of the operating environments for robots and more specifically, the battery pack. -
Page 15: Emergency Stop System
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Emergency stop system There are two types of emergency stops on a robot. When the emergency stop state is triggered, the system will immediately apply the brakes and cut all power to the drive motors. -
Page 16: Attachment Interfaces
OTTO 750/1500 Fast Charger V2 - OMM-000091-D CAUTION IMPACT HAZARD! Always maintain a safe distance from an AMR in operation. An AMR being operated in manual mode should only be operated by personnel who have been trained and authorized according to the standards of the facility in which the AMR is in use. -
Page 17: Disclaimer
OTTO 750/1500 Fast Charger V2 - OMM-000091-D sets will need to be reset to match the current footprint for each robot. Safety configurations are based on the largest possible combination of attachment and payload at all times. Extension of payload height will not be detected by the robot. Payload height needs to be qualified in the facility of installation and inspected in all spaces in which the robot will operate to reduce the risk of a collision. -
Page 18: Introduction
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Operators are intended to have suitable training or familiarization as needed for their interactions with AMRs and supporting systems. All information in operating instructions must be observed and compliance met. This system is intended for use within locked-out robotic manufacturing cells with no human interaction. -
Page 19: Otto 750/1500 Fast Charger V2 Specifications
OTTO 750/1500 Fast Charger V2 - OMM-000091-D 6. OTTO 750/1500 Fast Charger V2 specifications 6.1. Size Model 200-240 VAC 380-440 VAC 480 VAC 600 VAC Charge dock footprint 700 x 1400 mm（28 x 700 x 1400 mm (28 x 56... -
Page 20: Components

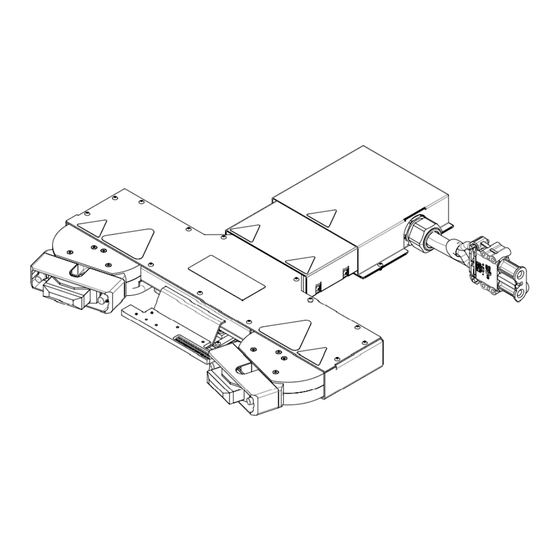

OTTO 750/1500 Fast Charger V2 - OMM-000091-D 7.1. Components Charger electronic unit Charge controller A320 Anderson power connector Charge dock Cable lock Charge dock Sensor array 7.2. Charger electronic unit The charger electronic unit is a smart battery charger, able to detect when a robot is present to initiate charge and provide the correct charging profile to care for the batteries. -
Page 21: Charge Controller
OTTO 750/1500 Fast Charger V2 - OMM-000091-D 7.3. Charge controller The charge controller acts as a safety gate between the charger electronic unit and the robot. Using a series of sensors integrated into the charge contacts, the charge controller electrically disconnects the charge electronic unit from the charge contacts unless a robot is detected. -
Page 22: Charge Dock
OTTO 750/1500 Fast Charger V2 - OMM-000091-D 7.5. Charge dock The charge dock is what the robot interfaces with to charge itself. Between the charge contacts is a sensor array that communicates with the robot to ensure that the contacts are disengaged when there is no robot present. -
Page 23: Unboxing
OTTO 750/1500 Fast Charger V2 - OMM-000091-D CAUTION TRIP OR FIRE HAZARD! Position all cables where they cannot contact hot surfaces, be pulled, tripped over, or damaged. 8. Unboxing If the shipping container must be opened outdoors, take proper precautions to prevent the entrance of moisture. -
Page 24: Installing The Charge Controller
• Hammer • Hardware Installation Kit (Part #021605) • OTTO 750/1500 Fast Charger V2 station layout document Using the 3 mm and 5/32 in Hex keys, remove the charge dock cover by unscrewing the 21 x M5 screws securing the cover in place. - Page 25 OTTO 750/1500 Fast Charger V2 - OMM-000091-D Using the 3 mm Hex key, remove the sensor array by unscrewing the 3 x M5 x 10 mm BHCS. Mark the holes where the concrete anchors will be installed using the charge dock drilling template in the installation kit.
-
Page 26: Selecting Charge Dock Location
Ensure enough empty space exists around the chosen location to meet the navigational requirements outlined in the OTTO 750/1500 Fast Charger V2 station layout document. © Clearpath Robotics Inc. 2024. All rights reserved. CLEARPATH and OTTO are trademarks of Clearpath Robotics Inc. -
Page 27: Checking Charge Contact Height
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Avoid locations with: • Temperature and humidity extremes • Excessive debris accumulation • Airborne debris present • Flowing, standing, or misting liquids or fluids • Direct sunlight Select an area with as flat a floor grade as possible, free of large cracks or bumps. -
Page 28: Dock Target Installation
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Floor material If the bottom of a charge contact falls below the hole in the contact height gauge, shim the front concrete anchors until the bottom of the charge contact is at the appropriate height (18.75 mm from the floor). -
Page 29: Basic Usage
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Connect the green and white grounding cable on the charger electronic unit to the green and white grounding cable on the left side of the charge controller. Connect the green and white grounding cable on the right side of the charge controller to the green and white grounding cable on the charger contacts. -
Page 30: Starting Up
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Credentialed OTTO platform users can learn more on the OTTO Support Center (login required). If access is required, contact OTTO Motors Support and they will be happy to answer any questions or provide access. -
Page 31: Maintenance Schedule
OTTO 750/1500 Fast Charger V2 - OMM-000091-D CAUTION • PINCH HAZARD! Keep objects and body parts away from pinch points. • Only qualified personnel should perform installations, maintenance, and inspections. Take special care while maintaining and inspecting electrical equipment and devices. All personnel working on or around the system are to be aware of, and adhere to, all CAUTION, DANGER, and WARNING labels. -
Page 32: Checking Charge Contact Height
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Check for damage to the charger contacts cover, dock target, and sensor array. Should these components be damaged, the functionality of the charger and the ability of the robot to align with the charger contacts may be affected. Damage includes dents or twists to the front and/or rear covers, deformation of the dock target, and scratches or deformation of the sensor array. -
Page 33: Charge Contact Cleaning
OTTO 750/1500 Fast Charger V2 - OMM-000091-D Charge dock base plate Shims Floor material If the bottom of a charge contact falls below the hole in the contact height gauge, shim the front concrete anchors until the bottom of the charge contact is at the appropriate height (18.75 mm from the floor). -
Page 34: Appendix
OTTO 750/1500 Fast Charger V2 - OMM-000091-D State Issue Action Robot is docked, but the indicator(s) Connectivity issue between the Check all extension cable connections. is/are off dock and charge controller Check fuses inside the charge controller, replace with same type as required Battery has full charge This is normal operation. - Page 35 Model: OTTO 1500 Fast Charger V2.0 380-415 VAC (020233) Including: Charger Dock (020930), Charge Controller (020985) and Charger Electronic Unit (020229) Machine details: see annex manufactured by: Clearpath Robotics Inc. dba OTTO Motors 124 Bleams Road Kitchener, ON N2C 2K5 Canada...
