A E RO HVLS IN D UST RIA L FAN
Installation Guide

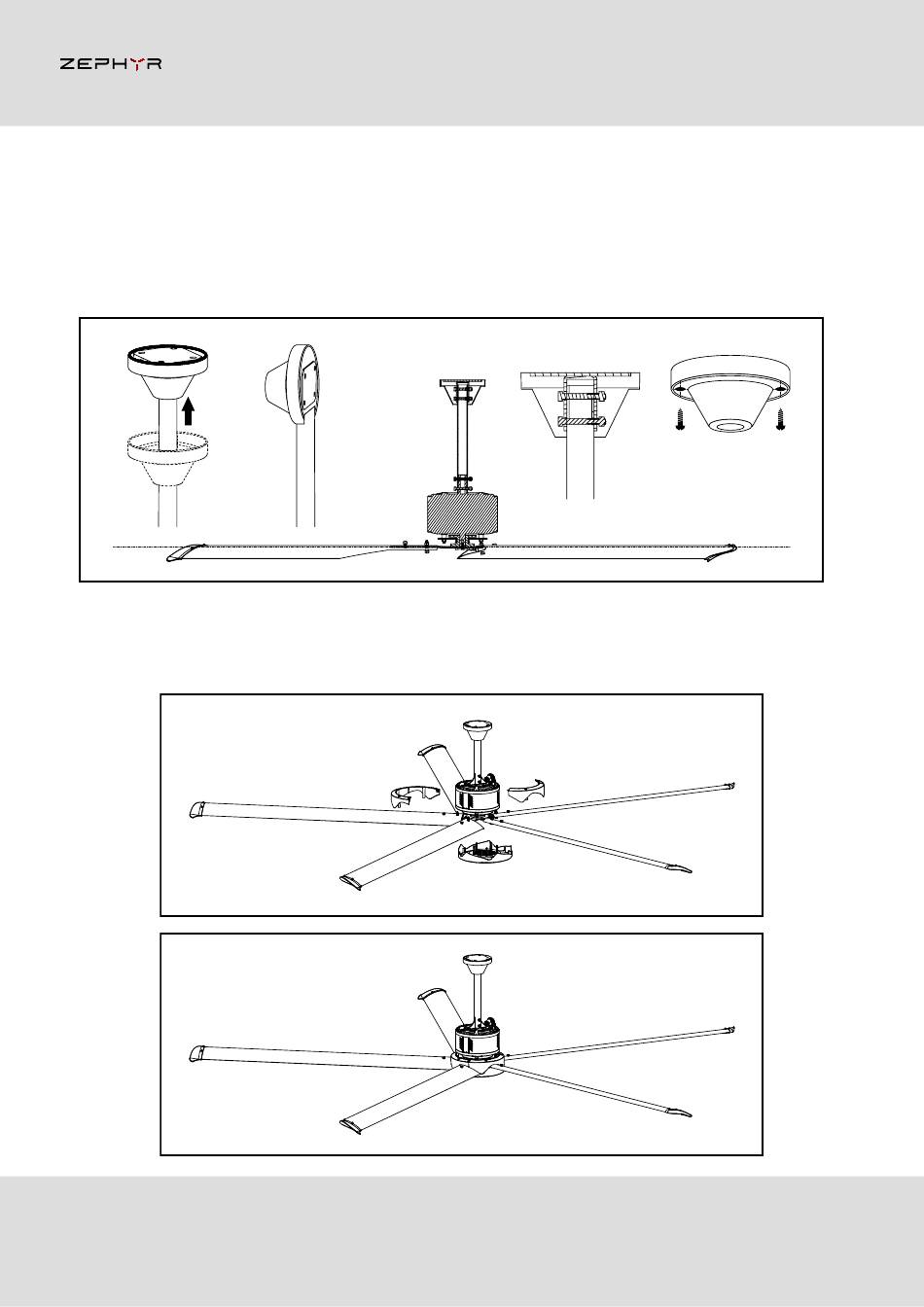

Step 7 - Level adjustment and fixing
Adjust the level of the fan, then lock the screws above the extension rod, and then use two
M5x20mm tapping screw to install the cover of the fixing plate on the fixing plate.
Direct mount Side mount
Step 8 - Installing the hub cover
Use seven M4x15mm tapping screws to fix the hub cover to the drive device.
