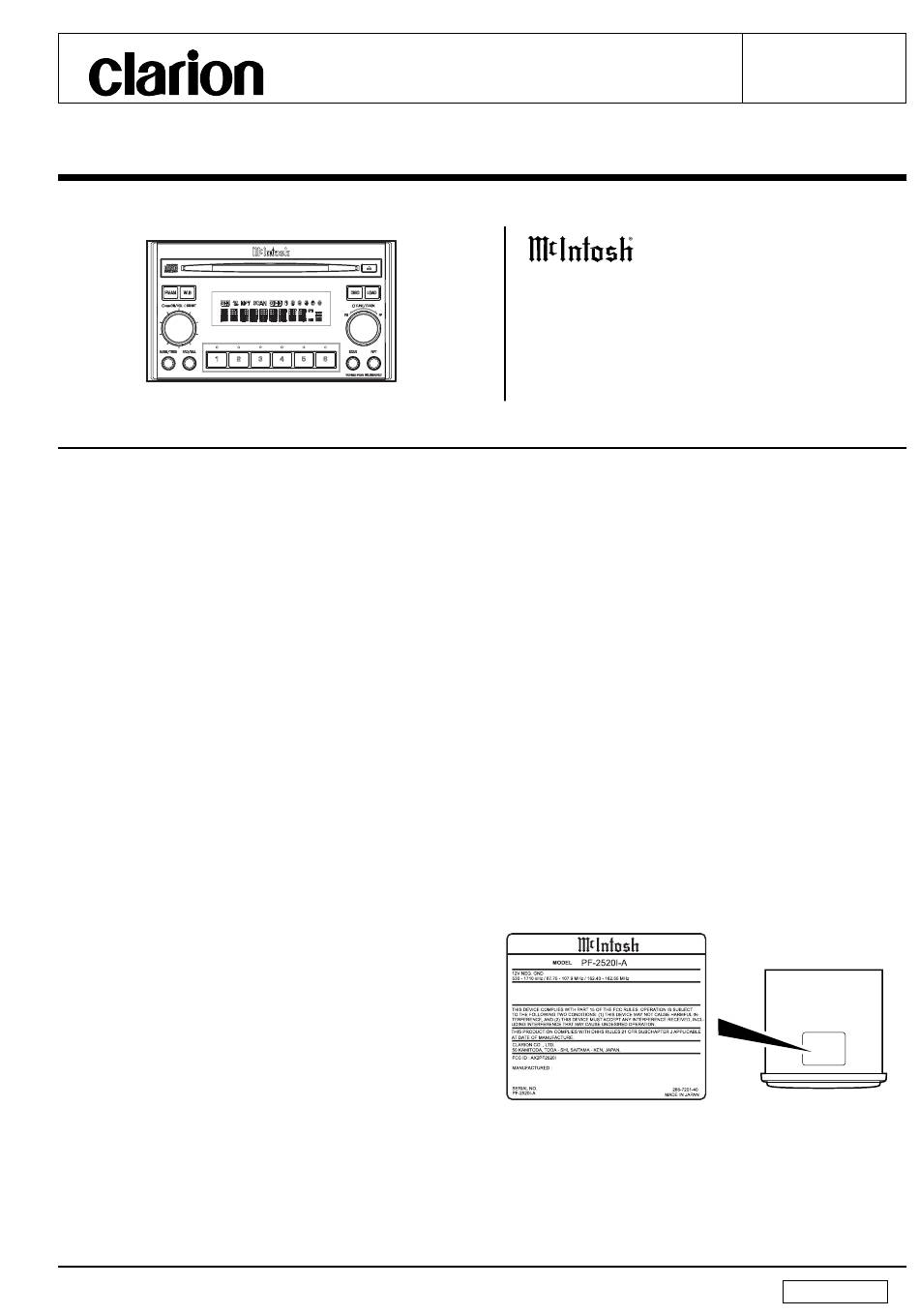

Clarion McIntosh PF-2520I-A Service Manual

SPECIFICATIONS
Radio section
Tuning system: PLL Frequency synthesizer system
Receive range: MW
FM
WB
Intermediate frequency:
MW
FM
Quieting sensitivity: MW
FM
WB
Separation: FM
Auto tuning stop sensitivity:
MW
FM
WB
CD section
Disc: Compact disc (8 cm / 12 cm)
Separation: More than 65 dB
S/N ratio: More than 80 dB
Distortion: Less than 0.1 % (at 20 kHz LPF)
General
Output level: More than 2.5 V x 4 (at CD 1 kHz 0dB)
Typ. 3.0 V x 4
Power supply voltage: DC13.2 V (10.8 V to 15.6 V)
Negative ground
Current consumption: Less than 3A
Dimensions(mm): 178 (W) x 100 (H) x 176.5 (D)
Weight: 2.4 kg
Clarion Co., Ltd.
50 Kamitoda, Toda-shi, Saitama 335-8511 Japan
Service Dept.: 5-66 Azuma , Kitamoto-shi, Saitama 364-0007 Japan
Tel: +81-48-541-2335 / 2432 FAX: +81-48-541-2703
530 kHz to 1,710 kHz
87.75 MHz to 107.9 MHz
162.400 MHz to 162.550 MHz
450 kHz
10.7 MHz
Less than 35 dBu
(at 20 dB S/N)
Less than 15 dBu
(at 30 dB S/N)
Less than 10 dBu
(at 20 dB S/N)
More than 20 dB
32 +6/-6 dBu
24 +6/-6 dBu
-1 +5/-5 dBu
- 1 -
Service Manual
SUBARU Automobile Genuine
MW/FM 6-Disc CD Changer Deck
PF-2520I-A
Model
(Genuine No.86201AE38A)
NOTE
We cannot supply PWB with component parts in principle.
When a circuit on PWB has failure , please repair it by com-
ponent parts base. Parts which are not mentioned in ser-
vice manual are not supplied.
Specifications and design arevsubject to change without
notice for further improvement.

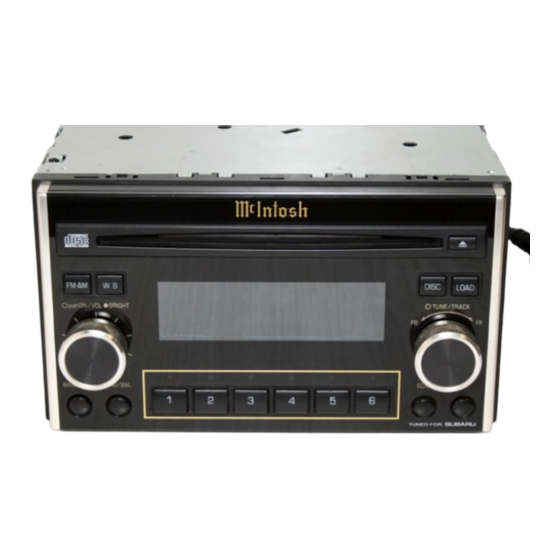

COMPONENTS
PF-2520I-A
Main unit
CAUTIONS
Use of controls, adjustments, or performance of procedures
other than those specified herein, may result in hazardous
radiation exposure.
The COMPACT DISC player should not be adjusted or re-
paired by anyone except properly qualified service person-
nel.
Published by Service Dept.
298-6005-00 Nov.2002 P
Printed in Japan
----------- 1
PF-2520I-A
