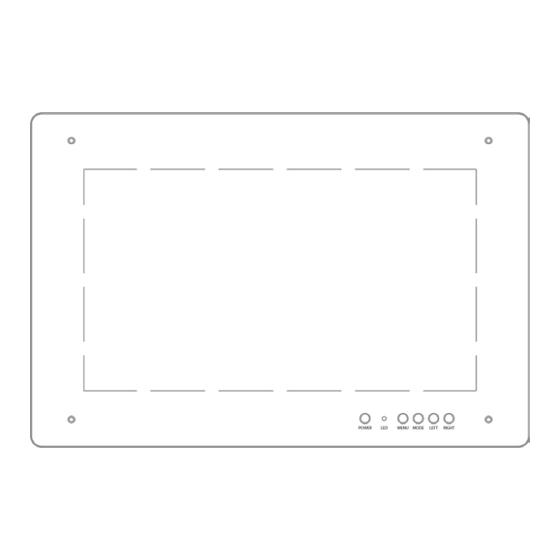

15 lcd monitor, full hd 1920x1080, led, hdmi, displayport flush mount, touchscreen

Advertisement

Available languages

Available languages

Quick Links

Quick Installation Guide
1920x1080, LED, HDMI, DisplayPort
Flush Mount, Touchscreen
Learn more about eneo IN series
on our YouTube channel.
VM-FHD15FL
15" LCD Monitor, Full HD
EN
DE

Advertisement

Chapters

Table of Contents
loading

Summary of Contents for Eneo VM-FHD15FL

  • Page 1 Quick Installation Guide VM-FHD15FL 15” LCD Monitor, Full HD 1920x1080, LED, HDMI, DisplayPort Flush Mount, Touchscreen Learn more about eneo IN series on our YouTube channel.
  • Page 2 THIS DOCUMENT ENGLISH ����������������������������������������������������������������������������������������������������������������������������������3 DEUTSCH �������������������������������������������������������������������������������������������������������������������������������13...
  • Page 3 English...
  • Page 4: Table Of Contents

    TABLE OF CONTENT ABOUT THIS DOCUMENT ������������������������������������������������������������������������������������������������������ 5 SAFETY INSTRUCTIONS �������������������������������������������������������������������������������������������������������� 6 OPEN SOURCE SOFTWARE LICENSE INFORMATION ���������������������������������������������������������� 8 PRIOR TO USE / INSTALLATION���������������������������������������������������������������������������������������������9 Dimensions (in mm) & Specifications ��������������������������������������������������������������������������������������������������������������������������������9 Parts supplied �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������9 1 - INTRODUCTION ��������������������������������������������������������������������������������������������������������������10 1�1 - Connection options ����������������������������������������������������������������������������������������������������������������������������������������������������� 10 1�2 - Control elements ����������������������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 5: About This Document

    ABOUT THIS DOCUMENT In this document you will find a comprehensive description of a specific series of devices, which we have prepared with great care and accuracy in order to provide you with a deep insight into the general functions and features that characterize this series of devices� However, you should be aware that the detailed characterization presented in this document is based on the general product line�...
  • Page 6: Safety Instructions

    SAFETY INSTRUCTIONS Read the safety instructions and the operating instructions carefully before installing the product� Depending on the product type, individual points may be omitted� Mounting & Installation • Ensure that the intended mounting location is suitable for the respective product (e�g� in terms of weight)� •...
  • Page 7 Operation • The devices may only be operated within the temperature and humidity ranges specified in the data sheet� • Sufficient ventilation must be provided to prevent overheating� This applies in particular to devices such as recorders and switches that can generate heat� •...
  • Page 8: Open Source Software License Information

    • the product detail pages on the eneo website (www.eneo-security.com), • the eneo download portal (https://datacloud.videor.com/s/eneodownloadportal)� In case that previous link is broken, the latest link to the eneo download portal can be found on the respective eneo product page at www. eneo-security.com�...
  • Page 9: Prior To Use / Installation

    PRIOR TO USE / INSTALLATION • Make sure that the device is working properly and meets your requirements� • Make sure that the latest firmware is installed on the device� • Install the product in a suitable location� • Depending on the location, use the material supplied for installation� Dimensions (in mm) &...
  • Page 10: Introduction

    1 - INTRODUCTION 1.1 - Connection options Item Name Function DC 12V Power Supply input HDMI HDMI Video input, supports HDMI 1�4 Display Port Display Port Video input 1.2 - Control elements Standard Item Name Function Power Press to turn the monitor on and off� Menu Press to enter and exit the monitor’s configuration menu�...
  • Page 11: Troubleshooting

    2 - TROUBLESHOOTING When experiencing problems, consult the following before contacting technical support� 2.1 - Problems & Possible Solutions Problem Possible Solution • Ensure that the monitor is properly supplied with power� No picture and no sound • Switch on the monitor� •...
  • Page 12: Maintenance

    3 - MAINTENANCE Ensure power is removed from the monitor before performing any maintenance� Cleaning the screen • Wipe the screen with a soft, damp, lint-free cloth� • Allow the screen to dry before applying power� • Do not use abrasive cleaners� Cleaning the cabinet •...
  • Page 13 Deutsch...
  • Page 14 INHALTSVERZEICHNIS ÜBER DIESES DOKUMENT ���������������������������������������������������������������������������������������������������19 SICHERHEITSHINWEISE �������������������������������������������������������������������������������������������������������20 OPEN SOURCE SOFTWARE LICENSE INFORMATION ��������������������������������������������������������22 VOR GEBRAUCH / INSTALLATION ��������������������������������������������������������������������������������������23 Abmessungen (in mm) & Spezifikationen ��������������������������������������������������������������������������������������������������������������������� 23 Lieferumfang ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 23 1 - EINFÜHRUNG�������������������������������������������������������������������������������������������������������������������24 1�1 - Anschlussmöglichkeiten �������������������������������������������������������������������������������������������������������������������������������������������� 24 1�2 - Bedienelemente ������������������������������������������������������������������������������������������������������������������������������������������������������������ 24 2 - FEHLERSUCHE UND -BEHEBUNG ����������������������������������������������������������������������������������25 2�1 - Probleme und mögliche Lösungen������������������������������������������������������������������������������������������������������������������������...
  • Page 15: Über Dieses Dokument

    ÜBER DIESES DOKUMENT In diesem Dokument finden Sie eine umfassende Beschreibung einer bestimmten Geräteserie, die mit großer Sorgfalt und Genauigkeit erstellt wurde, um Ihnen einen detaillierten Einblick in die allgemeinen Funktionen und Merkmale zu geben, die diese Geräteserie auszeichnen� Bitte beachten Sie jedoch, dass sich die detaillierte Charakterisierung in diesem Dokument auf die allgemeine Produktlinie bezieht�...
  • Page 16: Sicherheitshinweise

    SICHERHEITSHINWEISE Lesen Sie die Sicherheitshinweise und die Bedienungsanleitung vor der Installation des Produkts sorgfältig durch� Je nach Produkttyp können einzelne Punkte entfallen� Montage & Installation • Stellen Sie sicher, dass der vorgesehene Montageort für das jeweilige Produkt geeignet ist (z�B� hinsichtlich Gewicht)�...
  • Page 17 Betrieb • Die Geräte dürfen nur innerhalb der im Datenblatt angegebenen Temperatur- und Feuchtebereiche betrieben werden� • Zur Vermeidung von Überhitzung ist für ausreichende Belüftung zu sorgen� Dies gilt insbesondere für Geräte wie Recorder und Switches, die Wärme erzeugen können� •...
  • Page 18: Open Source Software License Information

    • die Produkt-Detailseiten auf der eneo Website (www.eneo-security.com), • das eneo Download-Portal (https://datacloud.videor.com/s/eneodownloadportal)� Sollte der vorherige Link nicht mehr funktionieren, finden Sie den aktuellen Link zum eneo Downloadportal auf der jeweiligen eneo Produktseite unter www.eneo-security.com� • das Download-Paket Ihrer Firmware� Die vollständigen Open Source Software-Lizenzinformationen für Ihr Produkt sind in dem entsprechenden Software-Download-Paket enthalten, das Sie in unserem Download-Portal finden�...
  • Page 19: Vor Gebrauch / Installation

    VOR GEBRAUCH / INSTALLATION • Vergewissern Sie sich, dass das Gerät ordnungsgemäß funktioniert und Ihren Erwartungen entspricht� • Vergewissern Sie sich, dass auf dem Gerät die neueste Firmware installiert ist� • Installieren Sie das Produkt an einem geeigneten Ort� • Nutzen Sie für die Montage je nach Ort das mitgelieferte Material� Abmessungen (in mm) &...
  • Page 20: Einführung

    1 - EINFÜHRUNG 1.1 - Anschlussmöglichkeiten Item Name Funktion DC 12V Stromversorgungseingang HDMI HDMI Video-Eingang Display Port Display Port Video-Eingang 1.2 - Bedienelemente Standard Item Name Funktion Power Drücken Sie diese Taste, um den Monitor ein- und auszuschalten� Menu Drücken Sie, um das Konfigurationsmenü des Monitors zu öffnen oder zu schließen� Mode Drücken Sie diese Taste, um die Eingangsquelle zu wählen�...
  • Page 21: Fehlersuche Und -Behebung

    2 - FEHLERSUCHE UND -BEHEBUNG Wenn Sie Probleme haben, lesen Sie bitte die folgenden Hinweise, bevor Sie den technischen Support kontaktieren� 2.1 - Probleme und mögliche Lösungen Problem mögliche Lösung • Stellen Sie sicher, dass der Monitor ordnungsgemäß mit Strom versorgt wird�...
  • Page 22: Wartung

    3 - WARTUNG Stellen Sie sicher, dass der Monitor vom Strom getrennt ist, bevor Sie Wartungsarbeiten durchführen� Reinigung des Bildschirms • Wischen Sie den Bildschirm mit einem weichen, feuchten, fusselfreien Tuch ab� • Lassen Sie den Bildschirm trocknen, bevor Sie ihn wieder einschalten� •...
