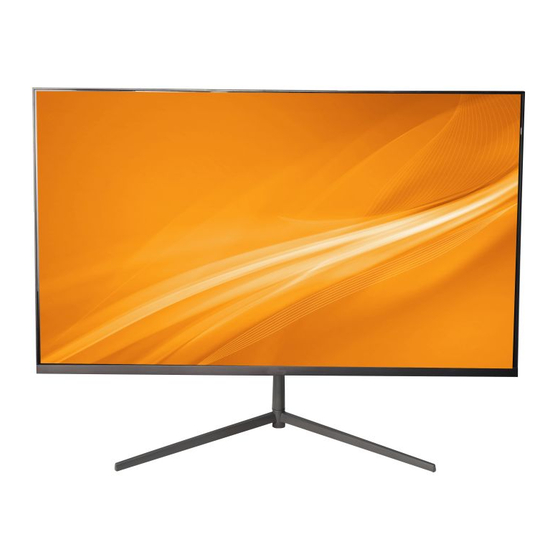

- Page 1 User Manual 23.8" (61cm) LCD Monitor, FHD, 1920x1080, LED, HDMI, VGA, Frameless, Plastic Housing VM-FHD24PF...
-
Page 2: Table Of Contents
User Manual Contents Important Information ........................2 Safety Warning ........................2 Notes ............................3 Introduction to the Product ......................4 Product Appearance ....................... 4 Performance Features ......................4 External Connections ........................4 Main Menu ............................. 6 Main Menu ..........................6 PC Menu .......................... -
Page 3: Important Information
User Manual Important Informa�on Safety Warning To use the product safely, correctly, and to keep users from suffering injury or property loss, please observe the following safety precautions when installing, using or maintaining. Please read this handbook before operating the product and keep the handbook for future reference. -
Page 4: Notes
User Manual Notes l Please put the product in a flat, stable and dry place. Avoid direct sunlight, high temperature, humidity, dust, and corrosive gas. l If the product is installed on the wall, please make sure the wall’s load bearing capacity is sufficient. -
Page 5: Introduction To The Product
User Manual Introduc�on to the Product Product Appearance （Photos are for reference only） Performance Features l Low energy consumption, long service life. l High contrast ratio and high luminance. l Automatically eliminates ghosting. l Rapid response times, no trailing image. l Thin and light. - Page 6 User Manual Port A： Port B： VGA INPUT: D-SUB 15 pins Connector HDMI INPUT: HDMI Connector AUDIO IN: 3.5mm audio port Attention Please turn off the power of the external device and the product when connecting.
-
Page 7: Main Menu
User Manual Main Menu Main Menu To activate, press the menu button on the bottom left of the bezel. The sub-menus of the main menu are: PC Menu, Picture menu, Audio menu, OSD menu and Function menu. Press the menu button to select the sub-menu item. The selected menu item will show a bordered wireframe. -
Page 8: Pc Menu
User Manual PC Menu PC SOURCE PC menu sets the contrast, brightness, backlight,color temperature and scale function. Press button to adjust value when item is selected, press menu button to exit. Picture Menu HDMI SOURCE Picture menu can set contrast, brightness, backlight, hue, saturation, sharpness, color temperature and scale function. -
Page 9: Audio Menu
User Manual Audio Menu Audio menu can set volume and mute function. Press button to adjust value when item is selected, press menu button to exit.(Audio function optional) OSD Menu OSD menu can adjust the sleep timer, enable / disable auto sleep, change the language, adjust H-position, adjust V-position, adjust duration, adjust transparency, and reset defaults. -
Page 10: Geometry Menu
User Manual Geometry Menu PC SOURCE Geometry menu can adjust the H-position, V-position, clock, phase and auto adjust. Press button to adjust value when item is selected, press menu button to exit. Channel Selec�on “Source” menu can select channel (input). The options include VGA, HDMI. Press button to adjust value when item is selected, press source button to exit. -
Page 11: How To Clean Product
User Manual How to Clean Product 1. Please wipe dust and other particles off with a clean soft towel. 2. If it is still not clean, please use a neutral cleaner along with the clean soft towel. Wipe dry after cleaning it. 3. - Page 12 E. Hartig GmbH Exclusive distribution through special- ised trade channels only. E. Hartig GmbH Carl-Zeiss-Straße 8 63322 Rödermark/Germany Tel. +49 (0) 6074 / 888-0 Technical changes reserved Fax +49 (0) 6074 / 888-100 www.videor.com ©...
