Tyco Vent Controller Assembly

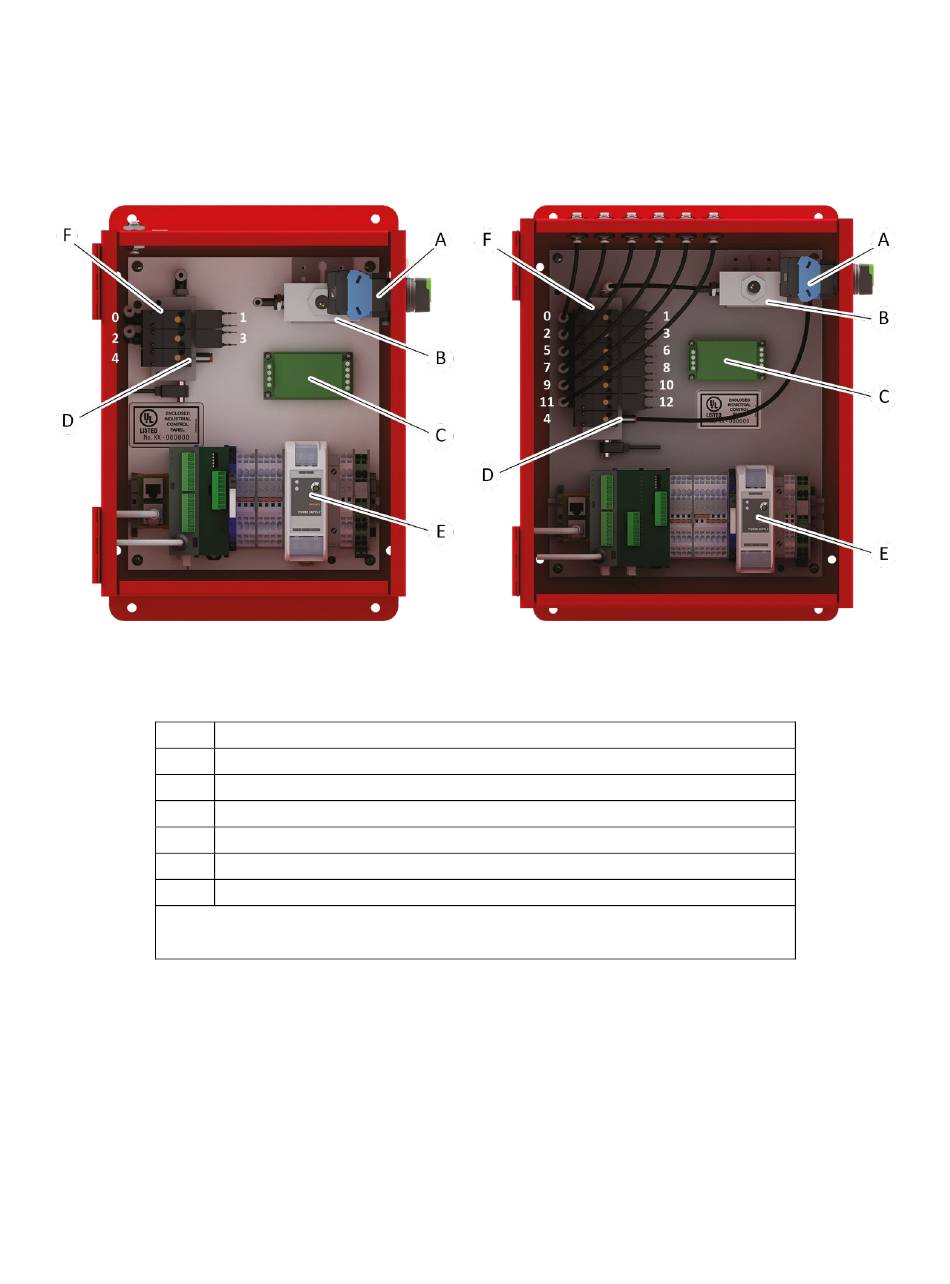

Figure 1: Models TVC-2 and TVC-6 System assembly
Model TVC-2
Item Description
A
B
C
D
E
F
Notes:
1. TVC-2, solenoid number 0-4; TVC-6, solenoid number 0-12.
TFP1279
Power Switch
Oxygen Sensor Manifold Block
Oxygen Sensor Interface Logic Board
Pressure Transducer
Electrical Power and Signal Distribution Block, see Figures 3a, 3b
Manifold with Solenoids¹
JANUARY 2024
Model TVC-6
Page 8 of 44
