Delta Frameless Sliding Traditional Style Installation Manual

Shower and bathtub doors 1/4 inch glass 6mm
Hide thumbs

Advertisement

Quick Links

Download this manual

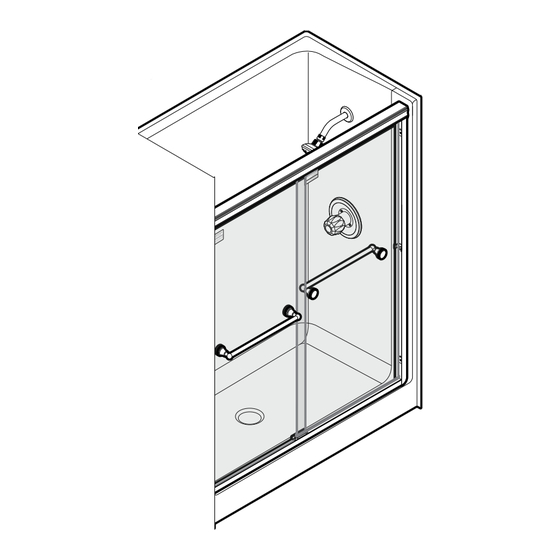

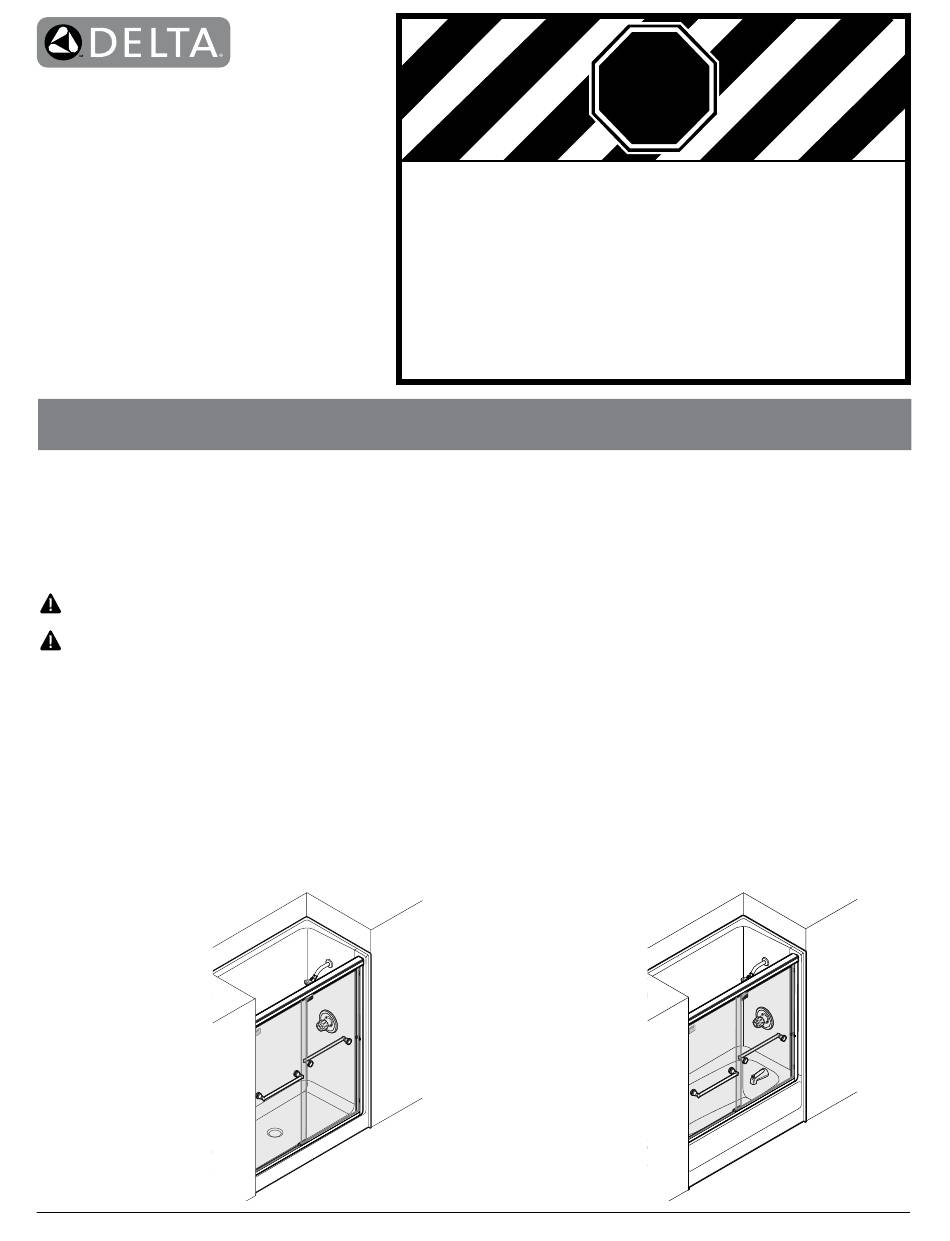

Frameless
Sliding
Traditional Style Shower
and Bathtub Doors
1/4 inch glass (6mm)
Puertas para ducha y bañera
corredizas sin marco
tradicionales
Vidrio de 1/4 pulg. (6 mm)
INSTALLATION GUIDE / GUÍA DE INSTALACIÓN
CAUTION identifies a potentially hazardous situation which,
if not avoided, may result in minor or moderate injury and/or
property/product damage.
IMPORTANT identifies information critical to installation,
operation, or maintenance.
NOTE indicates helpful advice to make installation, operation or
maintenance proceed well.
CAUTION: To reduce the risk of breakage, keep corner protectors on glass while installing. Avoid contact between
shower door and metal parts and/or hard surfaces. Always ensure glass panels are placed on padded surfaces.
PRECAUCIÓN: Durante la instalación, coloque vidrio o protectores de esquinas para reducir el riesgo de romperse. Evite el
contacto entre la puerta de la ducha y las piezas metálicas y/o superficies duras. Asegúrese siempre de que los paneles de
vidrio estén colocados sobre superficies acolchadas.
Consult your local plumbing codes prior to installation.
Consulte los códigos de fontanería locales antes de la instalación.
NOTE: Installation widths: 60" Tub/shower: 50-1/8"minimum – 59-3/8" maximum,
NOTA: Installation widths: para ducha/bañera de 60" (152,40 cm): mínimo 50-1/8" (127,32 cm) – máximo 59-3/8"
(148,59 cm), ducha de 48" (121,92 cm): mínimo 43-3/8 (110,17 cm) – máximo 47 -3/8" (120,33 cm).
Minimum Required Clearance Heights for Installation:
For Shower: 73.5 Inches (186.7 cm)
For Tub: 61.75 Inches (157 cm)
Minimum Required Installation Wall Heights
for Installation:
For Shower:
71 Inches (180 cm)
For Tub:
59 Inches (150 cm)
Minimum Sill Depth:
2 Inches (5.1 cm)
CP5590310
48" Shower: 43-3/8" minimum – 47-3/8" maximum.
• BEFORE BEGINNING, READ ALL INSTRUCTIONS WITH PARTICULAR
ATTENTION TO SAFETY INFORMATION AND TO ENSURE YOU HAVE
ALL PARTS, TOOLS AND PROTECTIVE EQUIPMENT NEEDED TO SAFELY
INSTALL YOUR UNIT.
• PLEASE DO NOT CONTACT STORE FOR REPLACEMENT PARTS
• PLEASE CONTACT 1-800-964-4850 FOR ASSISTANCE
• ANTES DE COMENZAR, LEA TODAS LAS INSTRUCCIONES PRESTANDO ATENCIÓN
ESPECIAL A LA INFORMACIÓN DE SEGURIDAD Y ASEGÚRESE DE TENER TODAS
LAS PIEZAS, HERRAMIENTAS Y EQUIPOS DE PROTECCIÓN NECESARIOS PARA
INSTALAR SU UNIDAD DE FORMA SEGURA.
• POR FAVOR, NO CONTACTE A LA TIENDA PARA SOLICITAR PIEZAS DE REPUESTO
• POR FAVOR LLAME AL 1-800-964-4850 PARA RECIBIR ASISTENCIA
ADVERTENCIA identifica situaciones potencialmente peligrosas
que, de no evitarse, podrían provocar lesiones leves o
moderadas y/o daños a la propiedad/producto.
IMPORTANTE identifica información esencial para la instalación,
funcionamiento, o mantenimiento.
NOTA indica consejos útiles para una correcta instalación,
funcionamiento o mantenimiento.
Alturas mínimas de separación necesarias para la instalación:
Para la ducha: 73,5 pulgadas (186,7 cm)
Para la bañera: 61,75 pulgadas (157 cm)
Alturas mínimas de la pared necesarias para la instalación:
Para la ducha:
71 pulgadas (180 cm)
Para la bañera:
59 pulgadas (150 cm)
Requisitos mínimos
de profundidad del
bordillo:
2 pulgadas (5.1 cm)
DESIGNED AND DISTRIBUTED BY LIBERTY HARDWARE MANUFACTURING CORPORATION
STOP
PARE
October 2022
