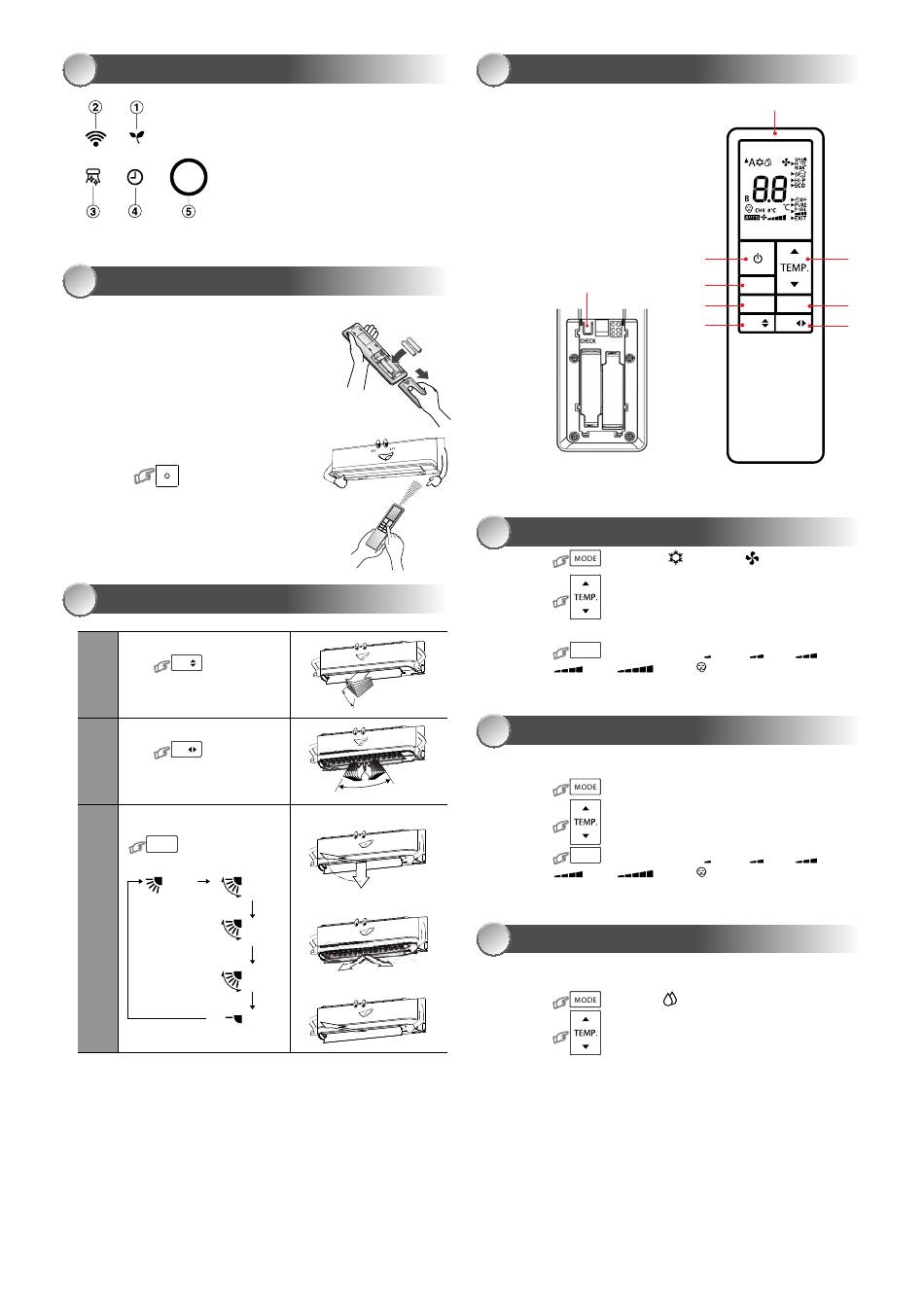

Carrier 42TVAB036-I Owner's Manual page 4

INDOOR UNIT DISPLAY
1
1 Wi-Fi access (White)
2 ECO (White)
3 PURE (White)
4 Timer (White)
5 Operation Mode
● Display brightness can be adjusted, follow procedure on 9.
PREPARATION BEFORE USE
2
Preparing Filters
1. Open the air inlet grille and remove the air filters.
2. Attach the filters. (see detail in the Installation Manual).
Loading Batteries (when use wireless operation.)
1. Remove the slide cover.
2. Insert 2 new batteries (AAA type)
following the (+) and (–) positions.
Remote Control Reset
1. Remove the batteries.
2. Press
.
3. Insert the batteries.
AIR FLOW DIRECTION
3
FIX
Press : Move the
1
louver in the desired vertical
direction.
FIX
Press : Move the
2
louver in the desired horizontal
direction.
SWING operation can be
selected from MENU button
MENU
V Vertical
Swing off
(Up-Down)
Swing
3
Horizontal
(Left-Right)
H
Swing
V Vertical and
Horizontal
H
Swing
HADA CARE
FLOW
H.DA
Note:
● Do not move the louver manually by hands or others.
● The louver may automation positioning by some operation mode.
