Skip Model Designs 41% Ultimate 10-300 Kit Wiring Manual

41% Ultimate 10-300 Flying Wire Guide
2x Top Wing Mount Brackets
12x Tailplane Brackets
1. Wing and Tail Wires are designed to release from the Surface and leave the wires on the
Fuselage for easer storing and setup.
2. Main wing wires are setup using 1.3-1.5mm Diameter Nylon coated Stainless steel wire &
The Tailplane can use upto 1.5mm however 1.0-1.2mm is perfectly sufficient and what we
use.
3. Main wings use a Quick release pin clevis on the surface end for quick field setup & the Tail
planes uses M3 clevises.
4. Tail Brackets are fixed with M3 Cap screws with Nyloc Nuts and the Main Wings uses M3/M4
with Nyloc Nuts. (Stainless Bolts recommended)
5. Brackets Will require to be bent to allow best wire geometry, Best done in a vice with soft
jaws, Also it is good practice to ensure the edges of the 1.6mm holes that receive the wire
are smooth and have no shapes edges.
6. Please use some Epoxy on the Wing Brackets and bolts when installing to ensure secure
(Due to not being accessible after covering this is worthwhile)
7. All parts numbers listed below are listed in your "items required to complete" document.
Finally any questions please reach out to us and we will be glade to assist.

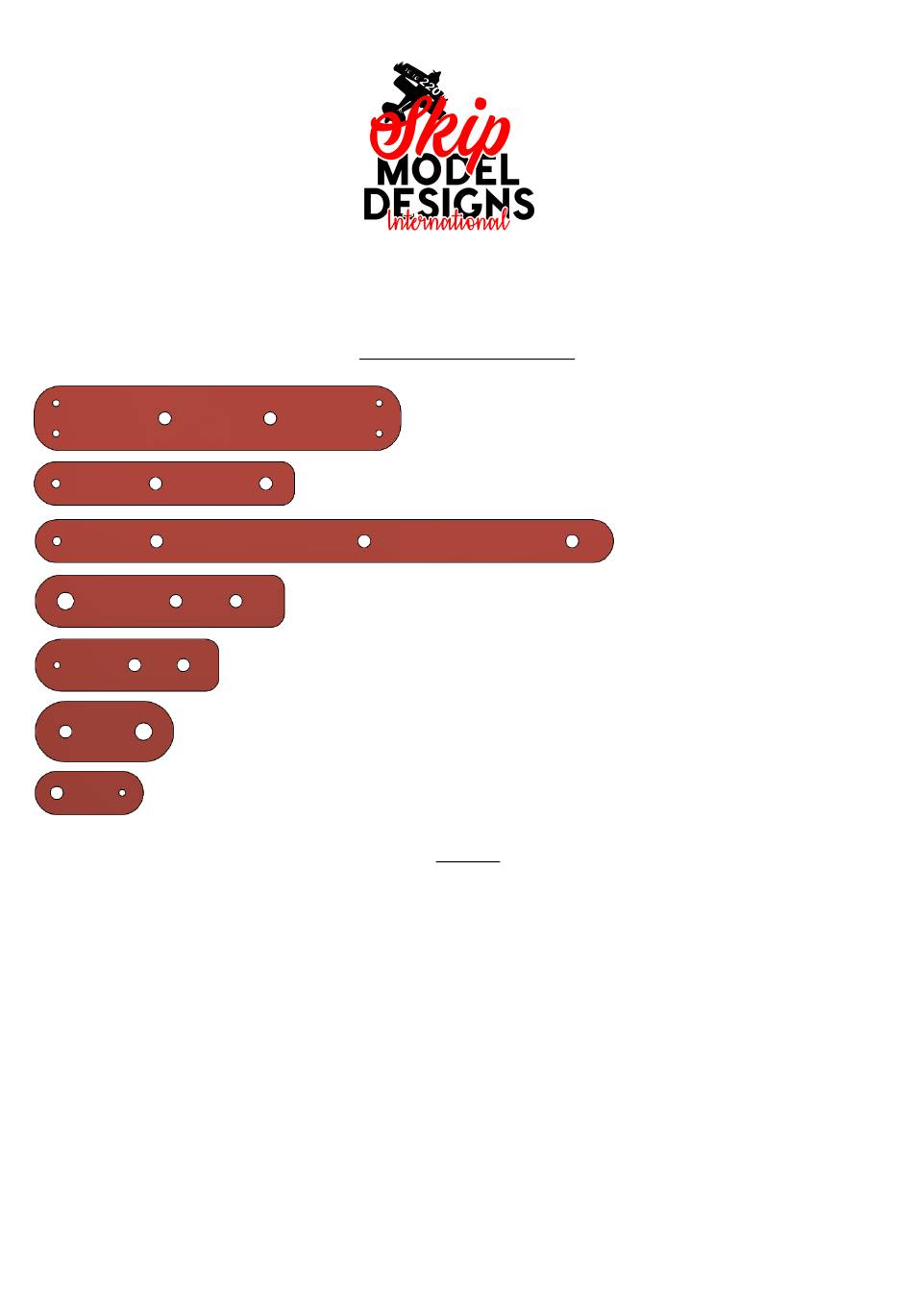

Bracket Identification
1x Tailplane Lower Bracket
4x Fuselage Mounts - (Affix to F2 )
8x Interplane Strut Mounts
8x Wing Mounts
Notes:
4x Fuselage Mounts - (Affix to F4)
