Operating Instructions
PRO IONIZER
Series ES61 Power Supply for AC operation
BA-en-2089-2311

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRO IONIZER ES61 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ELTEX PRO IONIZER ES61 Series

Summary of Contents for ELTEX PRO IONIZER ES61 Series

  • Page 1 Operating Instructions PRO IONIZER Series ES61 Power Supply for AC operation BA-en-2089-2311...
  • Page 2 BA-en-2089-2311_PRO IONIZER...

  • Page 3: Table Of Contents

    3.7.2 ModbusTCP (optional) ....... . . 24 3.8 Use of the Eltex signal cable CS and mains cable KN ..25 Operation .
  • Page 4 4.5.1.8 Loading the factory settings ......39 4.5.1.9 Acknowledge error or warning messages....39 4.5.1.10 Setup menu Device settings.
  • Page 5 ANNEX..........78 A.1 Assembly of the plugs .
  • Page 6 A variety of Eltex discharging bars for AC operation as well as ion blower nozzles, ion blower pistols and distributors, each with a permanently con- nected high-voltage cable, are available.

  • Page 7: Outline Of Appliance

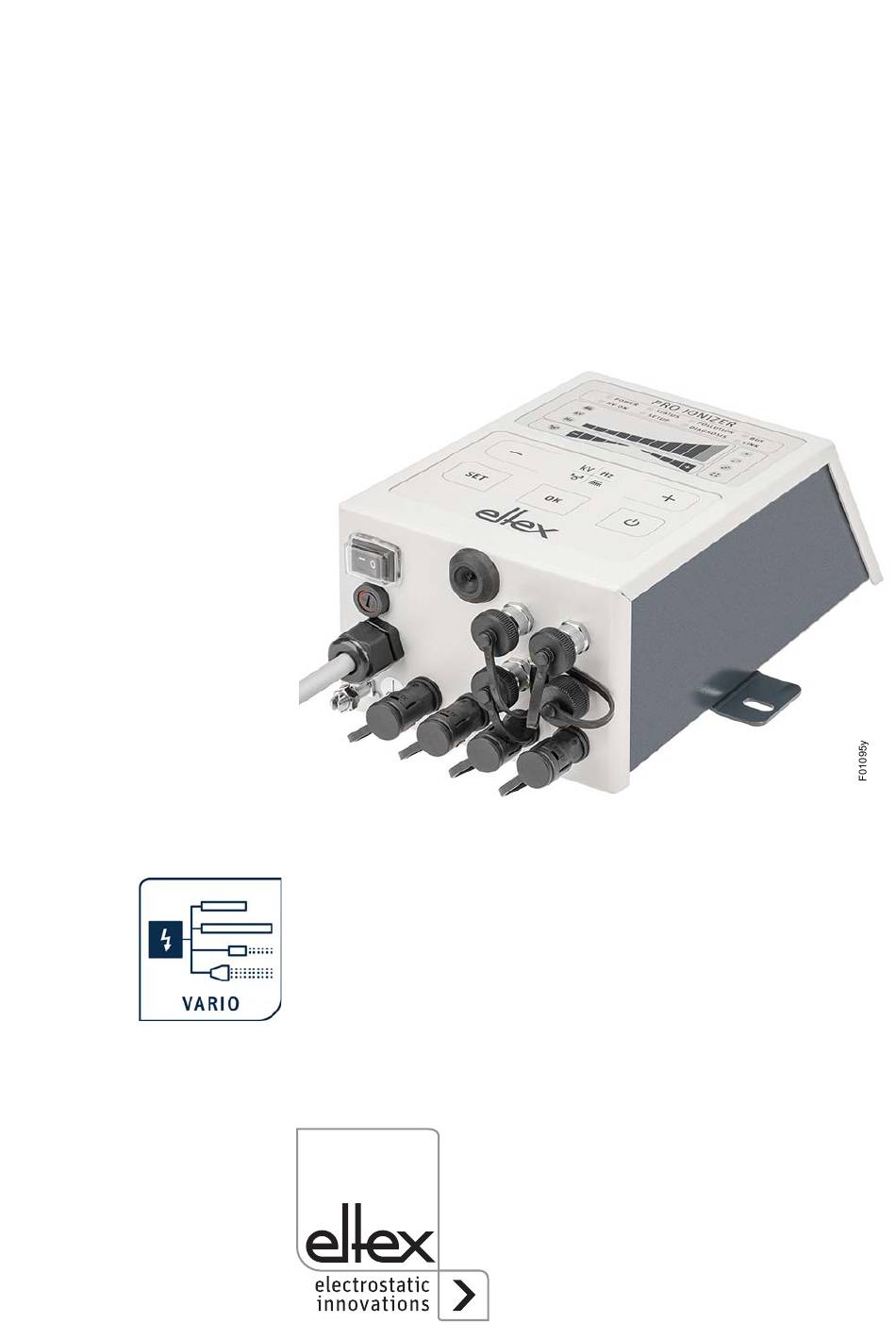

    1. Outline of appliance Fig. 1: ES61 high voltage power supply with display 1 Power supply lead 2 Fuse (type: see name plate) 3 Operating switch ON / OFF 4 Ground terminal 5 High voltage connections ( 4 pieces) 6 Sensor input (optional) 7 Interface 1 and 2 field bus (optional) 8 I/O interface (optional) 9 Service interface...
