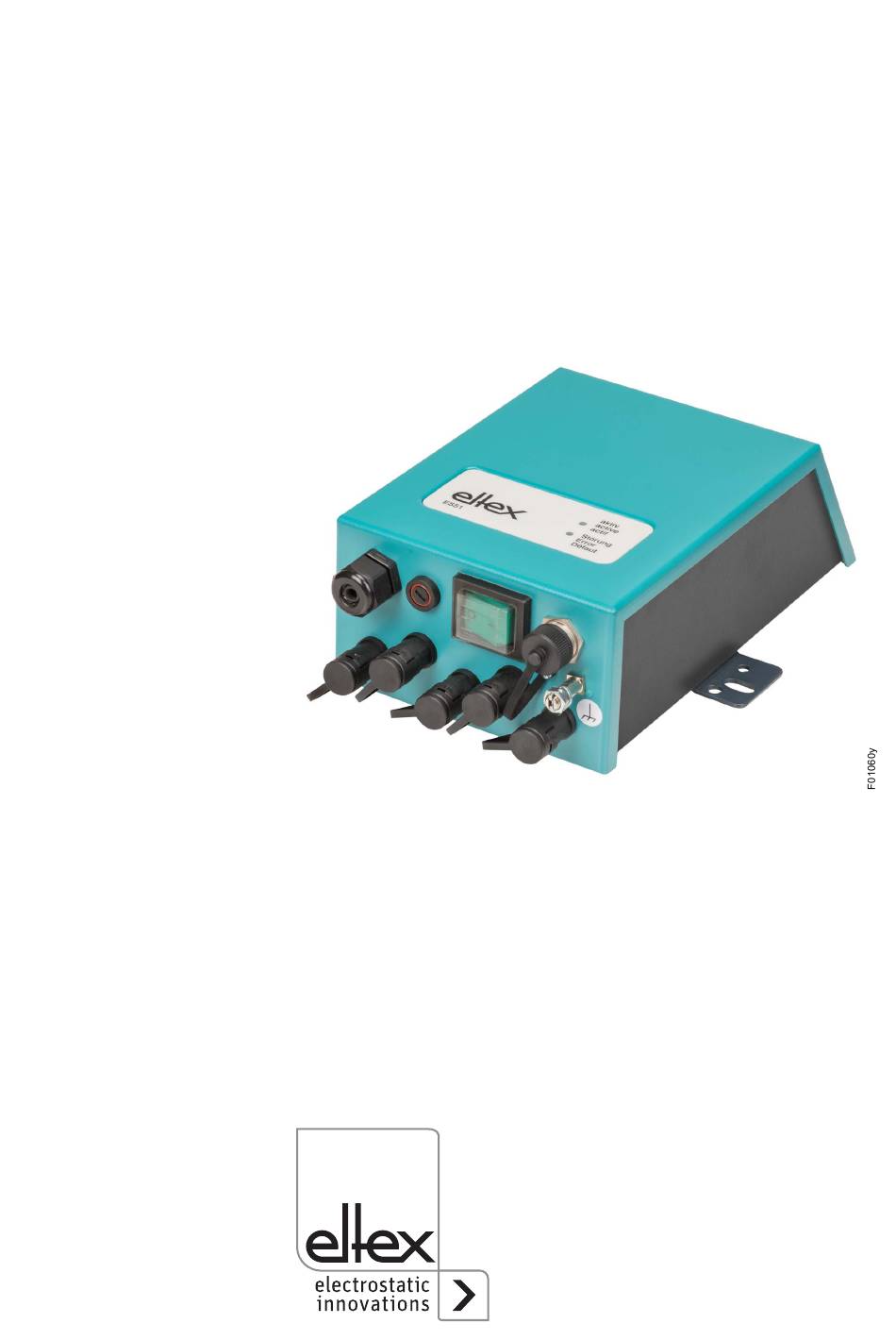

- Page 1 Operating Instructions Series ES51 Power Supplies Series ES51US Power Supplies for AC operation BA-en-2014-2006...
- Page 2 BA-en-2014-2006_ES51...
-
Page 3: Table Of Contents
List of contents Outline of appliance ........7 Safety . - Page 4 BA-en-2014-2006_ES51...
- Page 5 Dear Customer, The ES51 high voltage power supplies are power supply units for the series R5x AC discharging bars. The discharging bars and the ES51 power supply are used mainly in cases where disruptive static charges on fast-moving material webs impair production processes and need to be eliminated.
- Page 6 BA-en-2014-2006_ES51...
-
Page 7: Outline Of Appliance

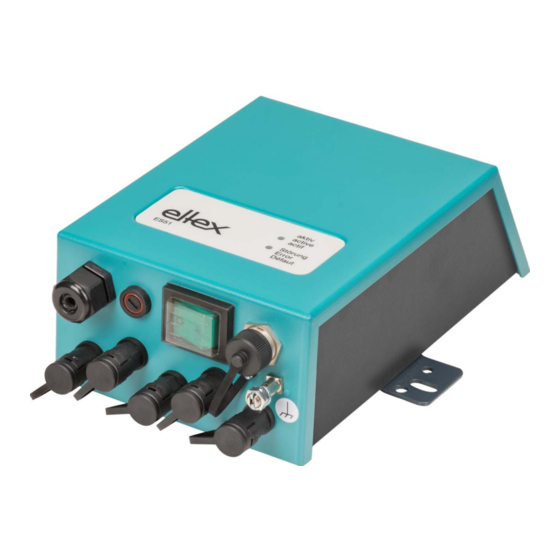

1. Outline of appliance Fig. 1: ES51 high voltage power supply for AC operation 1 Power supply lead 2 5 high voltage terminals 3 Fuse (type: see name plate) 4 ON/OFF switch (ON = illuminated) 5 Plug for function and fault signals (only with function and pollution monitoring, optional) 6 Grounding terminal 7 LED red, fault signal... -
Page 8: Safety
Eltex discharging bars for AC operation. Modifications or changes made to the power supplies are not permitted. Use only original Eltex spare parts and equipment. 2.2 Identification of risks and hazards Possible risks and hazards resulting from the use of the power supplies... - Page 9 • Any work involving the units must be carried out by qualified electri- cians (see chapter 5 "Maintenance”, page chapter 6 "Trouble- shooting”, page 17). • Before starting the unit make sure that the appliance is permanently grounded via the grounding terminal (6, Fig. 1). The ground cable should have a minimum cross section of 1.5 mm (see chapter 3.2...
-
Page 10: Technical Advance
The manufacturer reserves the right to make changes to the technical specifications without prior notice in order to adapt the units to state-of- the-art engineering. Eltex will provide the latest information on any changes or modifications in the operating instructions on request. -
Page 11: Installation And Assembly
3. Installation and assembly 3.1 Assembly the power supply The power supply is designed for wall mounting. Attach using the brackets provided (installation dimensions, see Fig. 2). The operating elements of the power supply and the terminals must be freely accessible at all times and the display LEDs must be visible. -
Page 12: Selecting The Discharging Bar
3.3 Selecting the discharging bar Eltex discharging bars and ion blowers for AC operation can be connected to the ES51 power supplies. 3.4 Connecting the high voltage cable Warning! Connect or disconnect the high voltage cables only with the power supply... -
Page 13: Maximum Active Bar Length And Length Of The High
3.5 Maximum active bar length and length of the high voltage cable Both the lengths of the high voltage cable and of the active bars are lim- ited. The shielded high voltage cables cause a capacitive load on the transformer inside the power supply. The maximum loading capacity is a result of the function of the total active bars length and the total length of all high voltage cables. -
Page 14: Connecting Socket For Function And Fault Signals
3.7 Connecting socket for function and fault signals The 5-pin connecting plug (Fig. 5) is only provided in units equipped with function and pollution monitoring. Depending on requirements, the follow- ing signals can be picked up at this plug: • Output voltage active: contact 1, 2, 5 (contact 1 and 5 closed) •... -
Page 15: Operation
4. Operation 4.1 Startup Before starting up the power supply the user must make sure that the power supply and the bars have been installed and assembled correctly. The supply voltage can then be switched on. Use the toggle switch (4, Fig. 1) to switch on the power supply. In the ON position the switch lights up green. -
Page 16: Maintenance
5. Maintenance Warning! Electric shock hazard! • Switch the power supply off and disconnect the supply voltage before carrying out any maintenance or repair work. • The machine in which the discharging bars are installed must not be in operation. •... -
Page 17: Trouble Shooting
LED (active) • Lamp in mains power • Inform Eltex Service. fails to light up no switch lit: defective high voltage transformer. • Lamp in mains power • Check supply voltage switch fails to light: and connections. -
Page 18: Warranty
The warranty applies only if the operating and assembly instructions spe- cified by Eltex have been observed. The warranty period begins on the date of delivery. In the event of defects occurring during the warranty period, the units or defective components will be repaired at Eltex. -
Page 19: Technical Specifications Es51 / Es51Us
IP54, EN 60529 UL Approval (ES51US) File No. E227156 Dimensions 230 x 140 x 82 mm (H x W x D), see Fig. 7 Weight approx. 4 kg The current approvals with their supplements can be found at: http://service.eltex.de. BA-en-2014-2006_ES51... -
Page 20: Dimensions
9. Dimensions Fig. 7: Dimensions, ES51 power supply BA-en-2014-2006_ES51... -
Page 21: Spare Parts And Accessories
10. Spare parts and accessories Article Article No. Connecting cable for function and fault signals (specify length) KS/C__ High voltage distributor discharging, 5 terminals (1 input, 4 outputs) High voltage distributor discharging 4 terminals (1 high voltage cable, 4 outputs) (specify plug and cable length) ESVY61/S_ High voltage cable with flexible tube from power supply... - Page 22 Article Article No. ES51: Fuse F1 (115 V) 1.25 A T (IEC 60127-2/5) 113522 Fuse F1 (230 V) 0.63 A T (IEC 60127-2/5) 113211 Fuse F1 (400 V) 0.5 A FF (6.3 x 32) 107735 ES51US: Fuse F1 (115 V) 0.63 A T (IEC 60127-2/3) 105659 Fuse F1 (230 V) 0.315 A T (IEC 60127-2/3) ELM00722...
- Page 24 Eltex offices and agencies The addresses of all Eltex agencies can be found on our website at www.eltex.de Eltex-Elektrostatik-Gesellschaft mbH Blauenstraße 67-69 79576 Weil am Rhein | Germany Phone +49 (0) 7621 7905-422 eMail info@eltex.de Internet www.eltex.de...
