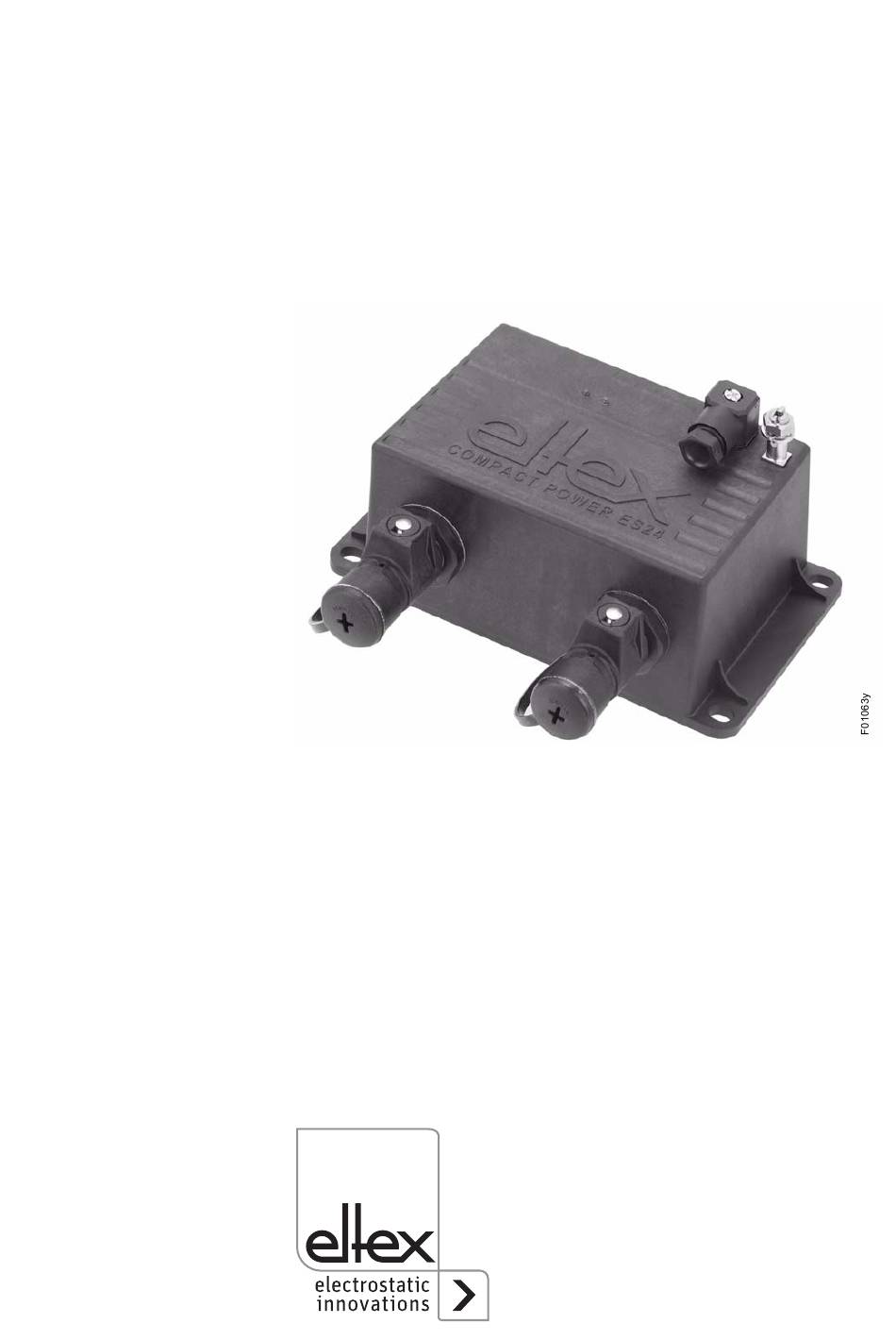

- Page 1 Operating Instructions Compact Power 24 V Series ES24 Power Supplies for supplying AC discharging bars BA-en-2062-2106...
- Page 2 BA-en-2062-2106_ES24...
-
Page 3: Table Of Contents
List of contents Outline of appliance ES24 power supply ....6 Safety ..........7 Proper use . - Page 4 BA-en-2062-2106_ES24...
- Page 5 Dear Customer, The ES24 high voltage power supplies are power supply units for the ion blower nozzles, ion blower heads and the series R45, R47, R5x and R6x AC discharging bars. The discharging bars and the ES24 power supply are used mainly in cases where disruptive static charges on fast-moving material webs impair production processes and need to be eliminated.
-
Page 6: Outline Of Appliance Es24 Power Supply
1. Outline of appliance ES24 power supply Fig. 1: ES24/O high vol- tage power supply for AC operation Universal plug: supply voltage and potential-free contact Pin 1: potential-free fault signal contact Pin 2: 24 V DC Pin 3: GND Pin 4: potential-free fault signal contact; trouble-free state - contact closed Operational grounding connection LED status;... -
Page 7: Safety
Eltex discharging bars for AC operation. Modifications or changes made to the power supplies are not permitted. Use only original Eltex spare parts and equipment. 2.2 Identification of risks and hazards Possible risks and hazards resulting from the use of the power supplies... - Page 8 • Any work involving the units must be carried out by qualified electrici- ans (see chapter 5 "Maintenance”, page chapter 6 "Troubleshoo- ting”, page 18). • The ES24 high voltage power supply must be operated only with a 24 VDC line voltage (see chapter 4 "Operation”, page 16).
-
Page 9: Technical Advance
The manufacturer reserves the right to make changes to the technical specifications without prior notice in order to adapt the units to state-of- the-art engineering. Eltex will provide the latest information on any chan- ges or modifications in the operating instructions on request. -
Page 10: Installation And Assembly
3. Installation and assembly 3.1 Assembly the power supply The power supply is designed for wall mounting. Attach using the brackets provided (installation dimensions, see Fig. 2). The terminals of the power supply must be freely accessible at all times and the display LEDs must be visible. - Page 11 Installation examples Fig. 3: Installation examples Example: connection of several consumer units via a high voltage distributor Fig. 4: Installation examples When connecting several consumer units (bars, ion blower nozzles and heads) using an ESVY61 / ESV61 high voltage distributor, the entire active bar and cable length must be within the permissible range of the loading capacity diagram (Fig.
-
Page 12: Ground Connection
3.2 Ground connection A permanent grounding connection must be made and checked via the ground terminal (2, Fig. 1) and routed with the shortest possible distance to the machine frame. The ground cable should have a minimum cross section of 1.5 mm 3.3 Connecting the high voltage cable Warning! Connect or disconnect the high voltage cable only with the power supply... -
Page 13: Dismantling / Assembling The Plug Housing
3.4 Dismantling / Assembling the plug housing To route the cable through a wall or a grommet, the plug housing and the threaded anti-kink joint can be dismantled and removed. Fig. 6: Dismantling / Assembling the plug housing • First loosen the union nut of the threaded anti-kink joint (1). •... -
Page 14: Maximum Active Bar Length And Length Of The High
3.5 Maximum active bar length and length of the high voltage cable Both the lengths of the high voltage cable and of the active bars are limited. The shielded high voltage cables cause a capacitive load on the transformer inside the power supply. The maximum loading capacity is a result of the function of the total active bars length and the total length of all high voltage cables. -
Page 15: Connecting Supply Voltage And Fault Signal Contact
3.6 Connecting supply voltage and fault signal contact Operating the ES24 power supply requires a 24 V DC line voltage designed for a maximum current of 1.4 A. The supply voltage is provided by the customer and is connected via the connector supplied. -
Page 16: Operation
4. Operation The ES24 high voltage power supply must be operated only with a 24 VDC line voltage. 4.1 Startup Before starting up the power supply the user must make sure that the power supply and the bars have been installed and assembled correctly. -
Page 17: Maintenance
5. Maintenance Warning! Electric shock hazard! • Switch off the power supply unit and disconnect the supply voltage before carrying out any maintenance or repair work. • The machine which has the units fitted must not be in operation. • Repairs and maintenance work must be carried out by qualified electricians. -
Page 18: Troubleshooting
• Check the maximum permis- flashes. high voltage out- sible bar / cable length. put. Clean the discharging bars. Check the high voltage cable / the discharging bars for any damage. • No output voltage. • Inform Eltex Service. BA-en-2062-2106_ES24... -
Page 19: Warranty
The warranty applies only if the operating and assembly instructions spe- cified by Eltex have been observed. The warranty period begins on the date of delivery. In the event of defects occurring during the warranty period, the units or defective components will be repaired at Eltex. -
Page 20: Technical Specifications Es24
8. Technical specifications ES24 Supply voltage 24 V DC +/- 10 % Power input 15 VA max. Output voltage 5 kV AC / 100 Hz Loading capacity depending on bar length and length of high voltage cable (see chapter 3.5) Output current max. -
Page 21: Dimensions
9. Dimensions Fig. 10: Dimensions ES24/O power supply BA-en-2062-2106_ES24... -
Page 22: Spare Parts And Accessories
10. Spare parts and accessories Article Article No. High voltage distributor discharging 4 terminals (1 high voltage cable, 4 outputs) (specify socket and cable length) ESV61/Z_ _ _ _ High voltage distributor discharging 2 terminals (1 high voltage cable, 2 outputs) (specify socket and cable length) ESVY61/Z_ _ _ _ High voltage cable without flexible tube from power... - Page 24 Eltex offices and agencies The addresses of all Eltex agencies can be found on our website at www.eltex.de Eltex-Elektrostatik-Gesellschaft mbH Blauenstraße 67-69 79576 Weil am Rhein | Germany Phone +49 (0) 7621 7905-422 eMail info@eltex.de Internet www.eltex.de...
