Summary of Contents for Avery Dennison Thermopatch NL-30

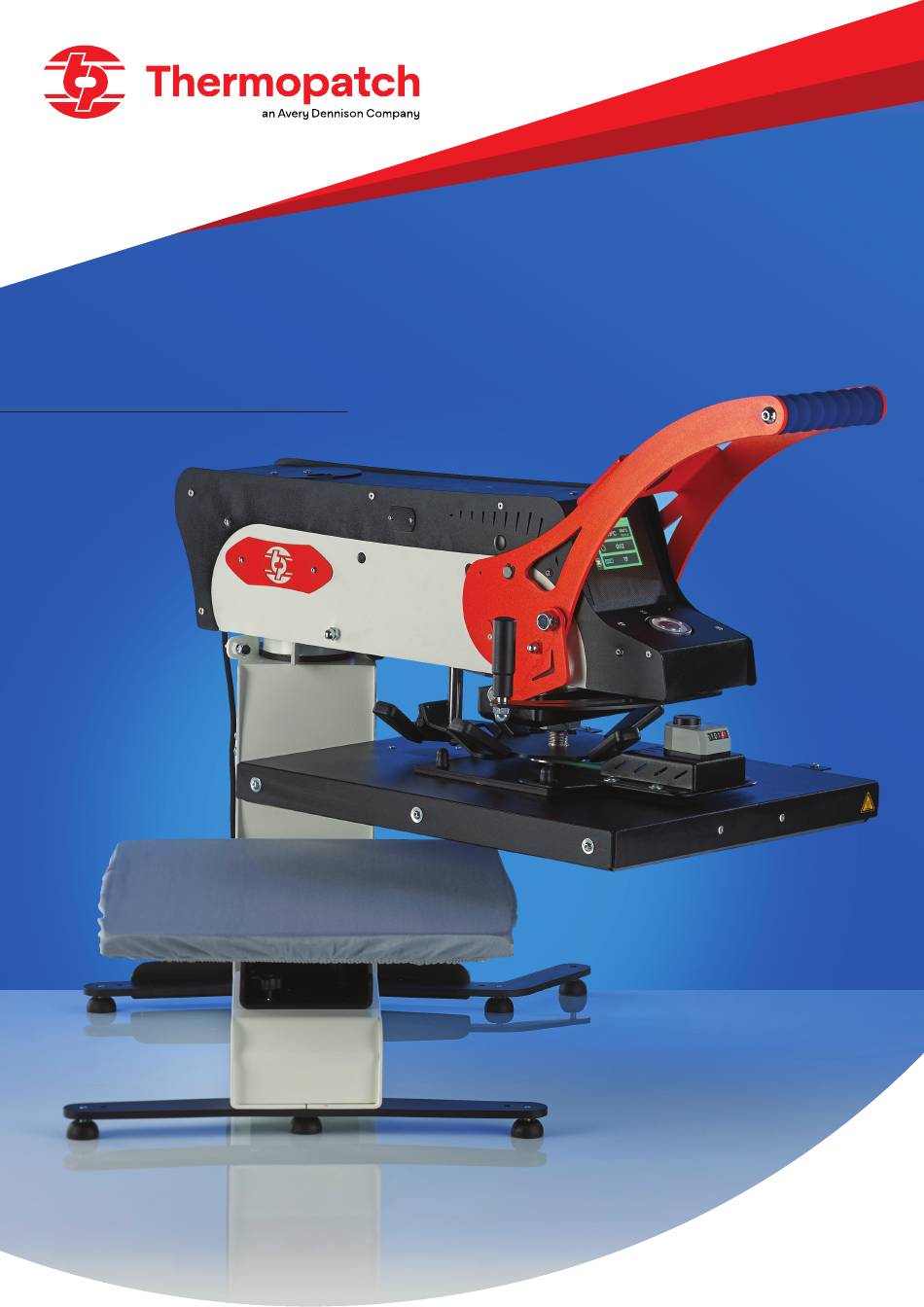

- Page 1 U S E R M A N U A L N L-30 v. 3 ATTENTION! All persons involved in installation, commissioning, operation, maintenance, and repair of this product should be made available to these instructions. v.1.2 - 03/24...
-
Page 2: Copyrights
Copyrights © 2024 Thermopatch BV, Almere, The Netherlands. No part of this publication may be reproduced by any means without the prior written permission of Thermopatch BV, The Netherlands. Thermopatch and the Thermopatch logo, Thermo-Seal™ and Thermocrest are registered trademarks of Thermopatch. Introduction The products by Thermopatch are designed with special attention to your convenience. -
Page 3: Table Of Contents
Index Copyrights Introduction Contents General description Delivery Warranty and product liability conditions Intended use Assembly and installation Assenbly and installation Electical installation Operating instructions Operating the NL-30 v.3 4.1.1 Setting the sealing pressure 4.1.1 Using the control panel Pressing time Temperature setting Item counter Presets... -
Page 4: General Description
1. General description The pneumatic NL-30 v.3 is a practical, universal heat seal machine. Textile labels, emblems, repair patches, transfers, in short all Thermopatch materials for marking and repair are easily and durably pressed onto textile fabrics. 1.1 Delivery The NL-30 v.3 machines are delivered on a pallet covered with a wooden crate. In the delivery of your NL-30 v.3 machine you will find the following: •... -
Page 5: Assembly And Installation
3. Assembly and installation 3.1 Assembly and installation Unpacking • Remove the wooden protective crate. • Use a 10 mm spanner to remove the four screws with which the machine is screwed to the pallet • Lift the machine onto the work table by means of the tongs that are mounted. •... -
Page 6: Operating Instructions
4. Operating instructions 4.1 Operating the NL-30 v.3 • Switch on the press by pressing the power switch located at the rear. • Adjust set point temperature (See 4.2.b). • Adjust sealing time (See 4.2.a). • Adjust the pressure (according to the type of transfer) •... -
Page 7: Using The Control Panel
4.2 Using the control panel NL-30 v.3 control panel The temperature and time are shown on the display. Presets (d) Current temperature (b) Setpoint temperature Settings (e) Stop cycle Pressing time (a) Counter (c) BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 8: Pressing Time
a) Pressing time Press this menu to set the machine’s pressing time. Use the left and right arrow keys to increase and decrease this setting. You can also have two consecutive pressing times (cf. “Settings (e)”). You can also change this setting by pressing the time display and entering the required time from the touch pad. -
Page 9: Presets
d) Presets Pressing the Presets icon brings up the menu shown opposite. Use the left and right arrows to select one of the 5 pre-configured presets. To use a preset, press the floppy disk icon with the arrow pointing to the right. Once selected, press the home icon in the bottom right corner to return to the main menu. - Page 10 The other settings: The setting in the top left corner shows that the machine is pressing within the set temperature range. This range can be set by pressing the icon and entering the 2 required temperatures. A non-locking warning will be displayed. It will be ignored during the 2nd pressing and allows the work continue even if the setpoint is not reached.
-
Page 11: List Of Alarms/Events
List of alarms/events: Inconsistent interpretation of the reading Alarm 01: - Probe signal lost (sensor or cable). The PT100 heating control is instantly disabled. Alarm 02: Temperature reading above 240° C. Platen overheating The heating control is instantly disabled. The top travel limit is not read during the Alarm 06: lift phase before the platen lift time-out Platen lift... -
Page 12: Automatic Rotation On Or Off
4.3 Automatic rotation on or off The automatic rotation of the press head can be switched off with a button. This is on by default so that the press head rotates automatically after completion of the press cycle. The button for activating or deactivating is located under the round flap on top of the press arm. If the machine automatically opens, press the button to turn it off. -
Page 13: Overview Of Safety Measures And Warnings
5. Overview of safety measures and warnings 5.1 Safety The NL-30 v.3 is equipped with all mandatory safety requirements that apply according to the European guidelines for machine safety. Warning symbols: for additional safety the following symbols have been placed on the machine: ... -
Page 14: Technical Specifications
6. Technical specifications 6.1 Specifications of the NL-30 v.3 Power 2500 Watts Power supply 230 Volt 50/60 Hz Operating temperature 180 °C Temperature range 0-220 °C Press Time range 0-59 min. 59 sec. Thermoregulator accuracy up to +/- 1% Adjustable pressure range 0-590 g/cm²... -
Page 15: Transport And Storage
7. Transport and storage 7.1 Transport When the machine must be moved, Thermopatch recommends using the original packaging. 7.2 Storage If the machine must be stored, Thermopatch recommends using the original packaging. The machine must be stored off the ground, preferably on a pallet in dry conditions. BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 16: Maintenance
8. Maintenance Make sure that the working cycle of the machine has ended before you start working on the machine. Teflon cover: The teflon film protecting the element must be cleaned regularly to prevent sticking of labels and patches or the transfer of dirt to the garments. Clean the Teflon cover with a dry, clean cloth while the machine is still warm. -
Page 17: Technical Annexes (English)
9. Technical Annexes 9.1 Spare parts Reference Description Quantity SPA3X-028 ELECTRONIC BOARD SPA27-005 MICA HEATING ELEMENT 400x500 2500 W SPA3X-029 PT100 SENSOR SPA27-002 REED TYPE LIMIT SWITCH SPA3X-100-8 SILICONE FOAM 400X500 mm SPA30-003 GAS-OPERATED SPRING SPA3X-004 230 V 7 W ELECTROMAGNETIC AIR VALVE SPA3X-003 16 A FUSE BACK TO INDEX... -
Page 18: Troubleshooting
9.2 Troubleshooting In this paragraph you will find the most common problems, causes and solutions. Problem Possible cause Solution Check the connection to the electric mains and The plug is not connected if the machine is plugged in The machine does The switch has not been Press the main switch to 'on not switch on... -
Page 19: Electrical Diagram
9.3 Electric Diagram BACK TO INDEX For more information about our products and how to contact us, please visit thermopatch.com... -
Page 20: End Of Life
Thermopatch B.V. Draaibrugweg 14 1332 Almere Netherlands herewith declare, on our own responsibility, that the machinery: Thermopatch NL-30 v.3 heat sealing machine,which this declaration refers to, is in accordance with the conditions of the following Directive(s): 2014/35/EG (emc directive) 2006/42/EG... -
Page 21: Disclaimer
Netherlands declare that the DoC is issued under our sole responsibility and belongs to the following product: Thermopatch Thermopatch NL-30 v3, which this declaration refers to, is in accordance with the conditions of the following guidelines: • Electromagnetic Compatibility Regulations (EMC) 2016 •... - Page 22 Thermopatch BV Draaibrugweg 14 1332 AD Almere The Netherlands T +31 36 549 11 11 sales@thermopatch.nl www.thermopatch.com...
