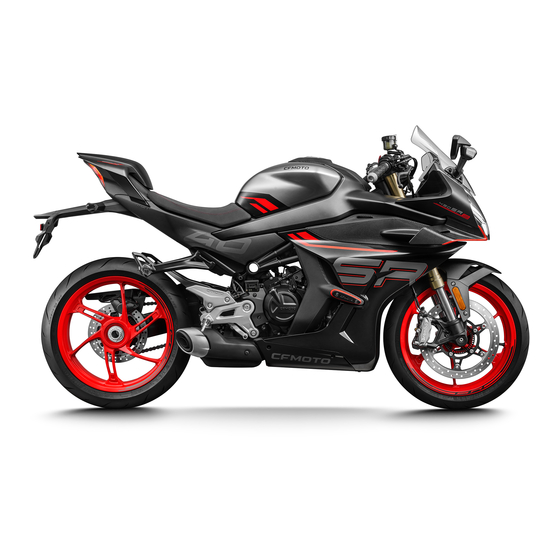

450SR S
Owner's Manual
READ THIS
MANUAL
CAREFULLY
It contains important
safety information
Make sure operator holds a valid driver license.
Passengers under 12 are prohibited.

Advertisement

Table of Contents
loading

Summary of Contents for CF MOTO 450SR S

  • Page 1 450SR S Owner's Manual READ THIS It contains important Make sure operator holds a valid driver license. MANUAL safety information Passengers under 12 are prohibited. CAREFULLY...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS FOREWORD ������������������������������������������������������������������������������������������������ 8 EVAP System (Evaporative Emission Control System) ������������������������������������������������9 Key Signals �����������������������������������������������������������������������������������������������������������������10 VIN AND SERIAL NUMBER ���������������������������������������������������������������������� 12 SPECIFICATIONS �������������������������������������������������������������������������������������� 13 OPERATOR SAFETY �������������������������������������������������������������������������������� 16 General Safety Precautions ����������������������������������������������������������������������������������������16 Equipment Modifications ���������������������������������������������������������������������������������������������17 Owner Responsibilities ������������������������������������������������������������������������������������������������20 Safe Riding Gear ���������������������������������������������������������������������������������������������������������21 AVOID DANGEROUS RIDING BEHAVIORS ��������������������������������������������...
  • Page 3 Handlebar Switch, RH �������������������������������������������������������������������������������������������������32 Throttle Grip ����������������������������������������������������������������������������������������������������������������32 Locks ���������������������������������������������������������������������������������������������������������������������������33 Gear Shift Lever ����������������������������������������������������������������������������������������������������������35 Rear Brake Lever ��������������������������������������������������������������������������������������������������������36 Side Stand �������������������������������������������������������������������������������������������������������������������36 Passenger Handhold and Footrests ����������������������������������������������������������������������������37 INSTRUMENT �������������������������������������������������������������������������������������������� 38 Activation and Testing �������������������������������������������������������������������������������������������������38 Instrument Indicators ���������������������������������������������������������������������������������������������������39 Instrument Display ������������������������������������������������������������������������������������������������������42 Instrument Menu ���������������������������������������������������������������������������������������������������������49 OPERATING YOUR VEHICLE �����������������������������������������������������������������...
  • Page 4 SAFETY OPERATION ������������������������������������������������������������������������������� 85 Safe Riding Tips ����������������������������������������������������������������������������������������������������������85 Additional Cautions for High Speed Operation �����������������������������������������������������������86 MAINTENANCE ����������������������������������������������������������������������������������������� 87 Improper Use �������������������������������������������������������������������������������������������������������������87 Key Points of Lubrication Schedule: ���������������������������������������������������������������������������88 Break-in Periodic Maintenance Chart �������������������������������������������������������������������������89 After Break-in Periodic Maintenance Chart �����������������������������������������������������������������92 CLUTCH LEVER FREE-PLAY ������������������������������������������������������������������� 98 GEARSHIFT LEVER ADJUSTMENT ��������������������������������������������������������...
  • Page 5 Spark Plug �����������������������������������������������������������������������������������������������������������������106 Idling ��������������������������������������������������������������������������������������������������������������������������106 AIR INTAKE AND EXHAUST SYSTEM ��������������������������������������������������� 107 Exhaust Detecting System ����������������������������������������������������������������������������������������107 Air Intake Valve ���������������������������������������������������������������������������������������������������������107 Valve Clearance ��������������������������������������������������������������������������������������������������������108 Air Filter ���������������������������������������������������������������������������������������������������������������������109 Throttle Body �������������������������������������������������������������������������������������������������������������109 COOLING SYSTEM ����������������������������������������������������������������������������������110 Radiator and Cooling Fan ����������������������������������������������������������������������������������������� 110 Radiator Hoses ��������������������������������������������������������������������������������������������������������� 110 Coolant ����������������������������������������������������������������������������������������������������������������������...
  • Page 6 BRAKE SYSTEM ������������������������������������������������������������������������������������� 122 Front Brake Lever Inspection ������������������������������������������������������������������������������������122 Rear Brake Pedal Inspection ������������������������������������������������������������������������������������122 Brake Fluid Level Inspection �������������������������������������������������������������������������������������123 Brake Fluid Replenishment ���������������������������������������������������������������������������������������124 Brake Disc Inspection �����������������������������������������������������������������������������������������������126 Brake Caliper Inspection �������������������������������������������������������������������������������������������126 Anti-lock Braking System (ABS) �������������������������������������������������������������������������������127 SHOCK ABSORBER ������������������������������������������������������������������������������� 128 Shock Absorber Inspection ���������������������������������������������������������������������������������������128 Rear Shock Absorber Adjustment ����������������������������������������������������������������������������128 ELECTRICAL SYSTEM AND LIGHT SIGNALS ��������������������������������������...
  • Page 7 General Precautions �������������������������������������������������������������������������������������������������138 Washing the Vehicle ��������������������������������������������������������������������������������������������������139 Decorating the Surface ���������������������������������������������������������������������������������������������140 Windshield and Other Plastic Parts ���������������������������������������������������������������������������140 Chrome and Aluminum ����������������������������������������������������������������������������������������������140 Preparation for Storage ���������������������������������������������������������������������������������������������141 Preparation After Storage ������������������������������������������������������������������������������������������142 COMMON PROBLEMS AND CAUSES �������������������������������������������������� 143 GENERAL TORQUE CHART ������������������������������������������������������������������ 146 CRUCIAL TORQUE CHART �������������������������������������������������������������������...
  • Page 8: Foreword

    FOREWORD Thank you for purchasing a CFMOTO vehicle, and welcome to our world-wide family of CFMOTO enthusiasts� Be sure to visit us online at www�cfmoto�com for the latest news, new product introductions, upcoming events, and more� CFMOTO is an international company that specializes in the development, manufacture, and marketing of all-terrain vehicles, utility vehicles, large displacement motorcycles, and their core components�...
  • Page 9: Evap System (Evaporative Emission Control System)

    based on the latest production information available at the time of approval for printing� CFMOTO reserves the right to make changes at any time without notice and without incurring any obligation� This manual is for the following vehicles: CF400-9 CF400-9F DANGER Operating, servicing and maintaining on-road or off-road vehicles can expose you to chemicals including engine exhaust, carbon monoxide, phthalate, and lead, which are known to cause cancer and birth...
  • Page 10: Key Signals

    Key Signals Warning signals call attention to the safety signal or other signals, as well as the performance default signal or other signals� They also specify the danger’s severity� This manual’s standard signals are: “DANGER”, “WARNING”, “CAUTION” and “NOTE”� The following signal words and symbols appear throughout this manual and on your vehicle� Your safety is at risk when these words and symbols appear on your vehicle�...
  • Page 11 READ THE OWNER’S MANUAL FOLLOW ALL INSTRUCTIONS AND WARNINGS WARNING Read, understand, and follow all of the instructions and safety precautions in this manual and on all product labels� Failure to follow the safety precautions could result in serious injuries or deaths� WARNING The engine exhaust gas from this product contains CO, which is deadly and can cause headaches, giddiness, loss of consciousness, or even death�...
  • Page 12: Vin And Serial Number

    VIN AND SERIAL NUMBER Please record the VIN number, motor serial number and nameplate at the position indicated on the following illustration� Vehicle Identification Number: Engine Serial Number: Name Plate Number: Engine Serial Number Vehicle Plate...
  • Page 13: Specifications

    SPECIFICATIONS 450SR S CF400-9 CF400-9F Performance Max Power 49�6 Hp (37 Kw) / 9500 rpm 46�3 Hp (34�5 Kw) / 9250 rpm Max Torque 28�8 ft-Ib (39 N•m) / 7600 rpm 28�9 ft-Ib (39�3 N•m) / 7750 rpm Min� Turn Diameter 204�7 in (5�2 m)
  • Page 14 Ignition Control System ECU Ignition Lubricating System Pressure splash Oil Capacity When changing an oil filter: 2.64 qt (2.5 L) Engine Oil Type SAE 10W-40 SJ JASO MA2 Coolant Capacity 1100 mL + (90-150) mL Idle Speed 1400 r/min ± 140 r/min 1350 r/min ±...
  • Page 15 3�7 gal ± 0�13 gal (14 L±0�5 L) Capacity of Fuel Tank 3�7 gal (14 L) Average Fuel Consumption Per 100 ≤ 1.3 gal (4.8 L) Electric Components Battery 12 V / 12 Ah Headlight Turning Light Tail Light...
  • Page 16: Operator Safety

    OPERATOR SAFETY General Safety Precautions WARNING Please read this manual carefully before operating the vehicle and understand all safety warnings, precautions and operating procedures� Age Limit This model is for adults only� The operator must acquire a driving license as required by local laws and regulations, and children under the age of 12 are not allowed to ride CFMOTO’s passenger-carrying vehicles�...
  • Page 17: Equipment Modifications

    Equipment Modifications CFMOTO is concerned with the safety of our customers and of the general public� Therefore, we strongly recommend that consumers should not mount on a vehicle, any equipment that may increase the speed or power of the vehicle, or make any other modifications to the vehicle for these purposes. Any modifications to the original equipment of the vehicle create substantial safety hazards and increase the risk of body injury�...
  • Page 18 Avoid Gasoline Fires and Other Hazards Gasoline is extremely flammable and highly explosive. Fuel vapors can spread and be ignited by a spark or flame many feet away from the engine. To reduce the risk of fire or explosion, follow these instructions: •...
  • Page 19 WARNING Gasoline is highly flammable and explosive under certain conditions� Allow the engine and exhaust system to cool before filling the tank� Always be highly cautious whenever handling gasoline� Always refuel the vehicle when the engine stopped outdoors or in well-ventilated areas� Do not smoke or allow open flames or sparks in or near the area where refueling is performed, or where gasoline is stored.
  • Page 20: Owner Responsibilities

    Owner Responsibilities Be Qualified and Responsible Read this Owner’s Manual and the warning labels on this vehicle carefully� Take a safety training course on open areas if possible and practice at low speed� Higher speed requires greater experience, knowledge and suitable riding conditions� Be familiar with the control technology and the general operations of the vehicle�...
  • Page 21: Safe Riding Gear

    Safe Riding Gear Always wear clothing suited to the type of riding for the driver and passenger, includes: 1� An approved helmet 2� Goggles 3� Gloves 4� Long-sleeved shirts or jackets 5� Long pants 6� Over-the-ankle boots According to the actual weather, you may need extra apparel, such as anti-fog goggles, thermal underwear and a face guard for cold weather�...
  • Page 22 face and jaw� Please wear detachable face masks and goggles when wearing an open-face helmet� Do not depend on eyeglasses or sunglasses for enough eye protection, as they may fly out or shatter in case of an accident to cause second damage, and they can not prevent wind and airborne objects from getting into eyes�...
  • Page 23 outer layer can prevent cold air from reaching the skin� Boots Always wear closed-toe, over-the-ankle boots. Sturdy over-the-ankle boots with non-slip soles offer more protection, and allow you to put your foot properly on the foot pegs� Avoid long shoelaces that could get entangled in the vehicle components�...
  • Page 24: Avoid Dangerous Riding Behaviors

    AVOID DANGEROUS RIDING BEHAVIORS The following behaviors may cause serious consequences, so instructions must be followed to avoid dangerous behaviors� Operation Errors WARNING: Operation errors may cause serious damage to the operator, passenger and people around. Read every instruction in this manual and be familiar with every function of this vehicle� Must participate in the safety training and know how to operate the vehicle properly in different situations and on different types of terrain�...
  • Page 25 Riding on Unpaved Roads WARNING: The vehicle must not ride on unpaved roads. The tires of this car are designed to drive on paved roads, not suitable for use on unpaved roads such as sand, mud, puddles and dirt roads� Driving on unpaved roads will seriously affect vehicle handling, which will greatly increase the incidence of accidents�...
  • Page 26 Stunts WARNING: Do not try stunts. All stunts are dangerous, including but not limited to slippery tires, jumping, side-slip, front wheel upturn, etc� Stunt or demonstration riding can result in serious accidents� Always use normal driving methods� Inspections and Maintenance WARNING: Check vehicle’s conditions before driving and maintaining vehicle regularly.
  • Page 27 Modifications WARNING: Any non-standard modifications are prohibited. Any modifications will affect vehicle handling, which can lead to accidents. It is prohibited to mount any equipment which would increase the speed or power of the vehicle, or to make any other modifications to the vehicle for these purposes�...
  • Page 28: Vehicle View

    VEHICLE VIEW Rear Left View 1: Instrument 2: Clutch Lever 3: Handlebar Switch, LH 4: Fuel Tank Lock 5: Gear Shift Lever 6: Seat Lock 7: Footrest 8: Ignition Switch Lock 9:Side Stand...
  • Page 29: Front Right View

    Front Right View 10: Passenger Armrest 11: Throttle Grip 12: Handlebar Switch, RH 13: Front Hand Brake Lever 14: Rear Hand Brake Lever...
  • Page 30: Operating Parts

    OPERATING PARTS Clutch Lever Clutch lever is on the left side of handlebar� The clutch is a cable clutch� Adjust the clutch lever’s distance to the handlebar by turning the clutch lever adjusting knob� Adjusting knob Front Hand Brake Lever Front hand brake lever is on the right side of handlebar�...
  • Page 31: Handlebar Switch

    Handlebar Switch, LH Left handlebar switch is on the left side of the handlebar� Functions of Left Handlebar Switch Instrument Instrument operations, please refer to button INSTRUMENT� Push this switch to the right, the right turning light will be on� Turning light switch Push this switch to the left, the left...
  • Page 32: Handlebar Switch

    Handlebar Switch, RH Right handlebar switch is on the right side of the handlebar� Functions of Right Handlebar Switch Turn to this position, the vehicle stops� Start and stop Turn to this position, the vehicle switches is preparing for starting� Turn to this position, the vehicle starts�...
  • Page 33: Locks

    Locks Fuel Tank Lock Before opening the fuel tank lock: Stop the vehicle and turn off the engine. Open the fuel tank lock cover; Insert the key and turn the key to release the lock; Open the fuel tank cap� Ignition switch Turn the handlebar left to the end, then Handlebar lock...
  • Page 34 Seat Lock The seat lock is on the left side of the vehicle� The seat can be removed by inserting the key and turning to release the lock�...
  • Page 35: Gear Shift Lever

    Gear Shift Lever The gear shift lever is on the left side of the engine� Both ends of the middle connecting rod are adjustable, and the adjusting range (D) is 0�16 ~ 0�47 in (4~12 mm)� Loosen the locking nuts at both ends�...
  • Page 36: Rear Brake Lever

    Rear Brake Lever The rear brake lever is on the right side of the engine� Step on the rear brake lever to slow down or stop the vehicle� Side Stand The side stand is on the left side of the vehicle, and is used for parking;...
  • Page 37: Passenger Handhold And Footrests

    Passenger Handhold and Footrests A passenger handhold is mounted on the motorcycle seat for passenger to hold on during riding� Footrests are fixed on the motorcycle for the operator and passenger to put their feet�...
  • Page 38: Instrument

    INSTRUMENT NOTE ODO 123456km 22:35 With function adjustment and version updates of the instrument -5°C The name of the song_singer and renewed vehicle configurations, some contents of the instrument may change, please selectively refer to this chapter 1 2 3 k m/ h according to your car�...
  • Page 39: Instrument Indicators

    Instrument Indicators ODO 123456km 22:35 -5°C The name of the song_singer AV G 12 3 k m/ h...
  • Page 40 Number Symbol State When turning signal indicators are flashing, the corresponding Flash turning lights are on� When the position light indicator is on, the position light is turned on� When the vehicle is powered on and the engine is off, the fault indicator is on;...
  • Page 41 When the coolant temperature is higher than 115°C, the coolant temperature warning indicator will be turned on� Please park the vehicle according to local laws and regulations to wait for the temperature drop� If this indicator turns on frequently, contact an authorized CFMOTO service center�...
  • Page 42: Instrument Display

    Instrument Display Optional Info 1 The user can select a message from the menu to be displayed here or on the main interface� Press ▲ to choose Optional Info 1. Optional Info 1: TRIP 1, TRIP 2, ODO� ODO 123456km 22:35 -5°C The name of the song_singer...
  • Page 43 Menu Coolant Temperature Press ENT to enter the menu, and please refer to the Instrument Menu chapter� Coolant temperature is displayed by several bars� The more the number of bars lit up, the higher the coolant temperature� When the last bar turns red, the coolant reaches the dangerous temperature which exceeds ODO 123456km 22:35...
  • Page 44 Gear Change Reminder The user can enable the Gear Change Reminder in the menu� Remind the user to change gear when the engine speed reaches the recommended gear-shifting range� ODO 123456km 22:35 -5°C The name of the song_singer Fuel remained km/h Fuel remained is displayed by several bars�...
  • Page 45 Gear display Optional Info 2 The user can select a message from the Current vehicle’s gear is displayed here� menu to be displayed here or on the main The neutral gear is green� interface� The user can select a message from the menu to be displayed here or on the main interface�...
  • Page 46 Speed Clock The current time is displayed here� The current speed per hour is displayed here� Set the current time through the menu� Metric km/h and British mph can be switched Switch between 12 hours and 24 hours through the menu� through the menu�...
  • Page 47 ODO 123456km 22:35 -5°C Liuda Yong Call In km/h Engine RPM Side Stand Indicator The unit of engine speed is 1000 revolutions per When the side stand is used, its indicator light is on� At this time, the motorcycle cannot be started with gear, minute�...
  • Page 48 Sports Camera ODO 123456km 22:35 -5°C Liuda Yong This feature records riding moments� It can be used Call In... only when equipped with T-BOX, and it is only for Insta 100% x3 (launch permission selectively)� Users can pay the fee via the CFMOTO APP(monthly/half-yearly/yearly)� t ri p1 Make sure the vehicle is connected to the camera k m/h...
  • Page 49: Instrument Menu

    Instrument Menu Adjust the instrument settings to enhance the driving experience using the menu feature� ODO:223245km 22:35 km/h Settings Press menu button on the left handlebar switch to enter the Subject Style instrument menu� Units WARNING Connection Optional Info The menu mode is only allowed when the motorcycle is stopped�...
  • Page 50 For Main interface: press it to switch Optional Info 1 and long press it to reset trips� For the first-level menu, second-level and lower menu: press it to select the prior choice. For Music: at the main interface, press it to increase the volume and long press it to select the prior song� On the Menu interface, press it to increase the volume and long press it to select the prior song�...
  • Page 51 Instrument Settings ODO:223245km 22:35 In the instrument settings, riders can adjust and set the following km/h Settings contents: Subject Style Subject Style Units Units ODO:223245km Connection 22:35 Equipment Connection km/h Settings Optional Info Optional Info Brightness Brightness Control Trip Reset Trip Reset Overspeed alarm ODO:223245km...
  • Page 52 Subject Style ODO:223245km ODO:223245km 22:35 22:35 The main interface of the instrument is equipped with multiple km/h km/h Subject Style 设置 sets of subject styles, and you can choose your favorite one in 主题风格 the menu� 单位设置 Press ENT to enter the Menu interface; Concision 设备连接...
  • Page 53 Units ODO:223245km 22:35 Change units of speed, time and temperature to suit your km/h Settings reading habits� Subject Style Press ENT to enter the Menu interface� Units Press △ or ▽ to select Settings, and press ENT to enter Connection Settings interface;...
  • Page 54 Connection ODO:223245km 22:35 Navigation, telephone calls and music functions can be used km/h Settings after the helmet is connected to the instrument via Bluetooth� Subject Style Press ENT to enter the Menu interface; Units Press △ or ▽ to select Settings, and press ENT to enter Connection Settings interface;...
  • Page 55 Optional Info ODO:223245km 22:35 Select one message from Optional Info 1 and Optional Info 2 to km/h Settings display on the main interface� Subject Style Press ENT to enter the Menu interface; Units Long press △ or ▽ to select Settings, and press ENT to enter Connection the Settings interface;...
  • Page 56 Brightness Control ODO:223245km 22:35 Manually adjust the brightness of the instrument, or the km/h Settings instrument automatically adjusts its brightness of according to Brightness the external environment light� Trip Reset Press ENT to enter the Menu interface; Overspeed alarm Press △...
  • Page 57 Trip Reset ODO:223245km 22:35 Reset trip data manually� km/h Trip Reset Press ENT to enter the Menu interface; Trip1 Reset Press △ or ▽ to select Settings, and press ENT to enter Trip2 Reset Settings interface; Press △ or ▽ to select TRIP Reset, and press ENT to enter; Press △...
  • Page 58 Overspeed Alarm ODO:223245km 22:35 Set an overspeed alarm to remind the driver of speeding when km/h Settings the actual indicated speed exceeds the set speed� The rider Brightness should not exceed the maximum speed of current road section Trip Reset of at any time�...
  • Page 59 Traction Control System ODO:223245km 22:35 km/h Traction Control System makes the vehicle get the best traction Traction Control System at any driving condition� Traction Control System Press ENT to enter the Menu interface; Press △ or ▽ to select Settings, and press ENT to enter Settings interface;...
  • Page 60 Emergency Stop Signal (ESS) ODO:223245km 22:35 After turning on the ESS, when the vehicle operates emergency km/h Emergency Stop Signal braking the turning light will flash to remind the rider behind you. Emergency Stop Signal Press ENT to enter the menu interface; Press △...
  • Page 61 Time Settings ODO:223245km 22:35 Adjust the time displayed on the main interface� km/h Settings Press ENT to enter the Menu interface; Traction Control System Press △ or ▽ to select Settings, and press ENT to enter Time Settings Settings interface; Gear change reminder Press △...
  • Page 62 Gear Change Reminder ODO:223245km ODO:223245km 22:35 Shifting at the right RPM can effectively reduce the shifting km/h Settings pauses, protect the clutch and so on� Opening and setting the Gear change reminder appropriate Gear Change Reminder can help the driver be more quickly familiar with the vehicle;...
  • Page 63 Language ODO:223245km 22:35 Adjust the instrument’s language, switching between Chinese km/h 语言选择/Language and English� 中 中文 Press ENT to enter the Menu interface; English Press △ or ▽ to select Settings, and press ENT to enter Espanol Settings interface; Press △ or ▽ to select Language, and press ENT to enter; Press △...
  • Page 64 Reset All ODO:223245km ODO:223245km 22:35 km/h Reset all instrument settings to factory default�� Settings NOTE: This function does not reset ODO or related Gear change reminder functions. 语言选择/Language Press ENT to enter the Menu interface; Reset all Press △ or ▽ key to select Settings, and press ENT to enter Settings interface;...
  • Page 65 Motorcycle Information ODO:223245km 22:35 In the Motorcycle Information menu, users can inspect the km/h Vehicle Information following contents� Information Information Miles Info Miles Info Warning Warning Service Service Version ODO:223245km 22:35 km/h Vehicle Information Version...
  • Page 66 Information ODO:223245km 22:35 On the Information interface, users can view the coolant km/h Vehicle Information temperature, voltage and remained mileage� Information Press ENT to enter the Menu interface; Miles Info Press △ or ▽ to select the Vehicle Information, and press ENT Warning to enter the Vehicle Information interface�...
  • Page 67 Miles Info ODO:223245km 22:35 km/h ODO, TRIP 1, TRIP 2, average speed, fuel consumption, driving Miles Info time can be inspected here� Press ENT to enter the Menu interface; Mileage 528364 ( km ) Total Riding Time 21361:00.00 ( h ) Press △...
  • Page 68 Fault ODO:223245km 22:35 In the Fault interface, users can view the fault or warning code km/h Warning when the vehicle system detects a fault� If a fault occurs, please Maintenance Of Maturity! remove the fault as soon as possible� Contact an authorized CFMOTO service center if necessary�...
  • Page 69 Service ODO:223245km 22:35 On the Service interface, users can view the service information km/h Vehicle Information of the vehicle� When the user reaches the service mileage, the Information vehicle will remind the user to carry out service� Miles Info Press ENT to enter the Menu interface; Warning Press △...
  • Page 70 Version ODO:223245km 22:35 Software and hardware versions of the instrument are displayed km/h Vehicle Information here� Version Press ENT to enter the Menu interface; Press △ or ▽ to select the Vehicle Information, and press ENT to enter the Vehicle Information interface� Press △...
  • Page 71 Telephone ODO:223245km 22:35 In the Telephone menu, users can check the following contents� km/h Telephone Contacts Contacts Recent Calls Recent Calls NOTE: before using the telephone, the equipment must be correctly connected, and the phone helmet should be connected to the instrument�...
  • Page 72 Contacts ODO:223245km 22:35 On the Contacts interface, users can view the contacts recorded km/h Telephone by their Bluetooth-connected mobile phones and dial the Contacts numbers� Recent Calls Press ENT to enter the Menu interface; Press △ or ▽ to select Telephone, and press ENT to enter Telephone interface;...
  • Page 73 Recent Calls ODO:223245km 22:35 On the Recent Calls interface, users can view the recent calls km/h Telephone recorded by the Bluetooth-connected mobile phone and dial the Contacts numbers� Recent Calls Press ENT to enter the Menu interface; Press △ or ▽ to select Telephone, and press ENT to enter the Telephone interface;...
  • Page 74 Telephone Interconnect (If equipped) ODO:223245km 22:35 The Telephone Interconnect interface allows you to use the km/h Phone Connection projection screen function after it is connected� Equipment:XXXXXXXX The vehicle owner has two options through the CFMOTO PLAY Passcode:00000000 app to achieve this function: Scan the QR code to 1�...
  • Page 75 In the interconnected condition, navigation data can be projected to the Telephone Interconnect interface� When in the projection interface, press ‘return’ to return to the navigation map� Without input, it will automatically return to the main interface after 30 seconds� Press ‘return’ again to return to the menu� Conversely, press ENT twice to return to the projection interface�...
  • Page 76 Music ODO:223245km 22:35 On the Music interface, users can play songs on the phone km/h Music through Bluetooth, and through the instrument to switch the previous song and the next song, or to pause, and continue, to Luna stvden danfuse adjust volume and use other functions�...
  • Page 77: Operating Your Vehicle

    OPERATING YOUR VEHICLE Break-in Period The break-in period for this vehicle is 1000km� Maintain the vehicle according to the break-in period requirements� The following regulations should be observed during a break-in period: 1� Do not run the engine at high speeds immediately when the it is just started� Allow the engine to warm for 2 ~ 3 minutes at idle speed and let the lubricant flow into all the engine’...
  • Page 78: Daily Safety Inspection

    Daily Safety Inspection Inspecting the following items before daily riding will help keep your vehicle safe and reliable� If anything abnormal appears, please refer to the Maintenance and Adjustment section or contact your dealer� Do not operate the vehicle in an abnormal condition, as it may lead to serious damage or accidents� Item Content Engine oil...
  • Page 79 Luggage Inspect the luggage to see whether it is fastened securely, and make sure the luggage height is in line with local regulations� (If equipped) Coolant Inspect the coolant level to see whether it is proper� Instrument Inspect the instrument’s fault indicators and inspect the fuel to see whether the fuel is enough�...
  • Page 80: Starting

    Starting Sit on the vehicle supported with the side stand; Turn on the ignition switch; Place the gear in Neutral; Turn the stop switch to position “ ”; Press the start button� CAUTION Engine running at high RPMs in low temperatures will impact the lifespan of engine� Always warm the engine at a low speed�...
  • Page 81: Starting Off

    Starting Off Grip the clutch lever, put the vehicle into gear 1, then slowly release the clutch lever while at the same time gently applying the throttle� Shifting, Riding Grip the clutch lever and release the throttle� Shift the gearshift lever upward for higher gears as required� Release the clutch lever and slowly apply the throttle at the same time to complete the gear shift�...
  • Page 82 WARNING Luggage sliding will affect the riding performance, inspect the luggage to see whether it is fixed tightly on the vehicle, and to ensure that the width does not exceed 0�15m from the handlebar for both left and right sides� In the event of an accident, the damage from crashing could be more serious than it looks�...
  • Page 83: Brake

    Brake Release the throttle when applying the brake, and use front and rear wheel brakes for braking at the same time� Finish braking before turning, and shift to a lower gear according to the speed required� On a long downhill ride, please leverage the brake force of the engine and shift to lower gears, but do not allow the engine to operate with high RPM�...
  • Page 84: Parking

    Parking Stop the vehicle with brake; Shift the gear to Neutral; Turn off the ignition switch; Park the vehicle on a firm, level ground; Use a side stand to support the vehicle; Turn the handlebar left to the maximum, and lock the steering with the key; Remove and take away the key�...
  • Page 85 SAFETY OPERATION Safe Riding Tips The following items are applicable for daily motorcycle use and should be carefully observed for safe and effective vehicle operation: For safety, goggles and a helmet are strongly recommended. You must be aware of traffic regulations for the safe riding�...
  • Page 86 Practice your operating skills cautiously and slowly in an open area and hold the fuel tank with the knees for better stability� When there is a quick acceleration, shift to a lower gear to obtain the necessary power� Do not downshift at high rpm to avoid damage to the engine� To avoid the unnecessary fabric to entangled the vehicle and operator Avoid unnecessary use of fabric tape which may entangle the rider or motorcycle�...
  • Page 87 MAINTENANCE Careful and periodic maintenance will help keep your vehicle in the safest, most reliable condition� Inspection, adjustment, and lubrication of important components are explained in the Periodic Maintenance Chart� Inspect, clean, lubricate, adjust, and replace parts as necessary� When inspection reveals the need for replacement of certain parts, always use original parts from your dealer�...
  • Page 88 Key Points of Lubrication Schedule: Check all components at the intervals outlined in the Periodic Maintenance Chart� Items not listed in the schedule should be lubricated at the general lubrication interval� • Change lubricants more often under severe conditions, such as being used in wet or dusty conditions�...
  • Page 89 Break-in Periodic Maintenance Chart Break-in Maintenance Interval (Maintain the item that reaches the interval first) Item Calendar Miles Notes Engine Oil and oil filter 1000 Replace� ■ Coarse oil filter 1000 Clean� ■ Idle 1000 Coolant 1000 Inspect� ■ Throttle system 1000 Electrical system Functions of electrical parts...
  • Page 90 Break-in Maintenance Interval (Maintain the item that reaches the interval first) Item Calendar Miles Notes Wheels Tire condition 1000 Inspect� Tire pressure 1000 Suspension Inspect for oil leakage(maintain front forks and the Rear and front shock absorbers 1000 rear shock absorber ■...
  • Page 91 Break-in Maintenance Interval (Maintain the item that reaches the interval first) Item Calendar Miles Notes Other parts Fault control memory 1000 Read with PDA� ■ Lubricate, and Movable parts 1000 inspect their ■ flexibility. Inspect their Bolts and nuts 1000 ■...
  • Page 92 After Break-in Periodic Maintenance Chart After Break-in Maintenance Interval (Maintain the item that reaches the interval first) Item Calendar Miles Notes Engine Engine Oil and oil filter 3000 5000 Replace� Coarse oil filter 3000 5000 Clean� Inspect and repair or replace if Clutch 3000 5000...
  • Page 93 After Break-in Maintenance Interval (Maintain the item that reaches the interval first) Item Calendar Miles Notes Electrical system Functions of electrical 6000 10000 Inspect and repair or replace if necessary� ■ parts Battery 3000 5000 Inspect and recharge if necessary� Fuses or circuit breakers 3000 5000...
  • Page 94 After Break-in Maintenance Interval (Maintain the item that reaches the interval first) Item Calendar Miles Notes Brake Front and rear braking systems 6000 10000 Inspect and repair or Brake discs 6000 10000 replace if necessary� Brake pads 6000 10000 ▲ Inspect and Brake fluid level 6000...
  • Page 95 After Break-in Maintenance Interval (Maintain the item that reaches the interval first) Item Calendar Miles Notes Suspension Inspect and repair or Suspension system 3000 5000 ■ replace if necessary� Inspect for oil leakage(maintain front Front and rear shock absorbers 6000 10000 forks and rear shock ■...
  • Page 96 After Break-in Maintenance Interval (Maintain the item that reaches the interval first) Item Calendar Miles Notes Cooling system Inspect and Coolant level replenish if 6000 10000 necessary� Radiator fan function 6000 10000 Inspect and repair or ■ replace if necessary� Cooling hoses 6000 10000...
  • Page 97 After Break-in Maintenance Interval (Maintain the item that reaches the interval first) Item Calendar Miles Notes Other parts Fault control memory 6000 10000 Read with PDA� ■ Lubricate, and inspect their Movable parts 6000 10000 ■ flexibility. Bolts and nuts 6000 10000 Inspect their firmness.
  • Page 98 CLUTCH LEVER FREE-PLAY Inspect the flexibility of the clutch lever. Straighten up the handlebar� Slowly apply the clutch lever until the resistance is evident� The free-play distance of the clutch lever is within the following range� Free-play: 0�39in ~ 0�79 in (10 mm ~ 20 mm) WARNING If there is no free play for clutch lever, the clutch cable will strain�...
  • Page 99 GEARSHIFT LEVER ADJUSTMENT The gearshift lever is adjustable to suit personal riding habit� Range: ± 0�2 in (5mm) 0�2 in Adjust the gearshift lever Loosen lock nut 0�2 in Rotate clockwise the center connecting rod to raise the gearshift lever; Rotate anti-clockwise the center connecting rod to lower the gearshift lever;...
  • Page 100 TOOL KIT Tool kit is usually under the cushion and can help maintain and disassemble some parts of the vehicle�...
  • Page 101 FUEL SYSTEM Fuel Tank Refilling Avoid spilling fuel to the outside of the fuel tank when filling. If a spill occurs, wipe it off immediately to avoid pollution or causing danger� Fuel tank volume: 3�7 gal (14 L) / 3�7 gal ± 0�13 gal (14 L±0�5 L) DANGER Gasoline is flammable, Fuel should be filled in a ventilated area.
  • Page 102 Fuel Requirements The recommended fuel for your vehicle is E5 or 95(RON)� Non-oxygenated (ethanol-free) fuel is recommended for best performance in all conditions� CAUTION Do not use leaded gasoline, as it will destroy the catalytic converter� (For further understanding, please consult related materials about the catalytic converter) Be sure to use fresh gasoline�...
  • Page 103 ENGINE ASSY For the engine, transmission, clutch and other parts to work properly, make sure that the oil level is between the upper and lower lines from the oil view window, and check and replace the oil according to the Periodic Maintenance Chart� Long time use of engine oil will not only produce dirt and metallic impurities, but the oil will also consume itself�...
  • Page 104 Oil and Oil Filter Replacement Park the v ehicle by on the level ground; Idle the engine for several minutes to warm up the engine, then turn off the engine; WARNING arming up the engine for a long period may lead to high temperature of the engine and oil�...
  • Page 105 Remove the oil filler screw plug Fill with 2�64 qt (2�5 L) oil of SAE10W/40 SJ, JASOMA2; Remount the oil filler screw plug; Idle the engine for several minutes, allowing the oil to flow into the oil filter; Turn off the engine; Inspect the oil level and adjust it�...
  • Page 106 Spark Plug The spark plug should be replaced in accordance with the Periodic Maintenance Chart� Its disassembly should only be performed by an authorized dealer� Spark plug type: BN8RTI� Spark plug clearance : 0�03 in ~ 0�04 in (0�8 mm ~ 1 mm) Tightening torque: 8.8 ft-Ib ~ 11.1 ft-Ib (12N•m ~ 15 N•m) Idling The idling speed of this vehicle has been adjusted at the factory...
  • Page 107 AIR INTAKE AND EXHAUST SYSTEM Exhaust Detecting System Exhaust detecting system depends on two oxygen sensors mounted on exhaust pipes, and they can detect the air & fuel combustion degree by measuring oxygen density and transferring it as an electrical signal to the ECU� If the ECU determines that combustion is not thorough, it will adjust fuel injection in accordance with signals from the Throttle Position Sensor and Intake Air Temperature sensors�...
  • Page 108 Valve Clearance The valves and valve seats will wear during operation, thus the need for adjustment after being used for a period of time� WARNING When valves and valve seat tappets are wore during use, and if adjustment of the valve clearance is not performed, it will eventually result in no clearance or cause the valves remaining partly open, which reduces performance, creates valve noise, and can cause serious engine damage�...
  • Page 109 Air Filter A clogged air filter restricts air flow, increases fuel consumption, reduces engine performance, and causes spark plug to be flooded by the oil� The air filter element must be cleaned in accordance with the periodic Maintenance Chart� When riding in dusty, rainy, or muddy conditions, the air filter element should be maintained by an authorized dealer more frequently than the recommended in the periodic Maintenance Chart�...
  • Page 110 COOLING SYSTEM Radiator and Cooling Fan Inspect the radiator fins for deformation and obstruction by mud, and clean off any obstruction with clean water� WARNING When the fan is working, prevent your hands and clothing from getting inside the fan to avoid any injury� Using high-pressure water to clean the vehicle could damage the radiator fins and reduce the radiator’s effectiveness.
  • Page 111 Coolant Coolant absorbs heat from the engine and transfers it to the air by the radiator� If the coolant level is too low, the engine will overheat and may suffer from severe damages. Inspect the coolant level daily before riding the motorcycle and perform maintenance in accordance with the Periodic Maintenance Chart� Replenish the coolant if its level is too low�...
  • Page 112 CAUTION Do not add tap water to the coolant system, for it will cause deposit inside the cooling system� When the temperature is below 0°C, ice will occur and severely affect the coolant system. Available bottled antifreeze in the market contains anti-corrosion and anti-rust chemicals� When it is diluted, it loses its anti-corrosion and anti-rust function�...
  • Page 113 Coolant Level Inspection Support the vehicle upright on a level surface; Inspect the coolant level in the reservoir If the level is at area ‘A’: Drain out the redundant coolant until it is at area ‘B’; If it is at area ‘B’: The coolant is at the proper level; If the level is at area ‘C’...
  • Page 114 Coolant Replenishment Open the reservoir cover and replenish coolant to area B� CAUTION If coolant needs to be replenished frequently, or the reservoir is completely dry, there is probably a leak in the system� Have the cooling system inspected by an authorized dealer� Only recommend the original CFMOTO coolant.
  • Page 115 TIRES AND CHAINS This vehicle only uses tubeless tires, rims and inflating valves. Only use the recommended standard tires, rims and inflating valves. Do not mount inner tube tires on tubeless rims. Improper mounting of tires may cause air leakage� Do not mount an inner tube inside a tubeless tire� Tire Specifications Front wheel 110/70 R17 M/C 54H...
  • Page 116 Most countries have their own regulations of minimum tread depth� Please follow local regulations� When mounting new rims or tires, always inspect the wheel balance of the tires� CAUTION In order to ensure safe and stable operation, please only use the tire and pressure recommended� If the tire is punctured and repaired, please do not ride the vehicle at over 100km/h until 24hours after, and the speed cannot exceed 130 km/h at any other time�...
  • Page 117 Tire Friction When tire tread wears too severely and the tire cannot be used, the tire becomes more susceptible to punctures and failures� An accepted estimate is that 90% of all tire failures occur during the last 10% of tire service life, so it is unsafe to continue to use bald tires� In accordance with the Periodic Maintenance Chart, measure the depth of the tread with a depth gauge, and replace any tire that has been worn down to the minimum allowable tread depth�...
  • Page 118 Drive Chain Inspection The looseness and lubrication of the drive chain must be inspected daily before riding and safety cautions in the Periodic Maintenance Chart must be observed to prevent excessive wear� If the chain becomes badly worn or maladjusted, it will cause the chain to be to too loose or too tight� If the chain is too tight, it will accelerate the wear to the chain, sprocket, rear sprocket and rear rim�...
  • Page 119 Chain tension inspection Shift the gear into Neutral; Park with the side stand; Push up the chain to inspect its tension; If the chain tension is not in line with relevant specifications, then adjust it to the standard� Standard value: 0.98 in ~ 1.38 in (25 mm ~ 35 mm) 0�98 in ~ 1�38 in NOTE:...
  • Page 120 Drive Chain Tension Adjustment Loosen the eccentric hub, secure the bolt Use the adjuster tool in the tool kit to buckle into the teeth of the eccentric chain adjuster Adjust clockwise the eccentric chain adjuster to loosen the chain� (Adjustment from the right side of the vehicle); Adjust anti-clockwise the eccentric chain adjuster to tighten Eccentric chain adjuster...
  • Page 121 Wear inspection Shift the transmission into Neutral; 12�6 in Support the vehicle with the side stand� Apply chain tensioning or hang a 22 lb (10 kg) weight from the chain� Measure the elongated length between 20 links; If the measured length exceeds the standard limit, replace the chain with a new one;...
  • Page 122 BRAKE SYSTEM In order to guarantee excellent performance of your vehicle and personal safety, please inspect and maintain the vehicle according to the Periodic Maintenance Chart� Make sure all the parts of the brake system are in a good state� If any damage occurs to the brake system, please stop riding and have your vehicle inspected and maintained by an authorized dealer�...
  • Page 123 Brake Fluid Level Inspection Support the vehicle vertically on level ground, and confirm the brake fluid reservoirs are level; Inspect the front and rear brake reservoir fluid levels; If the brake fluid level is at area ‘A’: Drain out the redundant fluid until it is at area ‘B’; If the brake fluid level is at area ‘B’: The level is proper;...
  • Page 124 Brake Fluid Replenishment WARNING Brake fluid can irritate the skin. Keep brake fluid out of the reach of children. Keep brake fluid away from skin, eyes or clothing. Wear protective clothing and goggles when operating the vehicle� If brake fluid is swallowed, see a doctor immediately. If brake fluid touches the skin, wash the skin with plenty of clean water.
  • Page 125 Front brake fluid reservoir Remove the cover and reservoir gasket Replenish brake fluid to area ‘B’; Remount the cover and reservoir gasket; Mount the bolt� Rear brake fluid reservoir Remove screws ; Remove the cover and reservoir gasket ; Replenish brake fluid to area ‘B’; Remount the cover and reservoir gasket;...
  • Page 126 Brake Disc Inspection Inspect brake discs periodically for any damage, out of shape, cracks or wear� Damaged brake discs may cause braking failure� Worn-out brake discs will decrease braking performance� If brake discs are damaged or exceed the wear limit, contact an authorized dealer to replace them with new ones immediately�...
  • Page 127 Anti-lock Braking System (ABS) ABS is a safety system that prevents locking of the wheels when riding in a straight line or a curve without the influence of lateral forces. With the assistance of ABS, when riding on gritty, water-logging, sliding or other low-adhesive force roads, the vehicle can use its full brake force and will face no risk of wheel locking�...
  • Page 128 SHOCK ABSORBER Shock Absorber Inspection Holding the handlebar and front brake, compress the front fork for several times to inspect it to see whether its working is smooth; Visually inspect the front shock absorbers for oil leaks and front fork for scratches or friction noise; After riding, inspect the front fork to see whether it has mud, dirt or debris, and if so, clean them, or they will lead to oil seal damage and shock absorber oil leak;...
  • Page 129 ELECTRICAL SYSTEM AND LIGHT SIGNALS Battery It is equipped with lead-acid battery for starting. When the vehicle is not in use for a long time (≥2 months), the battery needs to be removed for storage� However, for optimal battery life, you must properly charge the battery to provide enough power for the starter motor�...
  • Page 130 Battery Maintenance Clean the battery case with a soft brush dipped in a mixture of baking soda and water� Use a wire brush to remove corrosion on the positive and negative lug plates and positive and negative anodes� Always keep the battery fully charged, or the battery may be damaged� If the vehicle is driven infrequently, inspect the battery voltage weekly with a voltmeter�...
  • Page 131 WARNING Do not remove the battery’s sealing strip, or the battery will be damaged� Do not mount an ordinary battery in this motorcycle, or the electrical system will not work properly. When removing the battery, firstly disassemble the negative pole, and then the positive pole� During mounting, the connection sequence of positive and negative poles is opposite to that of disassembly�...
  • Page 132 Battery Removal Place the vehicle on flat ground and park it; Completely turn off the engine and power supply of the vehicle; Insert the key into the cushion lock; Remove cushion Remove the black negative wire (-); Remove the red positive pole wire (+); Remove the battery pull belt Remove the battery�...
  • Page 133 Battery Mounting Park the vehicle on flat ground; Ensure that the vehicle’ s key is in the closed position; Put in the battery; Mount battery belt; Mount the red positive pole wire (+); Mount the black negative wire (-); Remount the dust cover and seat� WARNING Avoid direct touching with the skin, eyes and clothing�...
  • Page 134 Lights Headlight and foglight are adjustable� Rotate the light adjusting knob to adjust light� CAUTION Adjustment of high / low beams should be in accordance with local regulations� The standard is based on the light emitted when front and rear wheels touch down the ground and the rider sits on the vehicle� All the lights are LED lights�...
  • Page 135 Fuses Fuse box is under the seat, it is visible after removing the seat� If a fuse is blown, inspect the electrical system for damage and replace the fuse with the new one� WARNING Do not use any wire to substitute for the standard fuse� Replace a blown fuse with a new one of the same ampere�...
  • Page 136 CATALYTIC CONVERTER This motorcycle is equipped with a catalytic converter in the exhaust system� Platinum and rhodium contained inside the converter will react with carbon monoxide and convert hydrocarbons into carbon dioxide and water� For proper operation of the catalytic converter, the following cautions must be followed: Only use unleaded gasoline.
  • Page 137 EVAPORATIVE EMISSION CONTROL SYSTEM This vehicle is equipped with an EVAP System� Please contact a CFMOTO dealer if the EVAP System has failed� Do not modify the System, or the System will not meet requirements for environmental regulations� After disassembly and repair, tube connections should be well connected without air leakage, blocking, and tubes should be without being squeezed, broken or damaged, etc�...
  • Page 138 MOTORCYCLE CLEANING AND STORAGE General Precautions Always keeping your motorcycle clean and in best performance will extend the vehicle’s service life� Protecting your motorcycle with a high quality, breathable motorcycle cover� • Always clean the motorcycle after the engine and exhaust system have cooled� •...
  • Page 139 Washing the Vehicle • Rinse the vehicle with cold water to remove any loose dirt� • Mix a bucket of detergent (specialized for motorcycles or automobiles) with water� Use a soft cloth or sponge to wash your motorcycle� If necessary, use a mild degreaser to remove any oil or grease� Start at the top of the motorcycle and wash bottom parts last�...
  • Page 140 Decorating the Surface After washing your motorcycle, polish the painted metal and plastic surfaces with a specialized motorcycle/ automobile wax� Wax should be applied every three months or as required, to avoid the surface from having satin lines or being lackluster� Always use non-abrasive wax and apply them according to the instructions�...
  • Page 141 DANGER Special care must be given to tires, and it should be noted that rubber-protective agents applied to tires will not affect their functions. If tires are not treated properly, it may decrease the adhesive force between the tire and ground, possibly causing a loss of control� Preparation for Storage Clean the entire vehicle thoroughly�...
  • Page 142 parts or on the brakes� Lubricate drive chains and all cables� Remove the battery� Store it in a cool and ventilated place� Ensure that the battery is fully charged according to the Periodic Maintenance Chart� Wrap plastic bags over the muffler exhaust pipe to prevent moisture from entering. Put a cover over the motorcycle to prevent dust and dirt�...
  • Page 143 COMMON PROBLEMS AND CAUSES Problem Component Cause Solution No fuel in fuel tank Refuel Fuel system Pump blockage or damage: poor fuel quality Clean or replace Spark plug failure: excessive carbon deposits, too Inspect or replace long-time usage Spark plug cap failure: Poor contact or burning Inspect or replace Ignition coil failure: poor contact or burning Inspect or replace...
  • Page 144 Intake and exhaust valves, excessive carbon deposits Valve and piston Repair or replace in the piston: poor fuel quality and poor oil quality Clutch slips; poor oil quality, too long-time use and Clutch Adjust or replace overloading Insufficient Cylinder, piston rings wear; poor oil quality and too Cylinder and ring Replace oil long-time use...
  • Page 145 Battery No electricity Charge or replace Left switch Horn button failure or damage Adjust or replace Failed horn Cables Poor contact Adjust or repair Horn Horn damage Adjust or replace The listed above are the common problems of a motorcycle� If your motorcycle has certain problems (especially in the electronic fuel injection system, fuel evaporation system), please contact an authorized CFMOTO dealer to inspect and repair the vehicle in time�...
  • Page 146 GENERAL TORQUE CHART Type Torque (N•m) Type Torque (N•m) M5 bolt and nut 5 ± 1 M5 screw 4 ± 1 M6 bolt and nut 10 ± 1 M6 screw 9 ± 1 M8 bolt and nut 20 ~ 30 M6 flange bolt and nut 12 ±...
  • Page 147 Tighten the screw to 110N•m, fastening the bolts of upper/ lower triple clamp, Upper triple clamp upper side fastening screw loosen the screw, then tighten the � screw to 20~25N•m Lower side of front shock absorber and front M8×25 20~25 wheel axle screw Upper triple clamp fastening screw M8×20...
  • Page 148 Tooth ring, brake disk and rim M8×28 RPM sensor and front shock absorber M6×16 RPM sensor and rear caliper Front wheel RPM sensor wire clip M6×12 Front brake inlet pipe and lower triple clamp Front brake fluid inlet pipe wire clip and frame M6×12 Front brake fluid outlet pipe wire clip and frame Brake pipe and front caliper...
  • Page 149 Foot brake lever assembly and RH pedal bracket M8×25 Clutch lever assembly Built-in bolt Fastening handlebar screw (inner hex) M8×30 Handlebar locating screw (inner hex) M6×20 Balancer mounting screw (inner hex) M6×35 LH rear wheel nut M30×1�5-6H RH rear wheel nut M40×1�5-6H Oil pump mounting bolt M5×20...
  • Page 150 Radiator lower mounting point and connecting M6×25 bracket assembly connecting bolt (stepped) NOTE: A vacant thread area indicates a bolt / screw that comes with non-standard parts or purchased parts. TELEMATICS BOX T-BOX is an optional part, and when you purchase a vehicle, you’d better check with dealer if it’s equipped with a telematics box, or T-BOX�...
  • Page 151 6AQV-380101-3201-12 EU238 ZHEJIANG CFMOTO POWER CO., LTD. No.116,Wuzhou Road,Yuhang Economic Development Zone, Hangzhou 311100,Zhejiang Province,China Tel: 86-571-86258863 Fax: +86-571-89265788 E-mail: service@cfmoto.com.cn http://global.cfmoto.com...

Table of Contents
