Summary of Contents for Ronix RP-0800

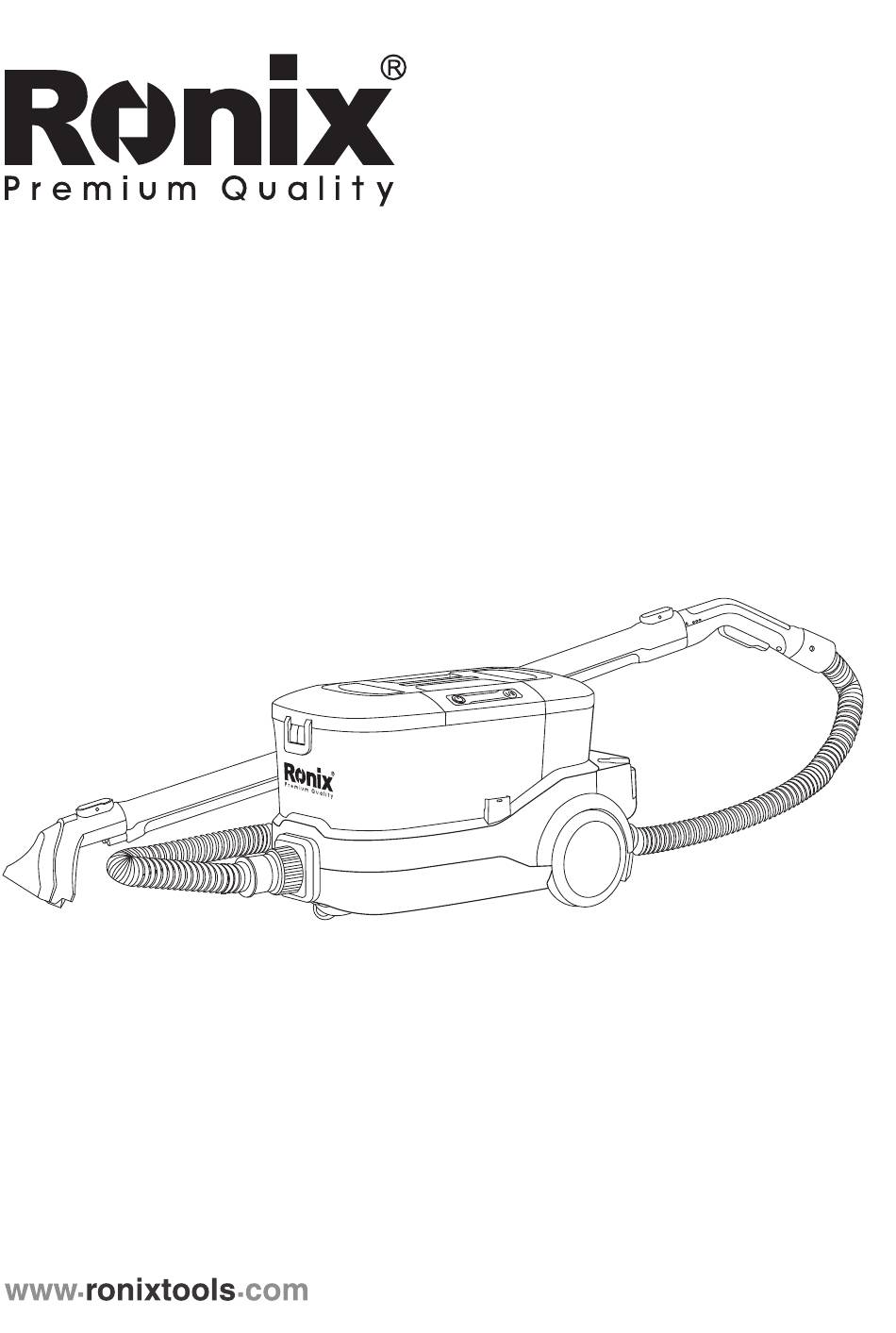

- Page 1 CARPET CLEANER INDOOR / HOUSEHOLD RP-0800...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION Model RP-0800 Voltage 220-240V Frequency 50-60Hz Product Dimention 513×288×275mm Power 800±15%W Tankcapacity Of Fresh/Dirty Water 3L/1.5L ≤85db Noise Level Material ABS+PP and so on Length Of Cord Total 5.5M,Exposed 5M ≥1.1(m³/min) Max Air Flow Max Suction 16±1.5KPa Spray Volume... -
Page 4: Part List
PART LIST Speed Control Switch Clean Water Tank Sewage Tank Accessories Stroge Suction Port Universal Wheels Hose Big Wheels Hook - The clean water pump is built into the body of unit. - In the handling, wrap the hose around the machine. ACCESSORIES Hose Set Tubes... -
Page 5: Cleaning And Maintenance
2- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 3- This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning se of the appliance in a safe way and understand the hazards involved. - Page 6 visible signs of damage or if it is leaking. 18- Keep the appliance out of reach of children when it is energized or cooling down. 19- Do not leave the appliance unattended when it is switched on. 20- Do not use the appliance for any purpose other than those described in this instruction manual.
- Page 7 Remove the clean water bucket from the body. Open the screw cap and fill with clean water. The maximum water capacity is about 3L. Install the clean water bucket into the body. Insert the handle into the brush. Fix the hose and power cord before handling.
- Page 8 Fix the hose and power cord before handling. INSTRUCTIONS Plug it in, turn on the power (start) Press the watering button to spray clean water. Spray the stain with clean water to let it surface.Do not spray continuously at the same spot. After spraying, absorb the water, so as not to cause mildew and odor Absorb water, spray clean water...
- Page 9 Turn off the power (stop), unplug it. Pour away clean water and sewage, and clean the sewage bucket FOR STUBBORN DIRT Apply the cleaning solvent to the carpet Dirt Dirt Floats and rub the dirt with a brush to lift it up. For the amount and usage of the cleaning solvent, please read the manual carefully and use it correctly.
- Page 10 When using detergent, first test it on the edge of the fabric being cleaned to make sure that there is no discoloration. - Do not use diluent, aniline, chloroform, and flammable solvents. - Do not spray any liquids such as insecticides, hair care products, or lubricating oil. - Do not use the product to vacuum flammable or combustible substances.
- Page 11 Install the empty bucket and then turn on the power again, press the watering button to remove the remaining water from the machine. Watering Button Tilt the machine and pour away the remaining water at the bottom. CLEANING OF SEWAGE When the sewage reaches the maximum water level, stop working and turn off the power.
- Page 12 Install the sealing ring, cover and fasten the sewage bucket. This Will Serveas a fulcrum Press Buckle the sewage bucket into the body. Lock the sewage bucket, do Locking not shake; otherwise, it is easy to leak and affect the cleaning Maximum water level Sewage Stop using when the water in the...
- Page 13 Open it with finger and then Disassembly of water sucker cover. remove it Transparent water Sucker Cover Water installation of water sucker cover: Hole Sucker Cover 1- the pin and hole fit well 2- Press in until clicking sound to make sure the installation is in place Fastening When cleaning the water sucker,...
- Page 14 ATTENTION! 1- Stop running and unplug it before maintenance. 2- Do not use the detergent, diluent, benzene and other chemical agents to clean the machine. 3- Do not water the machine to avoid electric shock. Pour away the sewage before it exceeds the maximum water level.
- Page 15 Status Fault cause analysis Handling 1-The plug is not properly connected and Turn off the power loose, resulting in poor The machine and plug it again. contact. does not work Call the repair after the switch 2-The internal line or telephone.
