3. Aufbau, LEDs & Jumper Einstellung

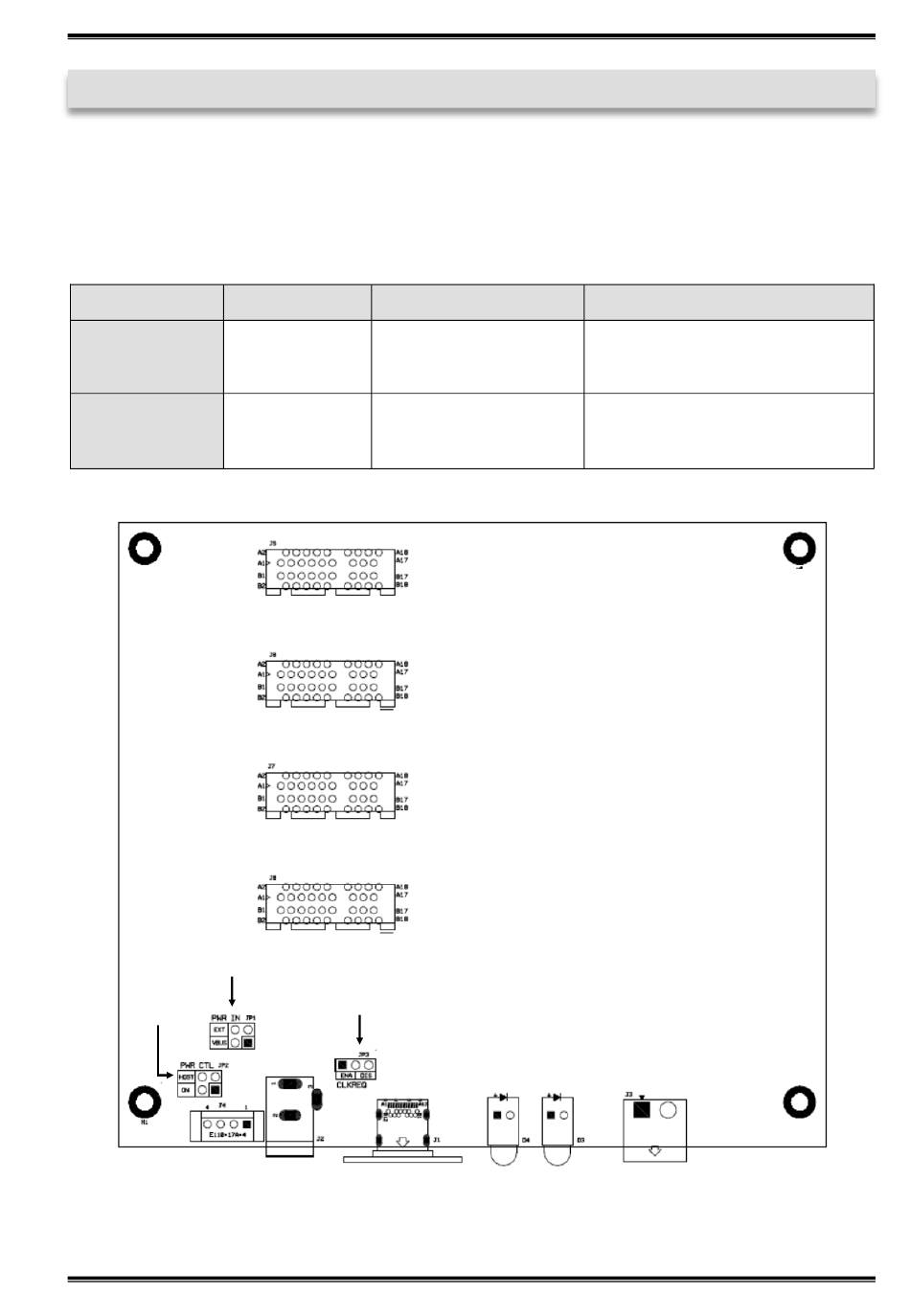

3.3 Jumper Einstellung

Auf der Platine befinden sich drei Jumper. Bitte belassen Sie JP1 und JP3 so, wie sie ab Werk
geliefert wurden. Den Jumper JP2 können Sie wie folgt ändern:
JP2 Einstellung
Ein-/Ausschalter Host PC Stromversorgung Erweiterungs-Box Stromversorgung
„ON"
(Werkseinstellung)
„HOST"
JP1
JP2
© Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved
An
An
JP3
Egal
An
5
Deutsch
An
An
