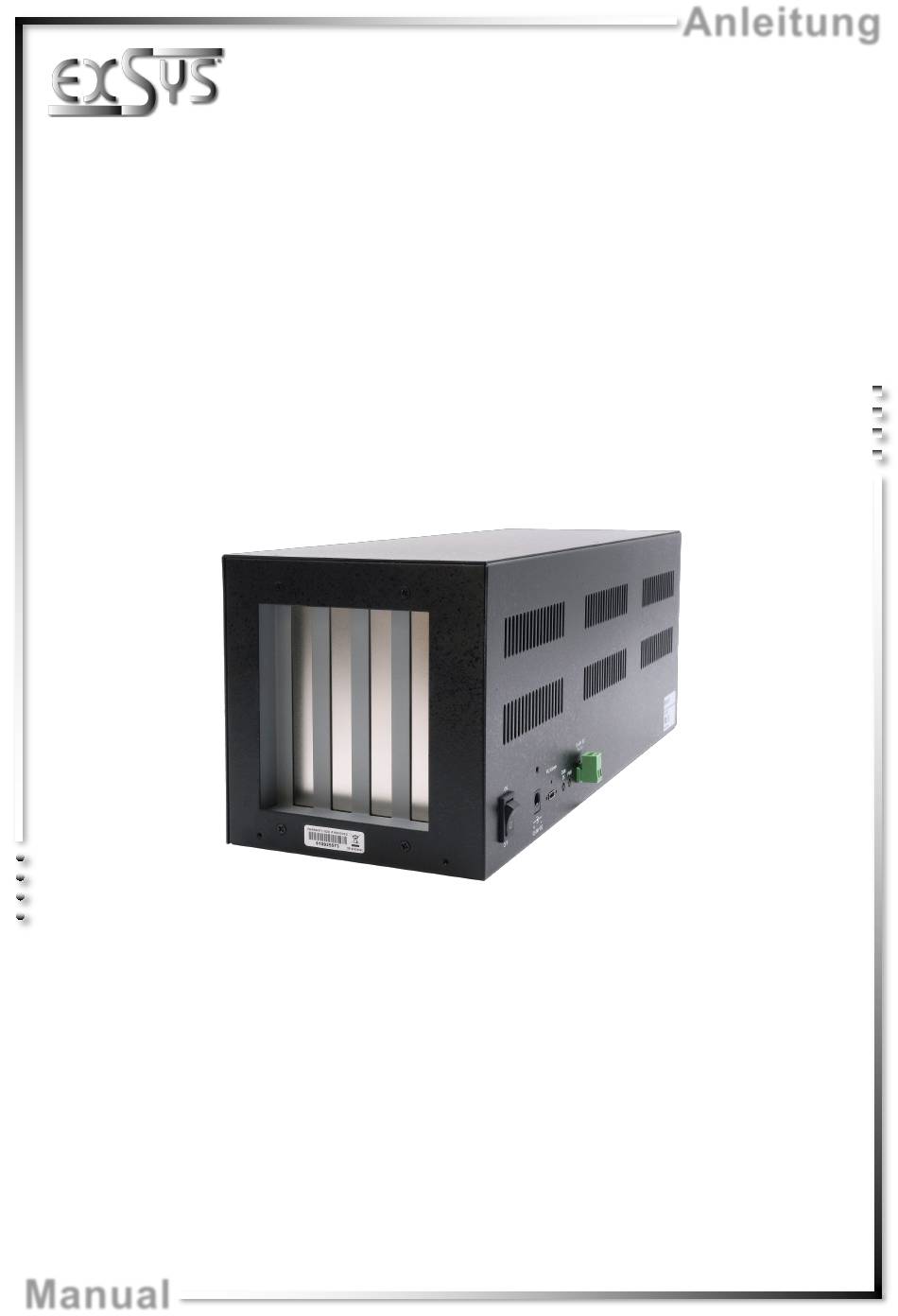

Anleitung
EX-1017
PCIe Expansion-Box mit 4x PCIe x1 Slots
und PCIe x2 Host Card
PCIe Expansion-Box with 4x PCI x1 Slots
and PCIe x2 Host Card
Deutschland:
EXSYS Vertriebs GmbH
Industriestraße 8
61449 Steinbach
www.exsys.de
Schweiz:
EXSYS Vertriebs GmbH
Dübendorfstrasse 17
8602 Wangen
www.exsys.ch
Vers. 1.0 / 30.08.23
Manual
Advertisement
Table of Contents
Related Manuals for Exsys EX-1017
Summary of Contents for Exsys EX-1017
- Page 1 EX-1017 PCIe Expansion-Box mit 4x PCIe x1 Slots und PCIe x2 Host Card PCIe Expansion-Box with 4x PCI x1 Slots and PCIe x2 Host Card Deutschland: EXSYS Vertriebs GmbH Industriestraße 8 61449 Steinbach www.exsys.de Schweiz: EXSYS Vertriebs GmbH Dübendorfstrasse 17 8602 Wangen www.exsys.ch...
-
Page 2: Table Of Contents
Layout, LED’s & Jumper Setting ······································································ 10-11 Layout ······················································································································ 10 LED‘s ······················································································································· 10 Jumper Setting ··········································································································· 11 Hardware Installation ····················································································· 12-13 Cleaning ·········································································································· 13 Technical Information ························································································· 14 Technical Drawing ····························································································· 14 © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 3: Beschreibung
Unterstützt Extended Virtual Channel (VC) und Active State Link Power Management • Stromversorgung: 12-24 VDC • Zertifiziert für 2. Lieferumfang Bevor Sie die EX-1017 in Ihrem System installieren, überprüfen Sie bitte zuerst den Inhalt der Lieferung: • EX-1017 • PCIe-Host-Adapterkarte •... -
Page 4: Aufbau, Leds & Jumper Einstellung
Verbindung zur PCIe-Host-Adapterkarte wurde korrekt hergestellt Cable OK Grün Aus: Keine Verbindung zur PCIe-Host-Adapterkarte Ständig An: Die EX-1017 ist mit Strom versorgt und Betriebsbereit Aus: Die EX-1017 wird nicht mit Strom versorgt © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 5: Jumper Einstellung
Auf der Platine befinden sich drei Jumper. Bitte belassen Sie JP1 und JP3 so, wie sie ab Werk geliefert wurden. Den Jumper JP2 können Sie wie folgt ändern: JP2 Einstellung Ein-/Ausschalter Host PC Stromversorgung Erweiterungs-Box Stromversorgung „ON“ Egal (Werkseinstellung) „HOST“ © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 6: Hardware Installation
Systemen gibt, können wir Ihnen nur eine generelle Anleitung zum Einbau/Anschluss der EX-1017 geben. Bei Unklarheiten halten Sie sich bitte an die Bedienungsanleitung Ihres Computersystems. Da sowohl das PC-System als auch die EX-1017 selbst mit Strom versorgt werden, müssen Sie die korrekte EIN-/AUS-Reihenfolge wie folgt einhalten: Ausschaltreihenfolge: Schalten Sie erst Ihr PC-System und dann die EX-1017 aus. -
Page 7: Reinigung
8. Stecken Sie nun Ihre PCI-Express-Erweiterungskarten in die PCI-Express-Slots der EX-1017 ein und befestigen Sie diese an der EX-1017. Bringen Sie die obere Abdeckung der EX-1017 wieder an. 9. Schließen Sie nun das externe Netzteil an die EX-1017 an. -
Page 8: Technische Zeichnung
Deutsch EX-1017 7. Technische Zeichnung © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 9: Description
Deutsch 1. Description The EX-1017 is an external expansion box with four PCI Express slots for expanding the slots of a desktop computer or server. It connects to the proprietary USB-C host card via the screwable USB -C cable. The EX-1017 supports standard PCI-Express x1 I/O cards (e.g. Serial, Parallel, USB, FireWire etc...) with 5 &... -
Page 10: Layout, Led's & Jumper Setting
Cable OK Green Off: No connection to the PCIe-Host-Adapter-Card Steady On: The EX-1017 is supplied with power and is ready for operation Off: The EX-1017 is not supplied with power © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 11: Jumper Setting
There are three jumpers on the board. Please leave JP1 and JP3 as they were delivered from the factory. You can change the jumper JP2 as follows: JP2 Setting On-/Off Switch Host PC Power Expansion Box Power „ON“ Don‘t care (Factory Setting) „HOST“ © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved... -
Page 12: Hardware Installation
EX-1017. If anything is unclear, please refer to the operating instructions of your computer system. Since both the PC system and the EX-1017 itself are supplied with power, you must follow the correct ON/OFF sequence as follows: Power Off Sequence: First switch off your PC system and then the EX-1017. -
Page 13: Cleaning
EX-1017. Reattach the top cover of the EX-1017. 9. Now connect the external power supply to the EX-1017. 10. Now you can switch on the EX-1017 with the on/off switch. After that please switch on your PC system first. -
Page 14: Technical Drawing
English EX-1017 7. Technical Drawing © Copyright 2023 by EXSYS Vertriebs GmbH. All rights reserved...
