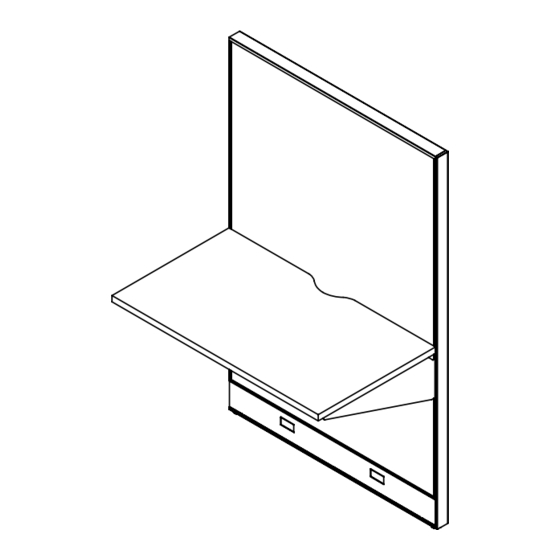

- Page 1 SYNERGY ASSEMBLY MANUAL WORKSURFACE TO PANEL Questions? Call Toll Free +1-505-620-5666 or email warranty@gebesa.com...
- Page 2 SYNERGY WORKSURFACE ELEMENTS Panel Worksurface Left base bracket Right base bracket FASTENERS #8 x 1” Self-Tapping Screw...
- Page 3 SYNERGY WORKSURFACE STEPS Tilt the base bracket (C,D) hooks towards the panel at the standard height (2.95´) or at the desired height contemplating 1.11´ of the worksurface.
- Page 4 SYNERGY WORKSURFACE STEPS Insert the tip of the base bracket´s hooks (C,D) into the slots of the panel (A). Push down to fix.
- Page 5 SYNERGY WORKSURFACE STEPS Place and allign the worksurface on top of the fixed brackets. Use the #8 x 1” screw (D) to fix the worksurface (B) to the left and right base brackets (C,D).
- Page 6 SYNERGY WORKSURFACE STEPS Make sure assembly is stiff and stable.
- Page 7 Questions? Call Toll Free +1-505-620-5666 or email warranty@gebesa.com...
