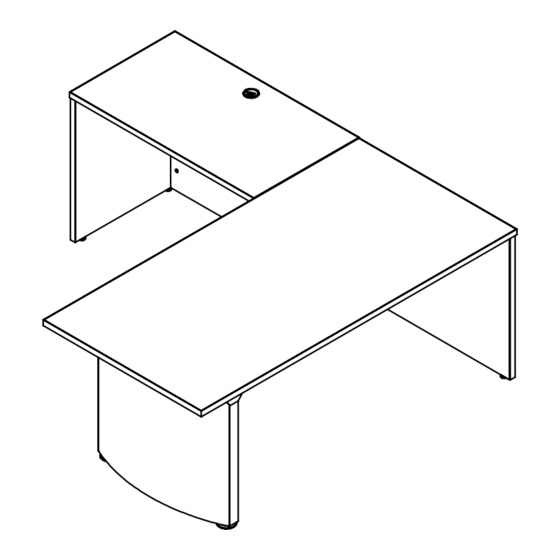

- Page 1 PRIME RETURN WITH FULL MODESTY PANEL ASSEMBLY MANUAL COD: GBR615090L Questions? Call Toll Free 1-844-2GEBESA or email warranty@gebesa.com...
- Page 2 PRIME DESK ASCEND | “L” SHAPE PARTS WORKSURFACE LATERAL RECESSED PANEL FULL MODESTY PANEL...
- Page 3 PRIME DESK ASCEND | “L” SHAPE SCREWS MINIFIX TITUS MINIFIX BOLT ADJUSTABLE LEVELER MINIFIX CAP FLAT BRACKET #8x5/8” WOOD SCREW #8x1 1/2” WOOD SCREW REQUIRED ASSEMBLY TOOLS NOT INCLUDED...
- Page 4 PRIME DESK ASCEND | “L” SHAPE STEPS Set leveler (G) to the lateral recessed panel (B)
- Page 5 PRIME DESK ASCEND | “L” SHAPE STEPS Attach the base foot (B) to the full modesty panel (C) by using the minifix BARREL MINIFIX UNION BARREL BOL T MINIFIX INSER T BOL T INSER T...
- Page 6 PRIME DESK ASCEND | “L” SHAPE STEPS BARREL Place the worksurface (A) on the previously installed base support and fasten by using the minifix BARREL MINIFIX UNION MINIF BOL T INSER T BOL T INSER T...
- Page 7 PRIME DESK ASCEND | “L” SHAPE STEPS Verify structure and assembly integrity UNION...
- Page 8 PRIME DESK ASCEND | “L” SHAPE STEPS Add the flat bracket (H) to the worksurface (A) using wood screws (I) as is shown in the image Move the return to the desk that you will join as is shown on...
- Page 9 PRIME DESK ASCEND | “L” SHAPE STEPS Secure the return to the desk using wood screws ”...
- Page 10 PRIME DESK ASCEND | “L” SHAPE STEPS Check Stability and adjust the levelers, and place the mini fix caps (F) on top of the minifix once you finished the assembly...
- Page 11 Questions? Call Toll Free 1-844-2GEBESA or email warranty@gebesa.com...
