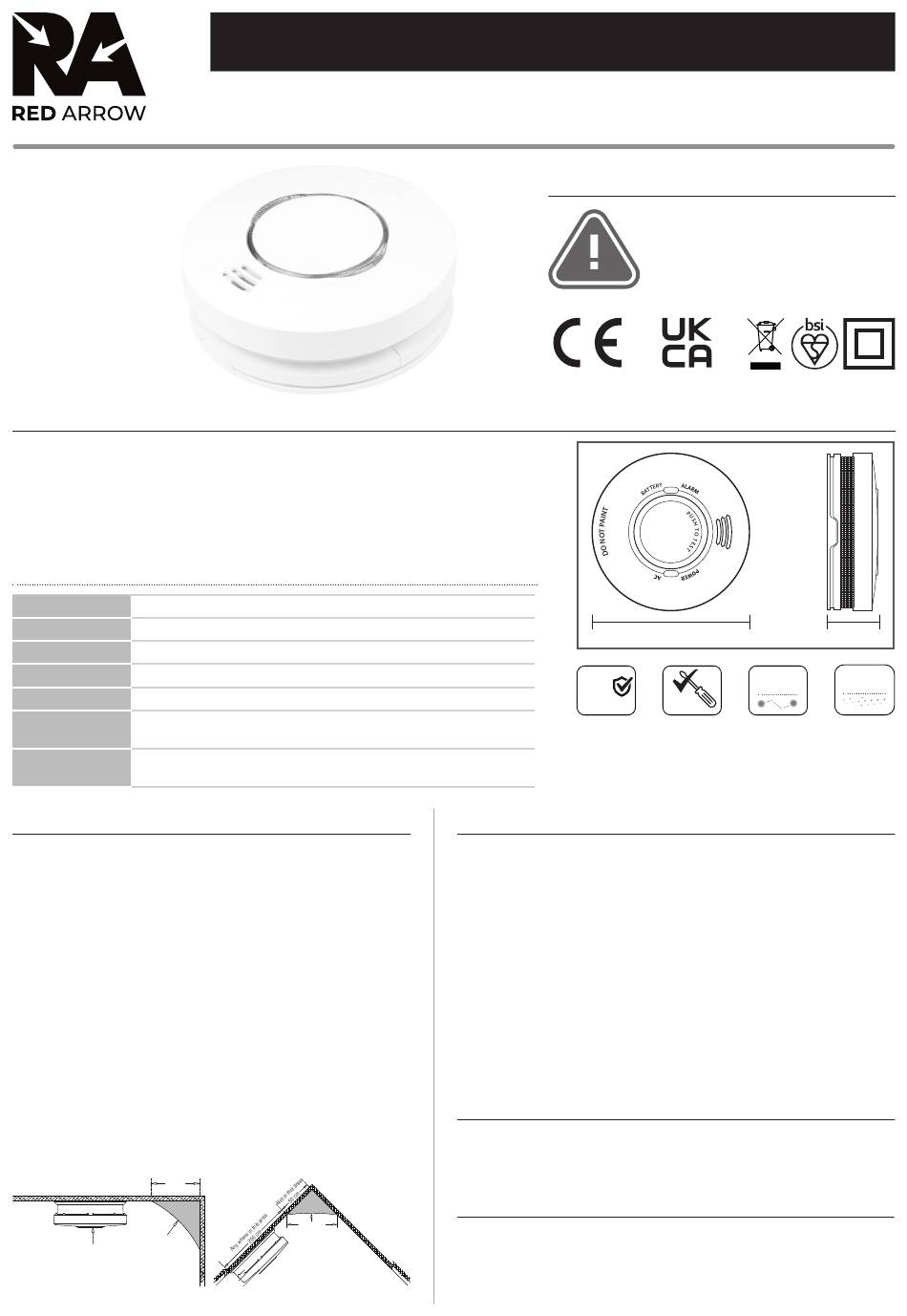

Red Arrow SHC-WIR-SM-10YR Installation Instructions

Thank you for purchasing
the SHC-WIR-SM-10YR
smoke alarm. Please
take a few minutes to
thoroughly read the user
guide and familiarize
yourself and your family
with its operation and
save for future reference.
Specification
DESCRIPTION:
Photoelectric smoke alarm 220-240V AC with 10 Year sealed 3V 17450 Lithium Battery.
Designed with quick fit base and sensitive photoelectric sensor for detecting micro particles
associated with smoldering fires and reacts faster than Ionization alarms. Keeping your
household and loved ones safe with wired or built in RF Interlinking function for pairing with
Red Arrow mains / battery operated heat alarms.
Box Contents -
1 x SHC-WIR-SM-10YR Mains Operated Smoke Alarm With 10YR Sealed Battery
Dimensions: L: 140mm x W: 140mm x D: 45mm
Power: 220-240V AC 50-60Hz with 10yr sealed 3V Lithium Battery
Product Life:
10 Years after initial activation
Alarm Volume:
>85dB (A) at 3 meters
Alarm Sensitivity: 0.10-0.16dB/m
ISO8201 (BI 0.5s - pause 0.5s - BI 0.5s - pause 0.5s - BI 0.5s - pause 1.5s,
Sound Pattern:
with RED LED flashing, this alarm pattern is repeated.)
Wireless Alarm BI - BI - pause 0.5s, BI - BI - pause 0.5s, BI - BI - pause 1.5s, with the RED
Sound Pattern:
LED flashing, this alarm pattern is repeated.
Recommended Installation Locations
The following suggestions are intended to help you to position and
install your alarm.
1. The locations must comply with the applicable building regulations.
BS 5839 part 6 gives guidance on the number, types and positioning
of alarms. In general, smoke alarms should be installed in every
circulation space such as Hallways, Landings, Bedrooms and
principal living spaces (living room). Larger spaces may require the
use of more than one unit. The advice here follows the guidance in
British Standard BS 5839 part 6 in general (for further information
see the BS standard itself ).
2. Installed on each and every storey.
3. Hot smoke rises and spreads out, so a central ceiling position is the
preferred location. The air is "dead" and does not move into corners,
therefore smoke must be mounted away from corners. Position the
unit at least 30 cm away from walls and corners and 30 cm away
from any light fitting or decorative object witch may obstruct smoke
entering the Alarm. (see the diagram 1).
4. When the ceiling is slanting, the alarm needs to be installed
minimum 50cm away from the highest ceiling point in the room (see
the diagram 2).
30 cm
Ceiling
Never here
Best here
Diagram 1
INSTALLATION INSTRUCTIONS
Mains Operated Smoke Alarm With 10YR Sealed Battery
Product Codes: SHC-WIR-SM-10YR
Never here
Diagram 2
Safety Warning
22
2797
EN 14604:2005/AC:2008
5
YRS
GUARANTEE
Locations to Avoid
1. Don't place Alarms in bathrooms, Kitchens, Garages or other rooms where
the Alarm may be triggered by steam, condensation and normal smoke/
heat from appliances.
2. In areas with high humidity, like bathrooms or areas near dishwashers or
washing machines, install at least 3 meters away from these areas.
3. Near air returns or heating and cooling supply vents, install at least 1m
away from these areas. The air could blow smoke away from the detector,
interrupting its alarm.
4. In rooms where temperature may fall below 0°C or rise above 40°C. (due to
nuisance/false alarm activation).
5. In extremely dusty, dirty, or insect infested areas where particles may
interfere/obstruct with Alarm operation.
6. Away from air conditioning or ventilation grilles/louvres.
Activation
Press thest button and hold it for above 3 secounds until LED lights, and release
it within 2 secounds, the unit will generate a "beep" indicates that it is activated
and goes into work status.
Interconnecting Smoke Alarms
•
This Smoke Alarm is capable of providing wired and wireless
interconnection functions.
•
Interconnecting Smoke Alarms can be linked wireless/wired together so
that if one alarm is activated then all alarms which are linked in the circuit
are also sounded.
•
The installation should be carried out
by a competent person.
•
Follow the provided installation
instructions, using the fixings supplied
or recommended.
•
Keep out of reach of children.
22
KM 694336
0086 Ver: 1.0
BS EN 14604:2005/AC:2008
HUSH
140mm
RF & WIRED
INTERCONNECT
Easy
Install
45mm
ELECTRIC
