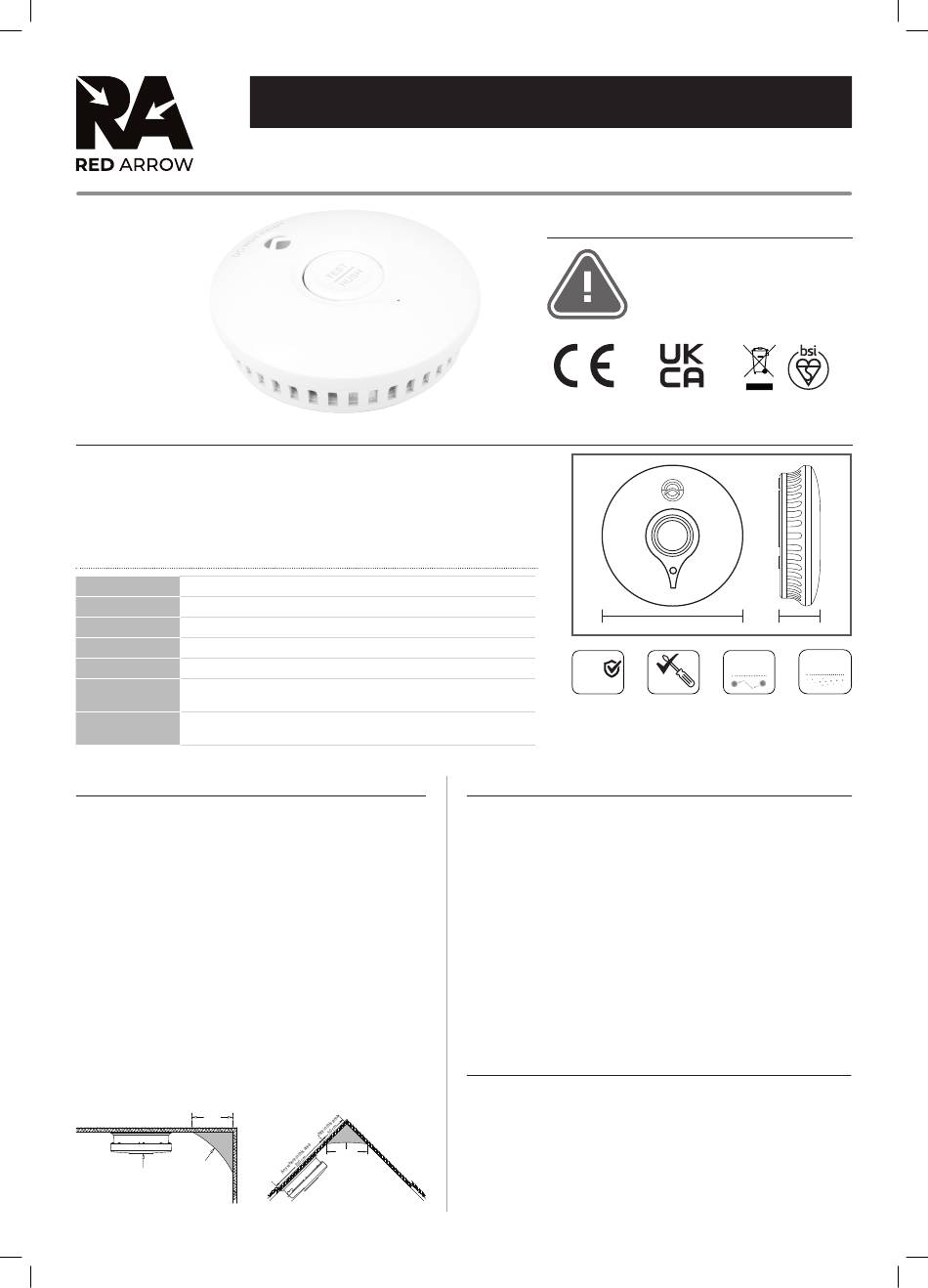

Red Arrow SHC-BAT-SM Installation Instructions

Battery Operated Smoke Alarm
Product Codes: SHC-BAT-SM
Thank you for purchasing
the SHC-BAT-SM Smoke
Alarm. Please take a few
minutes to thoroughly
read the user guide
and familiarize yourself
and your family with its
operation and save for
future reference.
Specification
DESCRIPTION:
Built-in non-replaceable battery operated Photoelectric smoke alarm, Designed with quick fit base
and sensitive photoelectric sensor for detecting micro particles associated with smoldering fires and
reacts faster than Ionization alarms. Keeping your household and loved ones safe with built in RF
Interlinking function for pairing with Red Arrow battery operated heat alarms.
Box Contents -
1 x SHC-BAT-SM Wireless Smoke Alarm
Dimensions: L: 120mm x W: 120mm x D: 35.5mm
Power: built-in DC 3V(CR17450) Lithium battery (battery not replaceable)
Product Life:
10 Years after initial activation
Alarm Volume:
>85dB (A) at 3 meters
Alarm Sensitivity:
0.10-0.16dB /m
ISO8201 (BI 0.5s -pause 0.5s - BI 0.5s -pause 0.5s - BI 0.5s - pause 1.5s,
Sound Pattern:
with the RED LED flash, repeat this alarm pattern)
Wireless Alarm
BI - BI - pause 1.2s, with the red LED flash, repeat this alarm pattern
Sound Pattern:
Recommended Installation Locations
The following suggestions are intended to help you to position and
install your alarm.
1. The locations must comply with the applicable building regulations.
BS 5839 Part 6 gives guidance on the number, types and positioning
of alarms. In general, smoke alarms should be installed in every
circulation space such as Hallways, Landings, Bedrooms and
principal living spaces (living room). Larger spaces may require the
use of more than one unit.
2. Installed on each and every storey.
3. Hot smoke rises and spreads out, so a central ceiling position is the
preferred location. The air is "dead" and does not move into corners,
therefore smoke must be mounted away from corners. Position the
unit at least 30 cm away from walls and corners and 30 cm away
from any light fitting or decorative object witch may obstruct smoke
entering the Alarm. (see the diagram 1).
4. When the ceiling is slanting, the alarm needs to be installed
minimum 50cm away from the highest ceiling point in the room (see
the diagram 2).
CAUTION: Our smoke alarm is also suitable for use in leisure
accommodation vehicles (LAVs).
30 cm
Ceiling
Never here
Best here
Diagram 1
PAGE 1 ( FRONT PAGE )
INSTALLATION INSTRUCTIONS
Never here
Diagram 2
Safety Warning
22
2797
EN 14604:2005/AC:2008
5
YRS
GUARANTEE
Locations to Avoid
1. Don't place Alarms in bathrooms, Kitchens, Garages or other rooms where
the Alarm may be triggered by steam, condensation and normal smoke/
heat from appliances.
2. In areas with high humidity, like bathrooms or areas near dishwashers or
washing machines, install at least 3 meters away from these areas.
3. Near air returns or heating and cooling supply vents, install at least lm
away from these areas. The air could blow smoke away from the detector,
interrupting its alarm.
4. In rooms where temperature may fall below 0°C or rise above 40°C. (due to
nuisance/false alarm activation).
5. In extremely dusty, dirty, or insect infested areas where particles may
interfere/obstruct with Alarm operation.
6. Away from air conditioning or ventilation grilles/ louvres.
Activation
Press test button and hold it for above 3 seconds until LED lightswith a "beep"
and release it within 3 seconds, the unit will generate a "beep" again, indicates
that it is activated and goes into work status.
•
The installation should be carried out
by a competent person.
•
Follow the provided installation
instructions, using the fixings supplied
or recommended.
•
Keep out of reach of children.
22
0086 Ver: 1.0 KM 694336
BS EN 14604:2005/AC:2008
120mm 35.5mm
