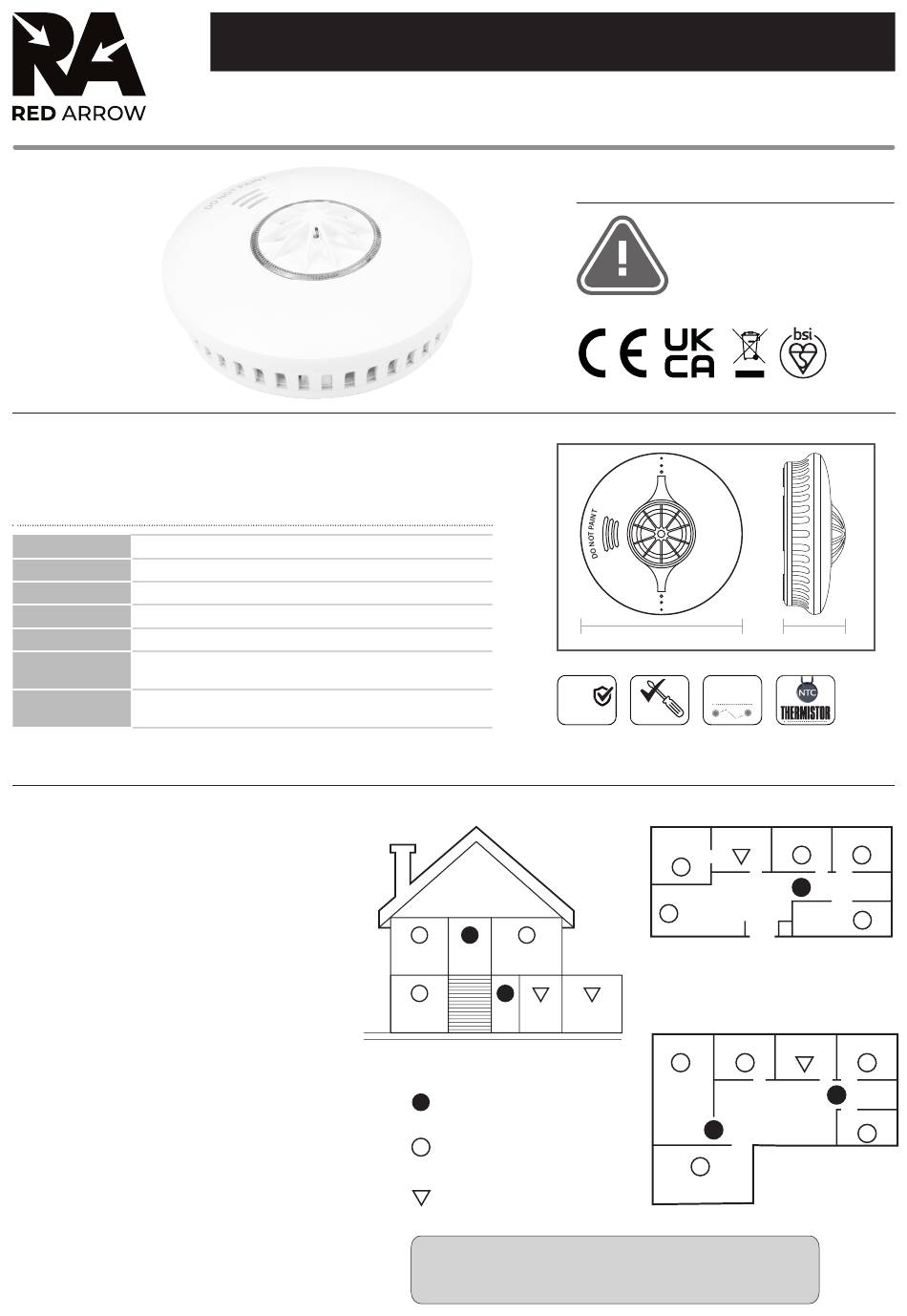

Red Arrow SHC-BAT-HE Installation Instructions

Thank you for purchasing
the SHC-BAT-HE heat
alarm. Please take a few
minutes to thoroughly
read the user guide
and familiarize yourself
and your family with its
operation and save for
future reference.
Specification
DESCRIPTION:
Built-in non-replaceable battery operated heat alarm with quick fit base designed to
rapidly detect temperature increases and keep your household and loved ones safe
with built in RF Interlinking function for pairing with Red Arrow Battery smoke alarms.
Box Contents -
1 x SHC-BAT-HE Battery Operated Heat Alarm
Dimensions:
L: 120mm x W: 120mm x D: 46.5mm
Power: DC 3V Lithium battery operated (battery not replaceable)
Product Life: 10 Years after initial activation
Alarm Volume:
>85dB (A) at 3 meters
Alarm Sensitivity: 54°C to 65°C
ISO8201 (BI 0.5s - pause 0.5s - BI 0.5s - pause 0.5s - BI 0.5s -
Sound Pattern:
pause 1.5s, with the RED LED flash, repeated this alarm pattern)
Wireless Alarm BI - BI - pause 1.2s, with the red LED flash,
Sound Pattern:
repeat this alarm pattern.
Recommended Installation Locations
The following suggestions are intended to help you to position
and install your alarm.
1. For best protection heat alarms should be installed as
TWO Storey Dwelling
part of a complete fire protection system that also
includes smoke alarms. Heat alarms are best suited to
areas such as boiler rooms, kitchens, laundry rooms
and garages where dust, fumes and moisture can cause
nuisance alarms in smoke detectors. Heat alarms should
not be installed in escape routes instead of smoke
alarms. They should only be used in the above
applications and where possible be interlinked to
smoke alarms. (Smoke alarms should be installed in
circulation areas forming part of escape routes and in
every room in the home).
TWO Storey Dwelling
2. When heat alarms are installed in a room, they should
BEDROOM HALL BEDROOM
be placed on the ceiling, ideally in the centre of the
room. They should be at a distance no greater than
5.3m from the farthest wall no greater than 5.3m from
a door to any room in which a fire might start and no
LIVING ROOM HALL KITCHEN
greater than 5.3m from the next heat alarm
NOTE: Heat alarms should not be wall mounted.
3. Closed doors and other obstructions will interfere with
the path of heat to an alarm and may prevent occupants
from hearing an alarm on the other side of a closed
door. Install sufficient alarms to compensate for closed
BEDROOM BEDROOM
HALL
doors and obstacles. For further help and information
on types and location of fire defection alarms refer to
BS5839 pt 6 and the Fire Safety guidance given by the
Department of Transport, Local Government and the
Regions (DTLR).
LIVING ROOM
HALL
CAUTION: Research indicates that substantial increases in
warning time can be obtained with each properly installed
additional alarm, It is strongly recommended that the advice
in 1above be followed to ensure maximum protection.
INSTALLATION INSTRUCTIONS
Battery Operated Heat Alarm
Product Codes: SHC-BAT-HE
TWO Storey Dwelling
Single storey, one sleeping
DINING ROOM
BEDROOM
Single storey, one sleeping
LIVING ROOM
GARAGE
KITCHEN GARAGE
TWO Storey Dwelling
KITCHEN BEDROOM BEDROOM
HALL BEDROOM
BEDROOM HALL BEDROOM
LIVING ROOM
BEDROOM
HALL KITCHEN GARAGE
LIVING ROOM HALL KITCHEN
KITCHEN BEDROOM
DINING ROOM
Smoke alarms for
limited protection
LIVING ROOM
BEDROOM
Additional smoke alarms
for better coverage
Heat alarms
Smoke alarms for
IMPORTANT:
limited protection
These heat alarms are intended primarily for use in single occupancy
private dwellings.
Additional smoke alarms
for better coverage
Heat alarms
Safety Warning
•
The installation should be carried
out by a competent person.
•
Follow the provided installation
instructions, using the fixings
supplied or recommended.
•
Keep out of reach of children.
120mm 120mm
5
INTER
CONNECT
YRS
Easy
GUARANTEE
Install
Single storey, one sleeping
Single storey, one sleeping
KITCHEN
DINING ROOM
Single storey, two sleeping
DINING ROOM
TV ROOM DINING ROOM
LIVING ROOM
LIVING ROOM
Single storey, two sleeping
GARAGE
BEDROOM BEDROOM TV ROOM DINING ROOM
BEDROOM
KM 715769
46.5mm 46.5mm
BEDROOM BEDROOM
KITCHEN BEDROOM BEDROOM
KITCHEN BEDROOM
BEDROOM
BEDROOM
LIVING ROOM
BEDROOM
Smoke alarms for
KITCHEN BEDROOM
Smoke alarms for
limited protection
limited protection
Additional smoke alarms
Additional smoke alarms
for better coverage
LIVING ROOM
BEDROOM
for better coverage
Heat alarms
Heat alarms
