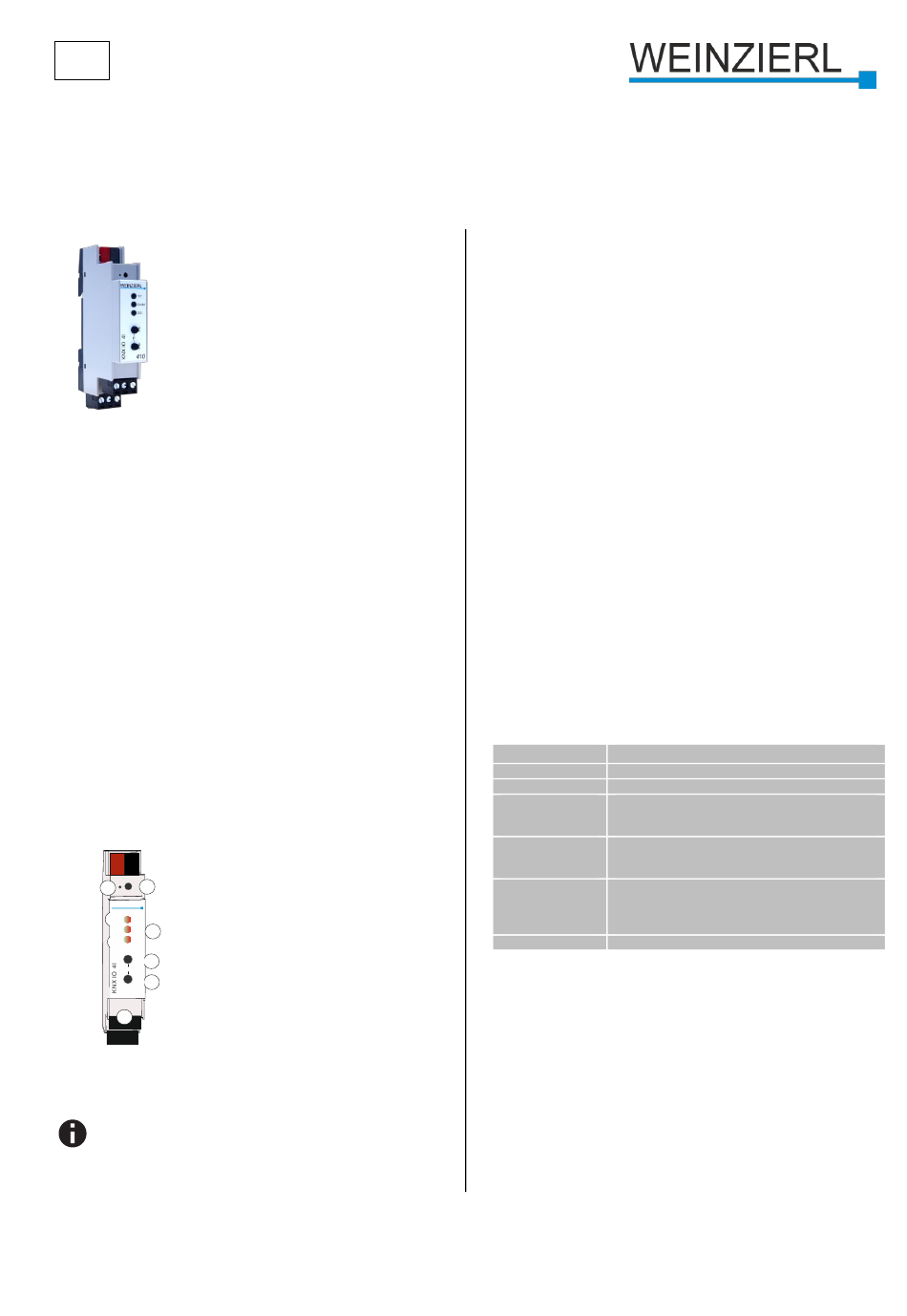

Weinzierl KNX IO 410 (4I) Operation And Installation Manual

EN
Operation and installation manual
KNX IO 410 (4I)
(Art. # 5230)
Binary input with 4 channels
KNX IO 410 (4I)
Application area
The KNX IO 410 (4I) is a compact binary input with 4 channels to
control lights, shutter etc.
The inputs can be connected to conventional switches with an
external voltage of 12 to 230 V.
Two push buttons and three LEDs allow a local operation and a
visualization of the device state.
In addition to the input channels the device includes 16 inde-
pendent functions for logic or timer control.
1. Installation and Connection
The KNX IO 410 (4I) is designed for installation on a DIN rail (35
mm) with a width of 1 unit (18 mm). An installation-friendly de-
sign with pluggable screw terminals helps to reduce the cost of
commissioning. It features the following controls and displays:
❶
❶
KNX bus connector
❷
Programming LED
❸
❷ ❸
Button f. programming mode
❹
1/1 LED (multicolor )
WEINZIERL
❹
❺
Ch/M LED (multicolor )
1/1
❺
Ch/M
❻
2/2 LED (multicolor )
❻
2/2
❼
Button A1
A ❼
1
P/Esc ❽
Button B2
B
❽
2
❾
Pluggable screw terminals
410
❾
This device is powered by the KNX bus. An external power
supply is not necessary
The device is not working without bus power.
©2022 WEINZIERL ENGINEERING GmbH
A. KNX Programming mode
The KNX programming mode is activated/deactivated either by
pressing the flushed KNX programming button
neously pressing the buttons
When the programming mode is active, the programming LED
❷ ❺
and LED Ch/M light red.
2. Manual operation and status display
❺
The LED Ch/M lights up or flashes if the device is successful-
ly powered by the KNX bus
❼
By pressing button A1 long, the manual operation mode will
be entered for channel pair A (Ch A In1/In2). This is indicated by
cyclic single flashing of LED Ch/M
❽
By pressing button B2 long, the manual operation mode will
be entered for channel pair B (Ch B In1/In2). This is indicated by
cyclic double flashing of LED Ch/M
If manual operation of a channel pair is activated, the bus tele-
grams of In1 and In2 can be triggered by button A1
❽
, if input channel is configured by ETS.
❹ ❻
LED 1/1 and LED 2/2
lected channel pair while manual operation. They light green
❼ ❽
when the button A1 or B2
Summary of the states of LED Ch/M
LED Status Meaning
LED lights green Device is working in standard operation mode.
LED lights red Programming mode is active.
LED flashes 1x Programming mode is not active.
orange Manual operation is active:
Switching first channel pair (Ch A In1/In2)
LED flashes 2x Programming mode is not active.
orange Manual operation is active:
Switching first channel pair ( Ch B In1/In2)
Programming mode is not active.
Manual operation is not active.
LED blinks red
The device is not properly loaded
e.g. after an interrupted download .
LED blinks green The device is currently loaded by the ETS.
3. Reset to factory device settings
It is possible to reset the device to its factory settings:
•
Disconnect the KNX Bus connector
•
Press the KNX programming button
pressed down
•
Reconnect the KNX Bus connector
•
Keep the KNX programming button
least another 6 seconds
•
A short flashing of all LEDs (
successful reset of the device to factory default settings.
❸
or by simulta-
❼ ❽
and .
❺
in orange.
❺
in orange.
❼
and B2
are used to indicate state of se-
is pressed.
❺
:
❶
from device
❸
and keep it
❶
of device
❸
pressed for at
❷❹❺❻
) visualizes the
Page 1/11
