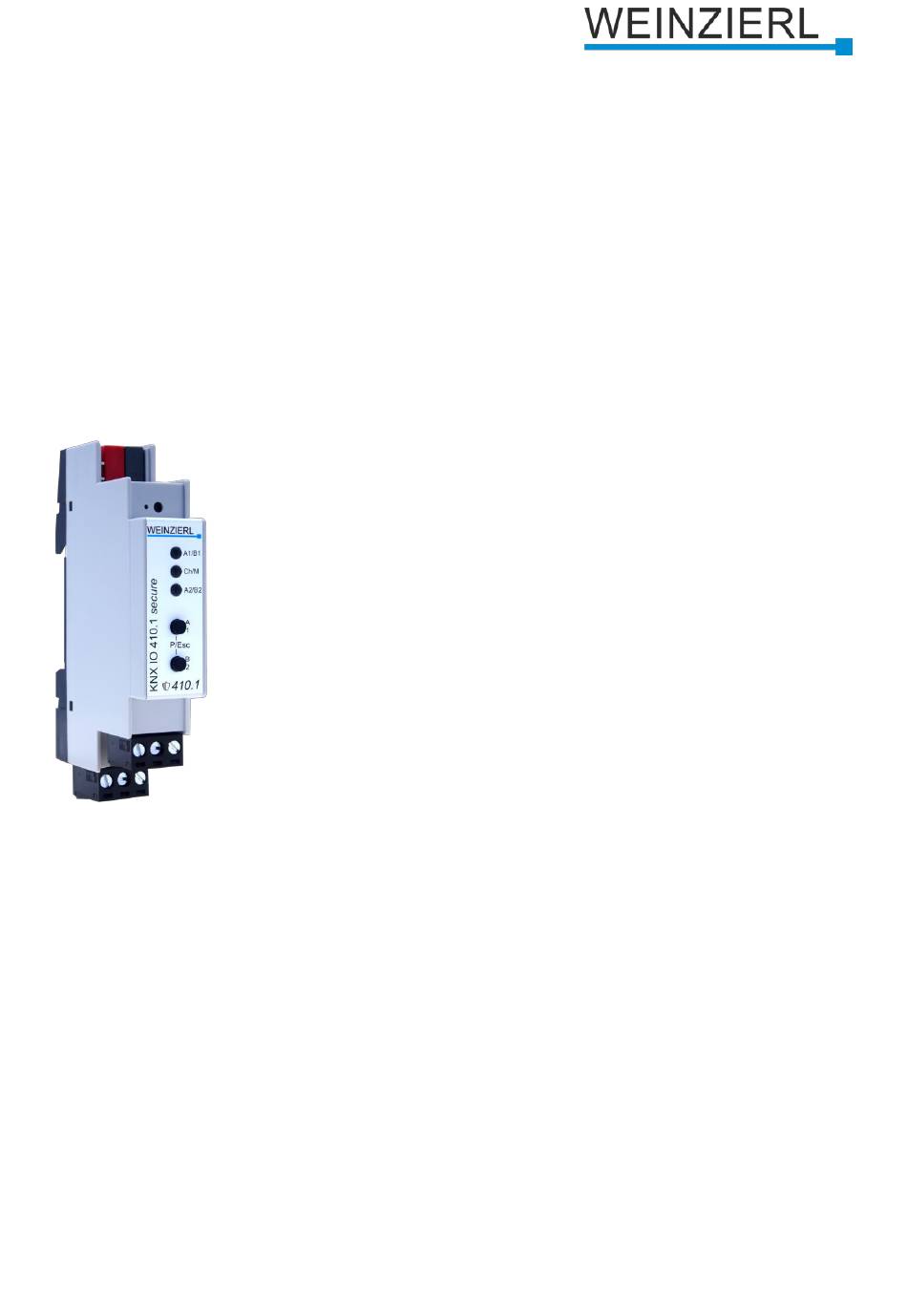

KNX binary input 4-fold 12..230 V
KNX IO 410.1 secure
Operation and installation manual
(Art. # 5513)
WEINZIERL ENGINEERING GmbH
Achatz 3-4
84508 Burgkirchen an der Alz
GERMANY
+49 8677 / 916 36 – 0
Tel.:
E-Mail: info@weinzierl.de
Web: www.weinzierl.de
© 2024 WEINZIERL ENGINEERING GmbH
Seite 1/65

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KNX IO 410.1 secure and is the answer not in the manual?

Questions and answers

Related Manuals for Weinzierl KNX IO 410.1 secure

Summary of Contents for Weinzierl KNX IO 410.1 secure

  • Page 1 KNX binary input 4-fold 12..230 V KNX IO 410.1 secure Operation and installation manual (Art. # 5513) WEINZIERL ENGINEERING GmbH Achatz 3-4 84508 Burgkirchen an der Alz GERMANY +49 8677 / 916 36 – 0 Tel.: E-Mail: info@weinzierl.de Web: www.weinzierl.de ©...

  • Page 2: Table Of Contents

    Logic / Timer / Comparison / Calculation ................55 6.19.1 Function 1 – 16: Timer ....................56 6.19.2 Function 1 – 16: Logic ....................58 6.19.3 Function 1 – 16: Compare ....................60 6.19.4 Function 1 – 16: Calculation ................... 62 © 2024 WEINZIERL ENGINEERING GmbH Seite 2/65...

  • Page 3: Application

    2 Installation and connection The KNX IO 410.1 secure is designed for installation on a DIN rail (35 mm) with a width of 1 unit (18 mm). An installation-friendly design with pluggable screw terminals helps to reduce the cost of commissioning.

  • Page 4: Knx Programming Mode

    Programming mode is not active. Manual operation is not active. LED blinks red The device is not properly loaded e.g. after an interrupted download . LED blinks green The device is currently loaded by the ETS. © 2024 WEINZIERL ENGINEERING GmbH Seite 4/65...

  • Page 5: Reset To Factory Default Settings

    In the factory default settings, the device has the physical address 15.15.255 and no group addresses are connected. Also, KNX Data Security is disabled and the initial key (FDSK) must be used for secure commissioning. © 2024 WEINZIERL ENGINEERING GmbH Seite 5/65...

  • Page 6: Wiring Scheme

    Ch B In 1 Channel B input 1 Ch B Cm Common connection for channel B Ch B In 2 Channel B input 2 Positive connection for KNX bus Ground connection for KNX bus © 2024 WEINZIERL ENGINEERING GmbH Seite 6/65...

  • Page 7: Knx Security

    Encrypted telegrams are longer than the previously used unencrypted ones. For secure programming via the bus, it is therefore necessary that the interface used (e.g. USB) and any intermediate line couplers support the so called KNX Long Frames. © 2024 WEINZIERL ENGINEERING GmbH Seite 7/65...

  • Page 8: Ets Database

    KNX IO 410.1 secure (www.weinzierl.de) or from the ETS online catalogue. The KNX IO 410.1 secure supports KNX Data Security to protect the device against unauthorized access from the KNX bus. If the device is programmed via the KNX bus, this is done with encrypted telegrams.
  • Page 9 The initial key is reactivated after a reset to factory default settings. The serial number in the certificate enables the ETS to assign the correct key to a device during a download. © 2024 WEINZIERL ENGINEERING GmbH Seite 9/65...

  • Page 10: Secure Group Communication

    6.2 Secure group communication Each object of the device can communicate either encrypted or unencrypted. The encryption is set under "Security" in the properties of the used group address: © 2024 WEINZIERL ENGINEERING GmbH Seite 10/65...
  • Page 11 A key is changed by the ETS e.g. when the encryption of a group address is switched off and on again. © 2024 WEINZIERL ENGINEERING GmbH Seite 11/65...

  • Page 12: Description

    6.3 Description This page shows the device description and the corresponding wiring scheme. © 2024 WEINZIERL ENGINEERING GmbH Seite 12/65...

  • Page 13: General Settings

    6.4 General Settings Device name (30 Characters) An arbitrary name can be assigned for the KNX IO 410.1 secure. The device name should be meaningful, e.g. „Living Room“. This helps the clarity of the ETS project. Send delay after bus power return A send delay of telegrams after the return of the bus voltage can be set via this parameter.
  • Page 14 ▪ Channel A2 ▪ Channel B1 ▪ Channel B2 LED indicates the state of the connected contact at the selected input ❾. ▪ Via group object LED is operated only via group object. © 2024 WEINZIERL ENGINEERING GmbH Seite 14/65...

  • Page 15: Diagnostics

    “Impulse counter” or “Operation time counter” function, the switching cycles are also displayed. Switch cyclces can be reset using the “Reset”-buttons. The display is updated using the “Update” button. To activate the diagnostics, the function of the channel must be programmed. © 2024 WEINZIERL ENGINEERING GmbH Seite 15/65...

  • Page 16: Input A1: General

    ▪ Switching ▪ Dimming ▪ Shutter ▪ Send value ▪ Scene ▪ Impulse counter ▪ Operation time counter A more detailed description of the functions can be found in the individual function descriptions. © 2024 WEINZIERL ENGINEERING GmbH Seite 16/65...

  • Page 17: Function "Switching, Dimming, Shutter, Send Value, Color, Scene Or Generic

    If the lock has been activated via the group object, no telegrams are triggered by state changes of the connected contact. Group object Type KNX Size Direction GO 17 Input A1: Lock - Activate 1.001 1 Bit From KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 17/65...

  • Page 18: Function „Impulse Counter

    Here, the scaled counter can be activated, the parameter page "Scaled counter" is displayed when activated. Rate of change (e.g. [kW], [m/s], [km/h]) The counter for a rate of change can be activated here. If activated, the "Rate of change" parameter page is displayed. © 2024 WEINZIERL ENGINEERING GmbH Seite 18/65...

  • Page 19: Input A1: Switching

    On toggle the last value received from the bus is evaluated if the write flag is activated on the object. Output b Here you can show/hide the parameters and the object for output b. © 2024 WEINZIERL ENGINEERING GmbH Seite 19/65...

  • Page 20: Input A1: Switching - State Query

    1 min ▪ 2 min ▪ 5 min ▪ 10 min ▪ 20 min ▪ 30 min ▪ ▪ ▪ 12 h ▪ 24 h When the lock is active, cyclic sending is disabled. © 2024 WEINZIERL ENGINEERING GmbH Seite 20/65...

  • Page 21: Input A1: Dimming

    12. The time for detection of a long button press can be set in the general parameters and is valid for all channels. © 2024 WEINZIERL ENGINEERING GmbH Seite 21/65...
  • Page 22 This parameter is only visible on toggle direction and determines the dimming direction of the next dimming command following an ON telegram. This is useful in the bathroom, for example, when the light is switched on at low brightness at night and then should be dimmed brighter. © 2024 WEINZIERL ENGINEERING GmbH Seite 22/65...

  • Page 23: Input A1: Shutter

    (e.g. 0 % or 100 %), the driving direction is adjusted accordingly. Group object Type KNX Size Direction GO 13 Input A1: Blind position – State 5.001 1 Byte From KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 23/65...
  • Page 24 Release after long actuation within turning time: Stop/Step command via object 12 Release after long actuation after turning time: No reaction Actuation during drive: Stop/Step command via object 12 Very long actuation: Additional function © 2024 WEINZIERL ENGINEERING GmbH Seite 24/65...
  • Page 25 On toggle, the last value received from the bus is evaluated if the write flag is activated on the object. Group object Type KNX Size Direction GO 14 Input A1: Additional function – Switch 1.001 1 Bit To KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 25/65...
  • Page 26 18.001 1 Byte To KNX Very long button press after [s] This parameter is visible only when using the very long actuation, it sets the time to detect a very long button press. © 2024 WEINZIERL ENGINEERING GmbH Seite 26/65...

  • Page 27: Input A1: Send Value

    3 Byte To KNX ▪ 14 byte - ASCII string Group object Type KNX Size Direction GO 11 Input A1: Send ASCII string (14 byte) – Set value 16.000 14 Byte To KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 27/65...
  • Page 28 A field for entering the values to be sent is displayed, as well as the objects appropriate to the selected type. © 2024 WEINZIERL ENGINEERING GmbH Seite 28/65...

  • Page 29: Input A1: Color

    5.001 1 Byte To KNX GO 13 Input A1: Value B – Set color 5.001 1 Byte To KNX GO 14 Input A1: Value W – Set color 5.001 1 Byte To KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 29/65...
  • Page 30 After the delay time has expired, the list starts again at the first color position on the next short button press. When the button lock is used, the color position is always reset when unlocking. © 2024 WEINZIERL ENGINEERING GmbH Seite 30/65...
  • Page 31 With this function, a byte value can be sent. A parameter for selecting the value is displayed. Group object Type KNX Size Direction GO 15 Input A1: Additional function – Send value 5.001 1 Byte To KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 31/65...
  • Page 32 18.001 1 Byte To KNX Very long button press after [s] This parameter is visible only when using the very long actuation, it sets the time to detect a very long button press. © 2024 WEINZIERL ENGINEERING GmbH Seite 32/65...

  • Page 33: Input A1: Scene

    If several scene positions are used, the activated positions are switched through with each short button press. The behavior for selecting and sending the scene positions can be determined by the following parameter. © 2024 WEINZIERL ENGINEERING GmbH Seite 33/65...
  • Page 34 This function is used to override the behavior as set in the parameter Reset scene position. ▪ Call scene The scene configured in the appearing parameter is sent. ▪ Save last scene A telegram for “save scene” with the last sent scene is triggered. ▪ Additional function © 2024 WEINZIERL ENGINEERING GmbH Seite 34/65...
  • Page 35 5.001 1 Byte To KNX Very long button press after [s] This parameter is visible only when using the very long actuation, he sets the time to detect a very long button press. © 2024 WEINZIERL ENGINEERING GmbH Seite 35/65...

  • Page 36: Input A1: Generic

    GO 13 Input A1: Pressed short – … Depending on function To KNX ▪ Button – Pressed long Group object Type KNX Size Direction GO 14 Input A1: Pressed long – … Depending on function To KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 36/65...
  • Page 37 With this function, a byte value can be sent. A parameter for selecting the value is displayed. Group object Type KNX Size Direction GO … Input A1: … – Send value 5.001 1 Byte To KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 37/65...
  • Page 38 Polarity of object (only for button lock) This parameter can be used to determine how the lock is to be activated, either by receiving a 1 or a 0. The corresponding telegram switches the lock off again. © 2024 WEINZIERL ENGINEERING GmbH Seite 38/65...

  • Page 39: Input A1: Scaled Counter

    2 Byte To KNX ▪ Float (32 Bit) – DPT 14 GO 11 Input A1: Counter – Value 13.013 4 Byte Direction GO 11 Input A1: Counter – Value 14.056 4 Byte To KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 39/65...
  • Page 40 Counter value stays on limit value and must be reset by object Send on device restart It can be determined with this parameter whether the counter value should be sent when the device is restarted. © 2024 WEINZIERL ENGINEERING GmbH Seite 40/65...
  • Page 41 GO 16 Input A1: Lock – Activate 1.001 1 Bit From KNX If the lock has been activated via the group object, state changes at the input do not cause an increase of the counter variable. © 2024 WEINZIERL ENGINEERING GmbH Seite 41/65...

  • Page 42: Input A1: Rate Of Change

    The rate of change is calculated using the 3 parameters mentioned above: The device saves several meter readings per measurement interval, scales it with the scaling factor * time base and divides it by the measuring interval. © 2024 WEINZIERL ENGINEERING GmbH Seite 42/65...
  • Page 43 0 or 1 via the object if the limit value is exceeded. Behavior on going below limit value Here it is possible to determine whether the counter should transmit 0 or 1 via the object if the counter variable goes under limit value. © 2024 WEINZIERL ENGINEERING GmbH Seite 43/65...
  • Page 44 The counter for the rate of change measures the wind speed: Scaling factor (Output in m/s): 1/4 = 0.25 Scaling factor (Output in km/h): 1/4 * 3.6 = 0.9 Time base: Pulses per second Measurement time span: 10 s © 2024 WEINZIERL ENGINEERING GmbH Seite 44/65...

  • Page 45: Input A1: Operation Time Counter

    An additional parameter is displayed to configure the sending frequency of the counter variable. ▪ On change and cyclically Both sending conditions are active. Group object Type KNX Size Direction GO 11 Input A1: Input – State 1.001 1 Bit To KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 45/65...
  • Page 46 Group object Type KNX Size Direction GO 14 Input A1: Operation time – State 13.100 4 Bytes To KNX GO 15 Input A1: Reset operation time – Trigger 1.017 1 Bit From KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 46/65...

  • Page 47: Input A1: Lock Function

    The telegram can be configured here, which is sent on the according object when the lock is activated. Behavior of object a/b at end The telegram can be configured here, which is sent on the according object when the lock is deactivated. © 2024 WEINZIERL ENGINEERING GmbH Seite 47/65...

  • Page 48: Lock Function „Dimming, Shutter, Send Value, Color, Scene

    The telegram can be configured here, which is sent on the according object when the lock is activated. Behavior at end The telegram can be configured here, which is sent on the according object when the lock is deactivated. © 2024 WEINZIERL ENGINEERING GmbH Seite 48/65...

  • Page 49: Lock Function „Generic

    6.17.3 Lock function „Generic“ Polarity of object This parameter defines, if the lock should be activated by receiving a 1 or by receiving a 0. The respective opposite telegram deactivates the lock again. © 2024 WEINZIERL ENGINEERING GmbH Seite 49/65...

  • Page 50: Lock Function „Scaled Counter

    Counter stop and reset Behavior on end of lock With this parameter the behavior of the counter can be configured when the lock is deactivated: ▪ Counter continue ▪ Counter reset and continue © 2024 WEINZIERL ENGINEERING GmbH Seite 50/65...

  • Page 51: Sequence Controller

    There are 4 sequence controllers available in the device, each controller can send up to 8 different output telegrams. Sequence 1 is described below, the function of sequences 2 – 4 is identical. © 2024 WEINZIERL ENGINEERING GmbH Seite 51/65...
  • Page 52 Sequence ‘Off’ once (until sequence) When the corresponding value is received, the function Sequence ‘Off’ is started; any further starting of this function by receiving this value is no longer possible until the sequence has been started. © 2024 WEINZIERL ENGINEERING GmbH Seite 52/65...
  • Page 53 GO 53 Sequence controller: Sequence 1 – Scene ‘Off’ 18.001 1 Byte From KNX If “Start once (until sequence ‘Off’)” is set for sequence call up with scene object, sequence ‘Off’ must first be executed to start the sequence again. © 2024 WEINZIERL ENGINEERING GmbH Seite 53/65...
  • Page 54 This determines the waiting time from starting the sequence (output A) or from sending the previous output (output B – H), which waits until the output telegram of the corresponding output has been sent. © 2024 WEINZIERL ENGINEERING GmbH Seite 54/65...

  • Page 55: Logic / Timer / Comparison / Calculation

    The functions for timer and logic can be linked to one another by means of the associated group objects. This also allows to create complex structures. For this purpose, the output of a function is set to the same group address as the input of the next function. © 2024 WEINZIERL ENGINEERING GmbH Seite 55/65...

  • Page 56: Function 1 - 16: Timer

    The OFF telegram (0) received on the input is delayed on the output. Input: --1---------0------ Output: --1---------|-T-0- Group object Type KNX Size Direction Timer – Switch-off delayed – Input 1.002 1 Bit From KNX Timer – Switch-off delayed – Output 1.002 1 Bit To KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 56/65...
  • Page 57 Delay [s] This parameter defines the delay when sending at the output. Output Via this parameter the sent value on the output can be inverted: ▪ Not inverted ▪ Inverted © 2024 WEINZIERL ENGINEERING GmbH Seite 57/65...

  • Page 58: Function 1 - 16: Logic

    Logic – Gate output – Output 1.002 1 Bit To KNX Logic – Gate input C – Input 1.002 1 Bit From KNX Logic – Gate input D – Input 1.002 1 Bit From KNX © 2024 WEINZIERL ENGINEERING GmbH Seite 58/65...
  • Page 59 The status of a channel can only be used as a value for the input if the function is set for this channel. (Only for Function != “Impulse counter”) Send cyclically This parameter specifies whether the result is sent cyclically and at what interval. © 2024 WEINZIERL ENGINEERING GmbH Seite 59/65...

  • Page 60: Function 1 - 16: Compare

    Integer (DPT 12.001 - 4 Bytes) Value range: 0 - 4294967295 ▪ Float (DPT 9.001 - 2 Bytes) Value range: -671088.64 - +670433.28 ▪ Float (DPT 14.001 - 4 Bytes) Value range: -3.4E+38 - +3.4E+38 © 2024 WEINZIERL ENGINEERING GmbH Seite 60/65...
  • Page 61 The output sends when a telegram is received at an input. The condition for this is that both inputs are valid (have received at least one telegram). The output sends a 1 if the respective condition is fulfilled, otherwise a 0. © 2024 WEINZIERL ENGINEERING GmbH Seite 61/65...

  • Page 62: Function 1 - 16: Calculation

    Value range: 0 - 4294967295 ▪ Floating point number (DPT 9.001 - 2 Bytes) Value range: -671088.64 - +670433.28 ▪ Floating point number (DPT 14.001 - 4 Bytes) Value range: -3.4E+38 - +3.4E+38 © 2024 WEINZIERL ENGINEERING GmbH Seite 62/65...
  • Page 63 Value range: 0 - 4294967295 ▪ Floating point number (DPT 9.001 - 2 Bytes) Value range: -671088.64 - +670433.28 ▪ Floating point number (DPT 14.001 - 4 Bytes) Value range: -3.4E+38 - +3.4E+38 © 2024 WEINZIERL ENGINEERING GmbH Seite 63/65...
  • Page 64 The output sends when a telegram is received at an input. The condition for this is that both inputs are valid (have received at least one telegram). The output sends a 1 if the respective condition is fulfilled, otherwise a 0. © 2024 WEINZIERL ENGINEERING GmbH Seite 64/65...
  • Page 65 Product database for ETS 5/6 WEINZIERL ENGINEERING GmbH www.weinzierl.de/en/products/410-1/ets6 Achatz 3-4 84508 Burgkirchen an der Alz Data sheet GERMANY www.weinzierl.de/en/products/410-1/datasheet Tel.: +49 8677 / 916 36 – 0 CE Declaration E-Mail: info@weinzierl.de www.weinzierl.de/en/products/410-1/ce-declaration Web: www.weinzierl.de 2024-11-18 © 2024 WEINZIERL ENGINEERING GmbH Seite 65/65...
