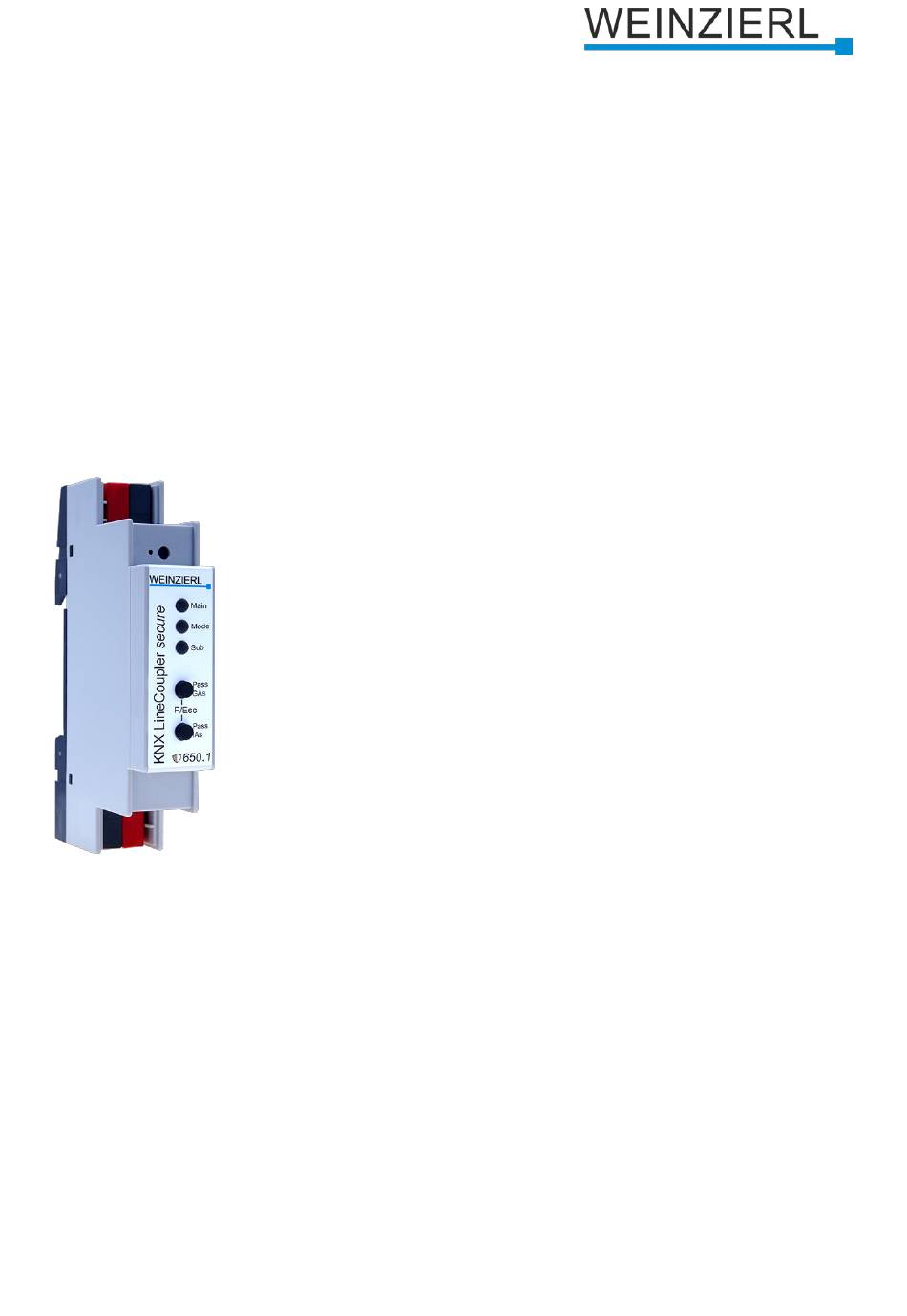

Compact KNX line coupler with support of
KNX Data Security, Security Proxy and Segment Coupler
KNX LineCoupler 650.1 secure
Operation and installation manual
(Art. # 5451)
WEINZIERL ENGINEERING GmbH
Achatz 3-4
84508 Burgkirchen an der Alz
GERMANY
+49 8677 / 916 36 – 0
Tel.:
E-Mail: info@weinzierl.de
Web: www.weinzierl.de
© 2024 WEINZIERL ENGINEERING GmbH
Seite 1/26
Advertisement
Table of Contents
Related Manuals for Weinzierl KNX LineCoupler 650.1 secure
Summary of Contents for Weinzierl KNX LineCoupler 650.1 secure
- Page 1 Compact KNX line coupler with support of KNX Data Security, Security Proxy and Segment Coupler KNX LineCoupler 650.1 secure Operation and installation manual (Art. # 5451) WEINZIERL ENGINEERING GmbH Achatz 3-4 84508 Burgkirchen an der Alz GERMANY +49 8677 / 916 36 – 0 Tel.:...
-
Page 2: Table Of Contents
Secure commissioning ....................... 13 Secure group communication ..................... 15 Description ......................... 17 General settings ......................... 18 Routing (Sub -> Main) ......................19 Routing (Main -> Sub) ......................22 Filter Table / Security Proxy Tables ..................25 © 2024 WEINZIERL ENGINEERING GmbH Seite 2/26... -
Page 3: Application
The power is supplied via the KNX bus (main line). 2 Installation and connection The KNX LineCoupler 650.1 secure is designed for installation on a DIN rail with a width of 1 unit (18mm). It features the following controls and displays: ❶... -
Page 4: Knx Programming Mode
❺ This is visualized with a single flash of the LED Mode (orange). If both modes are activated the ❺ LED Mode flashes two times. © 2024 WEINZIERL ENGINEERING GmbH Seite 4/26... -
Page 5: Reset To Factory Default Settings
▪ ❸ Keep the KNX programming button pressed for at least another 6 seconds. ▪ A short flashing of all LEDs (❷❹❺❻) visualizes the successful reset of the device to factory default settings. © 2024 WEINZIERL ENGINEERING GmbH Seite 5/26... -
Page 6: Factory Default Settings
Security is disabled and the initial key (FDSK) must be used for secure commissioning. Routing (Sub -> Main) Group telegrams: Lock Individual addressed telegrams: Filter Routing (Main -> Sub) Group telegrams: Lock Individual addressed telegrams: Filter 4 Wiring scheme © 2024 WEINZIERL ENGINEERING GmbH Seite 6/26... -
Page 7: Function As Line Or Area Coupler
(max. 225 routers) Line The KNX LineCoupler 650.1 secure has a filter table and therefore helps to reduce the bus load. The filter table supports the extended group address range (main groups 0 … 31) and is automatically generated by the ETS. - Page 8 4.1.1 Line coupler The individual address of the KNX LineCoupler 650.1 secure corresponds to the form x.y.0 (x, y: 1 … 15). Thus the device functions as line coupler. The device functions as line coupler only if its individual address has the form x.y.0.
- Page 9 4.1.2 Area coupler The individual address of the KNX LineCoupler 650.1 secure corresponds to the form x.0.0 (x: 1 … 15). Thus the device functions as area coupler. The device functions as area coupler only if its individual address has the form x.0.0.
-
Page 10: Function As Segment Coupler
4.2 Function as segment coupler The individual address of the KNX LineCoupler 650.1 secure corresponds to the form x.y.z (x, y: 1 … 15, z: 1 … 255). Thus the device functions as segment coupler. The device functions as segment coupler only if its individual address has the form x.y.z. -
Page 11: Function As Repeater (Only With Ets5)
4.3 Function as repeater (only with ETS5) The individual address of the KNX LineCoupler 650.1 secure corresponds to the form x.y.z (x, y: 1 … 15, z: 1 … 255). Thus the device functions as repeater. The filter settings in the parameter dialog of the ETS are ineffective in repeater mode. -
Page 12: Knx Security
5.1 Security Proxy A Security Proxy translates secure group communication from one side (e.g. secured KNX TP line) into unsecured group communication on the other side (e.g. unsecured KNX TP area) and vice versa. © 2024 WEINZIERL ENGINEERING GmbH Seite 12/26... -
Page 13: Ets Database
LineCoupler 650.1 secure (www.weinzierl.de) or from the ETS online catalogue. The KNX LineCoupler 650.1 secure supports KNX Data Security to protect the device against unauthorized access from the KNX bus. If the device is programmed via the KNX bus, this is done with encrypted telegrams. - Page 14 The initial key is reactivated after a reset to factory default settings. The serial number in the certificate enables the ETS to assign the correct key to a device during a download. © 2024 WEINZIERL ENGINEERING GmbH Seite 14/26...
-
Page 15: Secure Group Communication
6.4 Secure group communication Each object of the device can communicate either encrypted or unencrypted. The encryption is set under "Security" in the properties of the used group address: © 2024 WEINZIERL ENGINEERING GmbH Seite 15/26... - Page 16 ETS e.g. when the encryption of a group address is switched off and on again. Telegrams from the bus that do not address the KNX LineCoupler 650.1 secure as a device are forwarded or blocked according to the filter settings (parameters and filter table).
-
Page 17: Description
6.5 Description This page shows the device description and the corresponding connection diagram. © 2024 WEINZIERL ENGINEERING GmbH Seite 17/26... -
Page 18: General Settings
Enabled with time limit 1 min ▪ Enabled with time limit 10 min ▪ Enabled with time limit 30 min ▪ Enabled without time limit The activated manual operation can reduce the security of the installation. © 2024 WEINZIERL ENGINEERING GmbH Seite 18/26... -
Page 19: Routing (Sub -> Main)
▪ Filter The filter table is used to check whether or not the received group telegram should be routed to the main line. The setting “Route” should only be used for test purposes. © 2024 WEINZIERL ENGINEERING GmbH Seite 19/26... - Page 20 The received broadcast telegram is resent up to three times in case of a fault. If repetitions are enabled, it is possible that the device suppresses the repetitions dynamically in order to limit a high bus load. © 2024 WEINZIERL ENGINEERING GmbH Seite 20/26...
- Page 21 This setting can be used to block attempts at manipulation. When using “Answer with NACK” an access to the device via the KNX sub line is no longer possible. The configuration must be performed via the main line. © 2024 WEINZIERL ENGINEERING GmbH Seite 21/26...
-
Page 22: Routing (Main -> Sub)
▪ Filter The filter table is used to check whether or not the received group telegram should be routed to the sub line. The setting “Route” should only be used for test purposes. © 2024 WEINZIERL ENGINEERING GmbH Seite 22/26... - Page 23 The received individually addressed telegram is resent up to three times in case of a fault. If repetitions are enabled, it is possible that the device suppresses the repetitions dynamically in order to limit a high bus load. © 2024 WEINZIERL ENGINEERING GmbH Seite 23/26...
- Page 24 This setting can be used to block attempts at manipulation. When using “Answer with NACK” an access to the device via the KNX main line is no longer possible. The configuration must be performed via the sub line. © 2024 WEINZIERL ENGINEERING GmbH Seite 24/26...
-
Page 25: Filter Table / Security Proxy Tables
Also the security proxy tables are displayed here. The filter table can be extended by manually adding group addresses. For this purpose, “Pass through Line Coupler” must be activated in the properties window of the corresponding group address. © 2024 WEINZIERL ENGINEERING GmbH Seite 25/26... - Page 26 Achatz 3-4 84508 Burgkirchen an der Alz Product database for ETS 5 GERMANY www.weinzierl.de/en/products/650.1/ets5 Tel.: +49 8677 / 916 36 – 0 Data sheet E-Mail: info@weinzierl.de www.weinzierl.de/en/products/650.1/datasheet Web: www.weinzierl.de CE Declaration www.weinzierl.de/en/products/650.1/ce-declaration 2024-06-05 © 2024 WEINZIERL ENGINEERING GmbH Seite 26/26...
