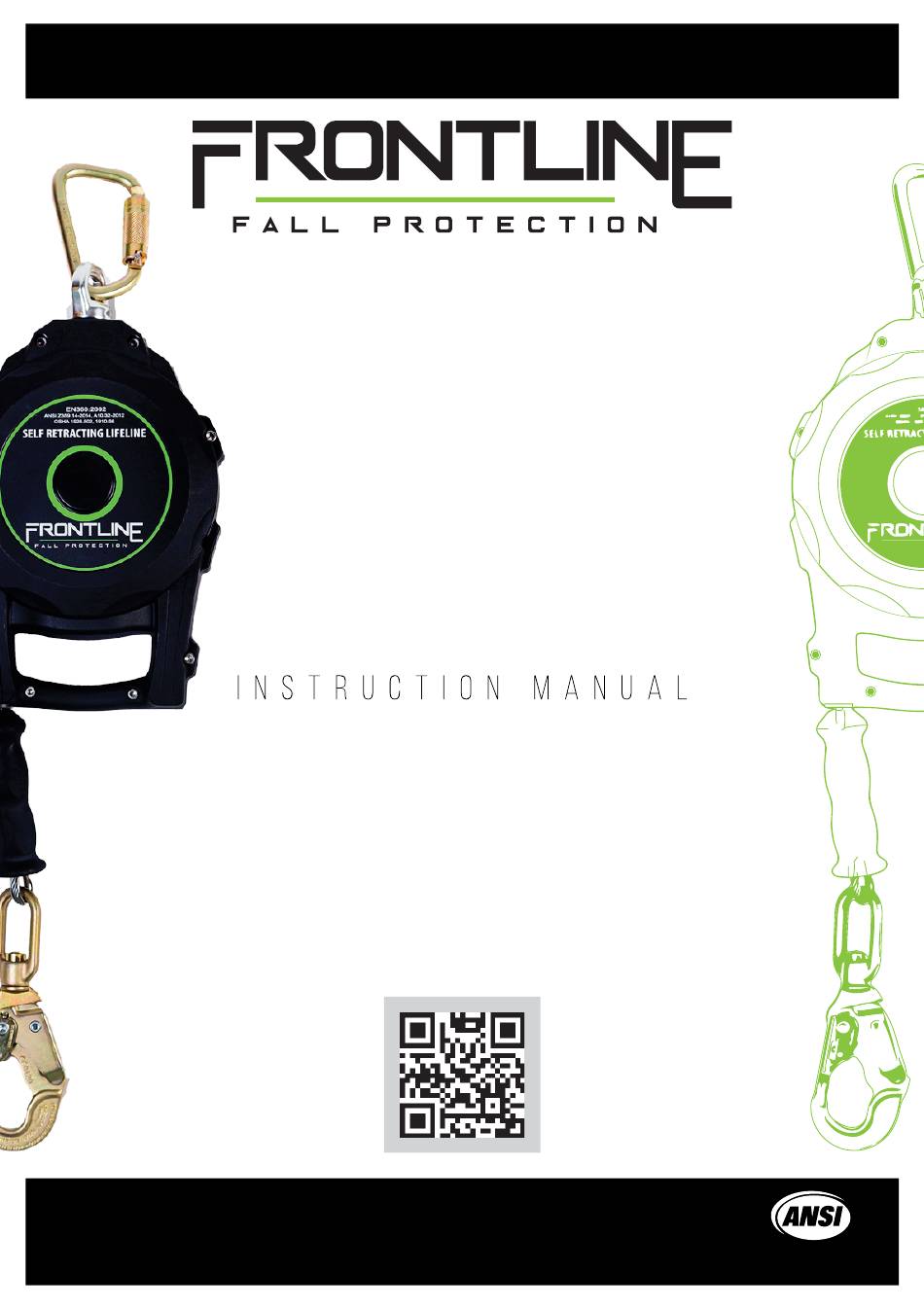

- Page 1 SELF-RETRACTING LIFELiNE THE INSTRUCTIONS APPLIES TO THE FOLLOWING MODELS: RPA061S, RPA062S, RPA062R, RPA062RA, RPA091TB, RPA092TB, RPA121R, RPGC30, RPGC50 BKLFL 04...
- Page 2 The SRLs are designed for use by one person with combined weight (person, clothing, tools, etc.) within ANSI rated weight capacity range of 130 lbs. to 310 lbs. and maximum OSHA capacity of 420 lbs. when used Manual Revision Code: FRONTLINE-SRL-04 10-19-20...
-
Page 3: Compa�Bility
Connector: Connectors must be compa�ble in size, shape, and strength. Self-closing, self-locking connectors are required by ANSI and OSHA. -5000 lbs. (22.2 KN) for non-cer�fied anchorages. -Two �mes the maximum arrest force permi�ed when cer�fica�on exists Compa�bility:... -
Page 4: Inspection Frequency
Standards: SRLs confirm to the na�onal standard iden�fied on the label. Refer to local, state, and federal (OSHA)requirements governing occupa�onal safety for addi�onal informa�on. The standard are ANSI Z359.14-2014 - Safety Requirement for Self-Retracting Device for Personal Fall Arrest and Rescue Systems. -
Page 5: Installation
Connectors (hooks, carabiners, and D-rings) must be capable of suppor�ng at least 5000 lbs. (22.2KN) Non-compa�ble connectors may uninten�onally disengage. Per ANSI Z359 and OSHA, self-locking snap hooks and carabiners are required. INSTALLATION: Anchorage: For users exceeding 310 lbs. (141kg), anchorage point must not be more than 5�(1.52m) below the Dorsal D-Ring. - Page 6 Use: Frontline friendly reminder- Do not alter or inten�onally misuse this equipment. Some subsystems and component combina�ons may interfere with the opera�on of this equipment. Use cau�on when using this equipment around moving machinery, electrical hazards, chemical hazards, sharp edges(cannot use web SRL's with sharp object application), or overhead materials that may fall onto the lifeline.
-
Page 7: Maintenance, Servicing, And Storage
Body Support: A full body harness must be worn when using SRL. Connect the SRL to the user's harness shoulder straps the back (dorsal) D-ring. Be noted that the Dual SRLs are connected by the dual connector. When connec�ng it to harness, the connector should be connected on the web loop of the back harness not on the D-ring. -
Page 8: Specifications
≦ 1800 lbs. (8KN) Maximum Arresting Distance 24” *User weights above 310 lbs. are not within the scope of ANSI/ ASSE Z359.14 The above results are valid when the SRL’s lifeline is secured overhead. Dimensions: Average working range for each kind of the SRLs are the different, such as the RPGC30 is 30ft(9.1m), RPGC50 is 50ft(15.2m), RPA061S, RPA062S, RPA062R, and RPA062RA are 6ft(1.8m), RPA091TB and... - Page 9 RPA062S RPA062R RPA062RA RPA091TB RPA092TB Manual Revision Code: FRONTLINE-SRL-04 10-19-20...
- Page 10 RPA121R RPGC30 RPGC50 Drawing 2. Incorrect Use of SRL Manual Revision Code: FRONTLINE-SRL-04 10-19-20...
- Page 11 A. Damage due to heat – inside fiber exposed C. Inside fiber exposed due to cut B. Separa�on of layers – s�tching was broken D. Frayed top fibers exposing core of webbing Inspec�on requirements for self-retrac�ng devices ANSI Z359.14-2014 CSA Z2592.2-17 Type of Applica�on Example condi�ons of...
- Page 12 ini�ate the requirement for inspec�on by a competent person. (2) Failure of a competent person to perform inspec�ons as specified in this Table, or failure of an inspec�on by the competent person shall ini�ate product revalida�on or disposal. (3) Determina�on of the type of use category shall be determined by a competent person. (4) An SRL that is considered non-repairable, or not designed for disassembly such that internal inspec�on is not possible without rendering it unserviceable, is not subject to revalid ※These SRL's shall have service life and other inspec�on requirements as provided by the manufacturer’s...
- Page 13 Inspec�on And Maintenance Log Serial Number: Model Number: Date Purchased: Date of First Use: Inspec�on Date Inspec�on Items Noted Correc�ve Ac�on Maintenance Performed Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By: Approved By:...
