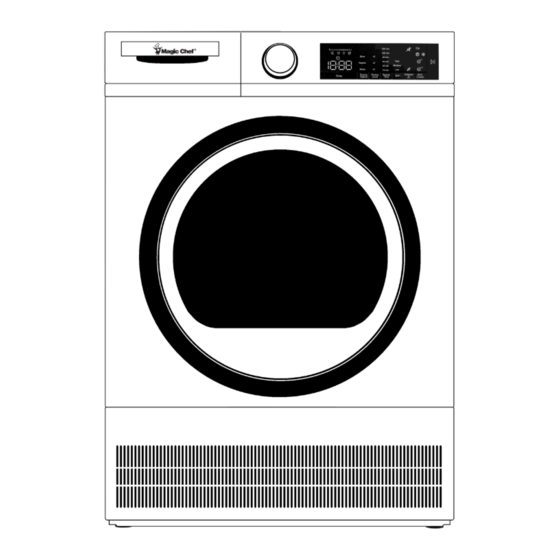

- Page 1 Magic Chef 24" Front Load Dryer User’s Manual Models: MCSDRY24W1 PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR DRYER AND KEEP IT FOR FUTURE REFERENCE.
-
Page 2: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a Magic Chef ® product. The first step to protect your new product is to complete the product registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following: 1. Registering your product will allow us to contact you regarding a safety notification or product update. -
Page 3: Table Of Contents
CONTENTS PRODUCT REGISTRATION ..............PRECAUTIONS ..................IMPORTANT SAFETY INSTRUCTIONS ............ SPECIFICATIONS ..................PARTS AND FEATURES................INSTALLATION INSTRUCTIONS............... OPERATION INSTRUCTIONS ..............CARE AND MAINTENANCE..............TROUBLESHOOTING................WARRANTY.................... -
Page 4: Precautions
PRECAUTIONS 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision and instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: Read all instructions before using the appliance. DO NOT dry articles that have been previously washed in, soaked in, or spotted with gasoline, dry- cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode. - Page 6 CALIFORNIA WARNING:This product can expose you to chemicals including Diisononyl phthalate (DINP) which is known to the State of California to cause cancer. For more information go to www. P65Warnings.ca.gov GROUNDING INSTRUCTIONS 1. This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
- Page 7 3. Cleaning cloths and mats that have residues of flammable cleaning agents or acetone, gas, patrol, stain remover, turpentine, candle, wax, wax remover or chemicals. 4. Laundry that has residues of hair sprays, nail polish remover and similar substances. 5. Laundry on which industrial chemicals have been used for cleaning (such as chemical cleaning). 6.
-
Page 8: Specifications
SPECIFICATIONS 42.9” Figure 1 23.5” 24.0” Model MCSDRY24W1 Width 23.46" (596 mm) Height 33.27" ~ 33.66" (845mm ~ 855 mm* ) Depth 23.98" (609 mm) Net Weight 80.5 lbs (36.5 kg) Voltage 208-240 V Power 2700 W PARTS AND FEATURES a. -
Page 9: Installation Instructions
INSTALLATION INSTRUCTIONS Install the clothes dryer according to the manufacturer’s instructions and local codes. The dryer must be installed by a qualified installer or service person. WARNING: Risk of Fire DO NOT install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the manufacturer as suitable for use with clothes dryers. - Page 10 CONNECTION TO WATER OUTLET (WITH OPTIONAL DRAIN HOSE) In products with a condenser unit, water accumulated in the water tank during the drying process. The water tank must be emptied after each drying process. Alternatively, you can use the included water drain hose to drain the water directly into a sink or floor drain.
- Page 11 ELECTRIC INSTALLATION • The clothes dryer installation must be performed by a qualified installer. • Install the appliance according to the manufacturer’s instructions and local codes. • To reduce the risk of severe injury or death, follow all installation instructions. •...
- Page 12 • To use the dryer on the washing machine, a connecting piece must be used between the two products. The fixing part must be attached by an Authorized Service Provider. • When the dryer is placed on the washing machine, the total weight of these products may reach almost 330 lbs (when loaded).
-
Page 13: Operation Instructions
OPERATION INSTRUCTIONS CONTROL PANEL OPERATION Figure 6 Shirt Normal Express Outdoor 150 min 120 min Sports Wear Towels Extra 90 min High 60 min Bedding Regular Medium 30 min Damp Perm Press Warm/Refresh 10 min Delicate Drying Drying Drying Anti- Spin Delicates Air Fluff... - Page 14 Baby Care: This program provides hygienic drying for delicate infant clothes at a low temperature. Delicates: This program dries thin clothes like shirts, blouses and silk garments at a low temperature to make them ready to wear. Perm Press: This program dries synthetics, such as shirts, t-shirts, blouses, at a lower temperature compared to the cottons program.
- Page 15 Delay Timer: Indicates the dryer is set for a delayed start. Anti-Wrinkle 60': Indicates a 60 minute Anti-wrinkle cycle. Anti-Wrinkle 120':Indicates a 60 minute Anti-wrinkle cycle. Mute: Audible tones have been silenced. Drying Step Display: The display shows the current drying steps throughout the program. Every time a program step starts, the relevant drying step light turns on.
- Page 16 Mute: The dryer will give an audio warning when the buttons are pressed, when the program selection knob is turned and when the program ends. To cancel audio warnings, press and hold the “Anti-Wrinkle Option” for 3 seconds. When you press this button, you will hear an audible warning that indicates that the option has been activated and the audible warnings will be muted.
-
Page 17: Care And Maintenance
CARE AND MAINTENANCE IMPORTANT: Do not use industrial chemicals to clean your dryer. Do not use a dryer that has been cleaned with industrial chemicals. Cleaning the Lint Filter The lint filter should be cleaned after each use of the dryer, Figure 7 or when the lint filter clean indicator light ' ' comes on. - Page 18 Cleaning the Humidity Sensor Figure 9 There are humidity sensors in the dryer that detect whether the laundry is dry or not, and they should cleaned regularly to ensure they continue working properly. 1. To clean the sensors: 2. Open the dryer door. 3.
-
Page 19: Troubleshooting
TROUBLESHOOTING Your dryer is fitted with systems that continuously perform checks during the drying process to take the necessary measures and warn you in case of any malfunction. WARNING: If the problem persists even if you have applied the steps in this section, please contact the your dealer or an Authorised Service Provider. - Page 20 PROBLEM POSSIBLE CAUSE SOLUTION There might be lint accumulated on the Clean the inner surfaces of the loading Water leaking from the door. inner surfaces of the door and on the door and the surfaces of the gasket of surfaces of the gasket of the door. the door.
-
Page 21: Warranty
LIMITED WARRANTY MC Appliance Corporation warrants each new Dryer to be free from defects in material and workmanship, and agrees to remedy any such defect or to furnish a new part(s), at the company’s option, for any part(s) of the unit that has failed during the warranty period. - Page 22 Magic Chef ® CNA International, Inc. d/b/a MC Appliance Corporation. All rights reserved. Magic Chef is a registered trademark of CNA International, Inc. www.mcappliance.com Printed in Turkey...
