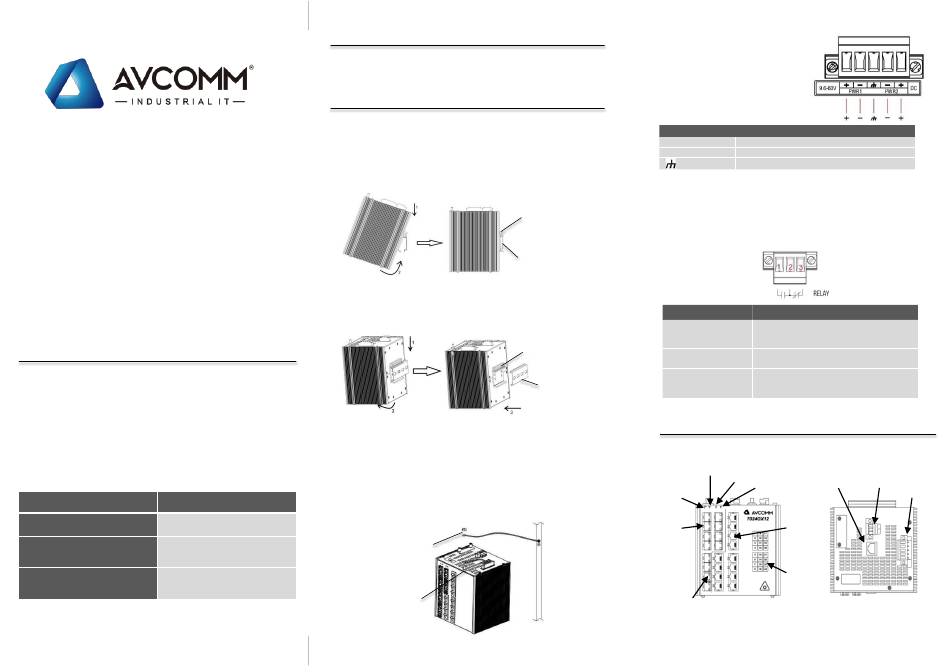

AVCOMM 7024GX12 Quick Installation Manual

Quick Installation Guide
7024GX12
Industrial Ethernet Switch
www.avcomm.us
・Overview
7024GX12 is built for high speed and traffic application for Industrial
network, which backplane bandwidth is up to 52Gbps. Its high density of
interface brings 24 ports, including 12 SPF for fiber ports, with still DIN-
Rail installation.
Based on patented A-Ring® Loop Protection technology, its hardware-
based algorithm ensures less than 5ms self-recovery time of every node
and less than 50ms self-recovery time of the network.
The fan-less design comes with an isolated redundant power supply to
increase system reliability and the availability of trunk network .
By unique extended industrial-grade design and technology, it is suitable
for various harsh environments and outdoor applications.
10/100/1000Base-T
100/1000 BaseSFP
Power input
AVCOMM Technologies, Inc
・Package Checklist
•
1 x Product Unit
•
1 x Quick Installation Guide
•
Console Cable
・Installation
DIN Rail mount
•
Make sure that there is enough space for installation and good
ventilation where you select to install the device.
•
Insert the upper lip of the DIN-rail kit into the mounting rail as the
arrow 1 shows. Press the device towards the mounting rail until it
snaps into place as the arrow 2 shows.
Dismount
•
Press down the device a little bit hard as the arrow 1 shows.
•
Slightly pull the device forward and lift up to remove it from the
mounting rail as the arrow 2 shows.
Grounding
The GND pin on the power supply terminal has already connected to
the chassis ground. It only needs to crimp one side of the ground wire
with cold-pressed terminal and fix it on the chassis ground using
grounding screws and washers. Then keep the other side of the
power line reliably connected to the earth before power on.
Disconnect the grounding wire after power off. Available wire of the
earth ground is 10AWG; Applicable tightening torque of the earth
7024GX12
ground is 5NM~6NM. Please tighten with stainless steel M4 screw.
12
Grounding Screw
12
9.6~60 VDC
Ground
Connection Rod
Wiring the Power Input
1) Insert the positive and negative
wires into the V+ and V- contact on
the terminal block connector.
2) Tighten screws when the wire is
connected.
3) The device supports DC power
supply 9.6V to 60VDC
Name
＋
－
Alarm Relay
The relay is on the top panel of the switch, which is used as alarm
terminal. When the device is normally working, the normally-open
contact is closed, and the normally-closed contact is open. When
DIN-Rail Kit
alarm occurs, the normally-open contact is open, and the normally-
closed contact is closed. Use 3-pin plug to output the signal. It is
used to control the power failure and alarm the remove.
DIN Mounting Rail
Name
Normally Open
Contact
DIN-Rail Kit
Double-throw
Contact
Normally Close
DIN Mounting Rail
Contact
・Appearance
System LED
Power LED
Port
LED
12-port 10/100/1000M RJ45
Address: 333 West Loop North, Suite 460 Houston, TX 77024,United States
Description
Positive
Negative
Requiring good ground connection
Description
Closed when the device is working
normally; Open when there is an alarm
occurred.
Two-way Contact
Open when the device is working
normally; Closed when there is an alarm
occurred.
ZTP LED
CLI port
Relay
Power
SD LED
Connector
12-port
10/100/1000M
SFP
Port
description
Top
Front
