ES-1016B/1024B
Ethernet Switch
User's Guide
Version 2.00
3/2007

Advertisement

Table of Contents
loading

Related Manuals for ZyXEL Communications Dimension ES-1016B

Summary of Contents for ZyXEL Communications Dimension ES-1016B

  • Page 1 ES-1016B/1024B Ethernet Switch User’s Guide Version 2.00 3/2007...

  • Page 2: Table Of Contents

    Table of Contents ... 1 Copyright ... 1 Interference Statements and Warnings ... 2 ZyXEL Limited Warranty... 4 Customer Support... 5 List of Figures ... 7 List of Tables ... 9 Preface ... 11 Chapter 1 Getting to Know Your Switch ... 13 1.1 Introduction ...13...
  • Page 3 ES-1016B/1024B User’s Guide Appendix A Product Specifications ... 21 Index... 23 Table of Contents...

  • Page 4: Table Of Contents

    Published by ZyXEL Communications Corporation. All rights reserved. Disclaimer ZyXEL does not assume any liability arising out of the application or use of any products, or software described herein. Neither does it convey any license under its patent rights nor the patent rights of others.

  • Page 5: Interference Statements And Warnings

    Certifications 1 Go to www.zyxel.com 2 Select your product from the drop-down list box on the ZyXEL home page to go to that product's page. 3 Select the certification you wish to view from this page.

  • Page 6: Safety Warnings

    Safety Warnings For your safety, be sure to read and follow all warning notices and instructions. • Do NOT open the device or unit. Opening or removing covers can expose you to dangerous high voltage points or other risks. ONLY qualified service personnel can service the device. Please contact your vendor for further information.

  • Page 7: Zyxel Limited Warranty

    Any returned products without proof of purchase or those with an out-dated warranty will be repaired or replaced (at the discretion of ZyXEL) and the customer will be billed for parts and labor. All repaired or replaced products will be shipped by ZyXEL to the corresponding return address, Postage Paid.

  • Page 8: Customer Support

    +34 902 195 420 www.zyxel.es +34 913 005 345 +46 31 744 7700 www.zyxel.se +46 31 744 7701 ES-1016B/1024B User’s Guide REGULAR MAIL ZyXEL Communications Corp. 6 Innovation Road II Science Park Hsinchu 300 Taiwan ZyXEL Communications Czech s.r.o. Modranská 621 143 01 Praha 4 - Modrany Ceská...
  • Page 9 * “+” is the (prefix) number you enter to make an international telephone call. TELEPHONE* WEB SITE FTP SITE +44 (0) 1344 303044 www.zyxel.co.uk 08707 555779 (UK only) +44 (0) 1344 303034 ftp.zyxel.co.uk REGULAR MAIL ZyXEL Communications UK Ltd.,11 The Courtyard, Eastern Road, Bracknell, Berkshire, RG12 2XB, United Kingdom (UK) Customer Support...

  • Page 10: List Of Figures

    ES-1016B/1024B User’s Guide List of Figures Figure 1 ES-1016B ... 13 Figure 2 ES-1024B ... 13 Figure 3 Standalone Workgroup Example ... 15 Figure 4 Bridging Example ... 15 Figure 5 Rear Panel ... 17 Figure 6 Front Panel LEDs (ES-1024A) ... 18 Figure 7 Troubleshooting LINK/ACT LED ...
  • Page 11 ES-1016B/1024B User’s Guide List of Figures...

  • Page 12: List Of Tables

    ES-1016B/1024B User’s Guide List of Tables Table 1 Network Cable Types ... 18 Table 2 The Front Panel LED Descriptions ... 18 Table 3 Troubleshooting Power LED ... 19 Table 4 Product Specifications ... 21 List of Tables...
  • Page 13 ES-1016B/1024B User’s Guide List of Tables...

  • Page 14: Preface

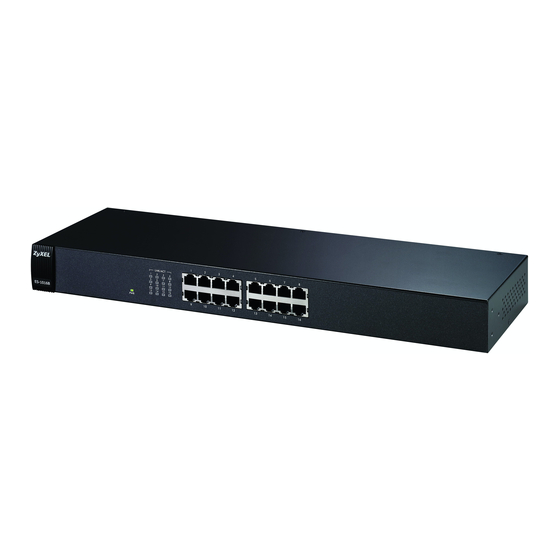

    Congratulations on your purchase of the Dimension Ethernet Switch. About the Dimension Ethernet Switches The Dimension switch is a cost effective Fast Ethernet switch ideal for setting up a small workgroup or for bridging two separate networks. There are two switch models. The ES-1016B comes with 16 10/100M ports and the ES-1024B with 24 10/100M ports.

  • Page 15: User Guide Feedback

    User Guide Feedback Help us help you. E-mail all User Guide-related comments, questions or suggestions for improvement to techwriters@zyxel.com.tw or send regular mail to The Technical Writing Team, ZyXEL Communications Corp., 6 Innovation Road II, Science-Based Industrial Park, Hsinchu, 300, Taiwan. Thank you!

  • Page 16: Getting To Know Your Switch

    This chapter describes the key features, benefits and applications of your switch. 1.1 Introduction The switch is a multi-port switch that can be used to build high-performance switched workgroup networks. The switch is a store-and-forward device that offers low latency for high-speed networking.

  • Page 17: Package Contents

    This section provides two network topology examples in which the switch is used. 1.4.1 Standalone Workgroup In this application, the switch is an ideal solution for small networks where rapid growth can be expected in the near future. The switch can be used standalone for a group of heavy traffic users. You can connect computers directly to the switch’s port or connect other switches to the switch.

  • Page 18: Bridging

    Figure 3 Standalone Workgroup Example 1.4.2 Bridging With its large address table and high performance, the switch is an ideal solution for department networks to connect to the corporate backbone or for connecting network segments. The following figure depicts a typical segment bridge application of the switch in an enterprise environment.
  • Page 19 ES-1016B/1024B User’s Guide Chapter 1 Getting to Know Your Switch...

  • Page 20: Hardware Description And Connection

    Appendix A on page 21 Figure 5 Rear Panel 2.1.1 Rear Panel Power Connection Connect one end of the supplied power cord to the power receptacle on the back of the switch and the other end to the appropriate power source. 2.2 Front Panel The front panel of the switch includes the auto-negotiating 10Base-T/100Base-TX RJ-45 ports and the LEDs.

  • Page 21: Front Panel Connections

    100 Base-TX 100Ω 2-pair UTP/STP Category 5 2.2.3 Front Panel LEDs The LED Indicators give real-time information about the status of the switch. The following table provides descriptions of the LEDs. Figure 6 Front Panel LEDs (ES-1024A) The following table describes the LEDs.

  • Page 22: Chapter 3 Troubleshooting

    Table 3 Troubleshooting Power LED STEP CORRECTIVE ACTION Check the connections from your switch to the power source. Make sure you are using the supplied power cord and that you are using an appropriate power source. Refer to the product specifications.

  • Page 23: Improper Network Cabling And Topology

    ES-1016B/1024B User’s Guide 3.2 Improper Network Cabling and Topology Improper network cabling or topology setup is a common cause of poor network performance or even network failure. Figure 8 Troubleshooting Improper Network Cabling and Topology PROBLEM CORRECTIVE ACTION Faulty cables Using faulty network cables may affect data rates and have an impact on your network performance.

  • Page 24: Table 4 Product Specifications

    Product Specifications These are the product specifications. Table 4 Product Specifications Standard IEEE802.3 10BASE-T Ethernet IEEE802.3u 100BASE-TX Fast Ethernet IEEE802.3x Flow Control Protocol CSMA/CD Technology Store-and-Forward switching architecture Supports broadcast storm control Non-blocking Wire ES-1016B: 3.2 Gb Speed ES-1024B: 4.8 Gb Transfer Rate Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Page 25 ES-1016B/1024B User’s Guide Product Specifications...

  • Page 26: Index

    Numerics 10 Mbps Ethernet 110V AC 230V AC Accessories Airflow Applications Segment Bridge Authority Basement Cables, Connecting Cabling Length Changes or Modifications Connecting Cables Copyright Corrosive Liquids Covers Customer Support Damage Dampness Danger Data path loop Denmark, Contact Information Index ES-1016B/1024B User’s Guide Dust Electric Shock...
  • Page 27 ES-1016B/1024B User’s Guide Modifications Network Cable Length Limit Network Cable Types 100Mbps 10Mbps Non-standard network cables North America North America Contact Information Norway, Contact Information Opening Package Contents Pipes Pool Power Adaptor Power Cord Power Outlet Power Supply Power Supply, repair Product specification Qualified Service Personnel Quick start guide...
  • Page 28 ES-1016B/1024B User’s Guide Web Site Wet Basement Worldwide Contact Information ZyXEL Limited Warranty Note Index...
