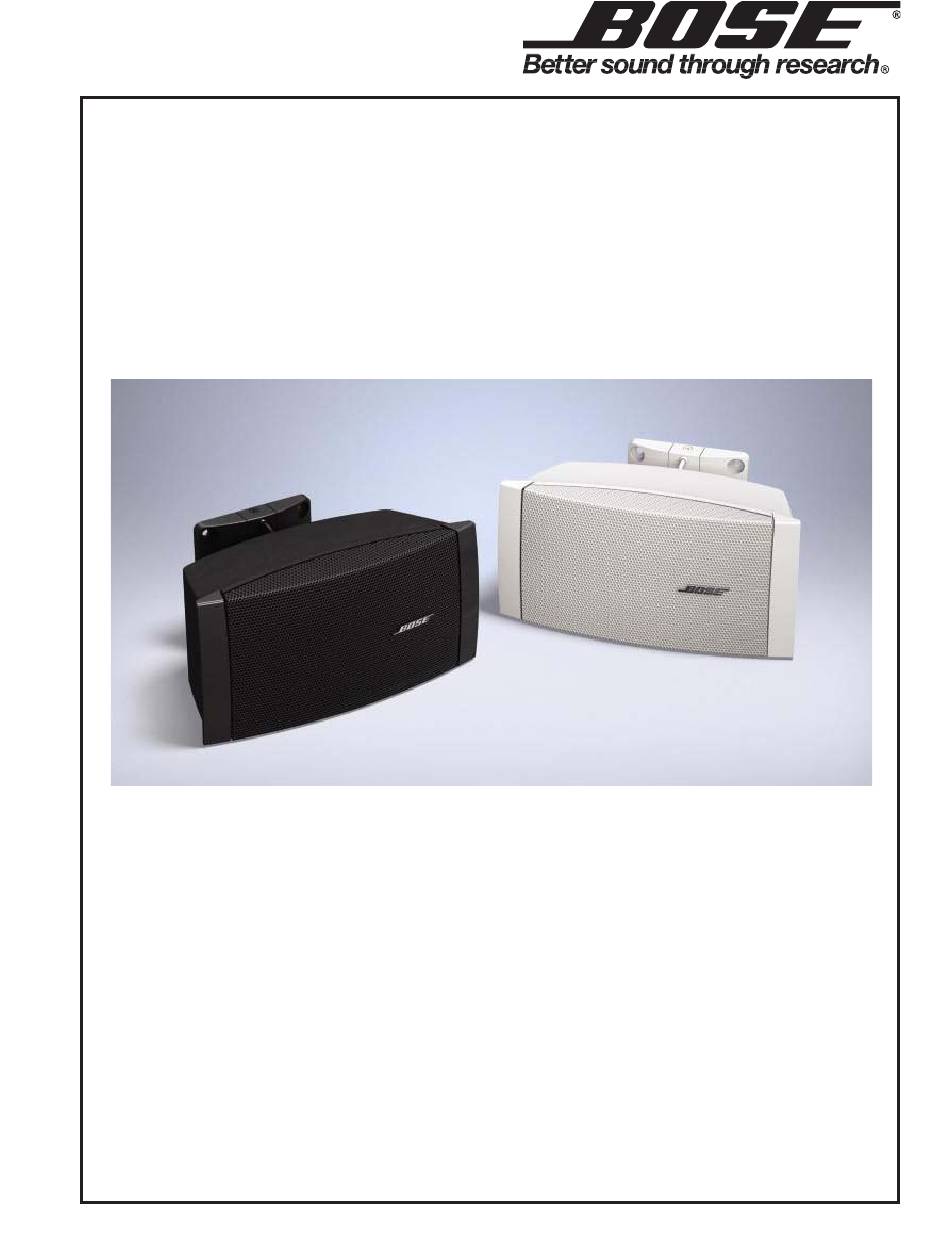

- Page 1 ® FreeSpace DS 16S and DS 16SE Loudspeakers (Indoor and Outdoor Versions) Service Manual ©2013 Bose Corporation Reference Number 294951-SM Rev. 02...
-
Page 2: Table Of Contents
To prevent warranty infractions, refer servicing to warranty service stations or factory service. WARRANTY INFORMATION The Bose FreeSpace DS 16S and DS 16SE Loudspeakers are covered by a 5-year transferable limited warranty. PROPRIETARY INFORMATION THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF... -
Page 3: Specifications
SPECIFICATIONS FreeSpace ® Model DS 16S and DS 16SE Loudspeakers Electrical Loudspeaker Impedance: 8 ohms Power Handling: 16 Watts 70V Transformer TAP Settings: 1, 2, 4, 8 and 16W 100V Transformer TAP Settings: 2, 4, 8 and 16W Acoustical Sensitivity: 84 dB SPL @1W/1m. -
Page 4: Product Description

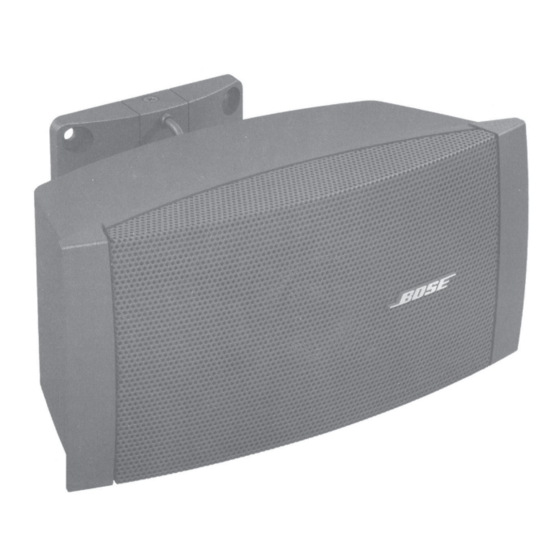

PRODUCT DESCRIPTION ® The FreeSpace DS16 S and DS16 SE are the entry level surface-mount speakers for business music applications. They consist of a single 2.25" driver in a rugged, plastic enclosure. There are two variants of the DS16 Loudspeaker, an indoor version qualified for use where it is not exposed to weather and an outdoor version qualified for use fully exposed to weather. -
Page 5: Packaging List, Freespace Ds 16S And Ds 16Se Loudspeakers
SCREW, M4x8, FLAT HEAD INSTALLATION GUIDE 299653 4301-7248+1 CARTON KIT, INCLUDES: 295900 CARTON SHEET 325629-0010 1450-9280+0 POLY FOAM, EPS 325630-0010 1490-4611+0 POLY BAG CARTON, DS16S ONLY 325111-0010 1437-8402+0-2 CARTON, DS16SE ONLY 308993 1437-8401+0-2 Figure 1. FreeSpace DS 16S and DS 16SE Packaging View... -
Page 6: Main Part List, Freespace Ds 16S Loudspeaker (Indoor Version)
TAP KNOB 295898-001 2447-3601+0 NUT, HEX, ROTARY SWITCH SCREW, TAPPING, M3X10 2954-3010+3000 BOSE LOGO ASSY, BLACK 303039-001 BOSE LOGO ASSY, WHITE 303039-001 INCLUDES: CUP WASHER 4159-0170+0 SPRING 2510-3931+0 WASHER, SELF LOCKING 2610-4003+1207 Figure 2. FreeSpace DS 16S (Indoor Version) Exploded View... -
Page 7: Main Part List, Freespace Ds16 Se Loudspeaker (Outdoor Version)
Vendor Part Number Qty. Note Number Number GRILLE, OUTDOOR, BLACK 298083-001 SVC-MOESO11+GRIL GRILLE, OUTDOOR, WHITE 298083-002 SVC-MOESO12+GRIL INCLUDES: BOSE LOGO, BLACK or 303039-001 BOSE LOGO, WHITE 303039-002 DRIVER, 2.75” 298082 8900-3830+0 CAP, GRILLE, BLACK 295897-001 1467-7001+0 CAP, GRILLE, WHITE 295897-002... -
Page 8: Main Part List, Basic Elevation Bracket (Included With Loudspeaker)
MAIN PART LIST Basic Elevation Bracket (included with loudspeaker) Item Description Vendor Part Qty. Note Number Number WALL MOUNT, PC/ABS 4155-1981+0 SPEAKER MOUNT, PC/ABS 4155-1991+0 GROMMET, RUBBER SBR 4157-1071+0 CONNECTOR, 4-PIN, PVC 7012-7710+0 SCREW, M4x8mm, FLAT HEAD 2901-4008+3000 SCREW, M4x60mm, PAN HEAD, SEMS 2900-4060+3000 SCREW, 8-32, WITH SQUARE WASHER 2AZZ-0003+ZZZZ... -
Page 9: Disassembly Procedures
DISASSEMBLY PROCEDURES Note: Refer to Figures 2 and 3 for the 4. Front Baffle Removal following procedures. 4.1 Perform procedure 1. 1. Grille Removal 4.2 Remove the four screws (5) that secure 1.1 Remove the two grille end caps (3) by the front baffle (4) to the rear cabinet (8). -
Page 10: Test Procedures
TEST PROCEDURES 1. Air Leak Test 3. Power Sweep Test 1.1 Remove the right-hand grille cap to gain 3.1 Remove the right-hand grille cap to gain access to the tap rotary switch. Set the access to the tap rotary switch. Set the switch to the 8 Ohm setting. -
Page 11: Service Manual Revision History
SERVICE MANUAL REVISION HISTORY Date Revision Description of Change Change Driven Pages Level Affected 11/06 Document released at revision 00. Service manual initial release 5/09 - Bracket vendor part number changes – Vendor part 6, 7 Item 9. number change - Changed page order to match current service manual format. - Page 12 SPECIFICATIONS AND FEATURES SUBJECT TO CHANGE WITHOUT NOTICE Bose Corporation The Mountain Framingham Massachusetts USA 01701 Reference Number 294951-SM Rev. 02 7/2013 (P) http://serviceops.bose.com...
