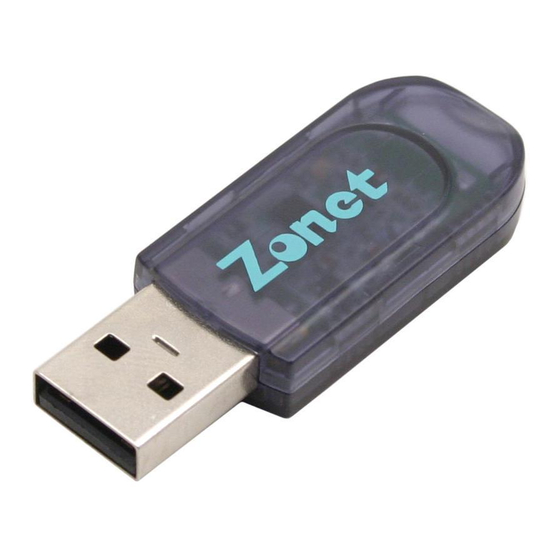

Page 1: Bluetooth Usb Adapter
Bluetooth USB Adapter Installation Guide VERSION Bluetooth Tested To Comply With FCC Standards FOR HOME OR OFFICE USE... - Page 2 © All rights reserved. All trade names are registered trademarks of respective manufacturers listed. The Bluetoothname and the Bluetoothtrademarks are owned by BluetoothSIG,Inc. This manual may not be copied in any media or form without the written consent of original maker.
-
Page 3: Table Of Contents
WELCOME ... 1 Features ... 1 System Requirements ... 1 Before You Start ... 1 Driver Support ... 2 1. WINDOWS NATIVE DRIVER ... 3 2. INSTALL WIDCOMM DRIVER ... 4 3. CHANGE BLUETOOTH DRIVER ... 7 4. SELECT BLUETOOTH SERVICES ... 10 5. -
Page 4: Welcome
Thank you for your purchase of the Bluetooth USB Adapter. Fea- turing Bluetooth wireless technology, Bluetooth USB Adapter creates cable-free connections between your PCs and other Bluetooth devices. Bluetooth USB Adapter is following Bluetooth v1.2 specification and is compatible with all Bluetooth v1.1 or v1.2-certified devices. FEATURES Compliant with Bluetooth standard version 1.2. -
Page 5: Driver Support
DRIVER SUPPORT Two Bluetooth drivers are supported under Windows XP (SP2) : 1). Windows XP (SP2) native Bluetooth driver. Windows XP (SP2) is supporting Broadcom USB Bluetooth dongle now. The installation is simple and easy, just plug Bluetooth donge into USB port of your PC, Windows XP will automatically find its driver for it. -
Page 6: Windows Native Driver
Step 1 : Remove any Widcomm Bluetooth driver. Click START, select Control Bluetooth Radios, make sure there is no installed before. If there is any, go to window, double click programs to remove Widcomm driver. Step 2 : Plug the Bluetooth USB adapter into USB port of your PC, Windows XP (SP2) will automatically find this adapter and activate its... -
Page 7: Install Widcomm Driver
INSTALLING WIDCOMM DRIVER The following steps tell you how to install the Widcomm driver. Step 1 : Put Widcomm Driver CD into CD drive of your PC, an AutoInstall program will start to guide you to complete the installation step by step. - Page 8 Step 4 : Click Install installation. Step 5 : Files copying in process... Step 6 : Click to ignore un- signed driver warning. to start the...
- Page 9 Step 7 : If Bluetooth dongle is plugged in your PC now, this screen will not be displayed. If NOT, then it will show up. One reminding window will show up to ask you to PLUG IN Bluetooth USB adapter. Plug in your USB adapter if it has not been plugged in before.
-
Page 10: Change Bluetooth Driver
CHANGE BLUETOOTH DRIVER As described in page 2, condition 1, we first get Windows native driver support, then install Widcomm driver to replace it. Now, in our system, there are two Bluetooth drivers : 1). Widcomm driver which is enabled, and 2). - Page 11 Step 3 : Select : Yes, this time Click Next. Step 4 : Default is : Install the software automatically (Recommended). Please do not select it. Select Install from a list or specific location (Advanced). Then click Next. Step 5 : Dafault is Search for the best driver in these...
- Page 12 Step 6 : Select Windows XP native driver Blutonium BCM2035 Bluetooth 2.4GHz Single Chip Transceiver, then click Next. Step 7 : Click Finish. Step 8 : After these update driver steps, you will see only Windows XP native driver Blutonium BCM2035 Bluetooth 2.4GHz Single Chip Trans- ceiver in the Device Manager page.
-
Page 13: Select Bluetooth Services
SELECT BLUETOOTH SERVICES When the first time Widcomm driver is installed, and USB Bluetooth Dongle is plugged to your system, you can configure your Bluetooth services for your system. Step 1 : Double-click on the bluetooth icon on the lower-right corner of the screen, you will see configuration wizard, Click Next button. - Page 14 Step 4 : The default setting is that all services are available, you can check or uncheck one or more services, then click Next button. Step 5 : Click Skip. Step 6 : Configuration is completed. Click Finish.
-
Page 15: My Bluetooth Places
MY BLUETOOTH PLACES Step 1 : Method 1 : Double click My Bluetooth Place icon on your desktop. Click Folder on the toolbar. Folder window will appear on left side of your screen. Method 2: Right click on the lower right hand corner of your screen. - Page 16 You also may start a search for devices by clicking Bluetooth from the toolbar. Step 3 : In this example, One Bluetooth printer device is found in your Bluetooth neighborhood. The “My Bluetooth Places” program provides an easy way to find different application services through Bluetooth connections.
-
Page 17: Appendix A
APPENDIX A Safety Guide : Read and follow all instructions and warnings provided. Save these instructions for future use. When service or replacement of parts is required, ensure work is done by a qualified technician. Do not use this unit near water or in a rainy/moist environment. Do not attempt to service this product yourself. -
Page 18: Fcc
INFORMATION TO USER Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 19: Warranty
One Year Limited Warranty This device is guaranteed against manufacturing defects for one full year from the original date of purchase. This warranty is valid at the time of purchase and is non-transfer able. This warranty must be presented to the service facility before any repair can be made.
