  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 Copyright of the whole product as integration, including its accessories and software, belongs to Zonet Technology Inc. Without the permission of Zonet Technology Inc., any individual or party is not allowed to copy, plagiarize, imitate or translate it into other languages.

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter Table of Content Chapter 1. Introduction……………………………………………………………2 1.1 Welcome…………………………………………….…………………………2 1.2 Product Feature………………………………… … ……………………………2 1.3 Content of Package……………….……… … ………….……………………2 Chapter 2. Installation…………………………………………………………………3 Chapter 3. Configuration………………………………………………………..……6 3.1 Station Mode…….……………………………………………… … ……..……6 3.1.1 Profile …….……..……………………………………...

  • Page 4: Chapter 1 Introduction

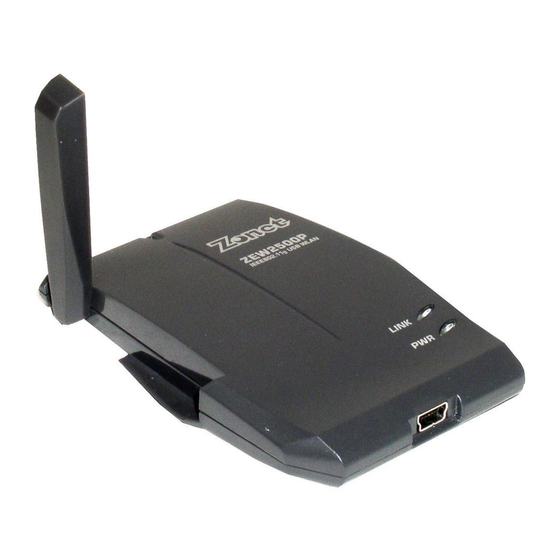

    1.1 Welcome Thank you for purchasing Zonet ZEW2500P-802.11g wireless USB adapter. ZEW2500P connects you with 802.11g networks at up to an incredible 54Mbps! And for added versatility, it can also interoperate with all the up to 11Mbps 802.11b products found in homes, businesses, and public wireless hotspots around the country.

  • Page 5: Chapter 2 Installation

    1. For future driver upgrading, please visit our website at www.zonetusa.com 2. Snap-shot screens of the following installation procedure are based on Windows XP. Installation procedures will be similar for other windows operating systems. Insert ZEW2500P into a USB slot of your computer. Select Cancel when Found New Hardware window appears.
  • Page 6 Configuration Tool then click Next. a. It’s recommended to select Ralink Configuration Tool, which provides fully access to all function of ZEW2500P. b. If you prefer to use the wireless configuration tool provided by Windows XP or Vista, please select Microsoft...
  • Page 7 All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter Click Install to start installation. Or click Cancel to cancel the installation. Click Finish to complete the software installation. You will see a tray icon appear in your system tray at the bottom of the screen after the software and hardware installation completed successfully.

  • Page 8: Chapter 3 Configuration

    Chapter 3 Configuration 3.1 Station Mode Station Mode is the default access mode for ZEW2500P. In this mode, ZEW2500P serves as a client to receive the wireless signals to access the Internet. Double-click the tray icon to launch the configuration utility.

  • Page 9: Profile

    3.1.1.1 Add/Edit Profile a. System Configuration Power Save Mode: a. CAM (Constantly Awake Mode) – ZEW2500P will stay power-ON as long as the computer is connected to a power outlet. b. PSM (Power Saving Mode) – ZEW2500P will hibernate when the...
  • Page 10 All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter Network Type: a. Infrastructure – A wireless Router and/or Access Point is required. b. Ad-hoc – Peer-to-Peer network, no base station required. TX Power: Amount of transmit power used by the radio transceiver to send out signal. User can choose different value in the drop down menu Preamble: Only available under Ad-hoc mode.

  • Page 11: Network

    All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter 3.1.2 Network Under Network tab, you will know information of all surrounding wireless networks from the last scan. Click Rescan to update and refresh. 3.1.3 Link Status Link status page shows detail information about the current connection.

  • Page 12: Advanced

    All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter 3.1.4 Advanced The Advanced tab shows Advance function of UI Enable Tx Burst: Ralink’s proprietary frame burst mode. Suggest using with an Access Point that has the same technology. Enable TCP Window Size: Check this box and the configuration utility will adjust TCP window size automatically to get better performance.

  • Page 13: Wmm

    All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter 3.1.6 WMM WMM Enable: Enable Wi-Fi Multi-Media WMM - Power Save Enable: Enable WMM Power Save Direct Link Setup Enable: Enable DLS (Direct Link Setup). This function will greatly improve the data transfer rate between WMM-enabled wireless devices.

  • Page 14: Wps

    WPS(Wi-Fi Protected Setup) simplify the security setup and management of Wi-Fi networks. PIN: Enter the Pin code and click PIN to automatically connect ZEW2500P with wireless devices around. PBC: Click PBC to complete auto-check and connections between ZEW2500P and other wireless device.

  • Page 15: Ap Mode

    All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter 3.2 AP Mode ZEW2500P also can serve as an access point to transmit wireless signals and create wireless network, allowing other wireless clients to access the network. Right-click the tray icon and select Switch to AP Mode.
  • Page 16 All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter Click Security Setting button to make different security configurations of wireless communication, and you can choose the authentication type or encryption type. Note: 1. The Hex characters include 0~9 numbers and a~f letters. 2.

  • Page 17: Access Control

    All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter 3.2.2 Access Control Choose Access Control tab to start MAC control. Access control includes Allow All and Reject All. After editing the MAC address access list, only the MAC in the Allow All list could access the Soft AP.

  • Page 18: Mac Table

    AP. 3.2.4 Switch to Working Station mode In the Soft AP mode, right-click the icon in the system tray and choose Switch to Station Mode, then ZEW2500P is switching to working station mode with an interface of working station.

  • Page 19: Use Zero Configuration

    All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter 3.3 Use Zero Configuration Windows XP and Vista has a built-in wireless network configuration utility “Windows Zero Configuration” (WZC). It is a built in service to configure your wireless clients from Windows 1.
  • Page 20 All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter 4. To configure the wireless connect properties, please right click the wireless icon in the system tray and choose Status to open the page Wireless Network Connection Status. 5. Click Properties button in General page and choose the tab Wireless Networks to add the SSID of available network by clicking Add, if there are several available networks, linking priority could be configured by the button Move up and Move down.
  • Page 21 All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter 6. Advanced page configures firewall and connection sharing.

  • Page 22: Chapter 4 How To Connect With Psp

    All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter Chapter 4 How to connect with PSP 4.1 Configure PSP with Ad-Hoc mode 1. Select Network Settings on PSP 2. Select Ad-Hoc mode on PSP 3. Select Channel on PSP...
  • Page 23 4. Select Start → → → → Control Panel → → → → double-click System icon → → → → select Hardware tab → → → → click Device Manager button → select ZEW2500P (802.11 USB Wireless LAN Card) list in Network adapters 5.

  • Page 24: Configure Xlink Kai

    All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter 4.2 Configure XLink Kai XLink Kai is a global gaming network - bringing together XBox, Playstation, Gamecube and PSP users, in one integrated community. It is software running on your PC or Macintosh that allows you to play system-link enabled games online for free.

  • Page 25: Chapter 5 Product Specifications

    All manuals and user guides at all-guides.com 802.11g Wireless USB Adapter Chapter 5 Product Specifications Standard IEEE 802.11b, IEEE 802.11g Frequency Band 2.4GHz ~ 2.4835GHz Spread Spectrum DSSS, OFDM Modulation Method BPSK, QPSK, CCK, QAM and OFDM 11g: 54/48/36/24/18/12/9/6Mbps Data Rate 11b: 11/5.5/2/1Mbps 54Mbps : -72dBm Transmit Output Power...

  • Page 26: Chapter 6. Troubleshooting

    Right click on My Computer and select Properties. Select the device manager and click on the Network Adapter. You will find ZEW2500P if it is installed successfully. If you see the yellow exclamation mark, the resources are conflicting. You will see the status of ZEW2500P.
  • Page 27 5. Nothing happens when I click Launch config utilities Please make sure ZEW2500P is inserted into your computer’s USB port. If the Ralink configuration utility’s icon is black, ZEW2500P is not detected by your computer.
