- Page 1 USER MANUAL IN ORIGINAL DFP8X Doc: 4812085145-GB 2123...
-
Page 2: Table Of Contents

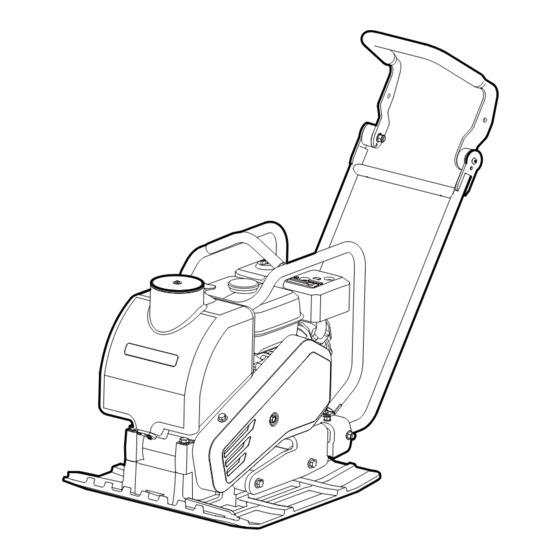

DFP8X DYNAPAC DFP8X is used to pack ballast under foundations, on garage approaches and on pavements, etc. The machine is also suitable as a com- plement to larger packing machines, for example rollers, when packing areas with poor access. The machine equipped with water tank is designed to pack small asphalt areas and is particularly suitable for additional works and repair works. -
Page 3: Standards
DFP8X STANDARDS Noise Measurement in accordance with the standard EN 500-4 Rev. 1:1998, Annex C: Measurement uncertainty ± 0.5 dB (A) in 95% of the measurements. In accordance with the conditions in Directive 2000/14/EC, Annex VI, the following values are reported: DFP8X Sound pressure levelat the operator’s (A) LpA... -
Page 4: Signs
DFP8X SIGNS SAFETY INSTRUCTIONS Warning signs WARNING: Breathing diesel engine exhaust exposes you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. - Always start and operate the engine in a well-ventilated area. - If in an enclosed area, vent the exhaust to the outside. -
Page 5: Technical Data
DFP8X TECHNICAL DATA FUNCTION The machine consists of a base plate with a vibration element DFP8X Metric Imperial and an upper part cushioned from the base plate. Net weight 88 kg 194.0 lbs The upper part include even carrying handle. The lifting hook Base plate, w x l 430 x 580 mm 16.9 x 22.8 in... -
Page 6: Technical Description
DFP8X TECHNICAL DESCRIPTION 1. Handle 2. Protective cover 3. Petrol engine 4. Engine plate 5. Centrifugal clutch 6. V-belt 7. Rubber damper 8. Vibration element / Base plate 9. Water tank 10. Water tank bracket 11. Lifting eye www.dynapac.com... -
Page 7: Daily Checks
DFP8X DAILY CHECKS V-belt Drive Check the tension and condition of the V-belt regularly. Fuel Check Replace a damaged V-belt with the new type XPA 907 Check that there is fuel in the tank. Top up if necessary. Engine Oil Level Check Check the oil level in the crankcase every day. -
Page 8: Before Starting The Engine
DFP8X Oil level Engine power switch Active Not active Full RPM Idle Fuel valve Choke Throttle lever BEFORE STARTING THE ENGINE AFTER STARTING See Daily Checks on page 8. Switch the throttle lever to idle. Open the choke gradually. STARTING Run the engine warm for around 1-5 minutes. - Page 9 DFP8X MOUNT THE WATER TANK The water tank for the DFP8X is removable. To mount the water tank do this steps: Push the water tank down with the side lock open. The rear part of the water pos. 1 tank´s should be placed in the holder on the bracket. Make sure that the water tank hangs firmly in the holder, release the side lock and check that the pin of the side lock hits the hole on the bracket.
-
Page 10: Mount The Wheels
DFP8X DISASSEMBLY OF WATERTANK 1. Push the locking ring on coupling (direction according to picture) and hold it pos. 1 in its position. 2. Pull the hose in opposite direction. pos. 2 3. Pull the adjustment bolt and hold it. pos. -
Page 11: Dimensions
DFP8X DIMENSIONS in mm Dimensions Comfort handle Metric Imperial 630 mm 24.8 in 990 mm 38.9 in 980 mm 38.5 in 1070 mm 42.1 in 610 mm 24 in 430 mm 16.9 in Dimensions Standard handle Metric Imperial 630 mm 24.8 in 945 mm 37.2 in... -
Page 12: Transportation
DFP8X TRANSPORTATION Transport locking It is easy to remove the handle without tools, and the boot Secure the machine with straps according to illustration of a standard car is sufficient to transport the machine. during transportation Note! Secure it by the base plate and not the rubber- Lifting by hand cushioned upper part. - Page 13 DFP8X NOTES www.dynapac.com...
-
Page 14: Notes
DFP8X NOTES www.dynapac.com... -
Page 15: Declaration Of Conformity
DFP8X Declaration of conformity Manufacturer Dynapac GmbH Ammerländer Str. 93 26203 Wardenburg - Germany 1. Category: Vibratory plate 2. Type: DFP8X 3. Engine power: 3,6 kW The product complies with the following directives: 2006 / 42 / EG 2000 / 14 /EG 2004 / 108 / EG EN 500-1 EN 500-4... - Page 16 www.dynapac.com...
