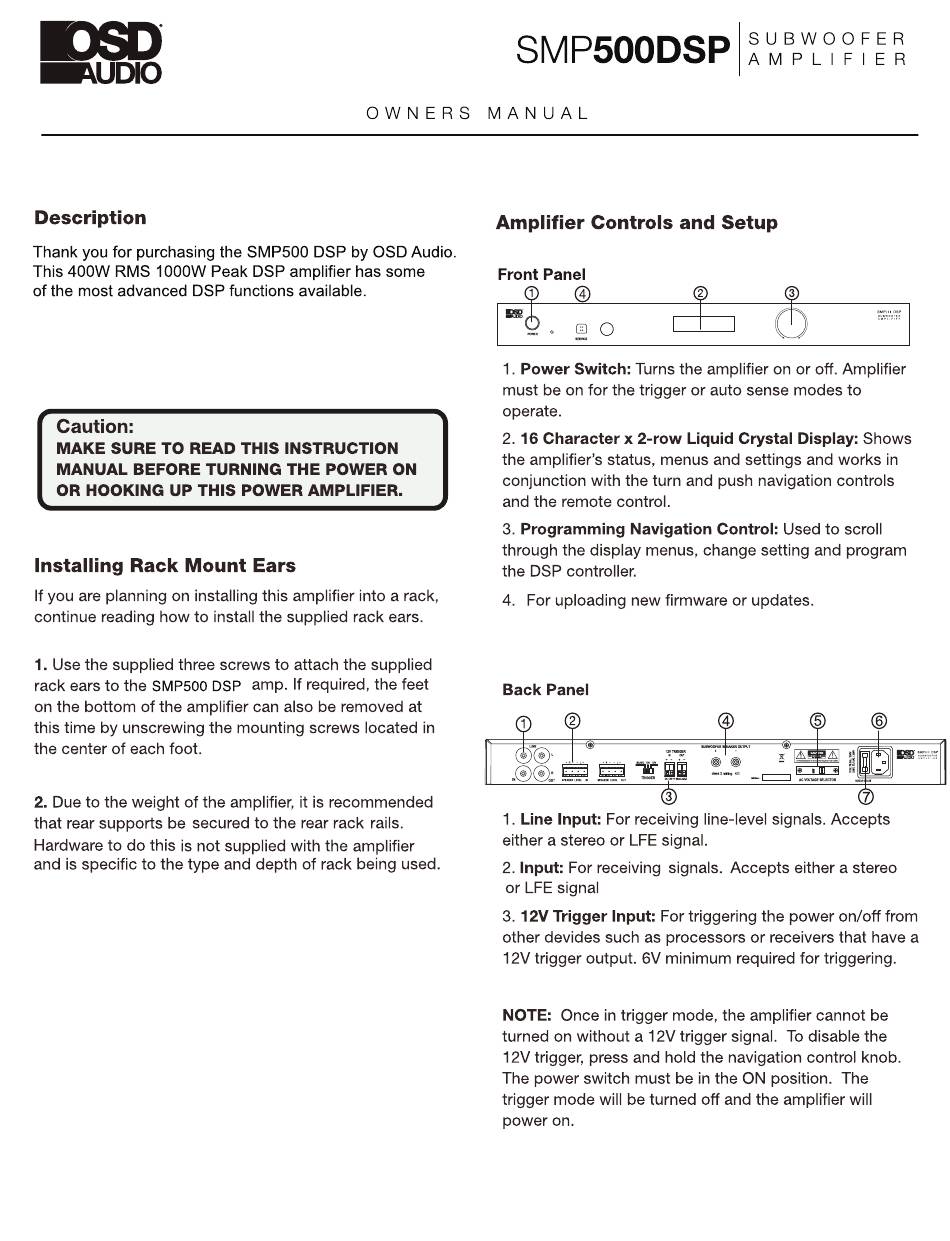

OSD Audio SMP500DSP Owner's Manual

~UDIO
SMP500DSP
SUBWOOFER
AMPLIFIER
OWNERS MANUAL
Description
Thank you for purchasing the SMPS00 DSP by OSD Audio.
This 400W RMS 1 000W Peak DSP amplifier has some
of the most advanced DSP functions available.
Caution:
MAKE SURE TO READ THIS INSTRUCTION
MANUAL BEFORE TURNING THE POWER ON
OR HOOKING UP THIS POWER AMPLIFIER.
Installing Rack Mount Ears
If you are planning on installing this amplifier into a rack,
continue reading how to install the supplied rack ears.
1. Use the supplied three screws to attach the supplied
rack ears to the
SMP500 DSP
amp. If required , the feet
on the bottom of the amplifier can also be removed at
this time by unscrewing the mounting screws located in
the center of each foot.
2. Due to the weight of the amplifier, it is recommended
that rear supports be secured to the rear rack rails.
Hardware to do this is not supplied with the amplifier
and is specific to the type and depth of rack being used.
Amplifier Controls and Setup

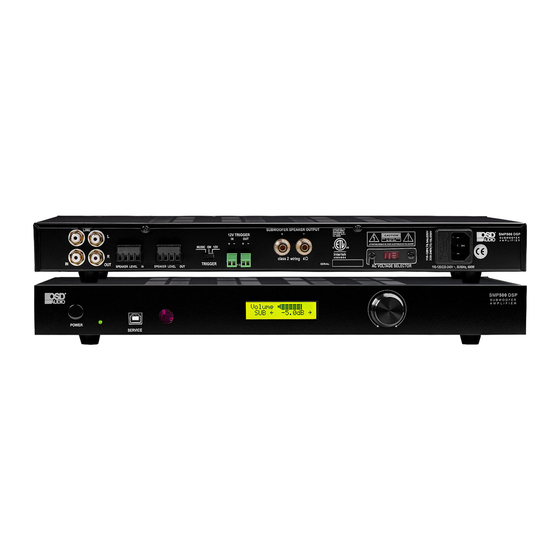

Front Panel
%
@
+
'"" '"""
... . . .... I
1. Power Switch: Turns the amplifier on or off. Amplifier
must be on for the trigger or auto sense modes to
operate.
2. 16 Character x 2-row Liquid Crystal Display: Shows
the amplifier's status, menus and settings and works in
conjunction with the turn and push navigation controls
and the remote control.
3. Programming Navigation Control: Used to scroll
through the display menus, change setting and program
the DSP controller.
4. For uploading new firmware or updates.
Back Panel
3
1. Line Input: For receiving line-level signals. Accepts
either a stereo or LFE signal.
2.
Input:
For receiving signals. Accepts either a stereo
or LFE signal
3. 12V Trigger Input: For triggering the power on/off from
other devides such as processors or receivers that have a
12V trigger output. 6V minimum required for triggering.
NOTE: Once in trigger mode, the amplifier cannot be
turned on without a 12V trigger signal. To disable the
12V trigger, press and hold the navigation control knob.
The power switch must be in the ON position. The
trigger mode will be turned off and the amplifier will
power on.
