Zonet KVM3002 User Manual

2 / 4 Port KVM user manual
2 / 4 Port KVM user manual

Introduction

Thank you for purchasing KVM switch. KVM switch can save your MONEY, TIME, SPACE, EQUIPMENT and POWER.
Controlling multiple PCs from One Keyboard, Mouse and VGA Monitor. KVM switch is loaded with features such as hot-key,
front panel push button and auto scan control. It has complete keyboard and mouse emulation for simultaneous PCs boot-up
process.

Features

!
2/4 port KVM switch is compact size design, easy portable.
!
Support Microsoft Intellimouse, Logitech Net Mouse, etc...
!
Support DOS, Win3.X, Win95/98/98SE/2000/ME/XP, WinNT, Netware, Unix, Linux
!
Hot Plug - Add or Remove Connected PCs for Maintenance Without Powering Down the KVM switch or PCs.
!
Very High Video Quality - Up To 1920X1440, Bandwidth: 200MHz
!
No Software Required - easy PC selection via Push Buttons, Hot Keys
!
Auto Scan Mode for monitoring PCs
!
Keyboard status restored when switching PCs
!
LED Display for easy status monitoring
!
Buzzer sound for switching port confirmation.

Hardware Installation

Before installation, please make sure all of peripherals and computers have been turned off.
1. Connect the Keyboard, VGA, Mouse cables to the computer ports of KVM switch
2. Connect the Keyboard, VGA monitor, and Mouse to console port of KVM switch
3. After Powering on computers and finishing the boot-up process, you can start to go KVM switch.
Note:
* Please don't switch the PC port (i.e. Don't press the push button of KVM switch or run hot key) during the computers are under
boot-up process.
* If power off the first PC with port 1 (PC1), then power on the second PC with port 2 (PC2), please select the PC2 port with the
push button of KVM Switch at first.(Only for 2-PORT KVM Switch)

Package Contents

2 PORT KVM
2 port KVM Switch
User's manual

Technical Specifications

Functions
PC Port
Console Port
MAX PC Connections
LED
PC Port Connector
(All Female Type)
Console port connector
(All Female Type)
PC selection
On Screen Display
Control
Scan Intervals
Keyboard Emulation
Mouse Emulation
VGA Resolution
Bandwidth
Daisy Chain and Levels
Housing
Size
Weight (g)
Dimension (mm)

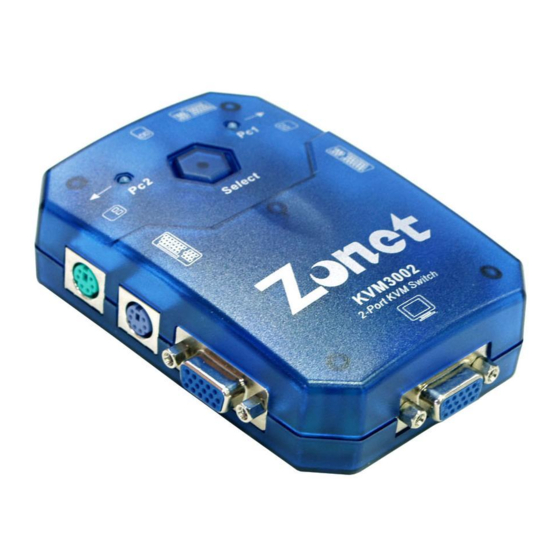

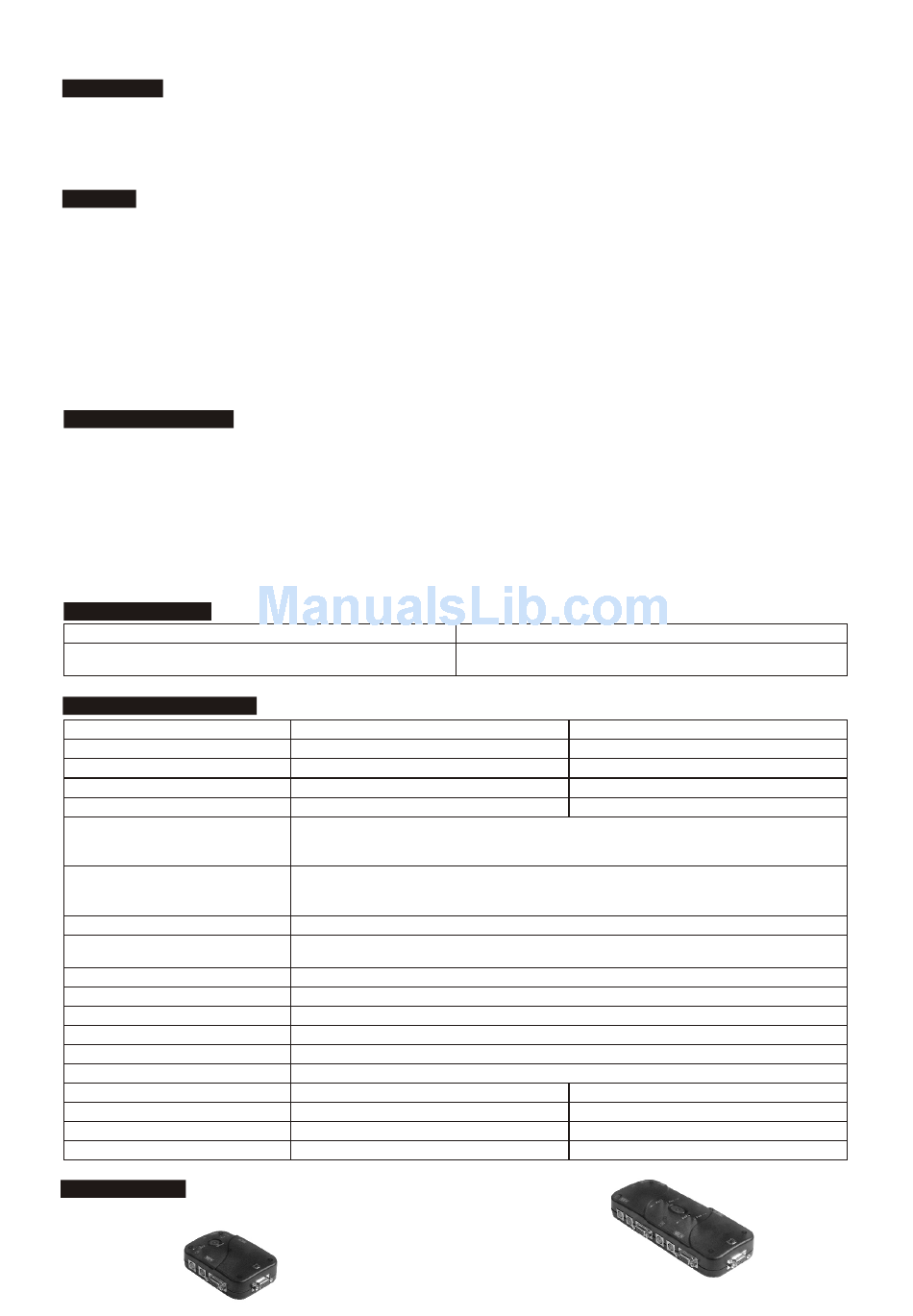

Product Details

2 PORT KVM
<Diagram>
4 port KVM Switch
User's manual
2 PORT KVM
2
1
2
2
PS/2 Keyboard mini-Din 6 pin
PS/2 Mouse mini-Din 6 pin
VGA HDDB 15pin
PS/2 Keyboard mini-Din 6 pin
PS/2 Mouse mini-Din 6 pin
VGA HDDB 15pin
Hot Key / Button
No
8sec.
PS2
PS2
1920X1440
200MHz
NO
Plastic
Mini Desktop
140g
110(L) X 74(W) X 29(H)
4 PORT KVM
190(L) X 74(W) X 29(H)
4 PORT KVM
<Diagram>
4 PORT KVM
4
1
4
4
Plastic
Desktop
300g
