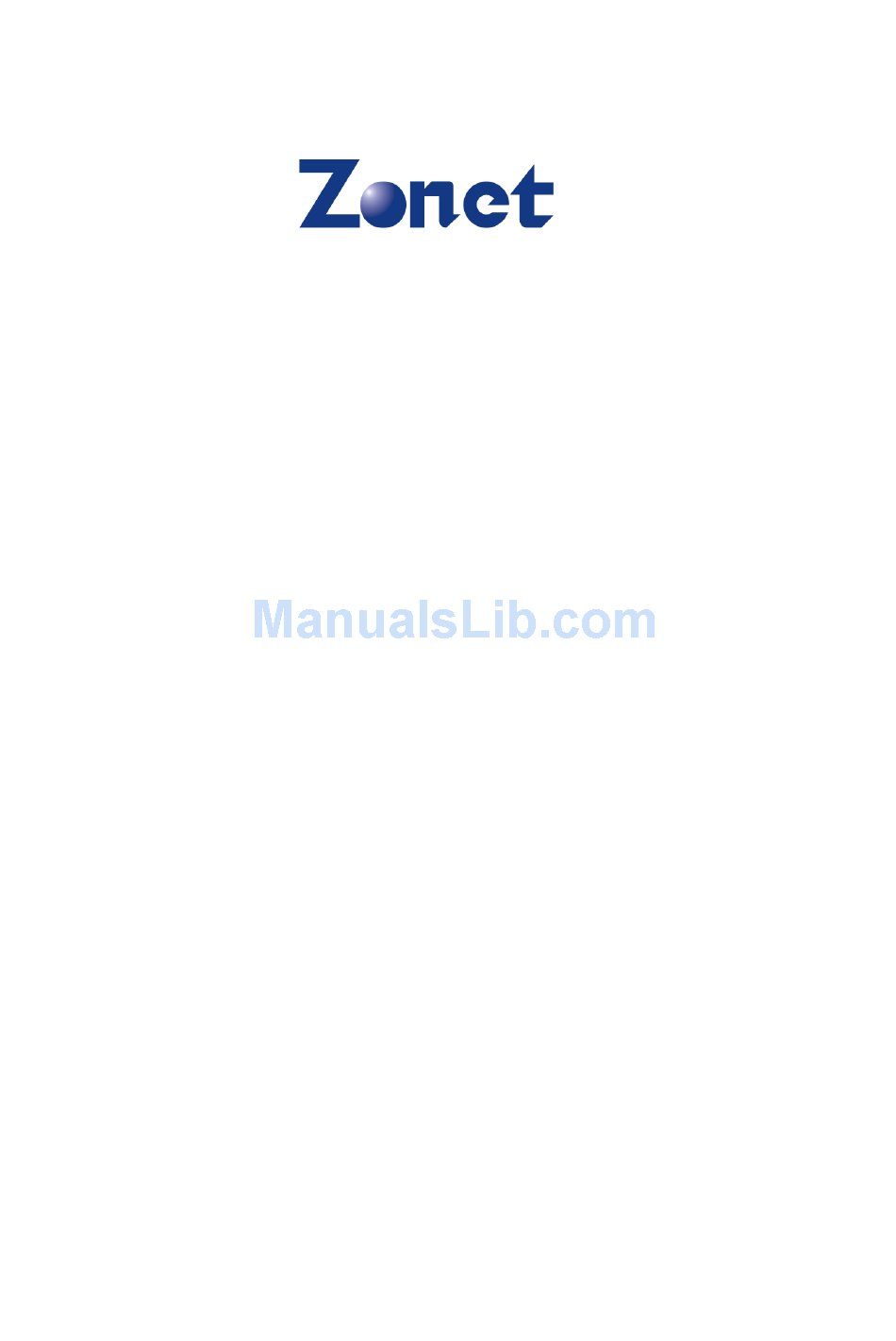

- Page 1 16 port 10/100 Switch Quick Installation Guide...
-
Page 2: Package Contents

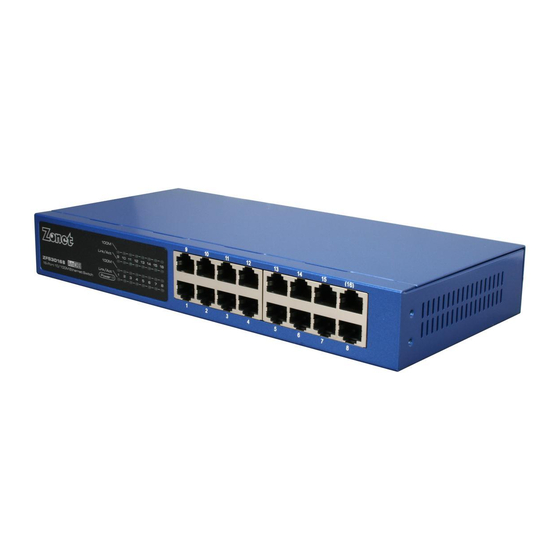

16 port 10/100 Ethernet Switch Introduction The 16 port Ethernet Switch are designed to allow simultaneous transmission of multiple packets via an internal high-speed data channel. This means that it can partition a network more efficiently than bridges or routers in most environments. - Page 3 16 / port 10/100 Ethernet Switch Spectification Standard: IEEE802.3 10Base-T Ethernet IEEE802.3u 100Base-TX Fast Ethernet Network Media: 100Base-TX - UTP/STP category 5 cable 10Base-T - UTP/STP category 3 or 5 cable Connector: STP RJ-45 port for 10/100Mbps TX LED indicators: System –...
- Page 4 16 port 10/100 Ethernet Switch Features ： ： ： ： Complies with IEEE 802.3/802.3u Ethernet standard Provided with 16/24 10/100Mbps RJ-45 ports Flow control is provided Full and Half duplex mode operation Built-in Storage of more than 1K MAC address Automation source address learning IEEE802.3X flow control for full duplex operation...
- Page 5 16 port 10/100 Ethernet Switch Hardware Overview Before you start to setup your network with your Switching Hub, browse through this section first and familiarize yourself with the various components of the hub. This section shows what the front and rear panels look like and briefly explains what each component is intended for.
-
Page 6: Ethernet Switch
16 port 10/100 Ethernet Switch LED Definition: Please refer to the following table for LED definition Front Panel 16 Ports 10/100 Internal Power Switch Status Operation Power Green Lit: Power is on Lit: Indicates the adapter is connected to swich correctly... -
Page 7: Hardware Installation
16 port 10/100 Ethernet Switch Hardware Installation Place the 16 port Switch on a smooth surface Connect the output of power cord to the AC-inlet of 16 port Switch. Connect other IEEE802.3 compatible network device(Hub ,Switch ,PC) to one port of the 16 port Switch using Category 3/4/5 UTP/STP cabling. - Page 8 16 port 10/100 Ethernet Switch Connecting Computers to the Switching After placing the Switching Hub to your desired location, you can now start to setup your network. The first thing you can do is to start connecting computers. You can connect servers and workstations to the Switching hub.
-
Page 9: Interconnecting Hubs
16 port 10/100 Ethernet Switch Interconnecting Hubs Follow the setup diagram and procedure below to connect a second Switching Hub or any compatible Switch. Connect a straight through UTP cable between Port 8 or any auto MDIX port of your Switching Hub and any... -
Page 10: Troubleshooting
16 port 10/100 Ethernet Switch Troubleshooting If the 16 port Switch is not functioning properly, make sure the 16 port Switch was set up according to instructions in this manual. The Power LED is not lit Solution: a. Check if the AC power cord is well connected. Try to unplug and plug back the power cord to the LAN Switch or try another power cord.
