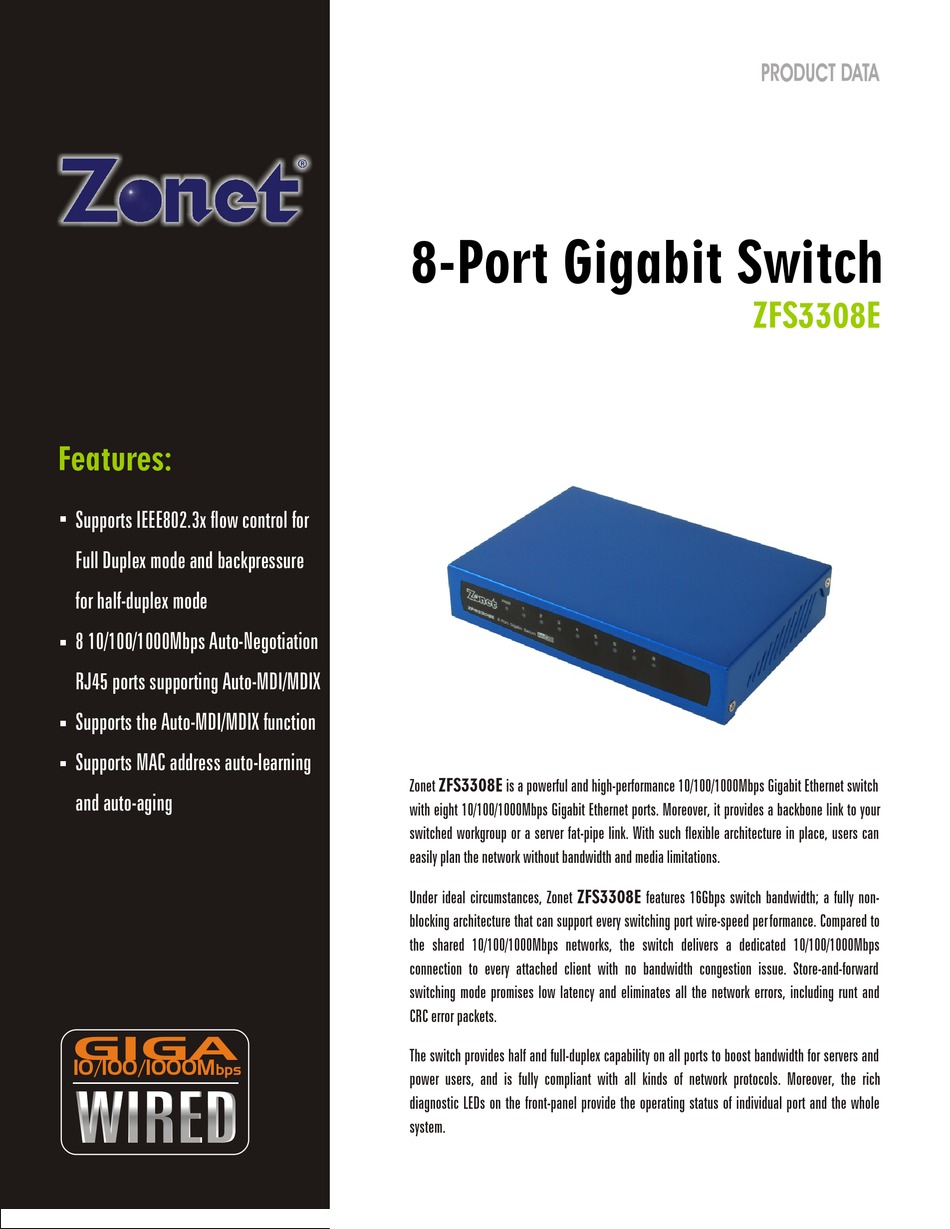

Zonet ZFS3308E Product Data

Features:
Supports IEEE802.3x flow control for
Full Duplex mode and backpressure
for half-duplex mode
8 10/100/1000Mbps Auto-Negotiation
RJ45 ports supporting Auto-MDI/MDIX
Supports the Auto-MDI/MDIX function
Supports MAC address auto-learning
and auto-aging
GIGA
10/100/1000M
bps
WIRED WIRED

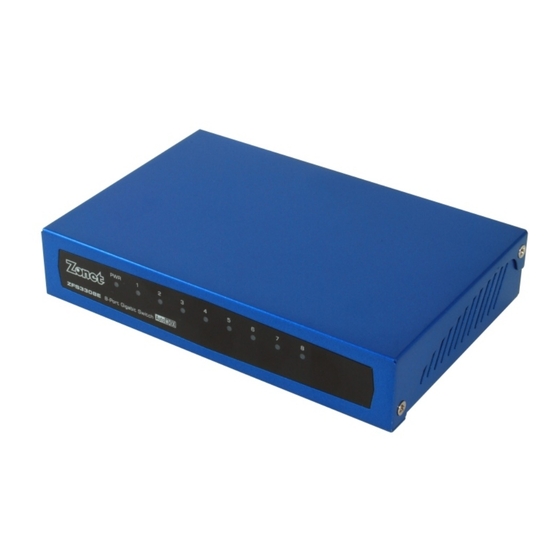

8-Port Gigabit Switch
Zonet ZFS3308E is a powerful and high-performance 10/100/1000Mbps Gigabit Ethernet switch
with eight 10/100/1000Mbps Gigabit Ethernet ports. Moreover, it provides a backbone link to your
switched workgroup or a server fat-pipe link. With such flexible architecture in place, users can
easily plan the network without bandwidth and media limitations.
Under ideal circumstances, Zonet ZFS3308E features 16Gbps switch bandwidth; a fully non-
blocking architecture that can support every switching port wire-speed performance. Compared to
the shared 10/100/1000Mbps networks, the switch delivers a dedicated 10/100/1000Mbps
connection to every attached client with no bandwidth congestion issue. Store-and-forward
switching mode promises low latency and eliminates all the network errors, including runt and
CRC error packets.
The switch provides half and full-duplex capability on all ports to boost bandwidth for servers and
power users, and is fully compliant with all kinds of network protocols. Moreover, the rich
diagnostic LEDs on the front-panel provide the operating status of individual port and the whole
system.
PRODUCT DATA
ZFS3308E
