Omcan RS-CN-0145S-5 Instruction Manual

Refrigerated showcases
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

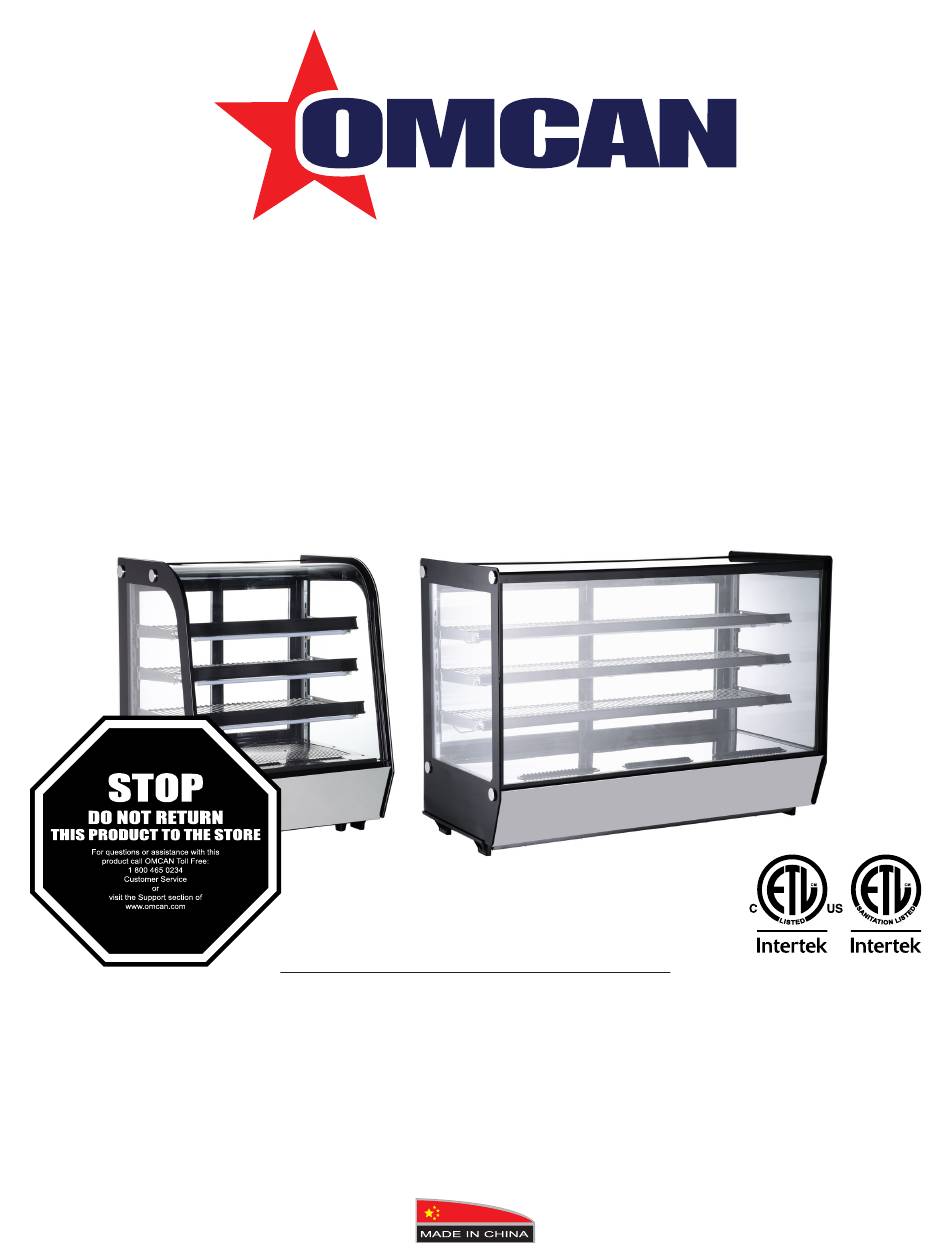

Refrigerated Showcases
Models RS-CN-0145S-5, 0186S-5, 0225S-5,
0277S-5, 0145C, 0186C, 0225C, 0277C
Items 47962, 47963, 47964, 47965, 47448, 47966,
47967, 47968
Instruction Manual
Revised - 01/22/2024
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-CN-0145S-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan RS-CN-0145S-5

Summary of Contents for Omcan RS-CN-0145S-5

  • Page 1 Refrigerated Showcases Models RS-CN-0145S-5, 0186S-5, 0225S-5, 0277S-5, 0145C, 0186C, 0225C, 0277C Items 47962, 47963, 47964, 47965, 47448, 47966, 47967, 47968 Instruction Manual Revised - 01/22/2024 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model RS-CN-0145S-5 / Model RS-CN-0186S-5 / Model RS-CN-0225S-5 Model RS-CN-0277S-5 / Model RS-CN-0145C / Model RS-CN-0186C Model RS-CN-0225C / Model RS-CN-0277C Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 8...

  • Page 3: Disclaimer

    Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR DRAIN.

  • Page 4: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 5: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 6 Safety and Warranty • Cool the hot food down to room temperature before you put it into the refrigerator. • Try to reduce the open times and keep refrigerator inside cold in case the power is cut off. Only skilled service man is allowed to repair the damaged power cable with special tools.
  • Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not...

  • Page 8: Technical Specifications

    Safety and Warranty improper use. Please see https://omcan.com/disclaimer for complete info. WARNING: The packaging components are classified as normal solid urban waste and can therefore be disposed of without difficulty. In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.

  • Page 9: Operation

    Technical Specifications CURVED GLASS Model RS-CN-0145C RS-CN-0186C RS-CN-0225C RS-CN-0277C Capacity 145 L / 5.12 cu.ft. 186 L / 6.56 cu.ft. 225 L / 7.94 cu.ft. 277 L / 9.78 cu.ft. Temperature 2 - 8°C / 35.6 - 46.4°F Range Max Ambient Temp 24°C / 75°F Rating Electrical...

  • Page 10: Maintenance

    Operation FRONT PANEL OPERATION 1. Set temperature: Press the “SET” button, the set temperature is displayed. Press button to modify and store the displayed value. Press the “SET” button to exit the adjustment and display the cold-room temperature. 2. If no more button is pressed within 10 seconds, the cold-room temperature will be displayed. 3.

  • Page 11: Troubleshooting

    Move the unit so it is not touching something else. anything. There is loose part in the Check the interior for loose parts refrigerator. and tighten. Contact your local Omcan service agent for help if simple trouble shooting does not solve the problems.

  • Page 12: Parts Breakdown

    Parts Breakdown Model RS-CN-0145S-5 47962...
  • Page 13 Parts Breakdown Model RS-CN-0145S-5 47962 Item No. Description Position Item No. Description Position Item No. Description Position 68475 Suction Pipe for 47962 AP218 Top Seal for 47962 79314 Decoration Nut Gasket for 47962 68356 LED Driver for 47962 AP219 Shelf for 47962...
  • Page 14 Parts Breakdown Model RS-CN-0186S-5 47963...
  • Page 15 Parts Breakdown Model RS-CN-0186S-5 47963 Item No. Description Position Item No. Description Position Item No. Description Position 68475 Suction Pipe for 47963 71684 Shelf for 47963 AP230 Left Panel for 47963 68356 LED Driver for 47963 AP243 Top Panel for 47963 60534 Compressor for 47963 AL614...
  • Page 16 Parts Breakdown Model RS-CN-0225S-5 47964...
  • Page 17 Parts Breakdown Model RS-CN-0225S-5 47964 Item No. Description Position Item No. Description Position Item No. Description Position 30742 Filling Tube for 47964 AH725 Top Seal for 47964 AA082 Temperature Display for 47964 68356 LED Driver for 47964 AP223 Pillar for Bracket for 47964 AP262 Main Circuit Board for 47964 AL634...
  • Page 18 Parts Breakdown Model RS-CN-0277S-5 47965...
  • Page 19 Parts Breakdown Model RS-CN-0277S-5 47965 Item No. Description Position Item No. Description Position Item No. Description Position 30742 Filling Tube for 47965 AH725 Top Seal for 47965 AA082 Temperature Display for 47965 68356 LED Driver for 47965 AP223 Pillar for Bracket for 47965 60555 Main Circuit Board for 47965 AK143...
  • Page 20 Parts Breakdown Model RS-CN-0145C 47448...
  • Page 21 Parts Breakdown Model RS-CN-0145C 47448 Item No. Description Position Item No. Description Position Item No. Description Position 68475 Suction Pipe for 47448 AP279 Shelf for 47448 79314 Decoration Nut Gasket for 47448 68356 LED Driver for 47448 AP219 Shelf for 47448 AP283 Right Side Glass for 47448 AP277...
  • Page 22 Parts Breakdown Model RS-CN-0186C 47966...
  • Page 23 Parts Breakdown Model RS-CN-0186C 47966 Item No. Description Position Item No. Description Position Item No. Description Position 68475 Suction Pipe for 47966 71684 Shelf for 47966 AP284 Left Panel for 47966 68356 LED Driver for 47966 AP243 Top Panel for 47966 60534 Compressor for 47966 AL614...
  • Page 24 Parts Breakdown Model RS-CN-0225C 47967...
  • Page 25 Parts Breakdown Model RS-CN-0225C 47967 Item No. Description Position Item No. Description Position Item No. Description Position AP249 Suction Pipe for 47967 AH740 Fan Blade for 47967 AA052 Main Circuit Board for 47967 68356 LED Driver for 47967 AK119 Fan Motor Fixing Plate for 47967 68332 Temperature Probe for 47967 AL634...
  • Page 26 Parts Breakdown Model RS-CN-0277C 47968...
  • Page 27 Parts Breakdown Model RS-CN-0277C 47968 Item No. Description Position Item No. Description Position Item No. Description Position AP294 Suction Pipe for 47968 AP317 Fan Blade for 47968 AP262 Main Circuit Board for 47968 AP295 LED Driver for 47968 AP318 Fan Motor Fixing Plate for 47968 68332 Temperature Probe for 47968 AP296...

  • Page 28: Electrical Schematics

    Electrical Schematics Model RS-CN-0145S-5 Model RS-CN-0145C 47962 47448 Model RS-CN-0186S-5 Model RS-CN-0186C 47963 47966 Model RS-CN-0225S-5 Model RS-CN-0225C 47964 47967 Model RS-CN-0277S-5 Model RS-CN-0277C 47965 47968...

  • Page 29: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 30 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 31: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 32 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
