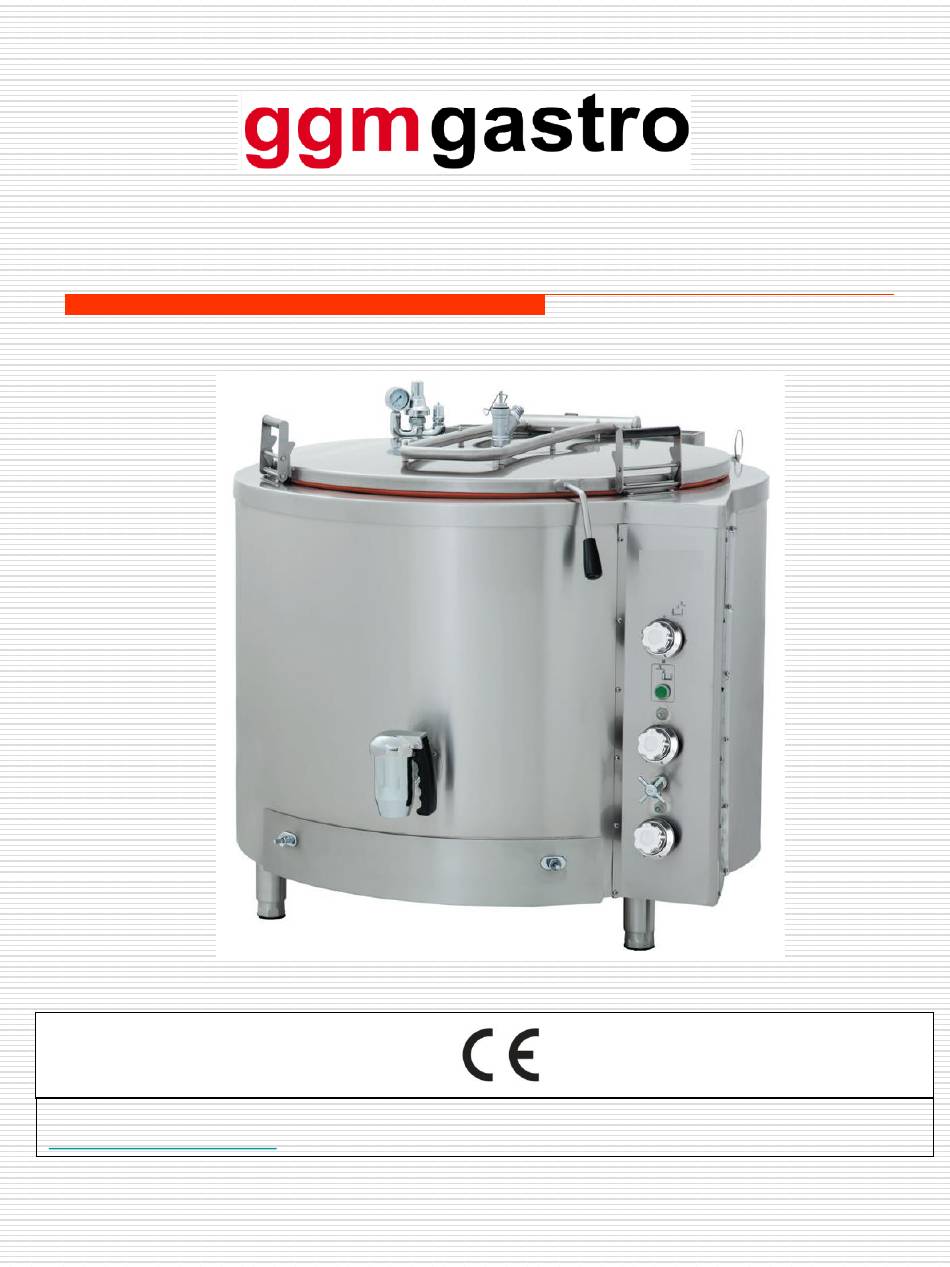

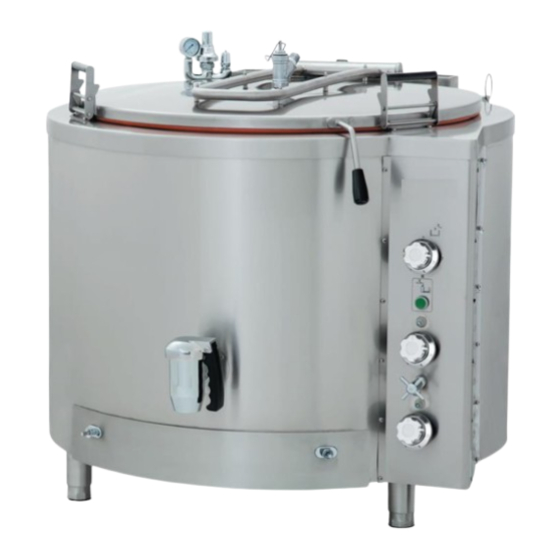

- Page 1 BOILING PAN (WITH GAS) USER’S MANUAL - 1783 ADDRESS: GGM Gastro International GmbHWeinerpark 16 48607 Ochtrup Tel: + 49 (0) 2553 / 7220 0 Fax: +49 (0) 2553 / 7220 200 1/20...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE NR. TOPICS COVER PAGE TABLE OF CONTENTS INTRODUCTION TECHNICAL DATA WARNING SIGNS 6-7-8 MAIN DIMENSIONS 9-10 SAFETY DETAILS TRANSPORTING AND MOVING 12-13 INSTALLATION OF THE APPLIANCES CONTROL BOARD INTRODUCTION USING OF AUTOCLAVE LID 16-17 OPERATION OF THE APPLIANCES CLEAN-UP AND MAINTENANCE CHANGING THE GAS SYSTEM TERMS OF WARRANTY... -
Page 3: Introduction
INTRODUCTION Dear User, Thank you for purchasing our appliance and for your reliance upon our company. Our appliances are used in professional kitchens in 75 countries. Our appliances are produced in compliance with international standards. Important notice: Please read and ensure that the users read this user’s manual in order to achieve the desired performance in line with your expectations and to use your appliance for long years. -
Page 4: Technical Data
TECHNICAL DATA YOUR PRODUCT'S TYPE ☞ KKGOZ400 KKGOZ500 KKGOZ300 MAIN DIMENSIONS (mm) 1111х1370х 912 1111х1370х1036 1300х1435х983 HEAT POWER (KW) (Hİ) ΣQN HEAT POWER (KW) (Hİ) 13,3 18,66 ΣQmin А А А TYPE CAPACITY (liter) 3/4” R 3/4” R 3/4” R... -
Page 5: Warning Signs
WARNING SIGNS HOT SURFACE SAMPLE LABEL Figure 1: Main Dimensions and Warning Signs 5/20... -
Page 6: Main Dimensions
MAIN DIMENSIONS KKGOZ300 6/20... - Page 7 MAIN DIMENSIONS KKGOZ400 7/20...
- Page 8 MAIN DIMENSIONS KKGOZ500 8/20...
-
Page 9: Safety Details
SAFETY DETAILS ☞ Do not leave the appliances under direct sunlight. ☞ The appliances should only be operated under a chimney hood. ☞ If the appliances is operated using a LPG gas cylinder, the distance between the appliances and gas cylinder should be minimum 50 cm. - Page 10 SAFETY DETAILS ☞ The appliances should not be handled by unauthorized persons except for the manufacturer or authorized service. ☞ In case of fire or flame in the area where the appliances is operated, act without panic, close gas valves, turn off the power switches and use a fire extinguisher.
-
Page 11: Transporting And Moving
TRANSPORTING AND MOVING CHANGING THE LOCATION ; Machines installed by an authorized service CANNOT BE MOVED ELSEWHERE, ITS CONNECTION HOSES AND CABLES CANNOT BE EXTENDED OR REPLACED except by an authorized service. ☞ Feet of the fork lift should be placed under the appliances. -
Page 12: Installation Of The Appliances
INSTALLATION OF THE APPLIANCES P L G THE DISTANCE BETWEEN THE GAS CYLINDER AND THE APPLIANCES SHOULD BEMIN. 50 cm If this appliances located near to any wall, separation, kitchen furniture, decorative coating etc. the distance in between should be min.20 cm. - Page 13 INSTALLATION OF THE APPLIANCES ☞ Gas connection inlet dimensions are defined at the table of TECHNICAL DATA. ☞ After the appliances is connected to the system gas usage should be checked with soap bubble method. ☞ Air inlet adjustment is done by the authorized personnel if necessary, after checking the appliances.
-
Page 14: Control Board
CONTROL BOARD HOT+COLD WATER AUTOCLAVE LID LOCK COLD WATER HOT WATER A- SAFETY VALVE B- LIGHTER C- MAXIMUM WATER LEVEL TAP (FOR INDIRECT MODELS) D- FLAME CONTROL HOLE E- FOOD EVACUATION TAP F- WATER FILLING BUTTON FOR DOUBLE JACKET K-HOT AND COLD WATER TAP I- MANOMETER H- 0,5 BAR SAFETY VALVE G- VACUUM SAFETY VALVE... -
Page 15: Introduction Using Of Autoclave Lid
INTRODUCTION USING OF AUTOCLAVE LID PRESSURE RELEIFE VALVE FOR COOKING SEAL VESSEL WRONG USE CORRECT USE LID SAFETY VALVE SHOULD BE ABSOLUTELY OPEN ATTENTION! COVER SAFETY VALVE AND SAFE USAGE: THE CAP SAFETY VALVE (SAFETY VALVE) SHOULD BE OPEN AND DISCHARGE THE STEAM WHICH IS CARRIED OUT WHEN COOKING WITH THE STEAM BOILER. -
Page 16: Operation Of The Appliances
OPERATION OF THE APPLIANCES A. GENERAL INFORMATION 1. Boiling pan is used in kitchens of tourism facilities, restaurants, fast food stands, canteens, hospitals etc. to cook food. 2. Before initial use of the appliances outer surface should be wiped with a cloth soaked in warm water and soap. - Page 17 OPERATION OF THE APPLIANCES 2. IGNITING PILOT LIGHTER Turn safety valve (A) to pilot position () and press, after waiting as necessary (at initial use wait for 20-25 seconds, allowing the air in the gas pipes to exhaust and the gas to flow inside) , igniter (B) should be pressed to ignite.
-
Page 18: Clean-Up And Maintenance
CLEAN-UP AND MAINTENANCE 1. CLEAN-UP: Before initial use, and before and after subsequent uses, of the appliances, its outer surface should be wiped with a sponge and liquid detergent. Do not use CHEMICAL CLEANING AGENTS like hydrochloric acid etc. during cleaning. 2. -
Page 19: Changing The Gas System
In this case ,the appliances will not be covered by the warranty. On the label at gas inlet it is specified at which gas system the appliances operates. SAMPLE LABEL POWER GAS CONSUMPTION GAS USED KKGOZ300 KKGOZ400 KKGOZ500 KKGOZ300 KKGOZ400 KKGOZ500 G20 GAS NETWORK... -
Page 20: Terms Of Warranty
TERMS OF WARRANTY 1- Documents without sales date, factory and sales company approval on, are not valid. In order to benefit from the warranty, warranty document should be presented. 2- If the appliance is installed and operated following the instructions in the installation, maintenance and user's manual, it is warranted for failures sourcing from materials and workmanship .
