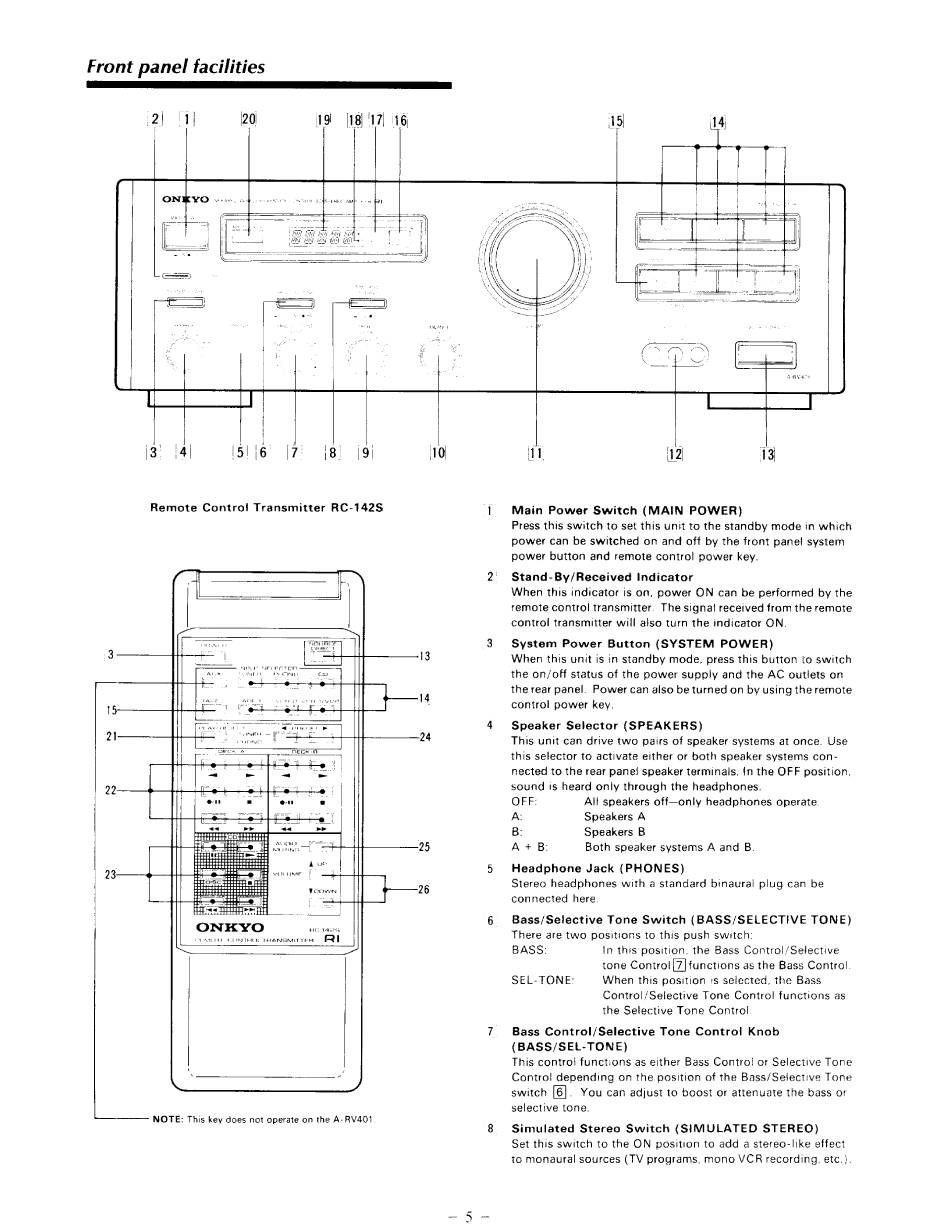

Front panel facilities
2) 20
— | ——
19) (18) 17 16
seo ROIS ERE AMP row QI
] 7
34) i516 (7
Remote Control! Transmitter RC-142S
MIP TGR Foto
'cUPME bt Lee Ls Le
on 1
tor Orit
ian
MALT TIPE
aeesa She PsReraBee
' q H H
ve UME |
13
14
24
—— 25
Ae |
Foown | 26
[=
ONKYO
PUR MAC TEER CCDS TRAD
THANSMITTEA RI
HCD wes
NOTE: This key does not operate on the A-RV401.
Fi
11. 12 13
Main Power Switch (MAIN POWER)
Press this switch to set this unit to the standby mode in which
power can be switched on and off by the front pane! system
power button and remote control power key.
Stand-By/Received Indicator
When this indicator is on, power ON can be performed by the
remote control transmitter. The signal received from the remote
control transmitter will also turn the indicator ON.
System Power Button (SYSTEM POWER)
When this unit is in standby mode, press this button to switch
the on/off status of the power supply and the AC outlets an
the rear panel. Power can also be turned on by using the remote
control power key.
Speaker Selector (SPEAKERS)
This untt can drive two pairs of speaker systems at once. Use
this selector to activate either or both speaker systems con-
nected to the rear pane! speaker terminals. In the OFF pasition,
sound is heard only through the headphones.
OFF: All speakers off—only headphones operate.
A: Speakers A
B: Speakers B
A+B: Both speaker systems A and B.
Headphone Jack (PHONES)
Stereo headphones with a standard binaurai plug can be
connected here.
Bass/Selective Tone Switch (BASS/SELECTIVE TONE)
There are two positions to this push switch:
BASS: {In this position, the Bass Control/Selective
tone Control[7] functions as the Bass Control.
SEL- TONE: When this position 's selected, the Bass
Control/Selective Tone Control functions as
the Selective Tone Control.
Bass Control/Selective Tone Control Knob
(BASS/SEL-TONE)
This controi functions as either Bass Control or Selective Tone
Control depending on the pasition of the Bass/Selective Tone
switch [6]. You can adjust to boost or attenuate the bass or
selective tone.
Simulated Stereo Switch (SIMULATED STEREO)
Set this switch to the ON position to add a sterea-like effect
to monaural sources (TV programs, mono VCR recording, etc.).
