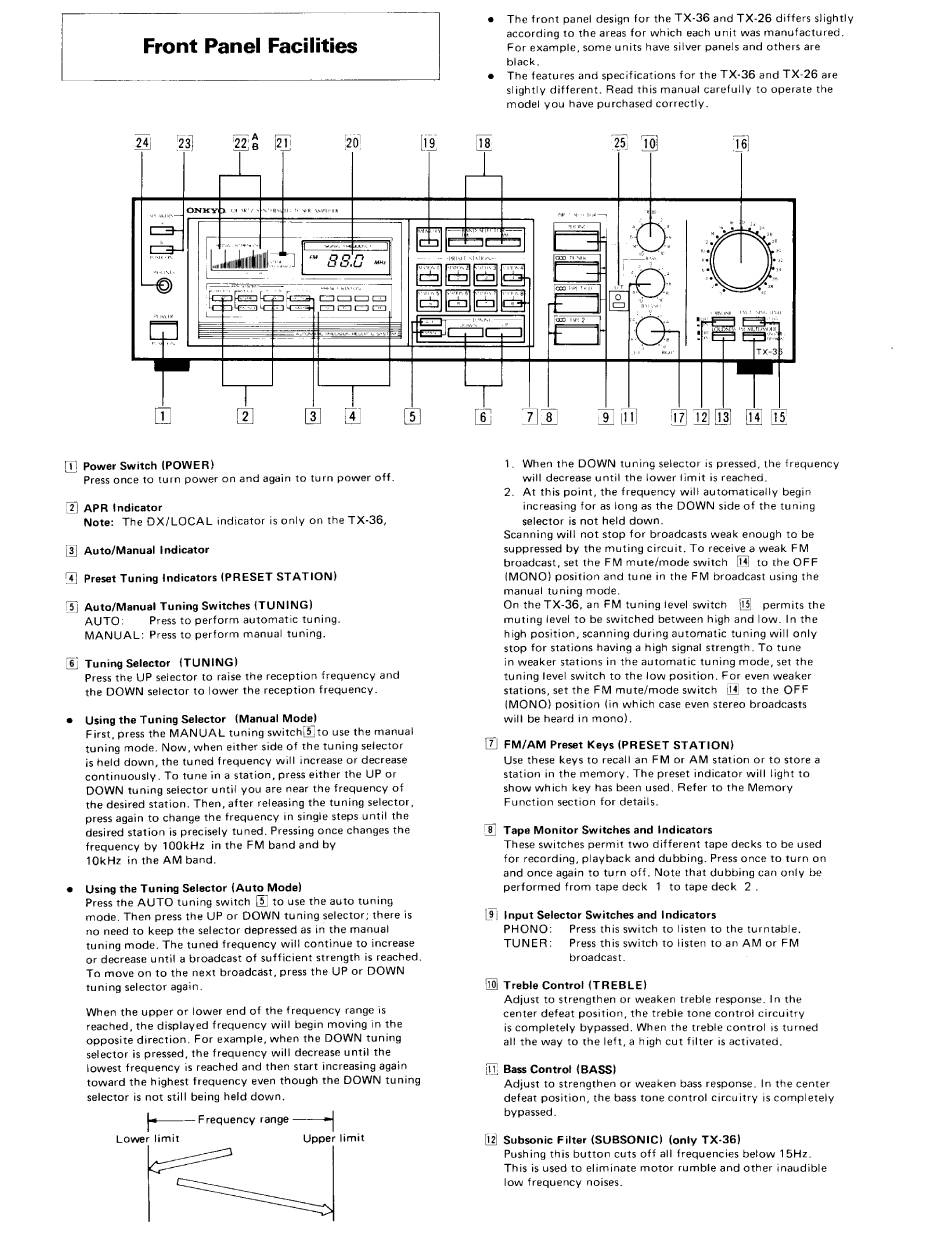

Front Panel Facilities
rn!
@ The front panel design for the TX-36 and TX-26 differs slightly
according to the areas for which each unit was manufactured.
For example, some units have silver panels and others are
black.
@ The features and specifications for the TX-36 and T X-26 are
slightly different. Read this manual carefully to operate the
model you have purchased correctly.
19 18 5 10) 16
pos spoof ute Aweuie a
esas
-- -PRISET STATION»
° co) ices |co
= - - -
a oo Db te FOTN TIDY
Svyrios SE STATIS BD Bravws F
co
o [3] 4 5 (6) 7/8) |} 12) (13) (14) 15
Power Switch (POWER)
Press once to turn power on and again to turn power off.
APR Indicator
Note: The DX/LOCAL indicator is only on the TX-36,
Auto/Manual Indicator
Preset Tuning Indicators (PRESET STATION)
Auto/Manual Tuning Switches (TUNING)
AUTO: Press to perform automatic tuning.
MANUAL: Press to perform manual tuning.
Tuning Selector (TUNING)
Press the UP selector to raise the reception frequency and
the DOWN selector to lower the reception frequency.
Using the Tuning Selector (Manual Mode)
10kHz itn the AM band.
Using the Tuning Selector (Auto Mode)
Press the AUTO tuning switch [5] to use the auto tuning
mode. Then press the UP or DOWN tuning selector; there is
no need to keep the selector depressed as in the manual
tuning mode. The tuned frequency will continue to increase
or decrease unti! a broadcast of sufficient strength is reached.
To move on to the next broadcast, press the UP or DOWN
tuning selector again.
When the upper or lower end of the frequency range \s
reached, the displayed frequency will begin moving in the
opposite direction. For example, when the DOWN tuning
selector is pressed, the frequency will decrease until the
lowest frequency is reached and then start increasing again
toward the highest frequency even though the DOWN tuning
selector is not still being held down.
-~¥—_— Frequency range ——+|
Lower limit Upper limit
1. When the DOWN tuning selector is pressed, the frequency
will decrease until the lower limit is reached.
2. At this point, the frequency will automatically begin
increasing for as tong as the DOWN side of the tuning
selector is not held down,
Scanning will not stop for broadcasts weak enough to be
suppressed by the muting circuit. To receive a weak FM
broadcast, set the FM mute/mode switch [14] to the OFF
(MONO} position and tune in the FM broadcast using the
manual tuning mode.
On the TX-36, an FM tuning evel switch [15] permits the
muting level to be switched between high and low. In the
high position, scanning during automatic tuning will only
stop for stations having a high signal strength. To tune
in weaker stations in the automatic tuning mode, set the
tuning level switch to the low position. For even weaker
stations, set the FM mute/mode switch 14] to the OFF
(MONO} position (in which case even stereo broadcasts
will be heard in mono).
[7] FM/AM Preset Keys (PRESET STATION)
Use these keys to recall an FM or AM station or to store a
station in the memory. The preset indicator will light to
show which key has been used. Refer to the Memory
Function section for details.
[8] Tape Monitor Switches and Indicators
These switches permit two different tape decks to be used
for recording, playback and dubbing. Press once to turn on
and once again to turn off. Note that dubbing can only be
performed from tape deck 1 to tape deck 2.
eo
Input Selector Switches and Indicators
PHONO: Press this switch to listen to the turntable,
TUNER: Press this switch to listen to an AM or FM
broadcast.
Treble Control (TREBLE)
Adjust to strengthen or weaken treble response. In the
center defeat position, the treble tone control circuitry
is completely bypassed. When the treble control is turned
all the way to the left, a high cut filter is activated.
11; Bass Control (BASS)
Adiust to strengthen or weaken bass response. In the center
defeat position, the bass tone control circuitry is completely
bypassed.
12] Subsonic Filter (SUBSONIC) (only TX-36)
Pushing this button cuts off all frequencies below 15Hz.
This is used to eliminate motor rumble and other inaudible
low frequency noises.
