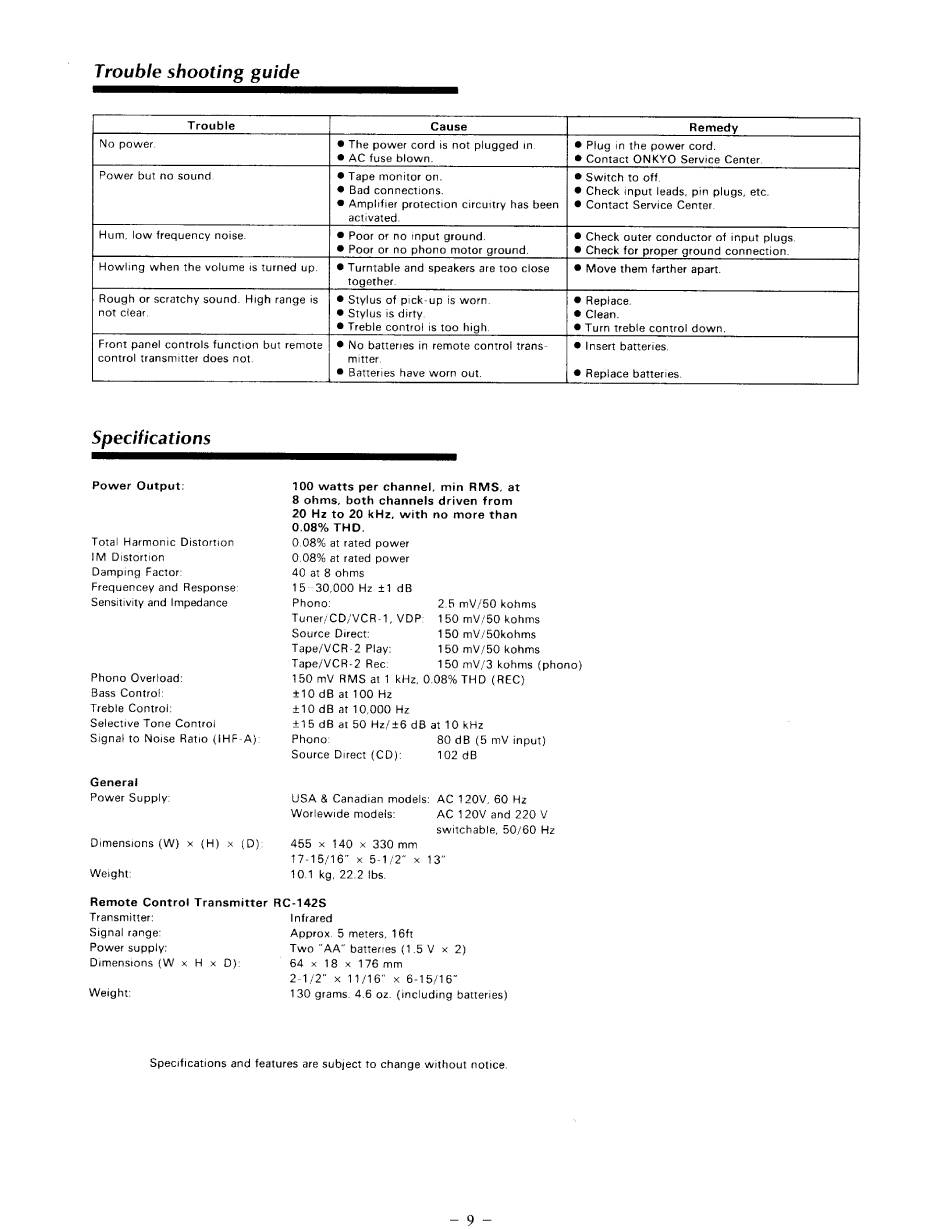

Trouble shooting guide
a
ene
Trouble
No power.
® The power cord is not plugged in.
@ Plug in the power cord.
® AC fuse blown.
®@ Contact ONKYO
Service Center.
Power but no sound.
® Tape monitor on.
® Switch to off.
® Bad connections.
® Check input leads, pin plugs, etc.
@ Amplifier protection circuitry has been | @ Contact Service Center.
activated.
Hum, low frequency noise.
@ Poor or no tnput ground.
® Check outer conductor of input plugs.
® Poor or no phono motor ground.
® Check for proper ground connection.
Howling when the volume is turned up.
} @ Turntable and speakers are too close
® Move them farther apart.
together.
Rough or scratchy sound. High range is } @ Stylus of pick-up is worn.
@ Replace.
not clear.
@ Stylus ts dirty.
@ Clean.
® Treble control is too high.
@ Turn treble control down.
® No batteries in remote contro! trans-
® Insert batteries.
mitter.
@ Batteries have worn
out.
Front panel controls function but remote
control transmitter does not.
® Replace batteries.
Specifications
eee erereeeeeeee
ee
Power
Output:
100 watts per channel,
min RMS,
at
8 ohms,
both channels
driven
from
20 Hz to 20 kHz, with
no more than
0.08% THD.
Total Harmonic
Distortion
0.08% at rated power
iM Distortion
0.08% at rated power
Damping Factor:
40 at 8 ohms
Frequencey and Response:
15-30,000
Hz +1 dB
Sensitivity and Impedance
Phono:
2.65 mV/50 kohms
Tuner/CD/VCR-1,
VDP:
150 mV/50 kohms
Source Direct:
150 mV/50kohms
Tape/VCR-2
Play:
150 mV/50 kohms
Tape/VCR-2
Rec:
150 mV/3 kohms (phono)
Phono Overload:
150 mV RMS at 1 kHz, 0.08% THD
(REC)
Bass Control:
+10 dB at 100 Hz
Treble Control:
+10 dB at 10,000 Hz
Selective Tone Control
+15 dB at 50 Hz/+6 dB at 10 kHz
Signal to Noise Ratio (IHF-A):
Phono:
80 dB (5 mV input)
Source Direct (CD):
102 dB
General
Power Supply:
USA & Canadian models:
AC 120V, 60 Hz
Worlewide models:
AC 120V and 220 V
switchable, 50/60 Hz
Dimensions (W)
x (H) x (D):
455
x 140 x 330 mm
17-15/16"
«x 5-1/2"
«x 13"
Weight:
10.1 kg, 22.2 'bs.
Remote
Controi Transmitter
RC-142S
Transmitter:
Infrared
Signal range:
Approx. 5 meters, 16ft
Power supply:
Two "AA" batteries (1.5 V x 2)
Dimensions (W x H x D):
64
x 18 x 176 mm
2-1/2"
x 11/16"
x 6-15/16"
Weight:
130 grams. 4.6 oz. (including batteries)
Specifications and features are subject to change without notice.
